ART MX822 8-Channel Stereo Mixer with Effects Loop

SKU : ART-MX822
Sold out
Rs. 19,920
Rs. 18,799

Or Just Rs. 3,133 Rs. for 6 months
0%* Interest EMI available for all major credit cards and Bajaj Finserv Card. Call +91-22-61235384

Limited Period Offer : Don't forget to use Coupon Code: " INSTANT4 " at checkout for additional 4% discount.

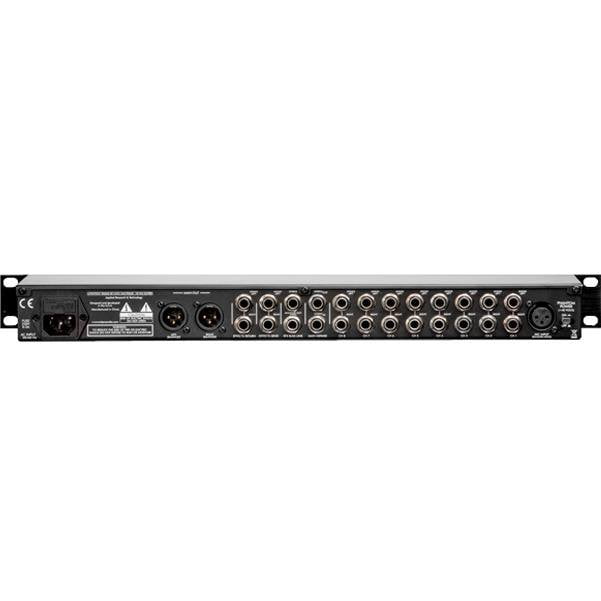

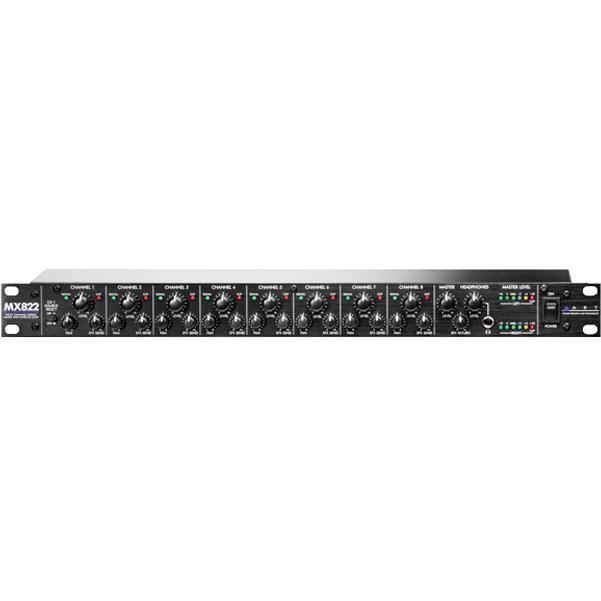

ART MX822 8-Channel Stereo Mixer with Effects Loop Overview:

The ART MX822 Eight Channel Stereo Rackmount Mixer is a versatile eight input mixer for studio, live sound or installation applications. Each input accepts a mono or stereo signal and provides independent level, pan and effects send controls. Channel One includes a switchable mic/line source select and the XLR mic connector provides switchable phantom power.

Multiple MX822s may be chained for additional inputs using common 1/4-inch TRS cables. External effects processors can be linked in and mixed with independent level controls. A front panel headphone jack with separate level control allows independent monitoring.

Features:
  • Eight stereo/mono input channels with individual level, pan and effects send controls
  • External effects loop with independent send and return controls
  • Front panel 1/4-inch stereo (TRS) headphone jack with amplifier and independent level control for
  • output monitoring
  • Switchable balanced microphone XLR or 1/4-inch inputs on Channel One
  • Switchable low noise +48V phantom power for microphone input
  • Separate green and red LED signal and clip indicators for each input channel
  • Six level left and right main output metering including clip indicators
  • Balanced left and right XLR main outputs
  • Multiple units may be chained together for additional inputs
  • Rugged 1U rack mount steel case
Specifications:
  • Input Connections:
  • XLR-F balanced (MIC)
  • 1/4" TRS unbalanced (Ch1-Ch8, Effects Return)
  • 1/4" TRS stereo unbalanced (EFX Buss, Main Expand)
  • Output Connections:
  • XLR-M balanced (Main)
  • 1/4" TRS unbalanced (Effectss Send)
  • 1/4" TRS stereo unbalanced (Monitor, Main Expand, Headphone)
  • Input Impedance: 1k Ω (MIC), 5k Ω (Ch1-Ch8)
  • Output Impedance: <1k Ω (Main, balanced), <25 Ω (Headphone)
  • Total Harmonic Distortion: <0.01% @ 1kHz
  • Signal to Noise Ratio: > 90dB typical (Ref 0dBu)
  • Maximum Input Level: -19dBu (MIC), +24dBu (Ch1-8)
  • Maximum Output Level: +24dBu (Main), +18dBu (Monitor, Effects Send)
  • Maximum Gain: +60dB (MIC), +14dB (Ch1-8)
  • Phantom Power: Switch Selectable, +48V DC, filtered, current limited
  • Power Requirements: USA - 95 to 125 VAC, 50-60 Hz
  • Export units configured for country of destination
  • Dimensions: 1.75"H x 19"W x 6"D (44.5mm x 483mm x 152mm)
  • Weight: 6.5 lbs (2.95 kg)
