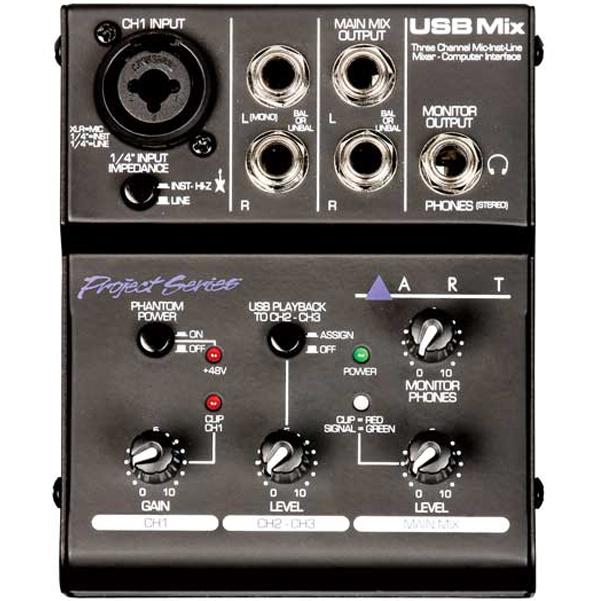

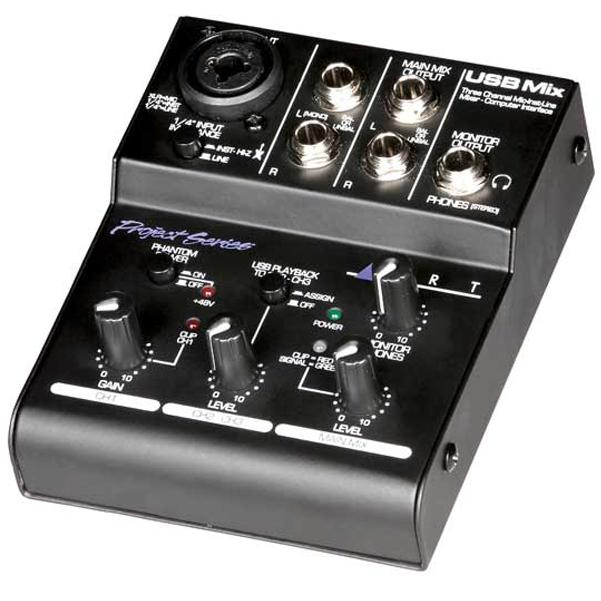

ART USB Mix Project Series Three Channel Mixer and USB Audio Interface Overview: The ART USB Mix Three Channel Microphone, Instrument, and Line Mixer / Computer Interface is a compact versatile audio interface for your computer that converts analog signals from a variety of audio sources to USB Audio The USB Mix provides a great starting point for personal home studio recording or for anyone wanting to do mobile location recording.
Features: USB powered, no external power supply needed when used with a computer Microphone (balanced XLR) input or instrument (unbalanced 1/4" TS) input with switchable \n impedance \n Switchable low noise +48V phantom power for microphone \n Balanced 1/4" TRS inputs for stereo or mono line-level sources 1/4" TRS output jacks work with balanced or unbalanced lines \n Stereo 1/4" TRS headphone jack with independent level control for output monitoring Independent controls for both sets of inputs, main output, and headphone monitor Green/Red LED signal/clip indicator Switchable assignment of USB playback to channels 2 and 3 USB 2.0 compliant No special drivers needed with most modern versions of Windows, Mac OS, and Linux USB cable, AC adapter, and Audacity recording software included Rugged steel case Specifications: Input Connections: XLR balanced / 1/4" unbalanced “Combo” jack (Ch1 input) \n 1/4" balanced or unbalanced (Ch2-Ch3 inputs) Output Connections: 1/4" TRS balanced (Main Mix outputs) \n 1/4" TRS stereo (Monitor output) Input Impedance: 240k Ohms (Inst-HiZ), 20k Ohms (Line) (Ch1, Ch2-Ch3 1/4" inputs) \n >4k Ohms (Ch1 XLR input) \n Output Impedance: \n <1k Ohms (balanced 1/4"), <500 Ohms (unbalanced 1/4") \n 100 Ohms (Monitor output) \n Frequency Response: 20 Hz – 20 kHz (+0, -1 dB) \n THD: <0.01% @ 1 kHz \n CMRR: >54dB typical \n Phase Response: All connections are phase coherent \n Signal to Noise Ratio: >90dB typical (Ref 0dBu) \n Equivalent Input Noise: -120dBu typical (XLR balanced, max gain), -100dBu typical (1/4") Maximum Input Level: +4dBu (XLR input), +14dBu (1/4" input) \n Maximum Output Level: +14dBu (Main Mix outputs), +13dBu (Monitor output) \n Maximum Gain: \n (In to Main Out): +53dB (XLR), +32dB (1/4") (Ch1 input), +10dB (1/4") (Ch2-Ch3 inputs) \n (In to USB): +44dB (XLR), +23dB (1/4") (Ch1 input), +1dB (1/4") (Ch2-Ch3 inputs) \n (USB to Out): +14dB (Main Mix outputs), +13dB (Monitor output) \n Phantom Power: Switch selectable, +48V DC, filtered, current limited \n A/D-D/A: \n 16 Bit, 44.1 kHz or 48 kHz, USB selectable from computer \n 0.4 ms A/D latency @ 44.1 kHz \n Computer Interface: \n USB 2.0 compliant, Windows 7, Vista, XP, 2000, ME, 98SE \n Mac OS 9.1 / OS X computers with native USB support, Linux \n Chassis Type: All steel black finish \n Power Requirements: 5.0V DC @ <500 mA (external) or USB bus powered @ 150 mA typical \n Dimensions (HWD): 1.6" x 4.0" x 4.75" (41mm x 101mm x 121mm) Weight: .1 lbs (0.5 kg) with power supply and USB cable.
