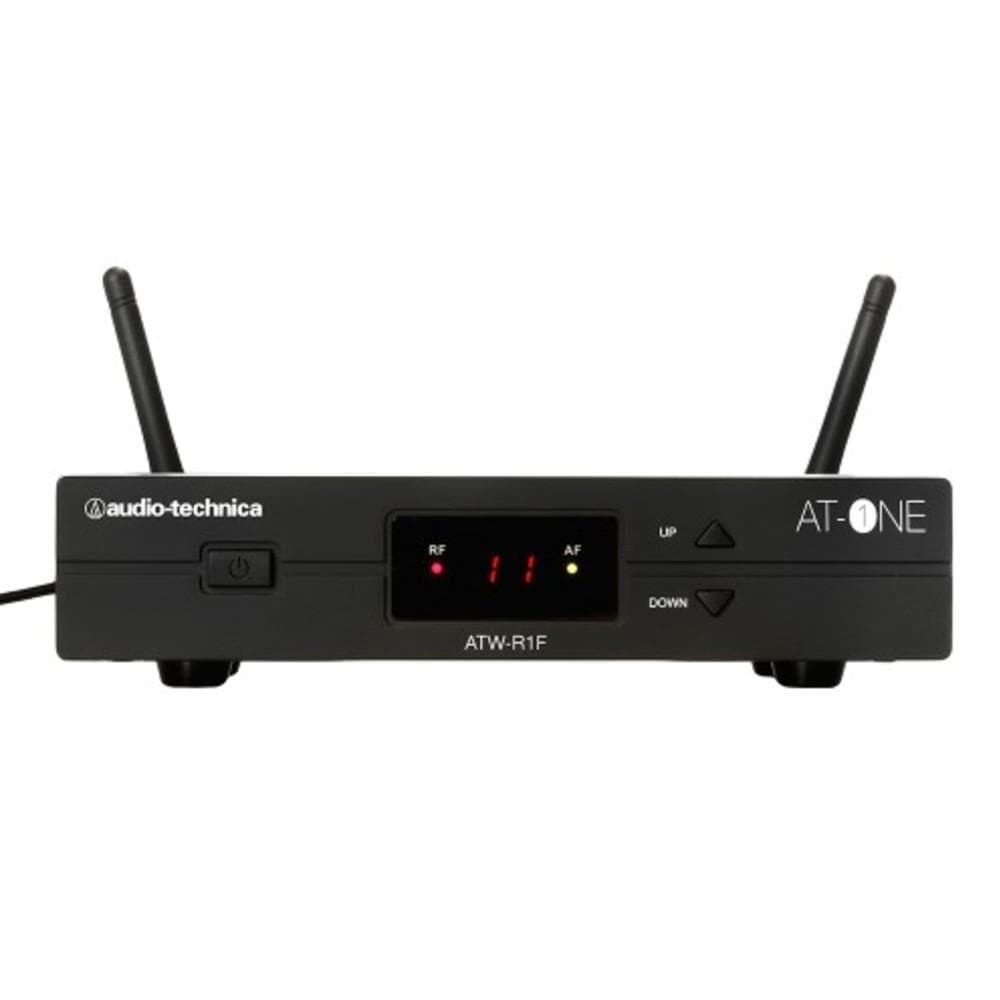

Audio-Technica ATW-13 AT-One Handheld Transmitter System

Audio-Technica ATW-13 AT-One Handheld Transmitter System Overview: AT-One, Audio-Technica’s entry level UHF wireless system With a 2 x 4 channel frequency plan for enhanced flexibility, sturdy but stylish build quality and a simple user interface, AT-One is ready to become your perfect wireless companion.

AT-One is designed with simplicity and ease-of-use in mind Equipped with a practical carrying case, rack-mount kit and detachable antennae, AT-One is the perfect balance of price and performance, ideal for those looking for accurate, reliable performance at an entry level price.

The AT-One’s frequency plan is divided into two groups with 4 available channels in each group split between the Europe wide license free frequency range and the LTE duplex gap Users can choose up to 4 channels within one group.

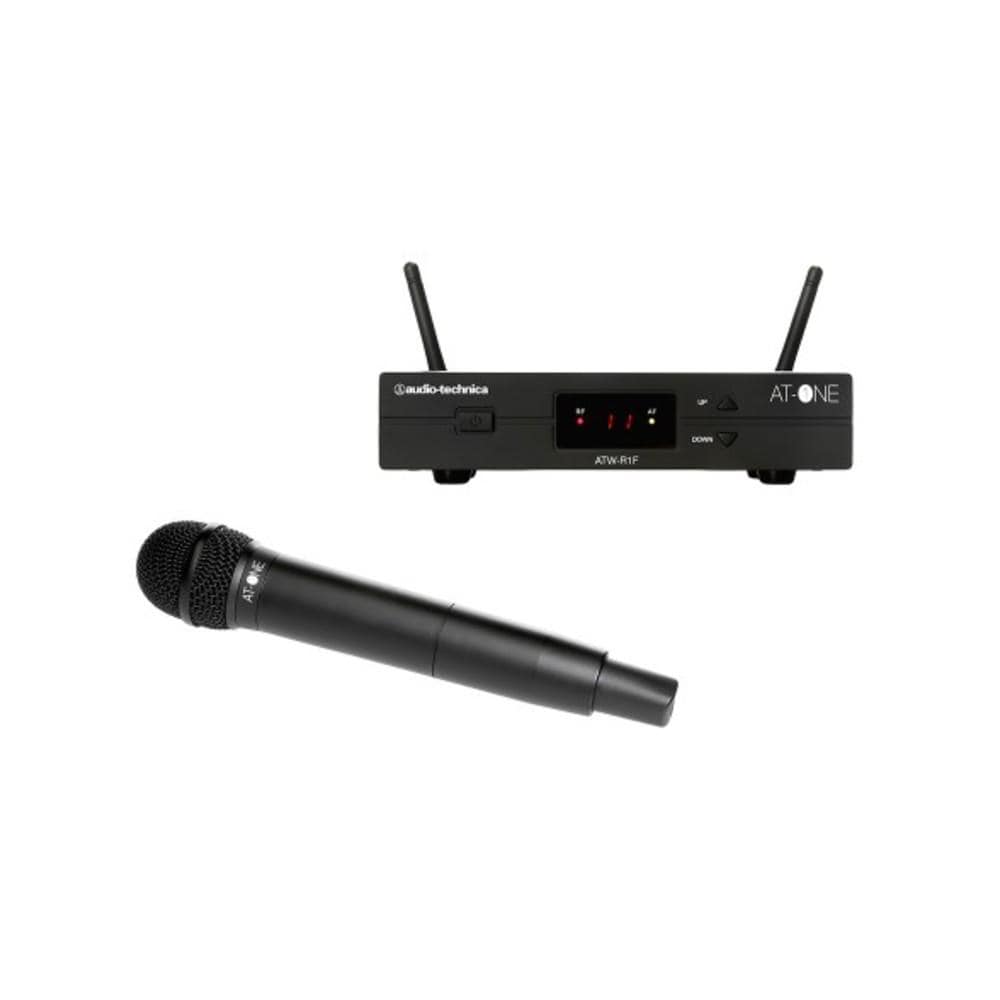

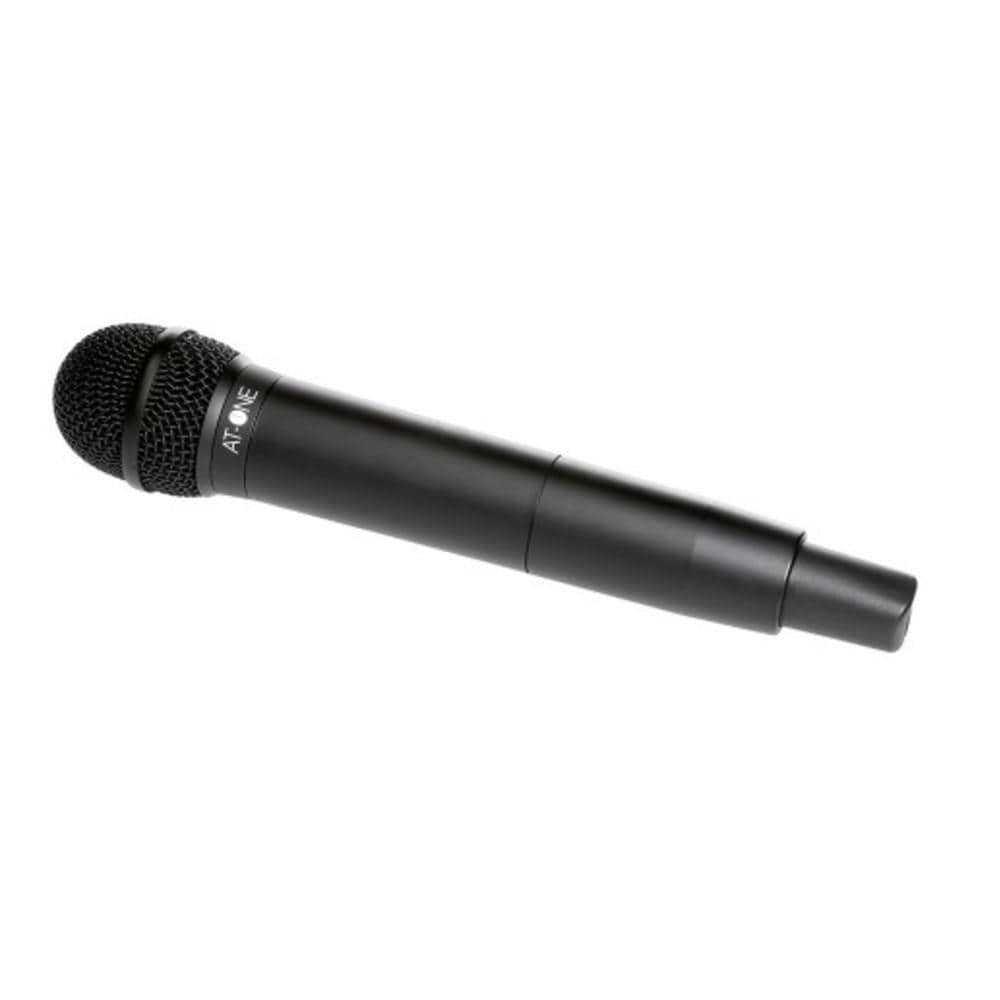

The ATW-13 handheld system features the ATW-T3 cardioid condenser handheld transmitter, again with 10mW RF output and 10 hour battery life Features: Designed for quick and easy use Perfect balance between price and performance, the AT-One is ideal for those looking for reliable results at low prices The frequency plan of AT-One is divided into two groups with 4 channels available in each group, one in the range of authorized European frequencies and the other in the duplex Gap Users can choose up to 4 channels in a group The ATW-13 system is equipped with a cardioid condenser handheld transmitter RF transmission power 10mW Up to 10 hours' battery life with 2 x 1.5V AA batteries RF Indicator light Robust construction from high quality components Delivered in a transport case with a rack mount kit and detachable antennas Specifications: Overall System Operating Frequencies F-Band: 824 - 831 MHz, 863 - 865 MHz Number Of Channels 2 x 4 frequencies Frequency Stability +/- 0.005%, Phase lock loop frequency control Modulation Mode FM Frequency Response 60 Hz - 16 kHz Operating Range 60m, typical Receiver Receiving System Antenna switching diversity Image Rejection 55dB minimum Dynamic Range HH: 108 dB, BP 103 dB (@ max deviation) Sensitivity 10dBµV (S/N 60dB @ 20 kHz deviation) Total Harmonic Distortion <1% - 20 kHz deviation @ 1 kHz Audio Output Unbalanced -2dBV Audio Output Balanced 4dBV Output Connectors (Microphone) Balanced: XLRM-type Output Connectors (Instrument) Unbalanced: 6.3 mm mono jack Maximum Output Level Mic / Line (0 / -20dB) Antenna Input BNC type, 50 - BIAS voltage 12V DC 100mA each Dimensions 200 mm x 42 mm x 122 mm (W x H x D) Weight 418 g without accessories Accessories Included AC Adapter, Antennas, Rack mount adapter, protective carrying case Handheld Transmitter RF Power Output 10 mW Spurious Emissions Following national regulatios Microphone Element Condenser Cardioid Battery Type Two 1.5V AA alkaline Battery Life 10 hours - depending on battery type and use pattern Dimensions 268 mm long - 52 mm (diameter) Accessories Included Stand clamp.
