Audio-Technica ES947 Cardioid Condenser Boundary Microphone

The new Engineered Sound Contractor-exclusive innovations for every acoustical challenge.

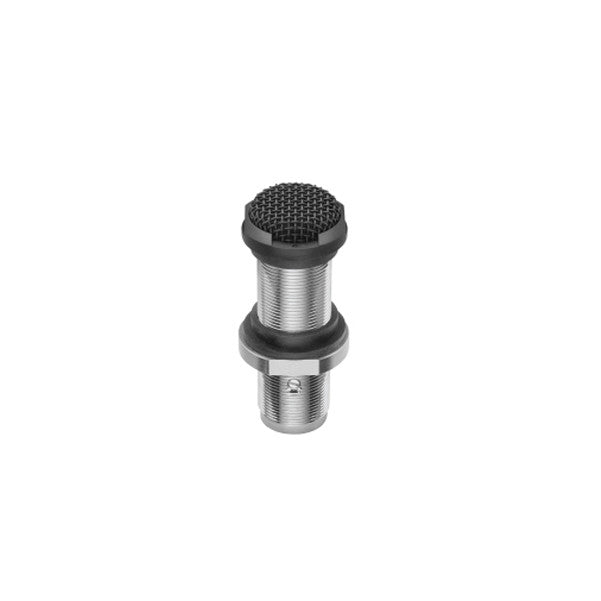

And safe haven from RFI This low-profile cardioid condenser boundary microphone is recommended for unobtrusive table-, ceiling-, or panel-mount applications in high-quality sound reinforcement, professional recording and teleconferencing.

Designed for permanent installation, the microphone is equipped with a self-contained power module with an XLRM-type output connector, eliminating the need for an external power module Protected by a rugged all-metal case with a two-layer steel mesh grille, the microphone has a cardioid pattern for enhanced gain before feedback and improved signal-to-noise ratio.

It is available in two colors: black (ES947) and white (ES947W) Audio Technica ES947 Features: Designed for surface-mount applications such as high-quality sound reinforcement, professional recording and teleconferencing Low-profile element provides uniform cardioid polar pattern with 120Œ_ acceptance angle Mounts unobtrusively in table-tops, ceilings and wall panels Self-contained power module with XLRM-type output connector Rugged all-metal case with a two-layer steel mesh grille Isolators provide mechanical dampening of mounting-surface vibration Requires 11V to 52V DC phantom power UniGuardŒ¬ RFI-shielding technology offers outstanding rejection of radio frequency interference (RFI) Available in two colors: black (ES947) and white (ES947W)Œæ RoHS compliantäóîfree from all substances specified in the EU directive on hazardous substances Audio Technica ES947 Specifications: Element: Fixed-charge back plate, permanently polarized condenser Polar Pattern: Half-cardioid (Cardioid in hemisphere above mounting surface) Frequency Response: 40-12,000 Hz Open Circuit Sensitivity: -42 dB (7.9 mV) re 1V at 1 Pa Impedance: 200 ohms Maximum Input Sound Level: 142 dB SPL, 1 kHz at 1% T.H.D.

Dynamic Range (typical): 113 dB, 1 kHz at Max SPL Signal-To-Noise Ratio: 65 dB, 1 kHz at 1 Pa Phantom Power Requirements: 11-52V DC, 2 mA typical Weight: 64 g (2.3 oz) Dimesnsions: 69.0 mm (2.72") long,ξ 30.0 mm (1.18") diameter Output Connector: Integral 3-pin XLRM-type.
