5% OFF
AZDEN1201URXSIS
Shipping Details
Out of stock

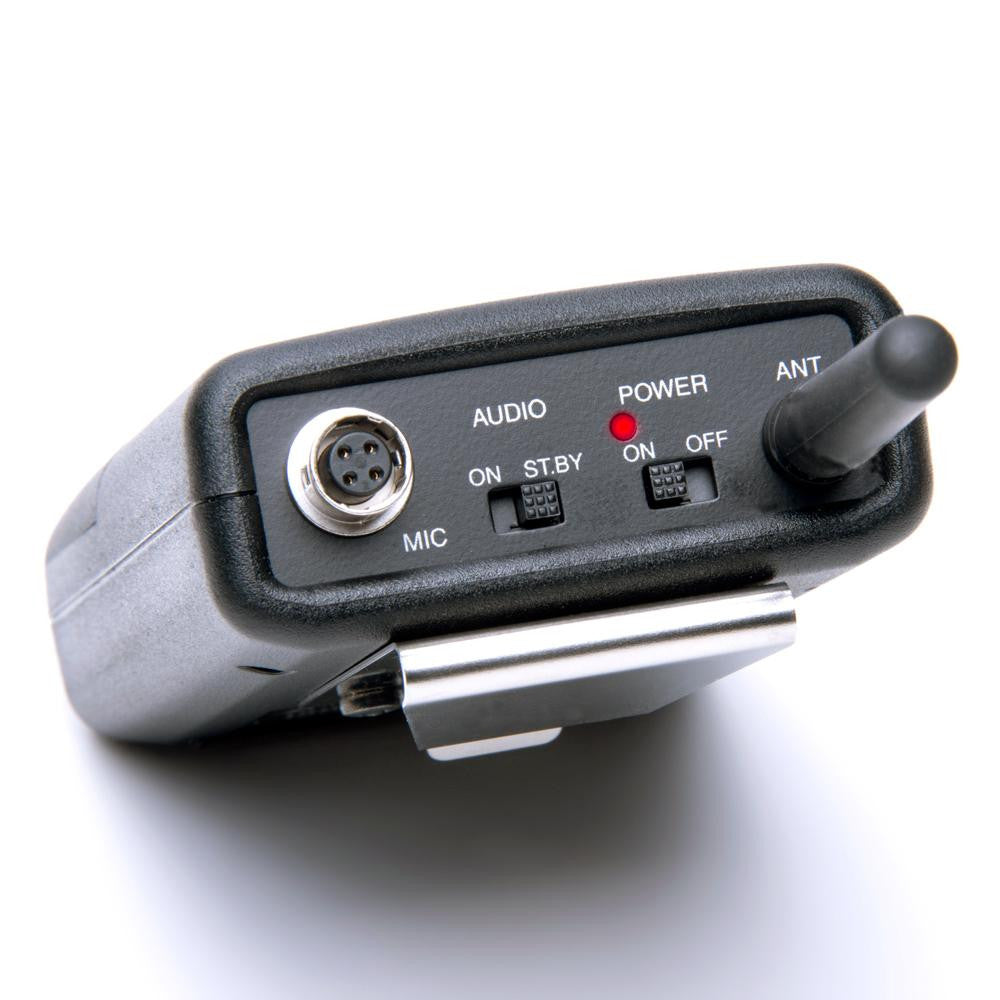

The Azden 1201SiS wireless microphone system combines the 1201URX/Si slot-in receiver with the 1201BT body-pack transmitter and ECM-44H Sony lavalier microphone (Specify Panasonic or Sony type slot-in.) Azden's 1201 Series wireless microphone systems are designed for professional applications.
They offer 188 user selectable, DTV compliant frequencies and true-diversity technology with two complete front-ends and high-gain antennas to maximize reception and range while greatly reducing interference and drop-out Both transmitter and receiver feature multi-function digital displays and rugged construction.
The receiver uses 12VDC camera power, and the transmitter is powered via 2-AA alkaline batteries for up to 8-hours The Azden 1201 Series is a viable choice for broadcast, ENG, EFP, video & film shoots.
Specifications:- 1201URX/Si RF Carrier Frequency Range: 188 steps ~ 638.125 – 661.875 MHz Micro Computer Controlled PLL Synth Noise Reduction: Expander (THAT) Effective Operating Range: 200 – 300 ft ~ 60 – 100m Frequency Response: 50 – 15kHz (± 1.5dB) RF Sensitivity: (12dB SINAD) 1.2μV Adjacent Channel Selectivity: > 70dB (± 250kHz) Image Rejection: > 93dB IF Rejection: > 93dB Audio THD: 62dB (± 5kHz Deviation) “A” Weighted Power Requirements: 10 – 17V DC @ 200mA for 1201URXSi Dimensions: 68W x 84H x 18D mm – 1200URX/Si insertion Operating Temperature Range: -50 – +122 F ~ -10 – +50 C Weight: 8.8 ounces ~ 250g for 1201URX/Si 1201BT Output Power: 30mW Max Modulation Sensitivity: -4dBm MIC Level / Imped.: -56dBm / 2.2kΩ (± 5kHz Deviation) Power Requirements: 3V DC (2 “AA” Alkaline) @ less than 150mA Dimensions: 2.48 (W) x 3.86 (H) x 1.12 (D) inches 63 (W) x 98 (H) x 28.5 (D) mm Weight: w/Battery 6.35 ounces ~ 180g.
