Azden 1201VMT Series UHF Wireless Microphone System

Azden 1201VMT Series UHF Wireless Microphone System

This item is out of stock

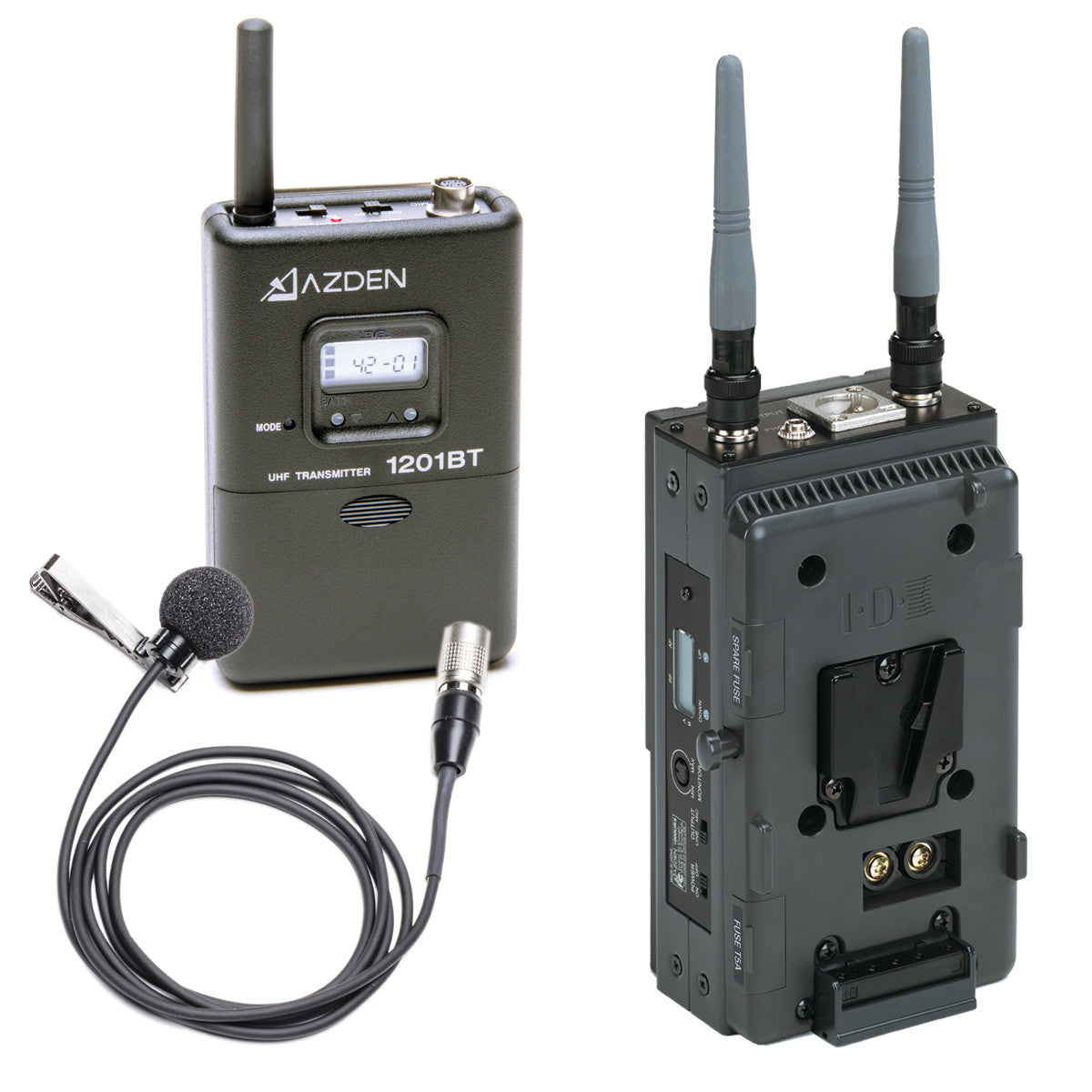

The Azden 1201VMT wireless microphone system combines the 1201URX/VM (V-Mount) receiver with the 1201BT plug-in transmitter and EX-503H lavalier microphone..

Azden's 1201 Series wireless microphone systems are designed for professional applications. They offer 188 user selectable, DTV compliant frequencies and true-diversity technology with two complete front-ends and high-gain antennas to maximize reception and range while greatly reducing interference and drop-out. Both transmitter and receiver feature multi-function digital displays and rugged construction. The receiver uses 12VDC camera power, and the transmitter is powered via 2-AA alkaline batteries for up to 8-hours.

The Azden 1201 Series is a viable choice for broadcast, ENG, EFP, video & film shoots.

Features

  • V-Mount battery adapter case
  • 1201BT with EX-503H lavalier mic
  • 188 DTV frequencies / 4 UHF TV bands
  • True diversity system
  • Improved image rejection, S/N ratio & superior diversity isolation
  • Multi-function LCD shows channel, frequency, battery info, AF level, and diversity operation.

Specifications

1201URX/VM

  • RF Carrier Frequency Range: 188 steps ~ 638.125 – 661.875 MHz
  • Micro Computer Controlled PLL Synth.
  • Noise Reduction: Expander (THAT)
  • Effective Operating Range: 200 – 300 ft ~ 60 – 100m
  • Frequency Response: 50 – 15kHz (± 1.5dB)
  • RF Sensitivity: (12dB SINAD) 1.2μV
  • Adjacent Channel Selectivity: > 70dB (± 250kHz)
  • Image Rejection: > 93dB
  • IF Rejection: > 93dB
  • Audio THD: 62dB (± 5kHz Deviation) “A” Weighted
  • Power Requirements: 11 – 15V DC @ 220mA
  • Dimensions: 82W x 150H x 60D mm – 1201URX/VM
  • Operating Temperature Range: -50 – +122 F ~ -10 – +50 C
  • Weight: 26.45ounces ~ 750g for 1201URX/VM

1201BT

  • Output Power: 30mW
  • Max Modulation Sensitivity: -4dBm
  • MIC Level / Imped.: -56dBm / 2.2kΩ (± 5kHz Deviation)
  • Power Requirements: 3V DC (2 “AA” Alkaline) @ less than 150mA
  • Dimensions: 2.48 (W) x 3.86 (H) x 1.12 (D) inches
  • 63 (W) x 98 (H) x 28.5 (D) mm
  • Weight: w/Battery 6.35 ounces ~ 180g
