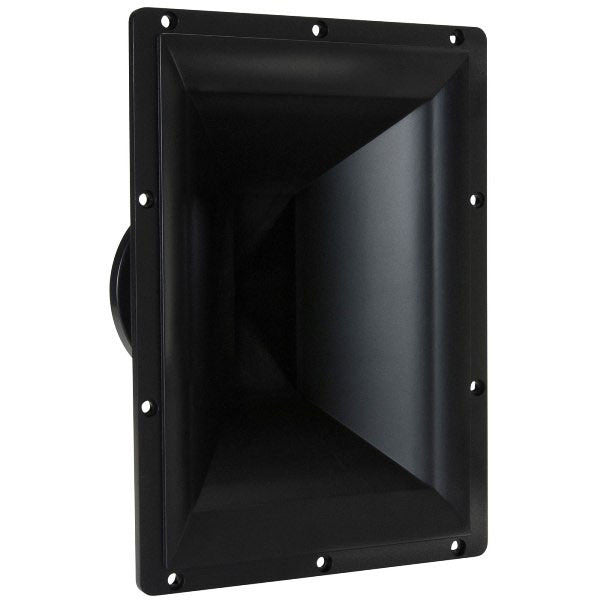

BAJAAO 7inch x 10inch Horn Tweeter with 1inch Titanium Compression Driver

BAJAAO 7" x 10" Horn Tweeter with 1" Titanium Compression Driver \r\n This horn and driver combination was developed for use in a famous manufacturer's THX Ultra2 dual 6-1/2" 2-way loudspeaker system The reinforced plastic horn's advanced Tractrix geometry ensures controlled dispersion combined with an absolute minimum of distortion.

_x005F High efficiency and smooth response required for THX Ultra2 certification is provided by the pre-mounted 4-ohm titanium diaphragm compression driver, which features a 9.6 oz ceramic magnet incorporated into an optimized motor structure.

The fluid-cooled magnet system is shielded to prevent harmful interaction with sensitive equipment Vertical orientation of the horn's long axis is recommended for optimum horizontal dispersion.

_x005F BAJAAO 7" x 10" Horn Tweeter Features: _x005F _x005F Famous makers THX Ultra2-spec HF transducer _x005F 90° x 60° Tractrix horn design provides even coverage and low distortion _x005F Titanium diaphragm for durability and crisp, clean response _x005F Ferrofluid cooled voice coil increases power handling _x005F Shielded 9.6 oz ceramic magnet.

_x005F BAJAAO 7" x 10" Horn Tweeter Specifications: _x005F _x005F Power handling: 20 watts RMS/40 watts max _x005F VCdia: 1" \r\n Le (@ 10 kHz): 0.05 mH \r\n Impedance: 4 ohms \r\n Re: 2.94 ohms \r\n Frequency response: 4,000-22,000 Hz \r\n Fs: 2,800 Hz \r\n Recommended crossover: 4,000 Hz @ 12 dB/octave \r\n SPL: 99 dB 1W/1m \r\n Dimensions: 10-11/16" H x 7-1/2" W x 7" D _x005F Cutout dimensions: 9-1/2" H x 6-1/4" W _x005F Made in India.
