Boss DD-200 Digital Delay Guitar Effect Pedal

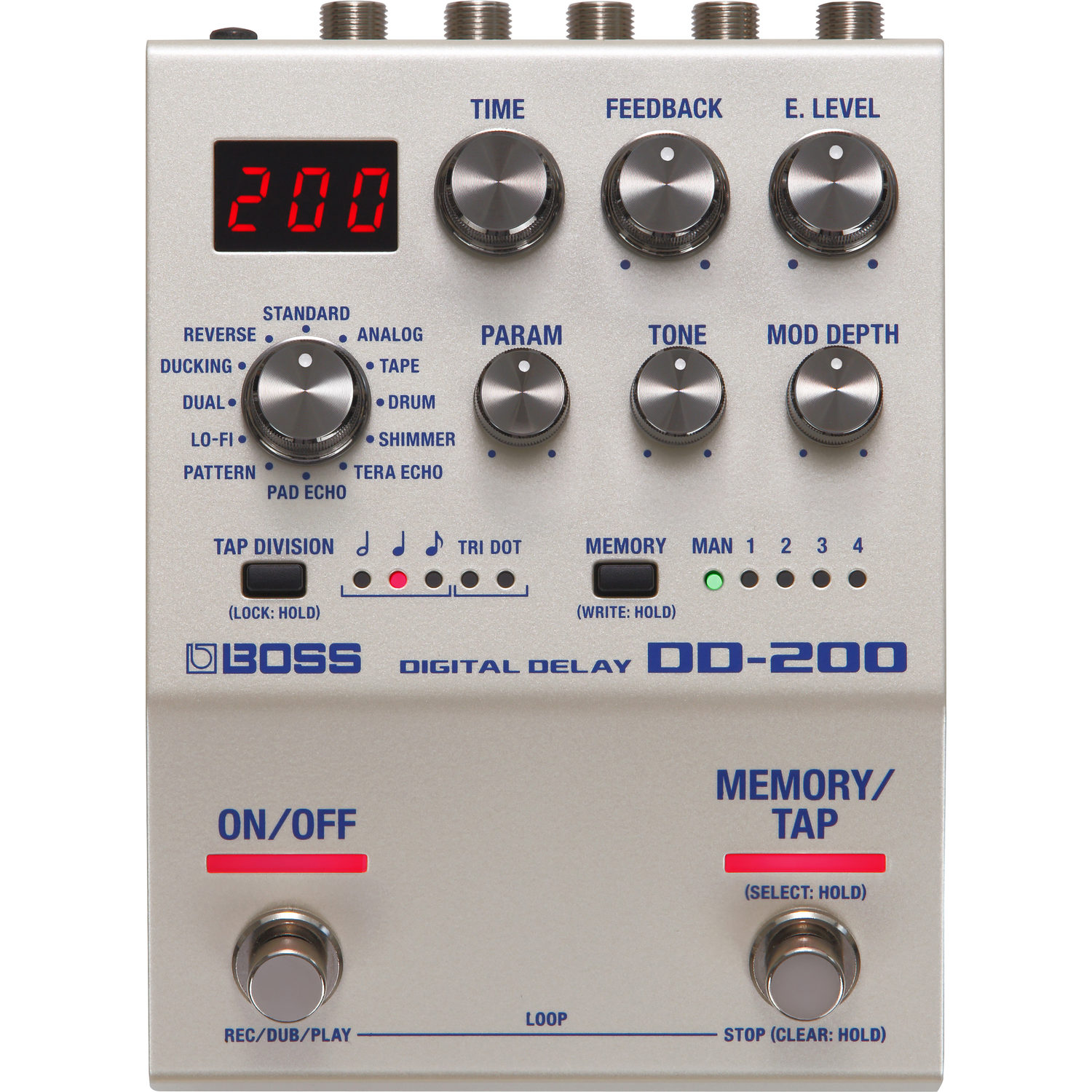

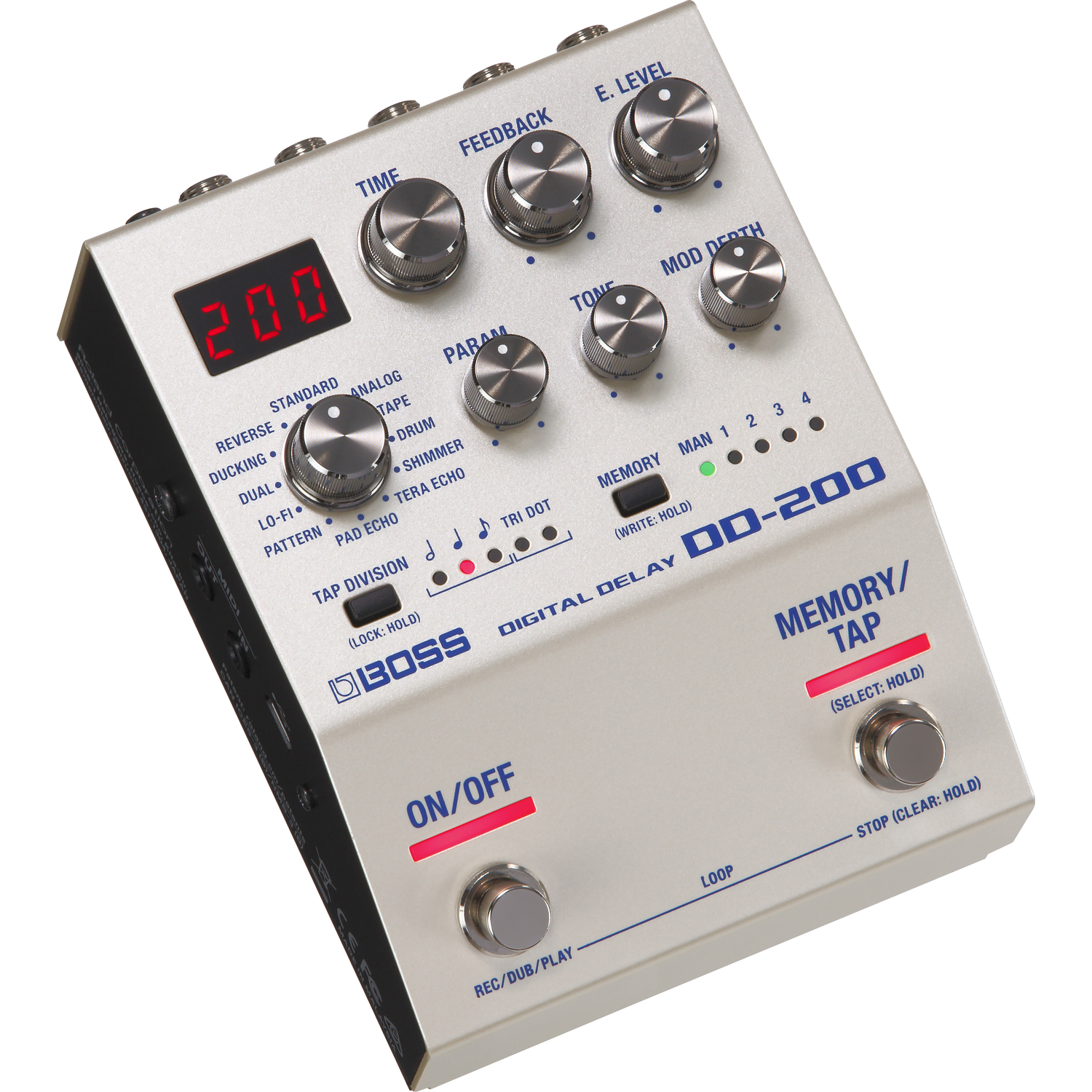

Boss DD-200 Digital Delay Guitar Effect Pedal Overview: SIMPLY SOPHISTICATED With the 200 series, BOSS introduces a new generation of pedals that pack advanced sound and versatility into a streamlined size that saves space on your board Grab-and-go controls and multi-function switches make operation easy and intuitive, while onboard memories allow you to store multiple setups for instant recall.

All 200 series pedals feature premium audio quality with 32-bit AD/DA, 32-bit internal processing, and 96 kHz sampling rate, as well as support for additional control via external switches, an expression pedal, or MIDI The DD-200 Digital Delay brings together sounds and features inherited from the flagship DD-500 into an even smaller footprint.

Twelve different modes offer an inspiring variety of delay colors from modern digital to classic analog, letting you dial up everything from basic echoes to rich ambient pads and everything in-between There’s also a looper that’s always ready to use, plus a selectable carryover function for seamless transitions between memories.

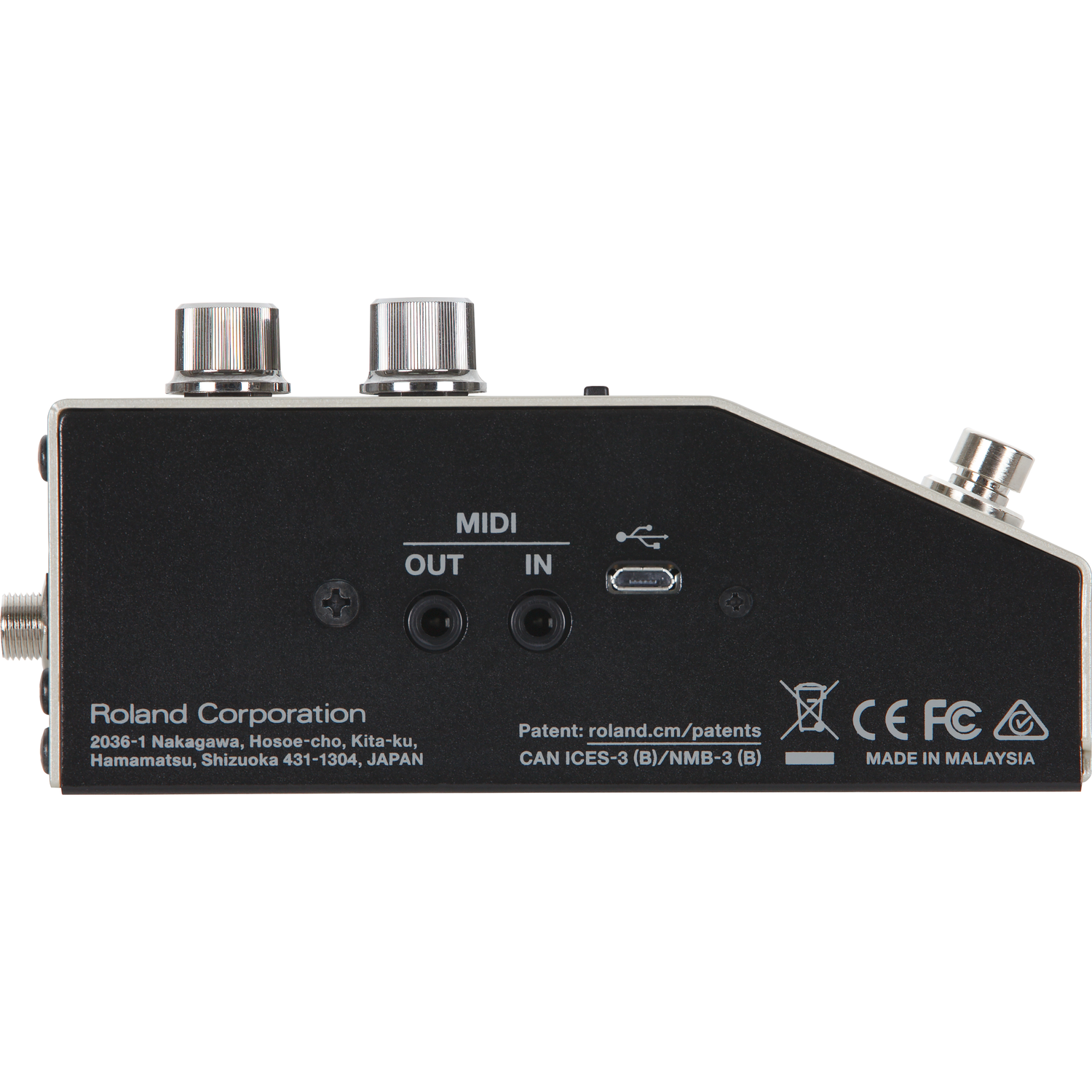

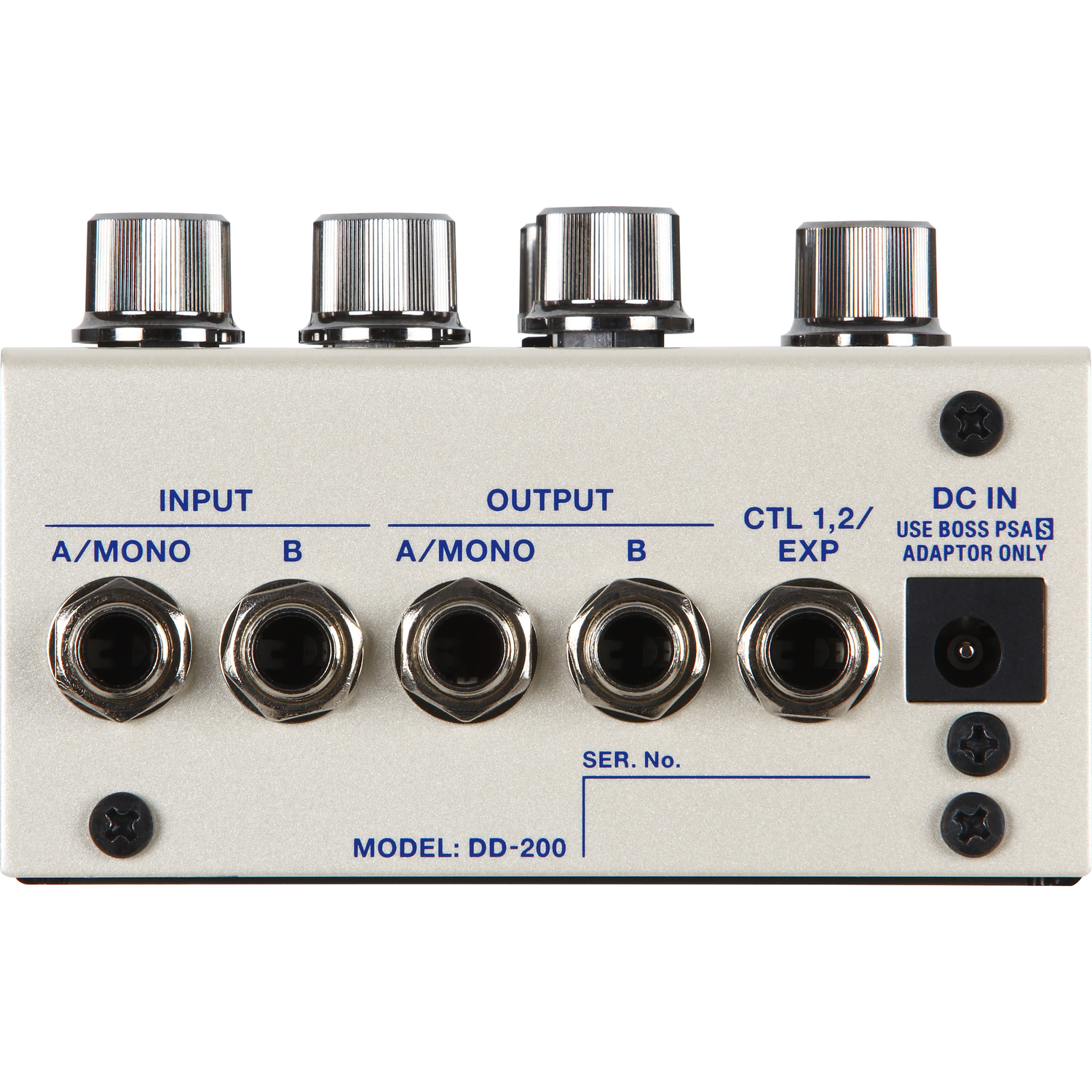

Features Class-leading sound quality with 32-bit AD/DA, 32-bit floating point processing, and 96 kHz sampling rate Twelve versatile modes provide a wide range of delay types Fast, easy operation with hands-on controls Access 128 user setups from the panel or MIDI program change Recall consecutive memories plus real-time panel setting via footswitch or dedicated panel button Phrase looper with up to 60 seconds of recording time Panel Lock function disables controls to prevent unwanted changes Customizable multi-function footswitches for bypass, tap tempo, memory selection, looper control, and more Support for expanded control via external footswitches, an expression pedal, or MIDI Full MIDI I/O provided with mini TRS jacks (BMIDI-5-35 adaptor cable available separately) Micro USB jack for firmware updates Analog dry through and buffered bypass Runs on PSA-series AC adaptor or three AA-size batteries Specifications Sampling Frequency: 96 kHz AD/DA Conversion: 32 bits Processing: 32-bit floating point Memory: 127 + Manual Nominal Input Level: INPUT A/MONO, B: -10 dBu Maximum Input Level: INPUT A/MONO, B: +7 dBu Input Impedance: INPUT A/MONO, B: 2 M ohm Nominal Output Level: OUTPUT A/MONO, B: -10 dBu Maximum Output Level: OUTPUT A/MONO, B: +7 dBu Output Impedance: OUTPUT A/MONO, B: 1 k ohms Recommended Load Impedance: OUTPUT A/MONO, B: 10 k ohms or greater Bypass: Buffered bypass Display: 7 segments, 3 characters (LED) Indicator: TAP DIVISION indicator, MEMORY (MAN, 1--4) indicators Power Supply: Alkaline battery (AA, LR6) x 3, AC adaptor (sold separately) Current Draw: 225 mA Modes 12 modes STANDARD, ANALOG, TAPE, DRUM, SHIMMER, TERA ECHO, PAD ECHO, PATTERN, LO-FI, DUAL, DUCKING, REVERSE Controls ON/OFF switch, MEMORY/TAP switch MODE knob, TIME knob, FEEDBACK knob, E LEVEL Knob, PARAM knob, TONE knob, MOD DEPTH knob TAP DIVISION button, MEMORY button Connectors INPUT (A/MONO, B) jacks, OUTPUT (A/MONO, B) jacks: 1/4-inch phone type CTL 1, 2/EXP jack: 1/4-inch TRS phone type MIDI (IN, OUT) jacks: Stereo miniature phone type DC IN jack USB port: USB micro B-type (program update only) Expected Battery Life Under Continuous Use Alkaline: Approx.

4 Hours * These figures will vary depending on the actual conditions of use Made in China.
