BSS Audio AR-133 Active DI Box


Shop Brand : BSS Audio
Shop All: D I Boxes
SKU : BSSAR133

BSS Audio AR-133 Active DI Box has a rating of 5.0 stars based on 1 reviews.
  • Buy BSS Audio AR-133 Active DI Box online in India at the best price with free shipping from BAJAAO - India's music equipment superstore.

    BSS Audio AR-133 Active DI Box

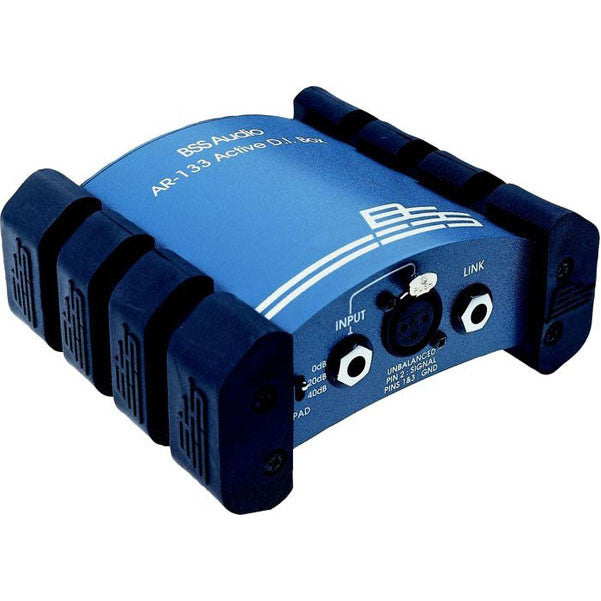

    The AR-133 Active DI Box from BSS Audio uses an enhanced version of the same audio path as the AR-116, now regarded by many people as a reference standard. The sound quality is legendary, particularly on acoustic and bass guitars. Numerous applications can be satisfied by the AR-133. For example, as well as the traditional guitar use, the AR-133 can be used with keyboards, DJ consoles, amplifier outputs, and other electronic sources. An additional bonus is the ability to use the AR-133 as an active balancing device.

    Input connectors are both 1/4" jack sockets and an XLR socket, the latter meaning that the AR-133 can be used to convert unbalanced signals to a balanced output on XLRs throughout. The arched case allows cables to run back underneath the unit from the end for neat cable management. Input attenuation is 0, -20 or -40dB, making the box suitable for instrument, line or amplifier levels on inputs. On the output side, a ground-lift switch is provided for quick solutions to ground-loop problems.

    The BSS AR-133 includes phantom power and battery supplies as standard. Should the phantom power from the console fail or be accidentally switched off, the AR-133 automatically switches over to the internal 9V battery providing uninterrupted use. This unit is housed in a rugged aluminum extrusion case, with robust polyurethane end-cheeks which give the AR-133 a very distinctive look.

    BSS Audio AR-13 Features:

    • Switchable input
    • attenuation
    • 0dB for guitar-type
    • pickups
    • -20dB for line level
    • signals
    • -40dB for speaker
    • feeds
    • Matches the level and impedance
    • with unity gain without
    • loading the source
    • Can drive signals up long cable
    • lengths
    • Powered from console
    • phantom power or internal
    • battery
    • Automatic switchover to battery
    • if phantom power fails
    • Parallel Link Jack output to feed
    • amplifiers directly
    • Parallel XLR input for
    • converting unbalanced outputs
    • to balanced lines
    BSS Audio AR-13 Specifications:
    • Input Section
    • Input Impedance
    • 1MOhm (pad at 0dB)
    • 47kOhm (pad at -20dB)
    • 47kOhm (pad at -40dB)
    • Max Input Level
    • +9dBu (pad at 0dB)
    • +29dBu (pad at -20dB)
    • +49dBu (pad at -40dB)
    • Connectors
    • Two Parallel 1/4" jack connectors and a parallel XLR connector (unbalanced)
    • Jack:
    • Tip Hot (+ve)
    • Sleeve Ground
    • XLR:
    • Pin 2 Hot (+ve)
    • Pin 1 & 3 Ground
    • Output Section
    • Output: Transformer Balanced
    • Max. Output Level: +8dBu into 600 ohms or greater
    • Connector: XLR3-32 or equivalent
    • System Performance
    • Distortion (THD):
    • Noise:
    • Frequency Response: 30Hz to 20kHz, +0dB/-1dB
    • General
    • Main/Standby battery: 9 volt PP3 type, preferably alkaline.
    • Current drain: on phantom - less than 7.5mA, on battery - less than 2mA
    • Phantom Power: +20 volts DC to +48 volts DC
    • Weight: 650 gms, excluding batteries.
    • Overall Dimensions: 59 mm x 124 mm x 143 mm (2.3" x 4.9" x 5.6").
