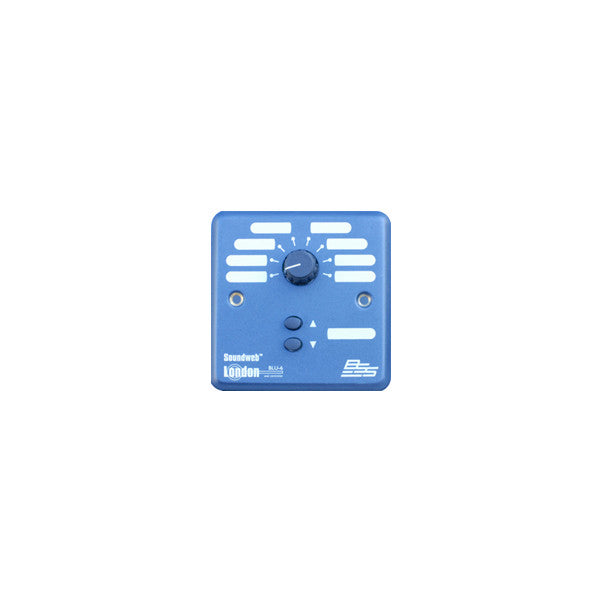

The BLU-6 wall panel is a simple controller which allows the designer to provide level control and source selection or preset recall in a simple wall-mounted panel.
These controllers connect to the control ports on the rear of any BLU-16, BLU-32 or BLU-80 device.
The BLU-6 offers an eight-way switch and a pair of spin or up/down buttons, enabling the same level parameter to be mapped onto other controllers preventing a jump in audio level when the control is adjusted
The switches have blank areas for marking the switch functions, either directly onto the white area, or on self-adhesive labels.Specifications:
- Chassis: Single-Gang EU
- Control In: Analog (two wire)
- Controls: 8-position source/preset select, up/down buttons
- Config: Software
