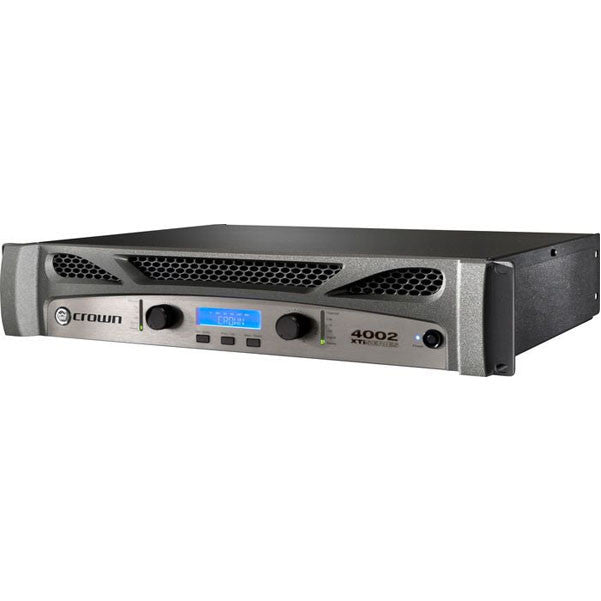

Crown Xti 4002 Power Amplifier
When you choose Crown's XTi 2 Series, you're choosing one of the most powerful and innovative amplifiers on the market today. With such innovations as a universal tracking switch-mode power supply and a fully integrated suite of speaker processing tools, these amps are at the top of their class when it comes to thermal efficiency and system flexibility.
You also have greatly improved control capabilities. The addition of Peak x Plus Limiters gives you full command over threshold, attack and release, and we enhanced the Subharmonic Synth so you can easily manage frequency, gain and filter type, allowing for application-specific tuning.
Plus, you'll now be able to tailor fan speed for specific applications and have software visibility of the Power Supply Temperature and AC Line Voltage. Combine all of that with integrated cast-aluminum rack handles for maximum durability and portability and you have the power to move you – and the world.
Crown Xti 4002 Power Amplifier Features:
- Peak x Plus Limiters provide the ultimate in system performance and protection by allowing full control over threshold, attack, and release
- Enhanced Subharmonic Synth section provides user control over frequency, gain and filter type for system-specific tuning
- 3 User-defined fan mode controls – normal, early and full speed – for matching fan performance to a specific application
- New system monitoring provides software visibility of AC line voltage and power supply temperature
- Integrated cast-aluminum handles for easy handling and enhanced durability
- Locking power cord clip provides a secure connection between the amplifier and power cord
- Updated HiQnet Band Manager and System Architect control software
- Increased number of presets to a total of 30; 29 of which are user definable.
Crown Xti 4002 Power Amplifier Specification:
- Minimum Guaranteed Power, (1 kHz Per channel, both channels driven)
- Stereo, 2 ohms (per ch.): 1600W
- Stereo, 4 ohms (per ch.): 1200W
- Stereo, 8 ohms (per ch.): 650W
- Bridge-Mono, 8 ohms: 2400W
- Bridge-Mono, 4 ohms: 3200W
- Integrated Processing
- Input EQ: 6 parametric filters per channel with adjustable Q, ±15 dB boost/cut. Also adjustable high and low shelving filters. This 8-filter EQ section can be bypassed.
- Crossover Filters: Highpass and Lowpass per channel. Butterworth 6/12/18/24 dB per octave. Linkwitz-Riley 24/48 dB per Octave. Also includes ±15 dB bandpass gain and polarity control.
- Output EQ: 8 parametric filters per channel with adjustable Q, ±15 dB boost/cut. This 8-filter EQ section can be bypassed.
- Delay: for signal alignment of driver; 50 mS of total delay.
- SubHarmonic Synth: takes the low-frequency content of the input signal and "synthesizes" a new signal that is the same as the input signal but one octave lower. The new synthesized signal is then mixed with the original signal to create the effect. New: Users now have control over frequency, gain, and filter type.
- Peak x Plus Limiter: user defeatable limiter that allows users to control Threshold, Attack, and Release times.
- Presets: 30 total presets, 29 of which are user-definable.
- Sensitivity (for full rated power at 4 ohms): 1.4 Vrms
- Frequency Response (at 1 watt, 20 Hz - 20 kHz): +0 dB, –1 dB
- Signal-to-Noise Ratio (below rated 1kHz power at 8 ohms): 100 dB (A weighted)
- Total Harmonic Distortion (THD):
- Damping Factor 20 Hz to 1 kHz: >500
- Crosstalk (below rated power): 20 kHz - 1 kHz: > 70 db
- Input Impedance (nominal): 20k ohms balanced, 10k ohms unbalanced
- Maximum Input Signal: +22 dBu typical
- AC Line Voltage and Frequency Configurations: 100 VAC, 120 VAC, 220-240 VAC 50/60 Hz
- AC Line Current (120 VAC amplifier playing 1/8 power pink noise into 4 ohms per channel): 10.5A; no more than 38W at idle
- Operating Temperature: 0°C to 40°C at 95% relative humidity (non-condensing)
