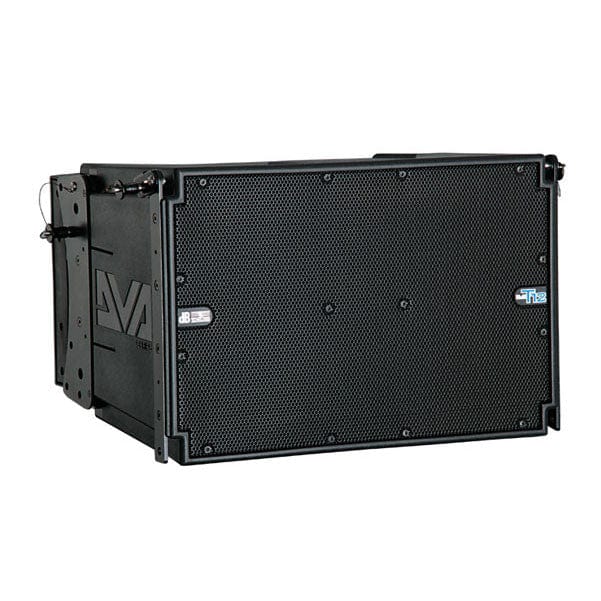

dB Technologies DVA T12 3-Way Active Line Array System

dB Technologies DVA T12 3-Way Active Line Array System

EMI starts from Rs. 14,949.95. Click here for options.


BAJAAO India presents the dB Technologies DVA T12 3-Way Active Line Array System.

DVA T12 is a step up the evolutionary ladder from the successful DVA T4 line array system. Although it provides more power and has greater range, its active three-way design makes it just as easy to set up and install as its predecessor. The DVA T12 features state-of-the-art neodymium speakers and high-performance digital amps with total of 1,500W output power. In combination with top-drawer DSP and premium-quality AD-DA transformers, it delivers high-definition sonic images with massive SPL for large sound reinforcement applications. Weighing just 29 kg, this remarkably compact unit belies its unobtrusive look by enabling you to set up very powerful line arrays that deliver extraordinary performance.

dB Technologies DVA T12 Features:

  • Long-throw system
  • Fully powered three-way unit, freely scalable to setups of any size
  • Sequentially configurable array segments
  • High-end digital controller (DSP) on board
  • Network-ready with an integrated RDnet port
  • Hardware compatible with DVA T4 systems

dB Technologies DVA T12 Specifications:

Speaker Type: 3-Way Active Line Array Module

Acoustical data

  • Frequency Response [+/- 3dB]: 60 - 19.000 Hz
  • Max SPL: One Unit 136 dB
  • HF: 3x1 "
  • Type HF: Neodymium Compression Driver
  • Voice Coil HF: 1.4 "
  • Directivity: 100x10 °
  • Horn: Integrated CD Horn
  • MF: 2x 6.5 "
  • Type MF: Neodymium, Sealed Basket, Phase Plug, Horn Loaded
  • Voice Coil MF: 2 "
  • LF: 12 "
  • Type LF: Neodymium
  • Voice Coil LF: 3 "

Amplifier

  • Amp Technology: G2 digipro
  • Amp Class : Class D
  • Power Supply: 1500 W, PFC SMPS
  • HF Amp: 350 W/RMS
  • MF Amp: 350 W/RMS
  • LF Amp: 710 W/RMS
  • Cooling: Convection

Processor

  • Controller: DSP 56 bit
  • AD/DA Converter: 24 bit/96 kHz
  • System Presets: 8, HF/Low-mid correction
  • Limiter: Dual Active Limiter, Multi-bandlimiiter, RMS, Peak, Thermal
  • Crossover Frequency MF-HF: 1800 Hz
  • Slope MF-HF: 24 dB/Octave
  • Crossover Frequency LF-MF: 420 Hz
  • Slope LF-MF: 24 dB/Octave

Input Section

  • Signal Input: 1x XLR fem, sym
  • Signal Output: 1x XLR male, sym.
  • Network: RDnet remote control, RJ45 connector IN/OUT
  • Power Socket: 1x Powercon In, 1x Powercon Out
  • Voltage Range: 90 - 240 V

Mechanics

  • Housing: Polypropylen PP, Aluminium reinforced
  • Housing Design: Trapezoidal 10°
  • Color: Black
  • Handles: 1x per side
  • Front Grille: 1.5mm metall grille with acoustic foam in back
  • Rigging Points: Integrated rigging hardware
  • Width: 580 mm (23.2 in)
  • Height: 386 mm (15.44 in)
  • Depth: 430 mm (17.2 in)
  • Weight: 29,9 kg (63.93 lbs).
