dB Technologies VIO S118R 1600W Active Bass Reflex Subwoofer

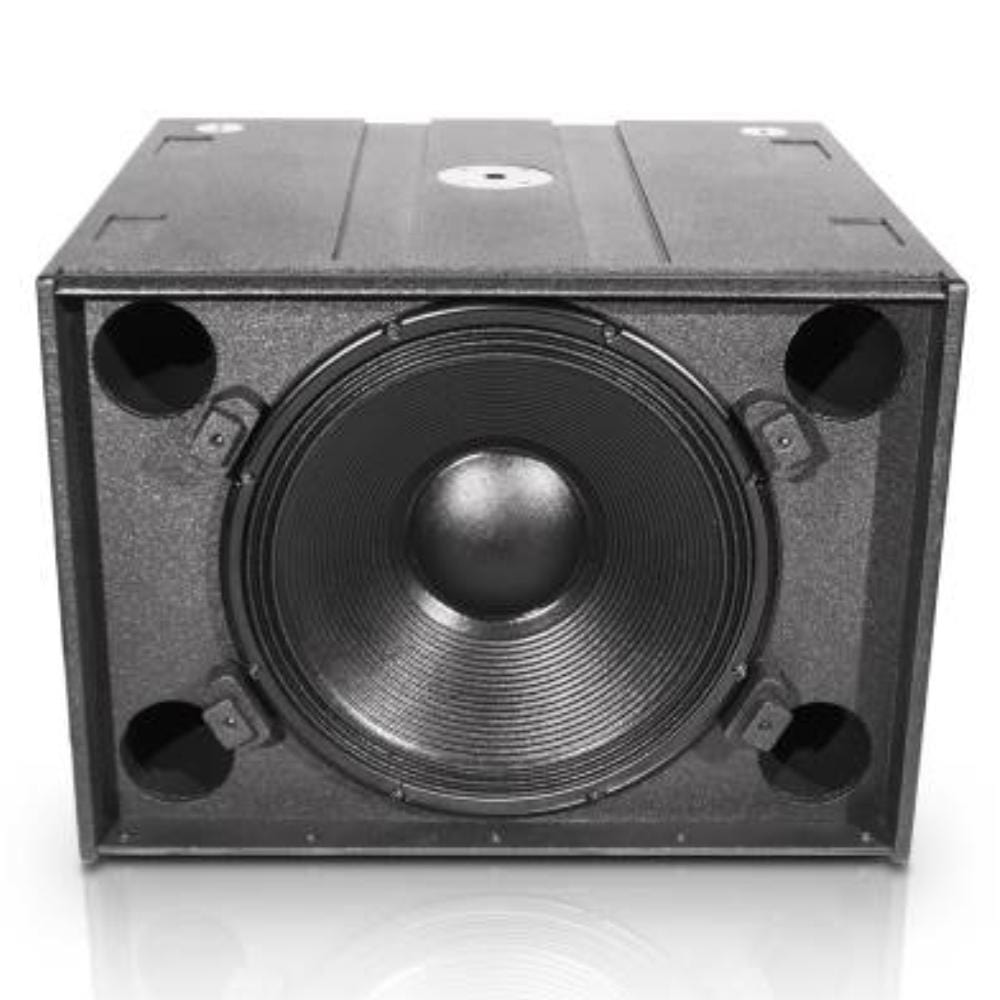

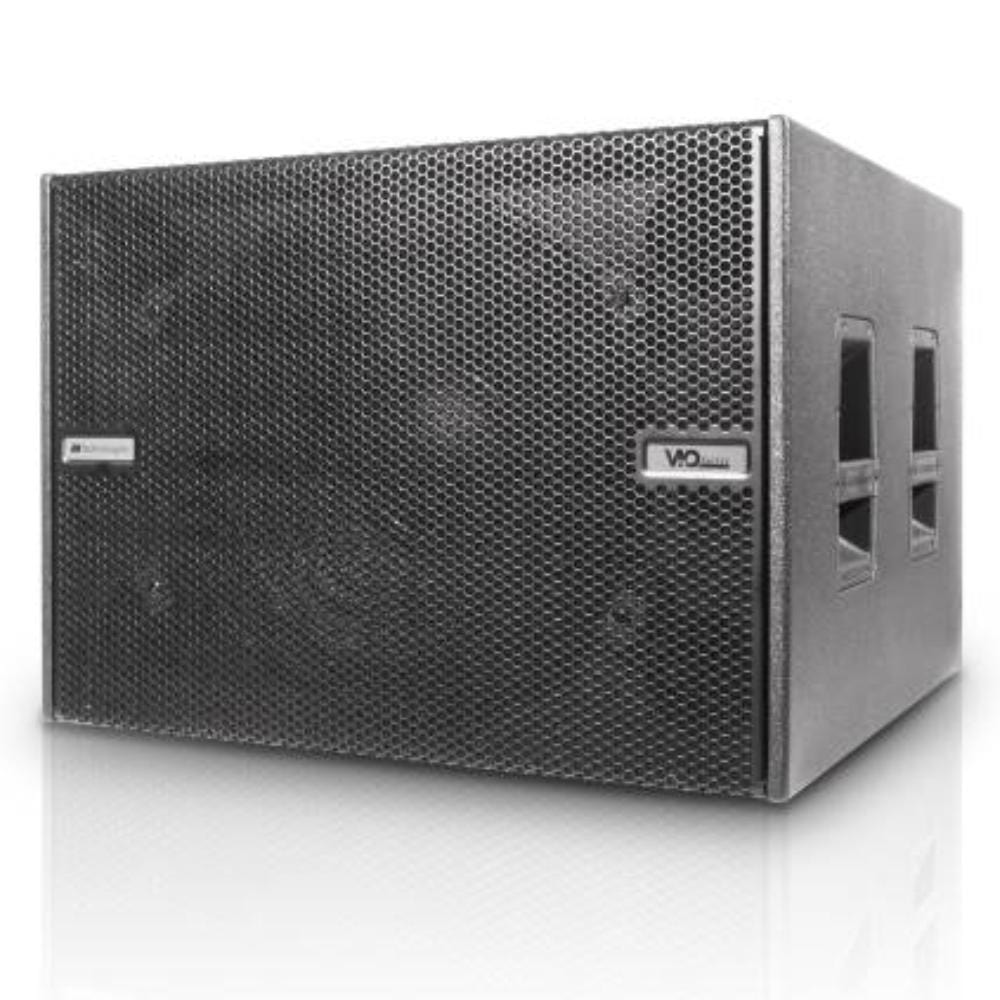

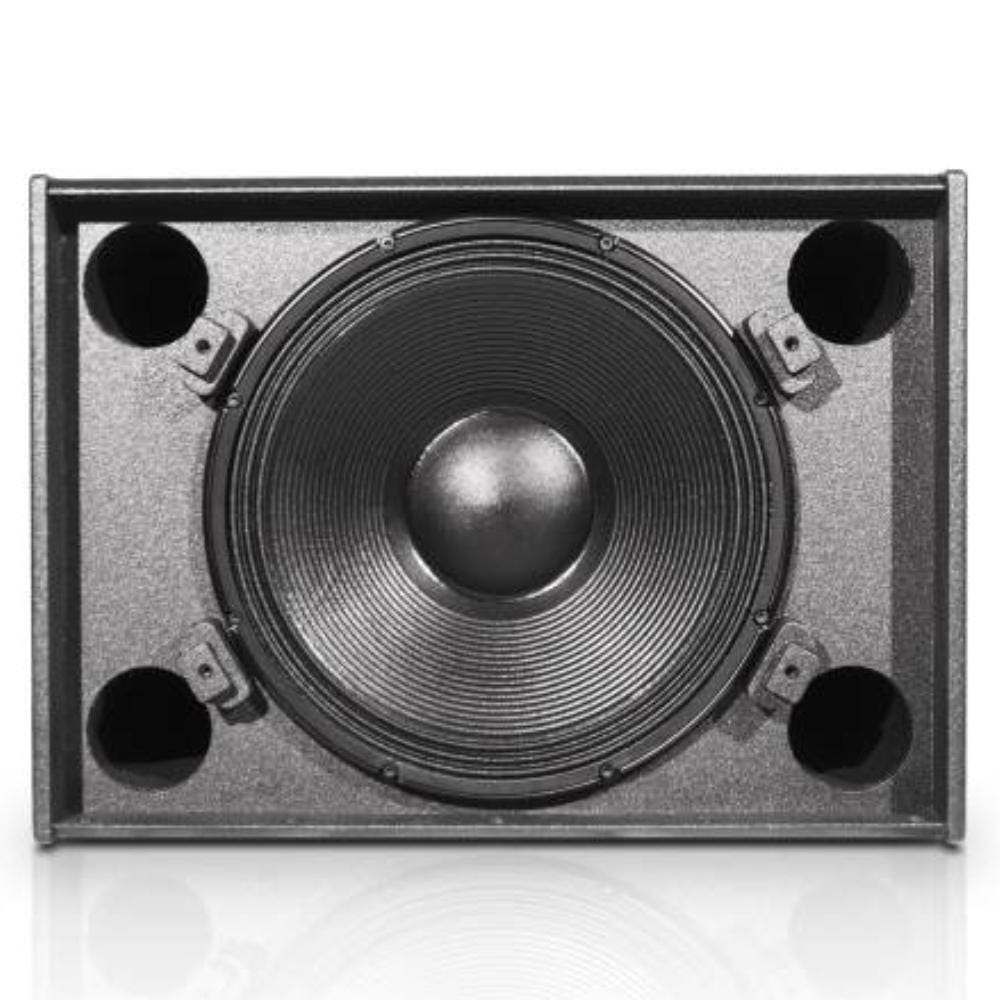

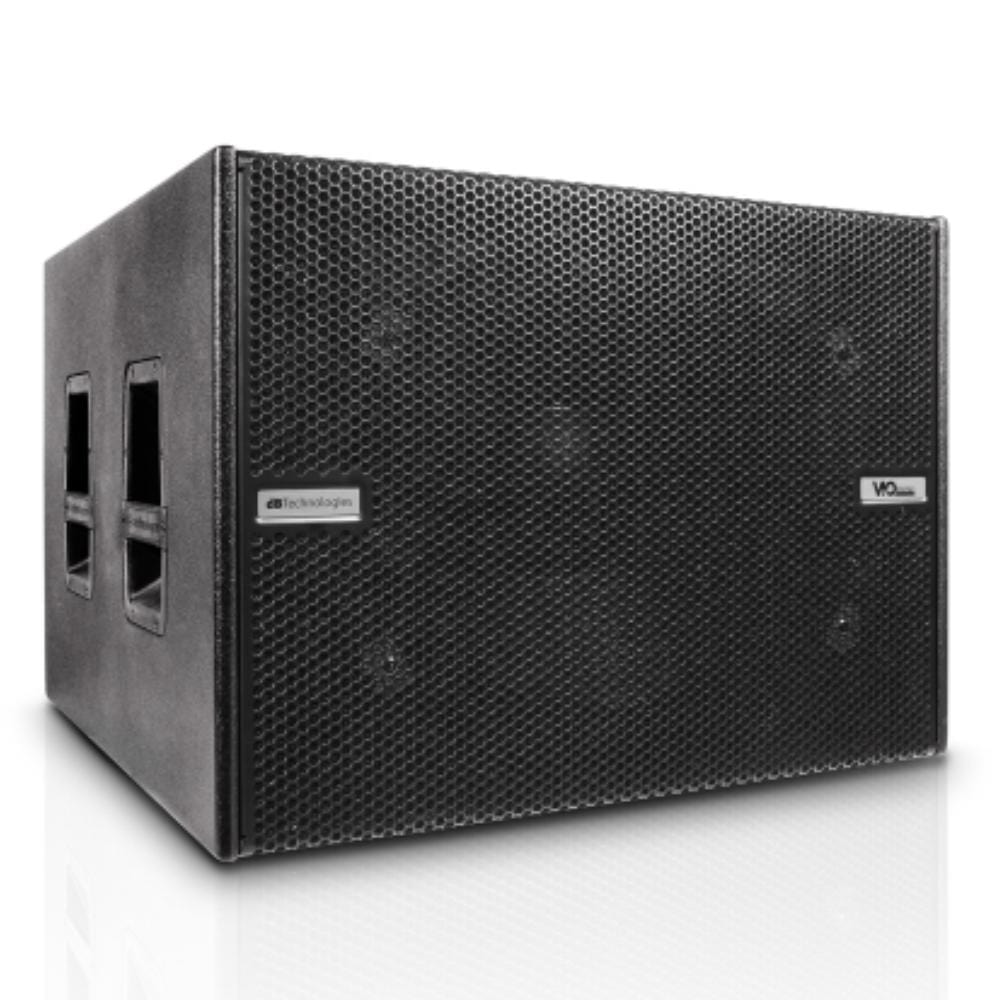

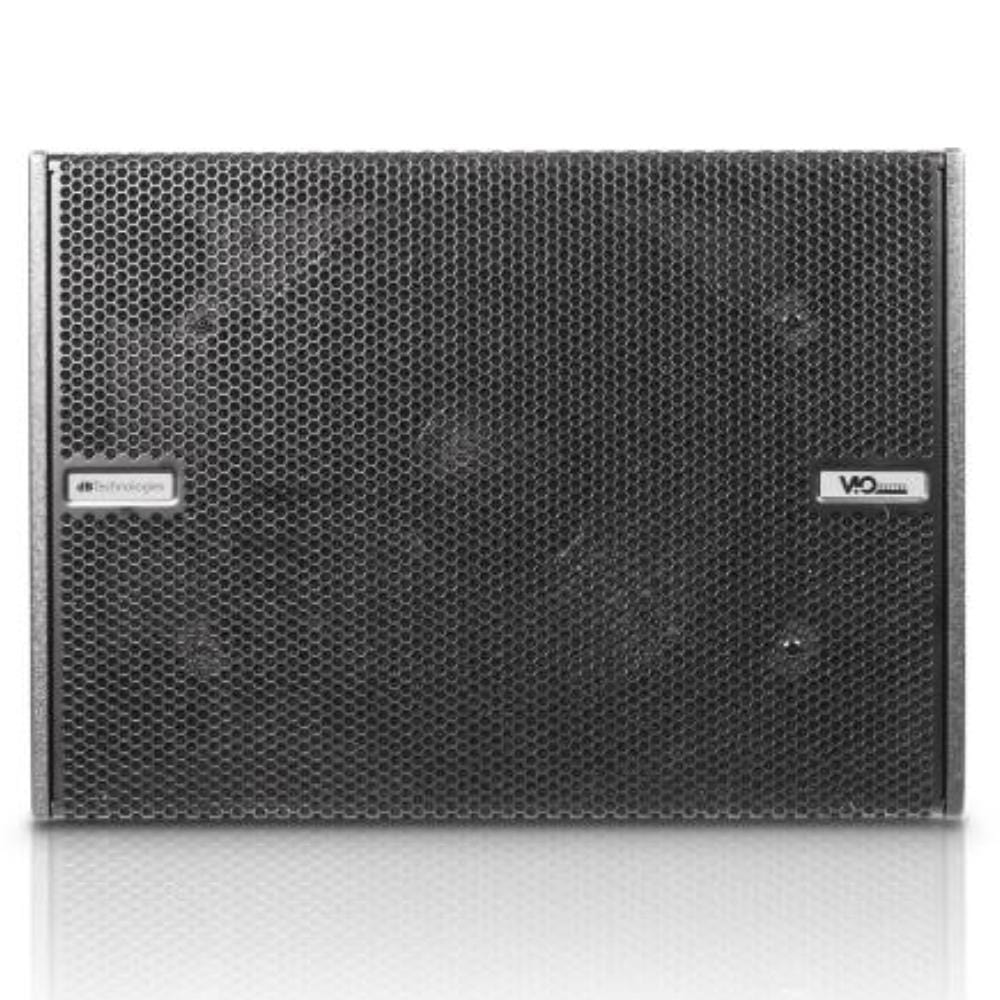

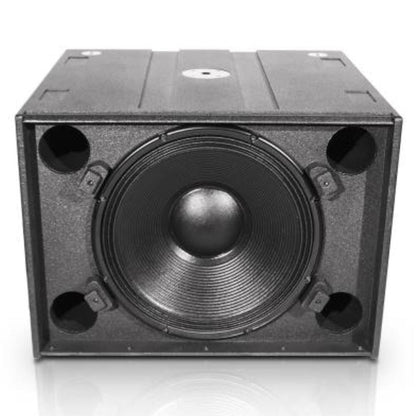

dB Technologies VIO S118R 1600W Active Bass Reflex Subwoofer Overview: The VIO S118R subwoofer equipped with a 18" bass reflex woofer is designed to complement the VIO line array systems in the low frequencies The system’s acoustic engine is driven by a Digipro G4® 1600W Class D amplifier, equipped with PFC (Power Factor Correction) and SMPS which make the cabinet highly resistant to line voltage fluctuations.

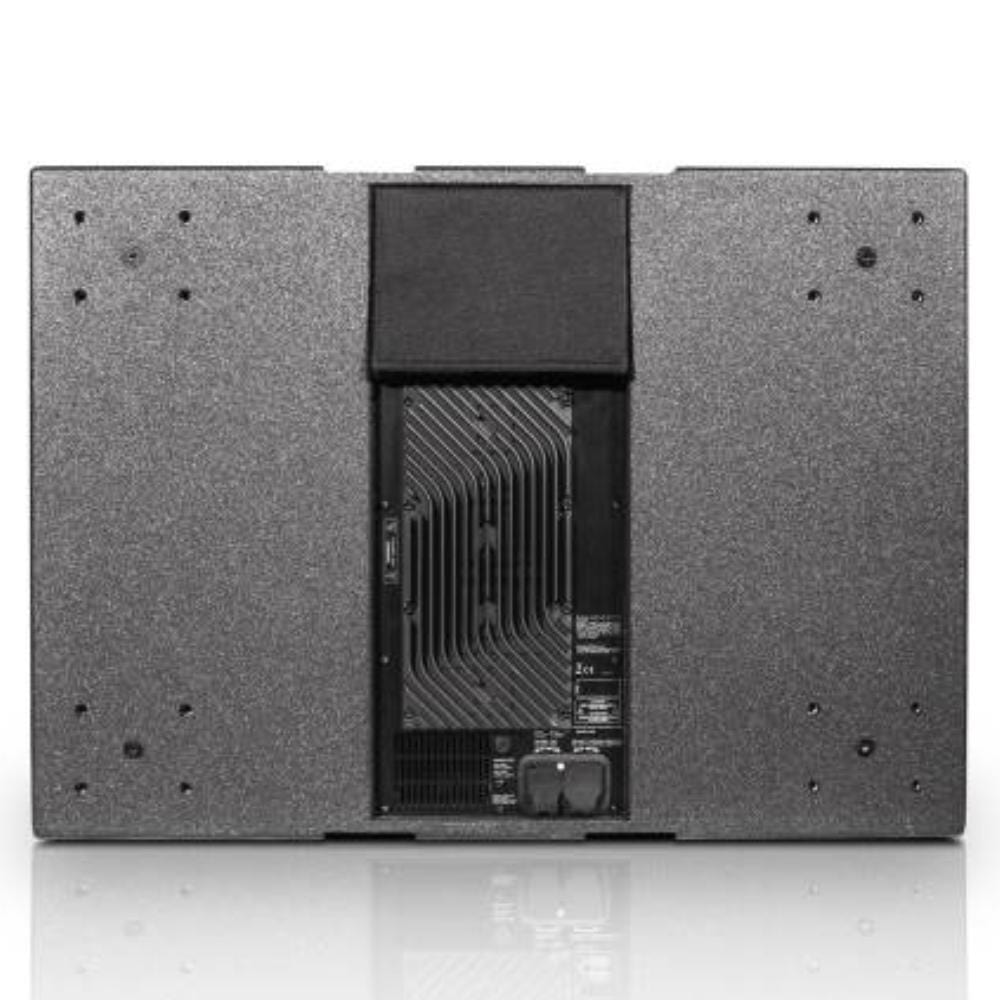

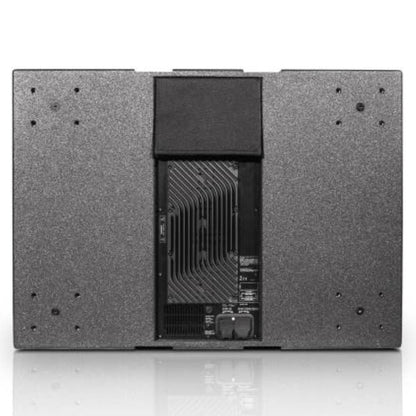

Digipro G4 preamplifier features a slot module, equipped with a RDNet expansion card as default, allowing system monitoring and control via Aurora Net Furthermore, the system is ready for Audinate Dante™ Expansion Card allowing integration in a digital audio network.The amplifier also allows users to run a real-time test on electronics and transducers, both remotely via Aurora Net, or directly on the amplifier module.

VIO S118R shows an on-board delay module, allowing to reach a max 62 ms delay via Aurora Net and a max 9.9 ms delay with 0.1 ms steps via on-board rotary The on-board cardioid preset processes the backward sub in inverted stack cardioid configurations, to achieve the best possible cancellation on the rear side automatically.

Features Active single 18” Bass Reflex Subwoofer Last generation Digipro G4 Amp Technology 1600 W RMS SMPS Amplifier with PFC System Auto-Test for quick diagnostics Designed for maximum efficiency in the lower end On board delay for quick time alignment operations On board cardioid array configuration preset Modular slot for network and digital audio expansion cards Specifications Speaker Type: Active Bass Reflex Subwoofer Acoustical data Frequency Response [- 6 dB]: 35 Hz to Cut Freq (X-Over Dependent) Frequency Response [- 10 dB]: 32 Hz Max SPL: 139 dB LF: 1x18" Voice Coil LF: 4 " Directivity: Omnidirectional Amplifier Amp Technology: Digipro G4 Amp Class: Class D RMS Power: 1600 W Peak Power: 3200 W Cooling: Convection + Internal Fan Power Supply: Full-range PSU with PFC Processor Controller: DSP 32 Bit AD/DA Converter: 24 bit 96 kHz Limiter: RMS, Peak, Thermal Delay Option: 0- 9.9 ms | steps of 0.1 ms [on-board], 0 - 62 ms [via RDNet] Crossover Frequency LF-HF: Selectable 60-110Hz + Full range LF-Xover out slope: 24 dB/Octave Input Signal Input: 1xXLR balanced Signal Output: 1x XLR balanced (link or X-over), 1xRJ45 LINK (RDNet) Expansion Card: RDNet Card (1x RJ45 IN 1x RJ45 Link) [included] Mains Connections: 1x PowerCON TRUE1 In, 1x PowerCON TRUE1 Out Controls 1x Input Attenuation Rotary Switch 1x Rotary Encoder (Delay 9.9 ms) 1x Polarity Inversion Switch (0° or 180°) 1x Cardioid Mode Switch 1x X-Over Freq Switch (60-110 Hz + Full Range 1x System Auto-test Mechanics Housing: Multiplex plywood, Polyurea painted Handles: 2x Per Side, Aluminium Pole Mount: M20 Thread Dimensions Width: 720 mm (28.34 in) Height: 520 mm (20.47 in) Depth: 695 mm (27.36 in) Weight: 47 kg (103.62 lbs).
