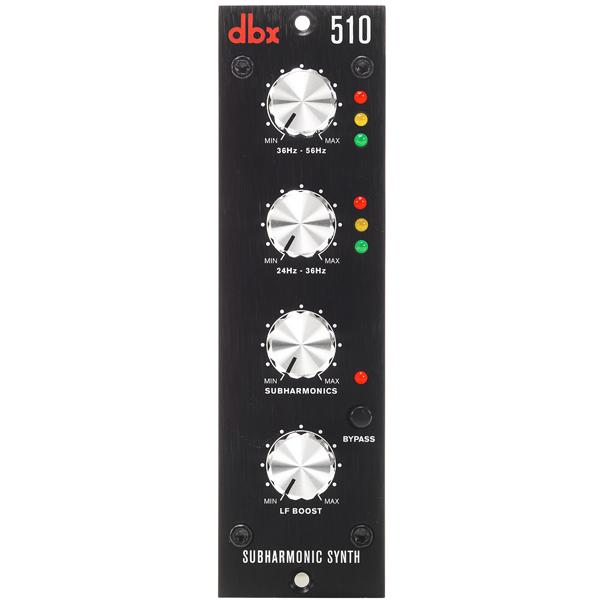

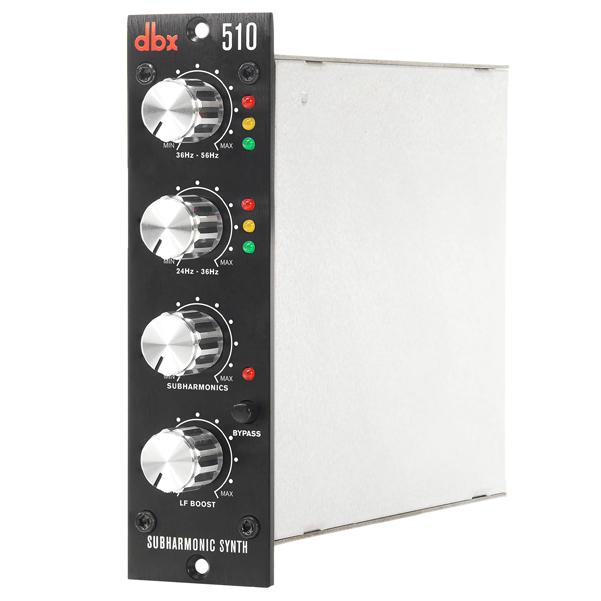

dbx Pro 500 Series 510 Subharmonic Synthesizer Signal Processor

Write a review
| Ask a question
SKU : DBX-510
Sold out
Rs. 15,359
Rs. 15,243

   Free Delivery available on this product.

Buy Bajaao Premium Warranty- With Accidental Damage Cover & Free Pickup and Return T&C
Seen It For Less? Learn More
dbx Pro 500 Series 510 Subharmonic Synthesizer Signal Processor Overview:

The dbx 510 answers the call of audio professionals everywhere delivering Subharmonic Synthesis in the convenient design of a 500 Series module. The 510’s two separate bands of subharmonic synthesis provide the best combination of smoothness and control, while the independent Low Frequency Boost circuit is designed to get the most out of high-performance, low frequency speaker systems. Unlike other attempts at bass synthesis, the dbx process produces musical low frequencies that don’t interfere with mid and high-band information, even when the maximum synthesis and boost are applied. The result is a low-end punch that people really feel!

Features:
  • Based on dbx's fabled Subharmonic Synthesizer processors
  • Simple, intuitive interface
  • Synthesized frequency level indicator LEDs
  • Individual controls for two ranges of subharmonic frequencies
  • Subharmonics level control
  • Synthesis Bypass switch
Specifications:
  • Input Type: Electronically balanced/unbalanced, RF filtered
  • Input Impedance: 20 k Ω balanced, 10 k Ω unbalanced
  • Max Input Level: +22 dBu
  • CMRR: >40 dB; typically >55 dB at 1 kHz
  • Output Type: Electronically balanced/unbalanced, RF filtered
  • Output Impedance: Balanced 30Ω , unbalanced 15Ω
  • Max Output Level: +22 dBu
  • Frequency Response: 20Hz – 20kHz, + 0/-0.5dB; 14 Hz – 120 kHz, +0/-3 dB
  • Noise: <-99 dBu, Unweighted (22 Hz – 22 kHz)
  • THD+Noise: <0.003% typical from 22 Hz – 22 kHz at 0 dBu
  • Dynamic Range: >120 dB
  • Synthesis Frequency Range: 26-56 Hz (from 54-110 Hz input signal)
  • Power Requirements: +/- 16V DC
  • Power Current Draw: 85 mA per power rail
  • Power Draw: 2.7 watts
  • Rack System Compatibility: 500 Series Compatible Power-frame
  • Rack Space: 1 Slot
  • Dimensions (H x W x D): 5.25” x 1.5” x 6” (13.34 cm x 3.81 cm x 15.24 cm)
  • Weight: 1.3 lbs (0.59 kg)
  • Shipping Weight: 1.7 lbs (0.77 kg)
