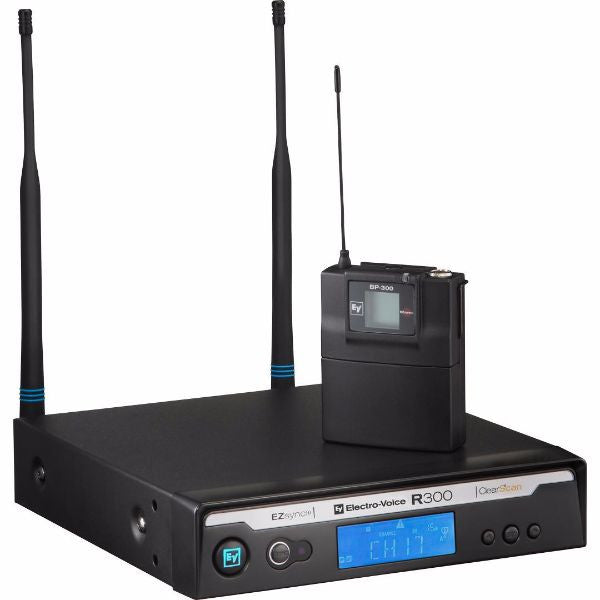

Unique features like One-Touch ClearScan and EZsync make the R300 quicker and easier to set up and use than any other similarly priced wireless system, while its rack-mountable metal receiver, sturdy metal bodypack and handheld transmitters, and remote-mountable antennas are of a build and performance quality usually reserved for the highest-end professional products. This combination of value, professional features, and road-ready ruggedness make the R300 a perfect choice for a wide range of wireless applications, from live vocals and instruments to professional presentations.
BP-300 is an all new metal bodypack transmitter that is rugged, compact, and easy to use. Using two AA batteries for 14 hours of use, the BP-300 is one of the most economical transmitters around for applications that require daily operation. The mute function keeps the RF signal live while it mutes the audio to protect your channel and prevent noise in the audio system.
The TA4 connector allows the use of any EV lapel or headworn microphone for a variety of applications. The receiver for the R300 system is equally at home on a table top or in a 19 inch equipment rack. Rack mount kits and front mount antenna cables are available for the R300 for a professional installation. For applications with up to 4 receivers in one rack, the APD4+ antenna splitter can provide antenna and power feeds.
- Designed for Club Sound, House of Worship, Performance & Sports Venues, and other applications.
- ClearScan finds the clearest channel available with the touch of one button
- EZsync infrared channel transfer from the receiver to the transmitter for easy and error-free setup
- 14 hour battery life from two AA alkaline batteries
- Rugged metal transmitters with backlit LCD display and battery gauge
- 32 preset channels, with compatible groups of 8 channels for simultanious use
- Bodypack with TA4 connector ÑÏ compatible with all Electro-Voice lapel and headworn microphones for easy upgrades
- Detachable half-wave receiver TNC antennas allow for use with the APD4+ antenna distribution system
- Metal receiver chassis with optional rack mount ears and front mount antenna cables
- Antennas Flexible TNC 1/2 Wave
- Audio Frequency Response 80 Hz - 18kHz +/- 2dB
- Balanced Line Level Output (RMS Adjustable) 10 - 100 mV
- Battery Life 14 Hours with (2) AA alkalines typical
- Connector Type 1/4 inch unbalanced, 3-Pin XLR balanced
- Controls On/Off, Set, Up, Down, Sync
- Distortion (@ 1 kHz, 40 kHz deviation) less than 1.0, 0.4 typical %
- Diversity True Antenna
- Dynamic Range > 95 dB
- Dynamic Range greater than; 95 dB
- Element ULM-18 Uni-directional lapel
- Number of Channels 32 Per Band, 8 Simultaneous
- Power Supply 12 VDC, 500 mA max
- Receiver Type Synthesized PLL, Agile UHF
- RF Frequency Range 16 MHz
- RF Output 8 mW Typical
- RF Sensitivity (12 dB SINAD) Less than 1.0 uV
- Signal-to-Noise Ratio (A-weighted) greater than 100 dB
- Squelch Tone code plus Amplitude
