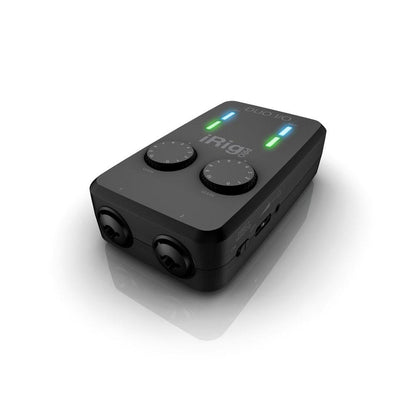

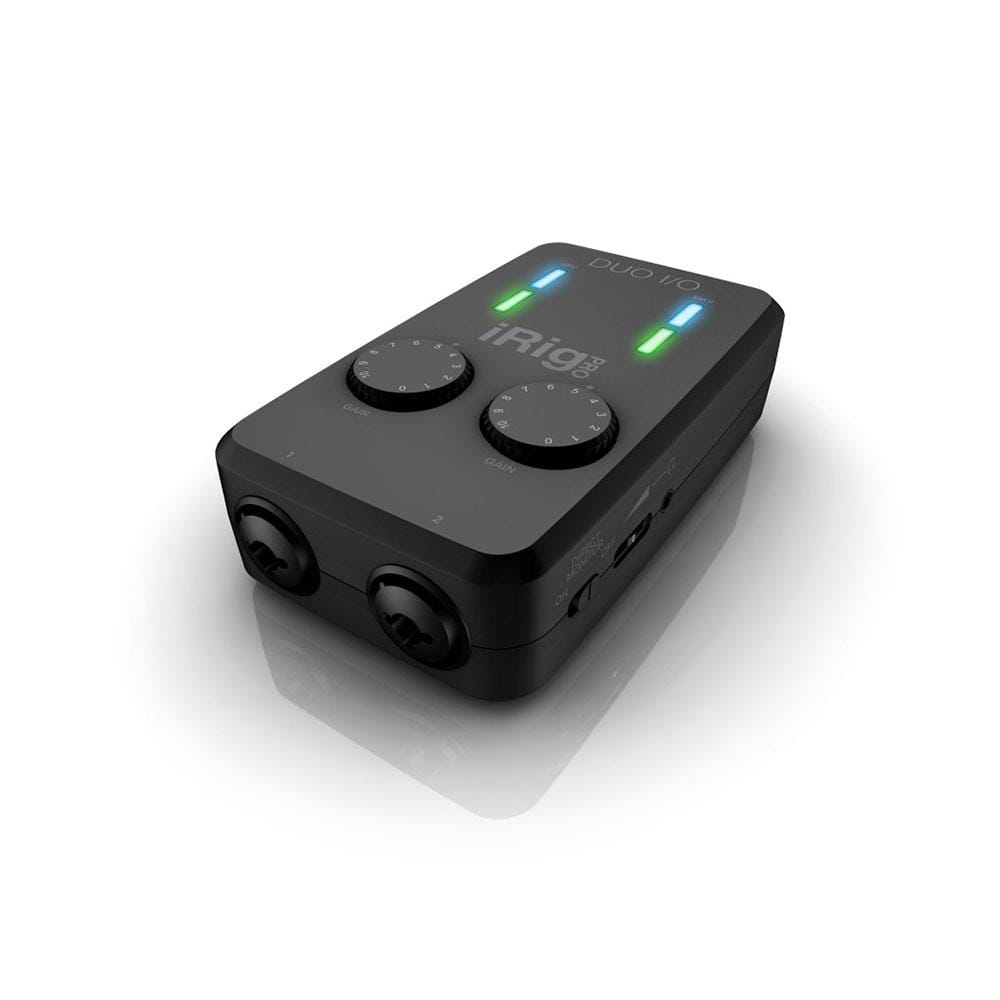

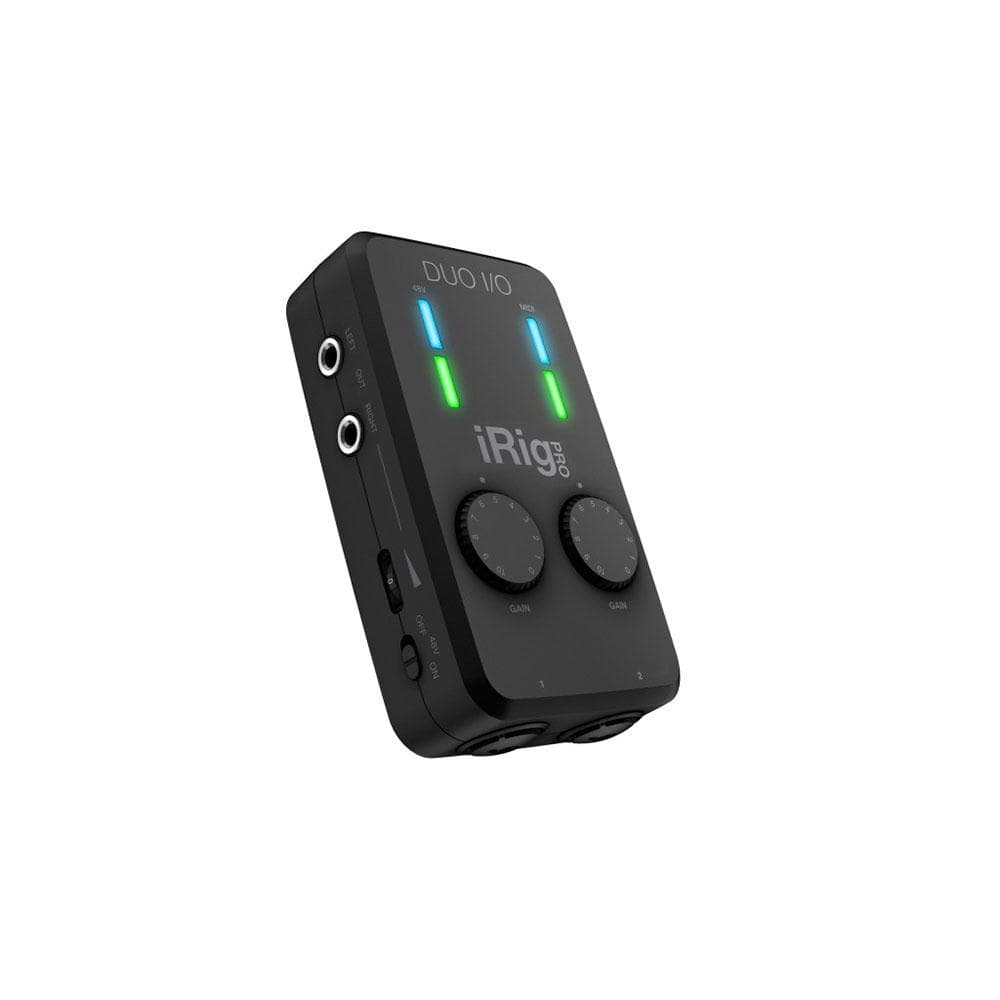

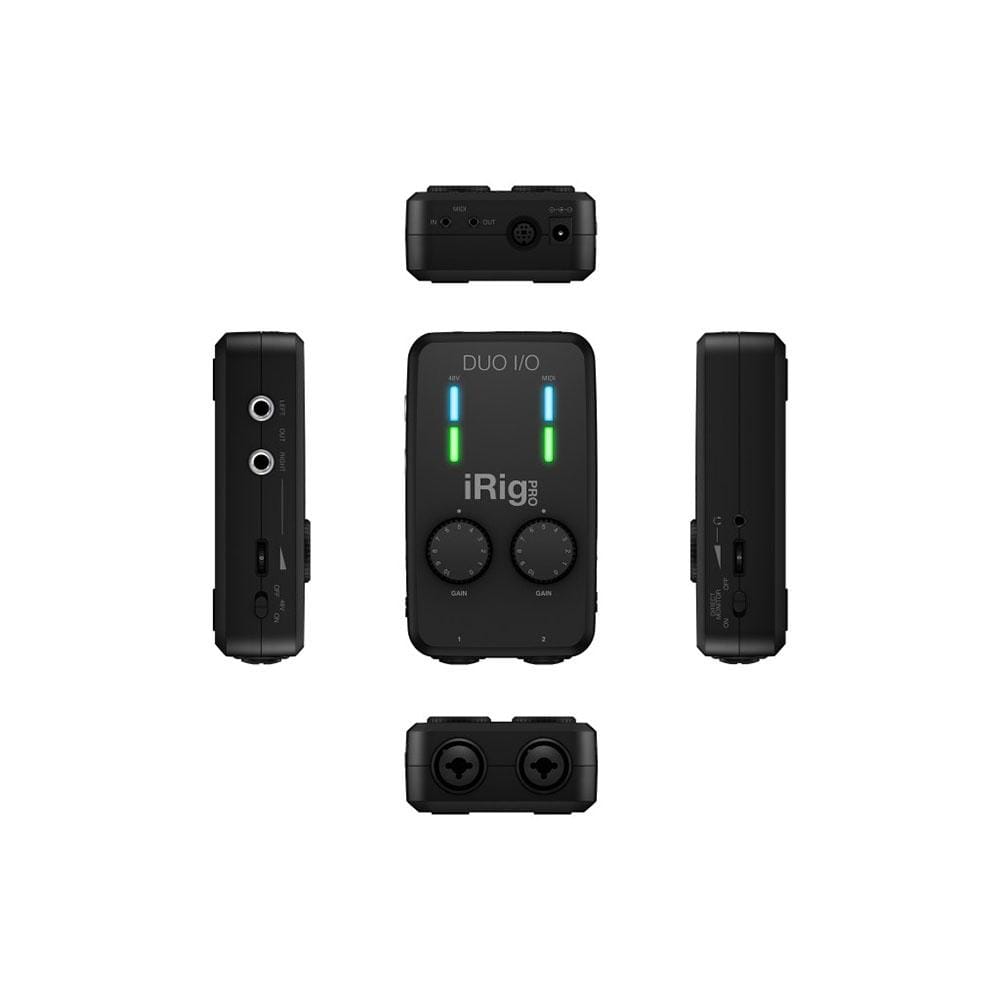

IK Multimedia iRig Pro Duo I/O Audio Interface

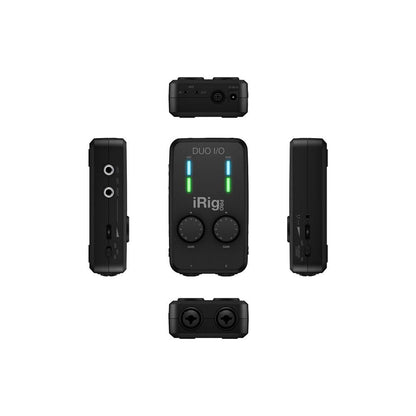

IK Multimedia iRig Pro Duo I/O Audio Interface Overview: Whether you’re recording music, videos, podcasts or live-streams, sometimes you just have to get out of the studio Whether you’re on location or on vacation, iRig Pro Duo I/O packs everything you need to capture high-quality music and audio into an ultra-portable, easily packable box.

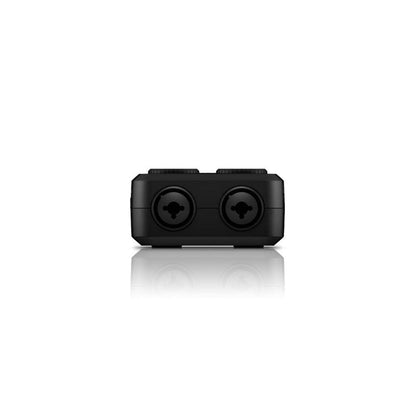

Say hello to a full-featured studio in the palm of your hand Comprehensive connections iRig Pro Duo I/O has 2 Neutrik analog inputs to record microphones , guitar/bass, keyboards, synths, and more.

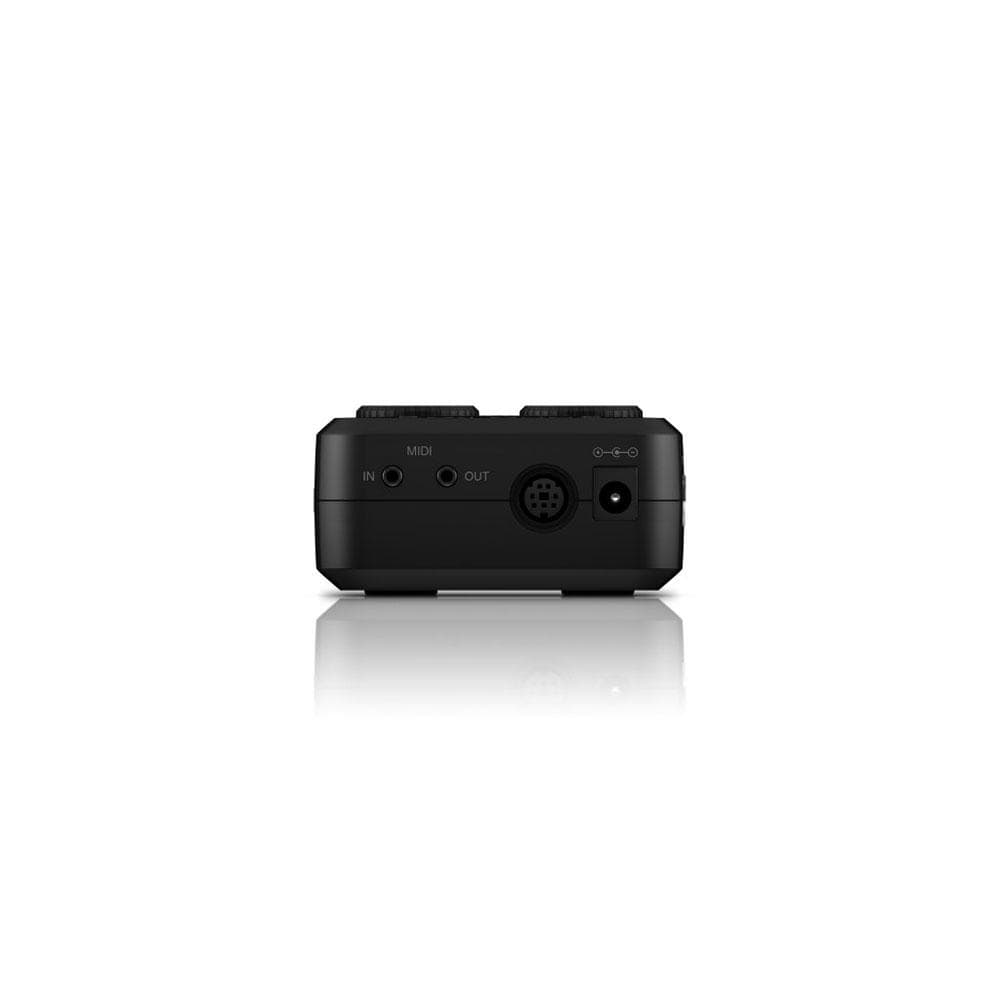

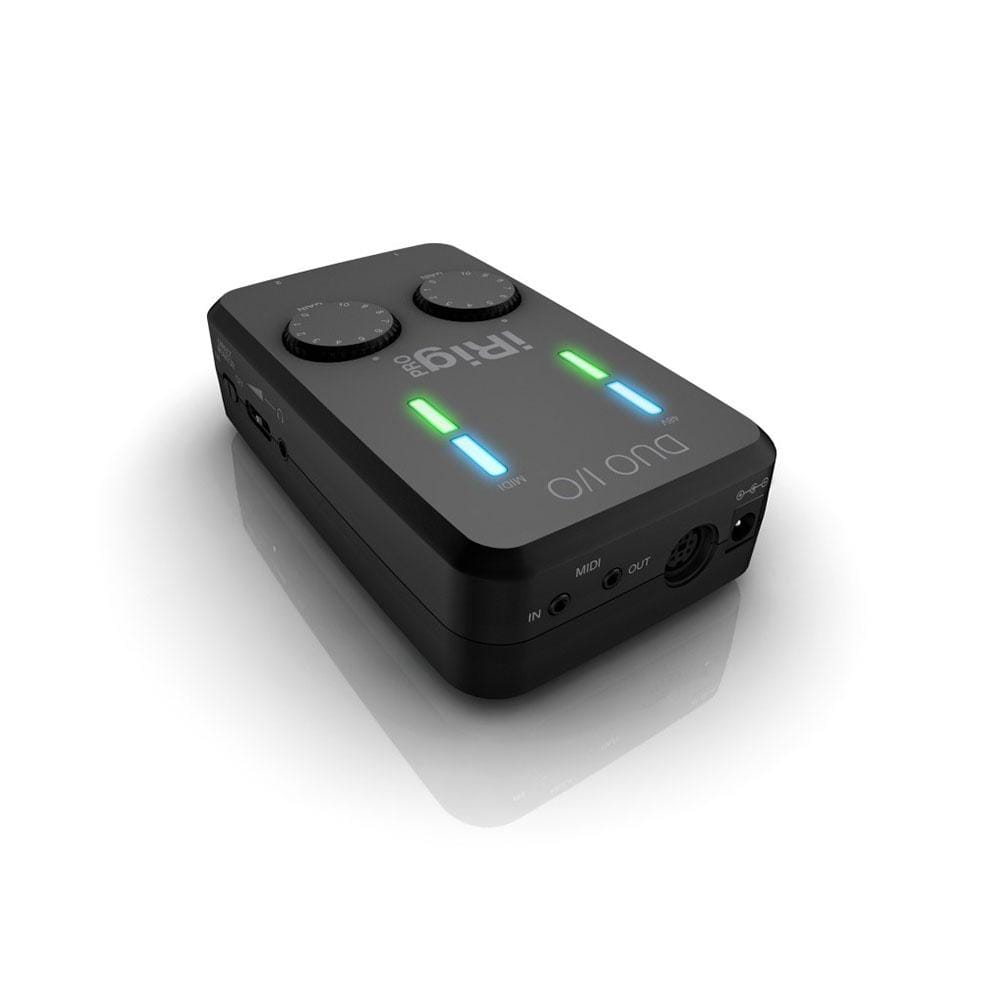

New Class-A mic preamps with extended gain range and +48v phantom power ensure professional sound quality and ultra-low noise And MIDI IN/OUT jacks with breakout cables turn iRig Pro Duo I/O into a full-fledged MIDI interface as well.

Connect your MIDI controller , microphone, and guitar to record an entire jam session on the fly Or, connect two microphones to record your podcast, radio show, or live-stream from any location you choose Create on all your devices Ditch the hefty gear and plug iRig Pro Duo I/O right into your favorite mobile device.

iRig Pro Duo I/O is compatible with iPhone, iPad, Android, and Mac/PC, with Lightning, USB-C and USB-A cables included for easy plug-in and play setup You’ve got the power When we say ANY location, we mean it iRig Pro Duo I/O runs off 2 included AA batteries, USB bus power or an optional external PSU, meaning you’re never tethered to an outlet.

Let your creativity take you places you never imagined, with flawless audio quality anywhere you need it Endless inspiration iRig Pro Duo I/O is compatible with all your favorite apps, from GarageBand for recording, to FilMIC Pro for video recording, Bossjack Studio for podcasting, and even Facebook and Instagram for live-streaming.

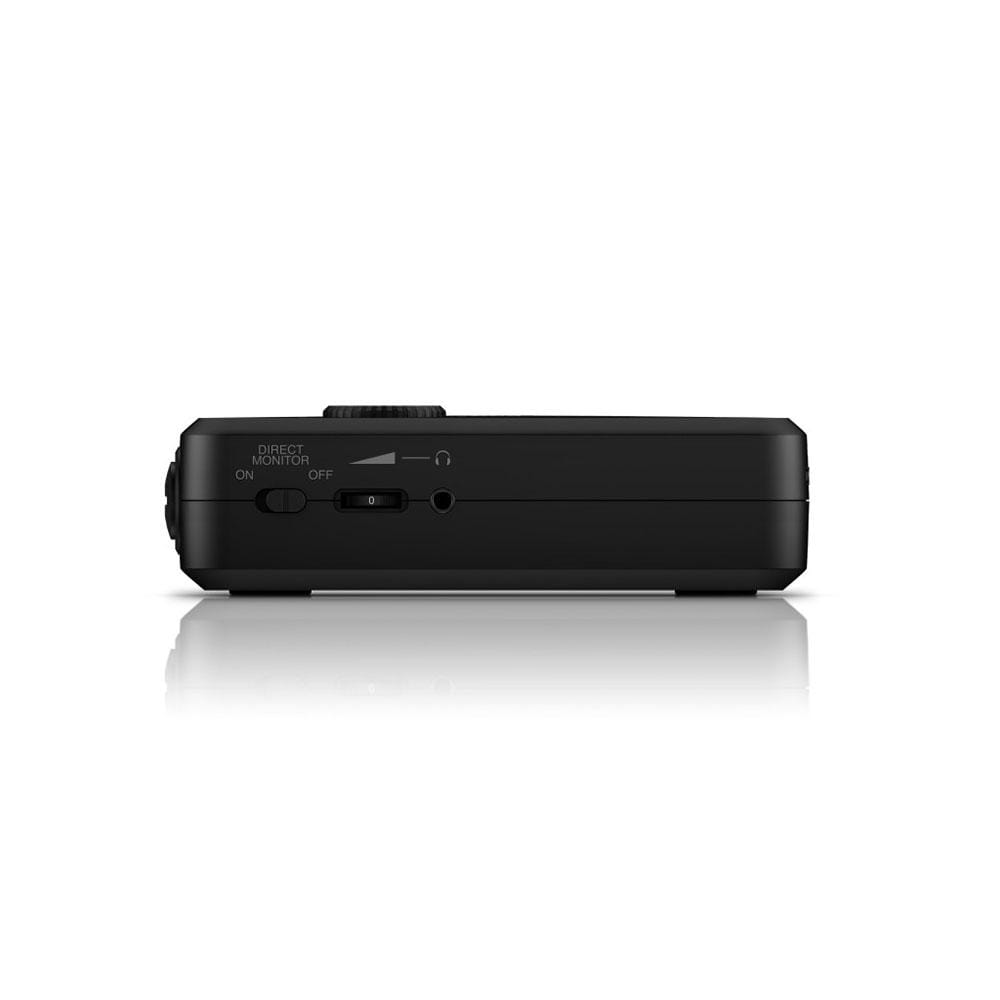

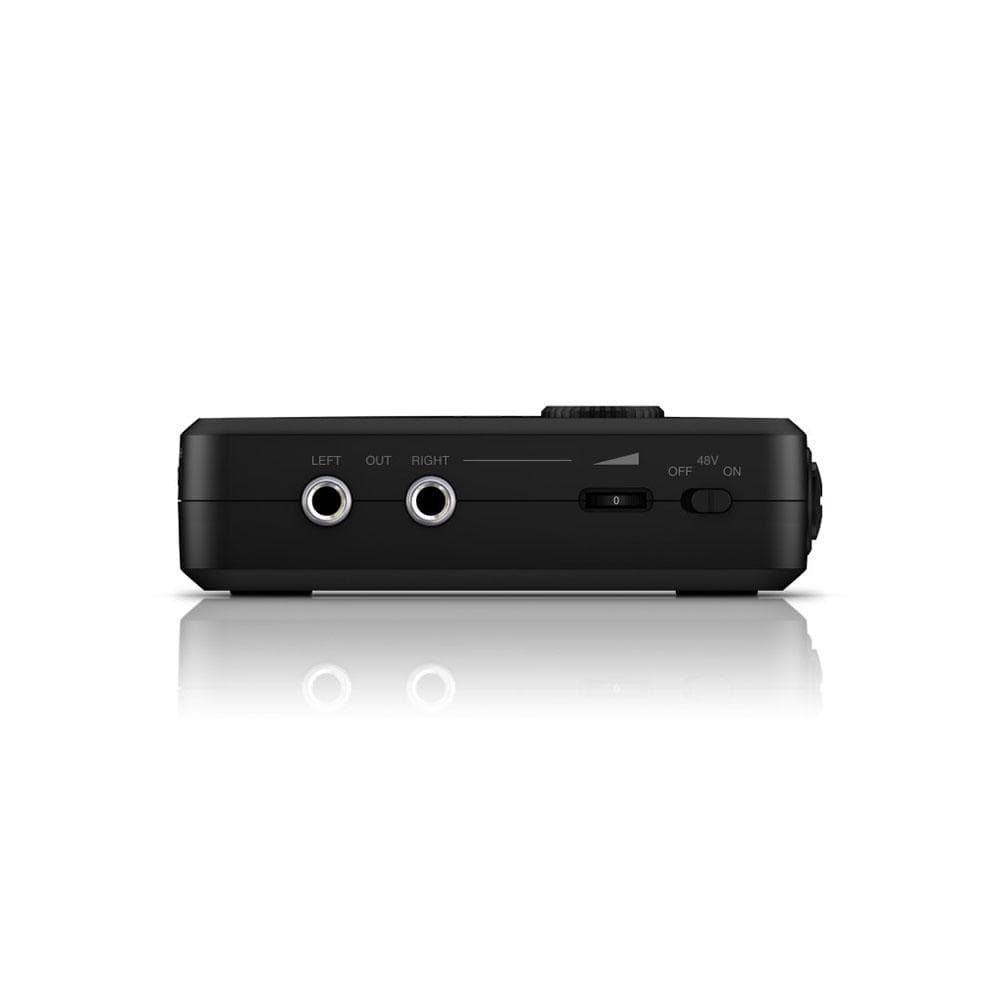

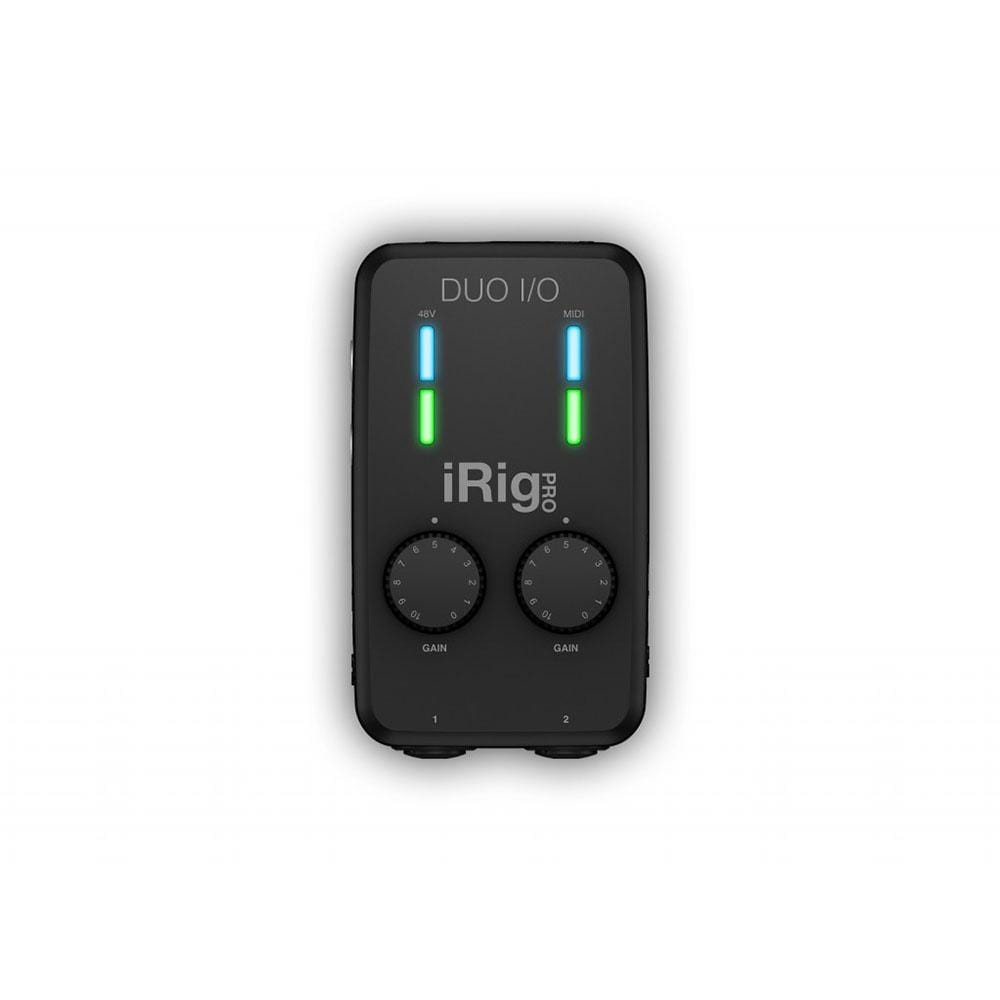

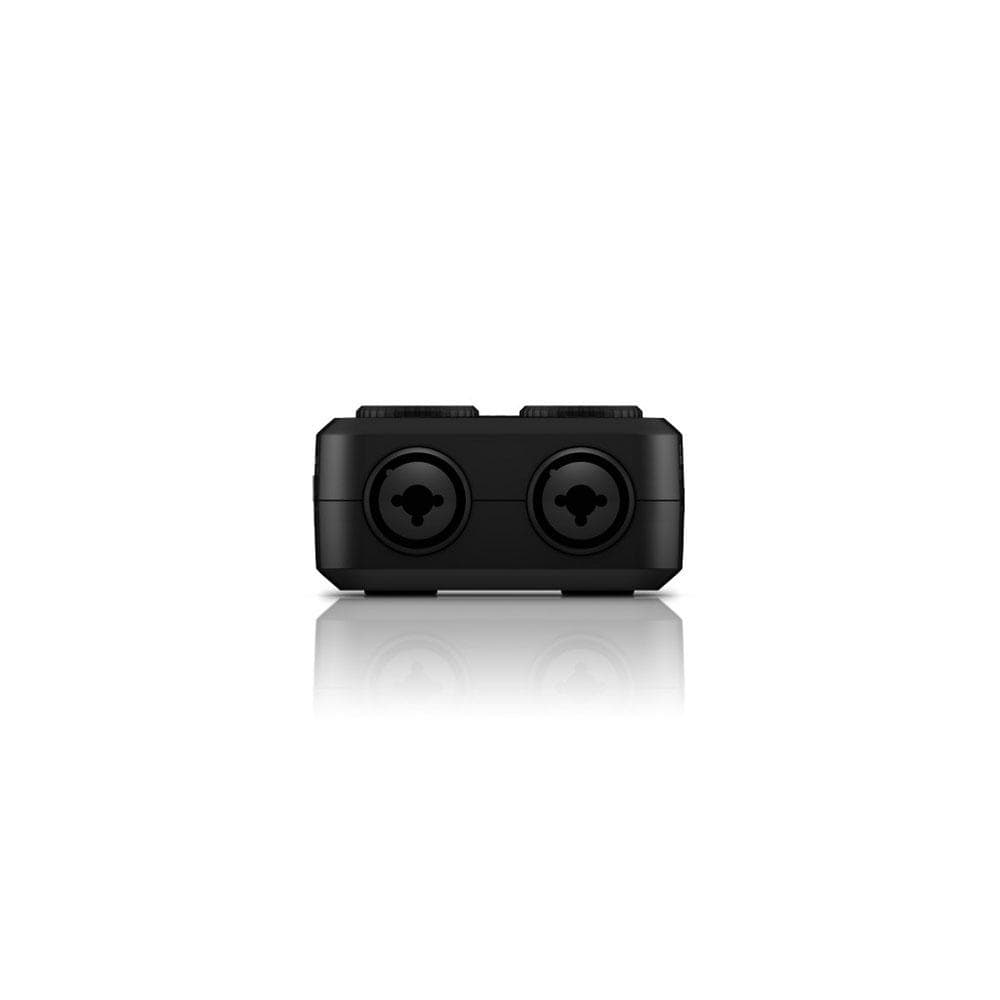

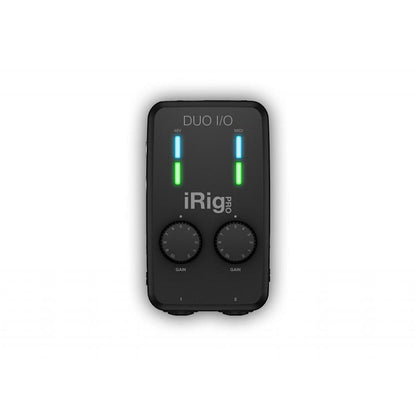

You’ll never stop finding new cool apps to use! Features: 2 XLR / ¼” combo guitar, mic & line inputs Class-A preamps with improved gain range and phantom power 2 balanced 1/4” outputs Headphone out with direct monitoring MIDI 2.5mm IN/OUT with breakout cables Improved ergonomic controls for maximum precision Runs off 2 AA batteries (included), bus power or optional PSU Rubberized finish and textured controls for reliable field use Includes Lightning, USB-C and USB-A cables Designed and made in Italy Specifications: Microphone Input Microphone Input: 2x balanced, XLR Pin 2: hot / Pin 3: cold / Pin 1: ground Microphone Input Level: from 6 mVpp to 1.4 Vpp Microphone Input Impedance: 3,2 kOhms Gain Range: 50 dB Phantom Power: +48V ± 4V Frequency Response: 20 Hz to 20 kHz (+-1.5dB) Input Noise: -103 dB(A), -97 dB RMS Instrument Input Instrument Input: 2x unbalanced, Hi-Z, TS 1/4” Jack, Tip: signal / Shield: ground Instrument Input Level: from 30 mVpp to 6.9 Vpp Instrument Input Impedance: 1 MOhms Gain Range: 27 dB Frequency Response: • from 2 Hz to 21 kHz (-3dB) Gain @ min • from 5 Hz to 21 kHz (-3dB) Gain @ max Input Noise: • -104 dB(A) Gain @ min • -102 dB(A) Gain @ max Line Output Line Outputs: 2x balanced, TRS 1/4” Jack, Tip: hot / Ring: cold / Shield: ground Floating Balanced Outputs with automatic level compensation when working in unbalanced mode Maximum Output Level: +16 dBu into 600 Ohms balanced load Frequency Response: from 10 Hz to 21 kHz (-3dB) Output Dynamic Range: 106 dB(A) Output Impedance: 150 Ohms balanced Common AD and DA Resolution: 24-bit Sampling Rate: 44.1 kHz and 48 kHz Power: USB bus power, battery power (2xAA - included), or DC power supply (9VDC, from 500mA up, positive outside - not included) Metering: Multicolor LED) Size: 75mm/2.95" x 127mm/5" x 37mm/1.46" Weigh\n Weight: 197.2g/6.96oz (batteries excluded) \n Battery Life: • Recording - Max load*: 3 hours, 30 minutes (NiMH rechargeable); 45 minutes (Alkaline) • Playback - Min load**: 10 hours (NiMH rechargeable); 3 hours (Alkaline) \n Dimensions \n Size: 75mm/2.95" x 127mm/5" x 37mm/1.46" Weight: 197.2g/6.96oz (batteries excluded) Package includes iRig Pro Duo universal dual channel Audio-MIDI interface Lightning to Mini-DIN connection cable (60cm/23.62") \n USB-C to Mini-DIN connection cable (60cm/23.62") USB to Mini-DIN connection cable (60cm/23.62") \n 2x 2.5mm TRS male to MIDI female adapter (10cm/3.9") 2 x 1.5V AA Battery Requirements iOS Devices: Compatible with iPhone XS Max, iPhone XS, iPhone XR, iPhone X, iPhone 8 Plus, iPhone 8, iPhone 7 Plus, iPhone 7, iPhone SE, iPhone 6s Plus, iPhone 6s, iPhone 6 Plus, iPhone 6, iPhone 5s, iPad Pro 10.5-inch, iPad Pro 12.9-inch (2nd generation), iPad Pro 9.7-inch, iPad Pro 12.9-inch (1st generation), iPad Air 2, iPad Air, iPad mini 4, iPad mini 3, iPad mini 2, iPad (6th generation), iPad (5th generation), iPod touch (6th generation).

iOS 7.0 or later is required Also compatible with all newer iPhone, iPad and iPod touch models.

Computers Mac: Mac OS X 10.6 or later One free USB port.

Windows: One free USB port For low latency, the IK Multimedia 's iRig audio driver must be Android Devices Compatible with Android devices running Android 5 or later and with USB digital audio capabilities.

Made in China.
