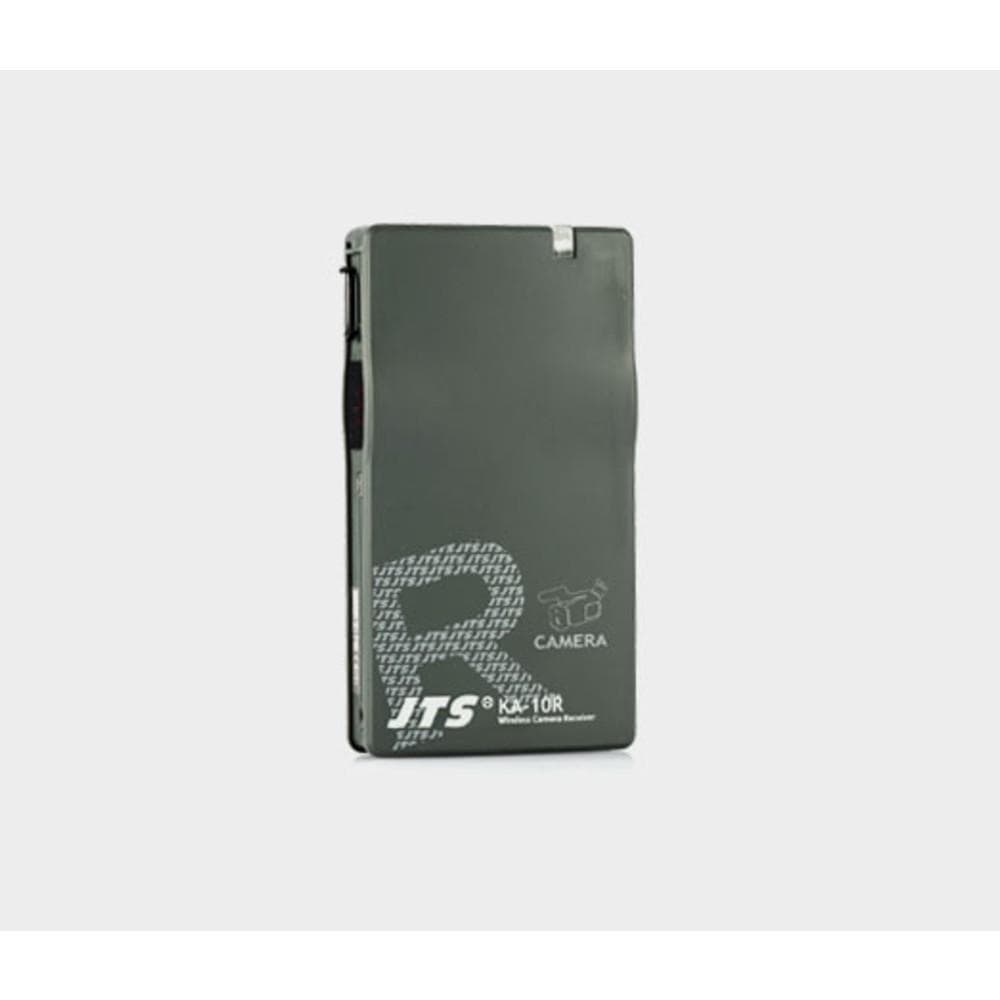

JTS KA 10R Wireless Camera Receiver PLL Synthesized Control

JTS KA 10R Wireless Camera Receiver PLL Synthesized Control Overview: The KA-10 system includes KA-10R, KA-10T (KA-8TH) , KAC50X / KAC150 cable, TG-10CH2, shoe mount adapter, and CM-201 microphone It is designed for both professional and consumer video camera.

The CM-201 provides omni-directional pick up pattern to expand the coverage to mike a meeting Lithium battery can goes for 14 hours which is useful for travel.

UHF PLL 16 selectable frequency can render multi system application Over 60 meter operation distance virtually meets all kinds of application.

Specifications: Frequency Preparation.: PLL Synthesized Control Carrier Frequency Range: 502~960 MHz 3x Frequency Range: 856.100 - 864.900 MHz (F band) 606.500 - 629.900 MHz (U band) 721.500 - 748.375 MHz (G band) 658.125 - 678.500 MHz (D band) 487.125 - 506.500 HHz (I band) 502.000 - 694.000 MHz (T band) LED Display: Channel Controls: Power On/Off, Channel selection Volume control Audio Frequency Response: 40~18,000 Hz Output connector: 1/8” Dummy stereo Phone Jack Battery life: 14 hours typical Battery: Lithium cell (3.7V, 1300mAh) Dimension(mm): 54mm(W)* 17mm(D)* 99mm(H) Made in China.
