Lauten Audio Eden LT-386 Condenser Microphone

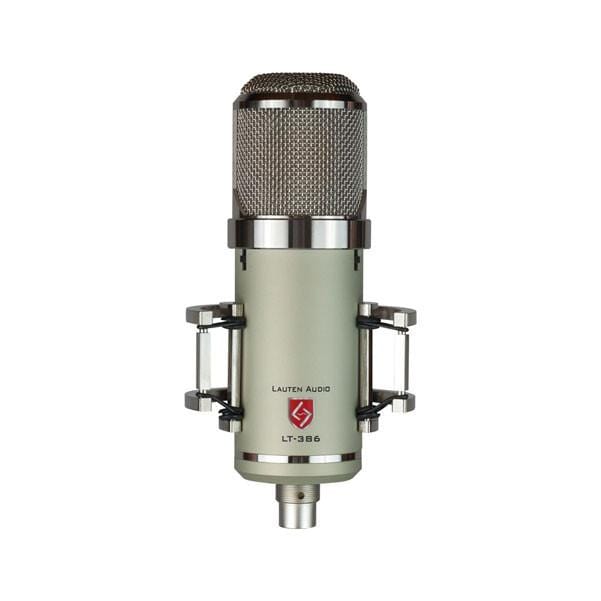

Lauten Audio Eden LT-386 Condenser Microphone A modern tube microphone like no other The Eden LT-386 by Lauten Audio is a Multi-voicing™ vacuum tube large diaphragm condenser microphone The LT-386 is for discerning recordists in search of the most diverse and useful studio vacuum tube microphone.

It offers a unique blend of classic and modern design theory which exhibits a smooth, rich low and mid-range as well as high mid and high timbre reminiscent of premier classic vacuum tube microphones From its attached, semi-permanent, suspension mount, to its three different switches housed on the microphone itself, Eden offers an endless palette of sound.

Eden LT-386 at a glance Designed for the most discerning ears in the business Multi-voicing switch for three distinct timbres Vocal shaping high-pass filter Kick-drum shaping high-pass filter Switchable patterns on the microphone Stunning appearance, built to the hilt, refined character Pattern switching on the microphone The polar pattern switch gives recordists the option of choosing between Cardioid, Omnidirectional or Figure-8 polar patterns Having the pattern switch on the microphone, rather than the power supply, allows you or the artist to quickly and easily make your selection.

Although not as common today, we were inspired by the most admired classics when we decided to put this feature on the microphone itself Vocal and Kick-drum shaping high-pass filters Next up we have our unique 2-stage, high-pass filters we call “Kick-shaper” and “Vocal-shaper”.

These filters are uniquely tuned to shape the low-end for two of the most commons trouble areas In its default position there is no high-pass.

Stage one, or the middle position, is the “Kick-shaper”; as you can probably guess, this was specifically designed for kick-drums With its very steep cut of the low-end, it removes excess boominess that might actually take away from a big sounding kick.

But feel free to try it on toms, vocals, guitars etc Moving the switch to stage 2, or the bottom position, is the “Vocal-shaper” which is designed to clean up your vocal tracks for an amazingly smooth and classic sound.

Of course, it will be useful for many more sources as well Proprietary Multi-voicing technology Multi-voicing is a process that can only be achieved in the microphone itself.

This is Lauten Audio’s proprietary technology that uses three separate signal paths for unique frequency shaping The multi-voicing functions in Eden are specifically designed and tuned for this microphone and are not the same as the Atlantis.

But for consistency we kept the same names; Forward, Neutral and Gentle The Gentle position provides maximum control of bright or peaky sources or to achieve a very warm, vintage vibe.

Select one of the high-pass filters and you’ll think you have a completely different microphone Neutral offers a nice even response with good control over S’s, and starts moving more toward a modern microphone but still wrapped in a vintage vibe.

Lastly Forward opens up the microphone for that familiar “air” of classic microphones from the past with our own modern touch that Lauten Audio is known for In Summary The polar-pattern, high-pass filter, and Multi-voicing functions make for a vacuum tube microphone like never before.

Put it in figure-8, use the kick-shaper (first stage high-pass) and forward mode, or cardioid, vocal-shaper (second stage high-pass), and gentle, it’s almost an endless palette of options Premium components throughout The Eden LT-386 uses our proprietary 31.25mm dual-diaphragm pressure gradient condenser capsule tuned specifically for this mic.

It uses a custom wound US-made output transformer for excellent control of transients The vacuum tube is a modern EF806s aged using a proprietary process developed by Lauten Audio.

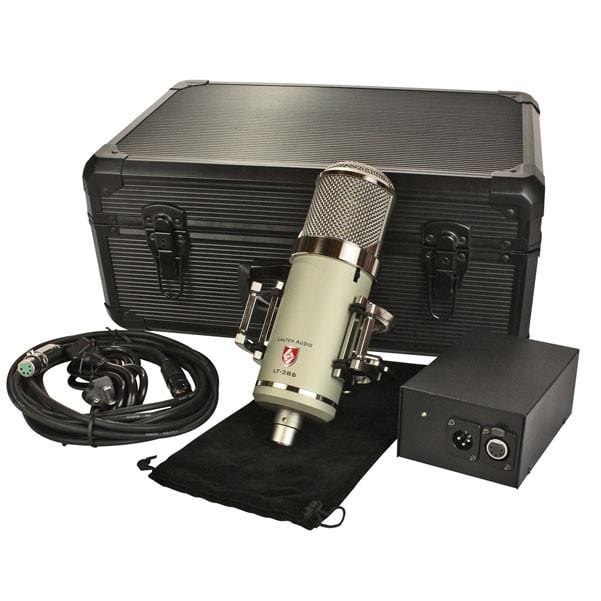

The mic also features high-quality, high-tolerance resistors and capacitors, Switchcraft® connectors on the microphone, cable and power-supply, and our own custom tube microphone cable Technical Specifications: Type: 31.25mm dual large diaphragm pressure gradient transducer microphone.

Polar Patterns: Omnidirectional, Cardioid and Figure-8 selectable Circuit: Vacuum tube, transformer balanced Frequency Range: 20Hz-20KHz Dynamic Range: 120dB minimum Impedance: < 200 ohms Max.

SPL: 0.5%THD@1000Hz: 120dB Self-noise Level: < 20dB(A) Sensitivity: 16mV/Pa OR -36±2dB 0dB=1V/Pa 1000Hz Special Features: Kick-shaper & Vocal-shaper, High-pass filters, 3-stage Multi-voicing™ switch, Polar pattern switch Connector: 5-pin XLR (PSU to microphone) and 3-pin XLR (PSU to Preamp) Power Requirement: Custom power supply (100v to 240v compatible)  Made in USA.This product is non-returnable under all circumstances. However, it is fully covered under the manufacturer's standard warranty plan for a period of one (1) year from the date of purchase.
