Ld System Class D 2 x 100 W 4 Ohms Pa Power Amplifier

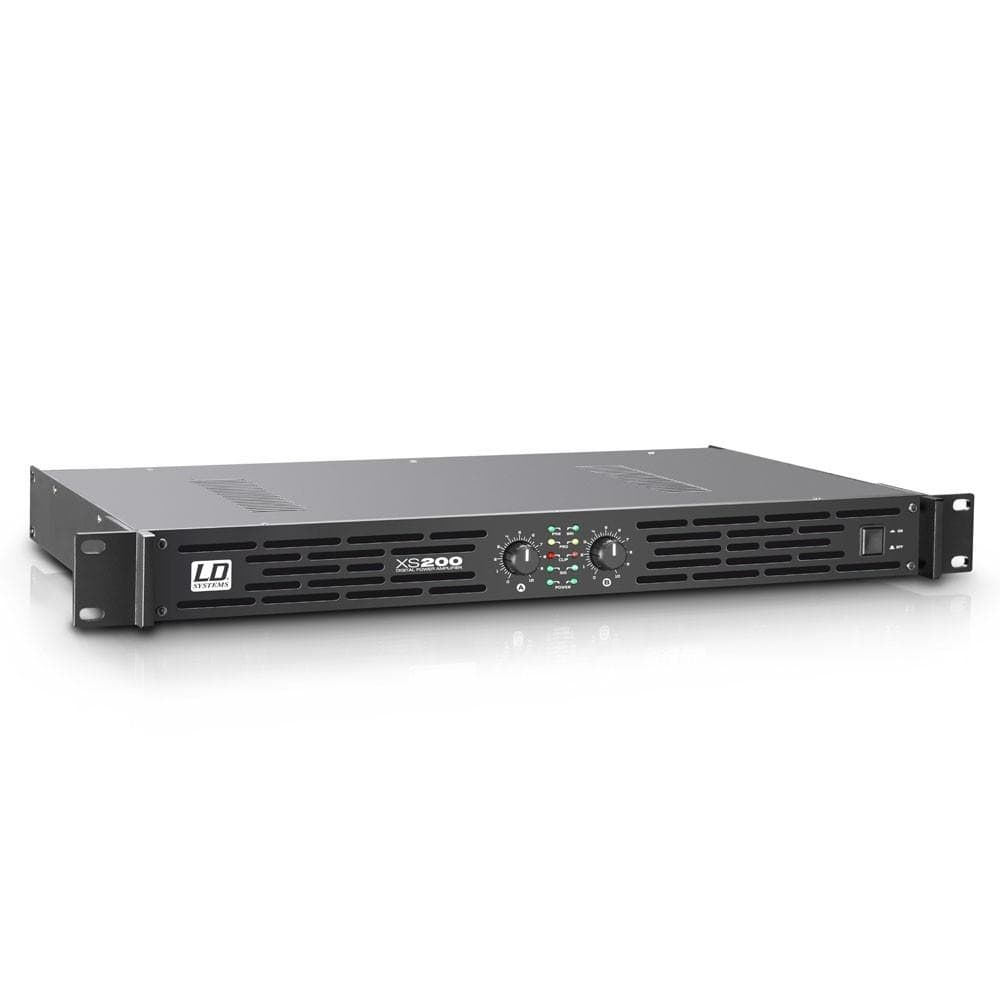

Ld System Class D 2 x 100 W 4 Ohms Pa Power Amplifier overview: LD Systems XS200 Power Amplifier The XS200 is an extremely compact, dependable Class D power amplifier with an output of 100W per channel at 4 ohms and a transmission range of 20Hz – 20kHz With just 1U and a weight of 3kg, it is conceived for all professional applications in which ease of transport or space is important, whether mobile, in installations or at home, since no fan is required.

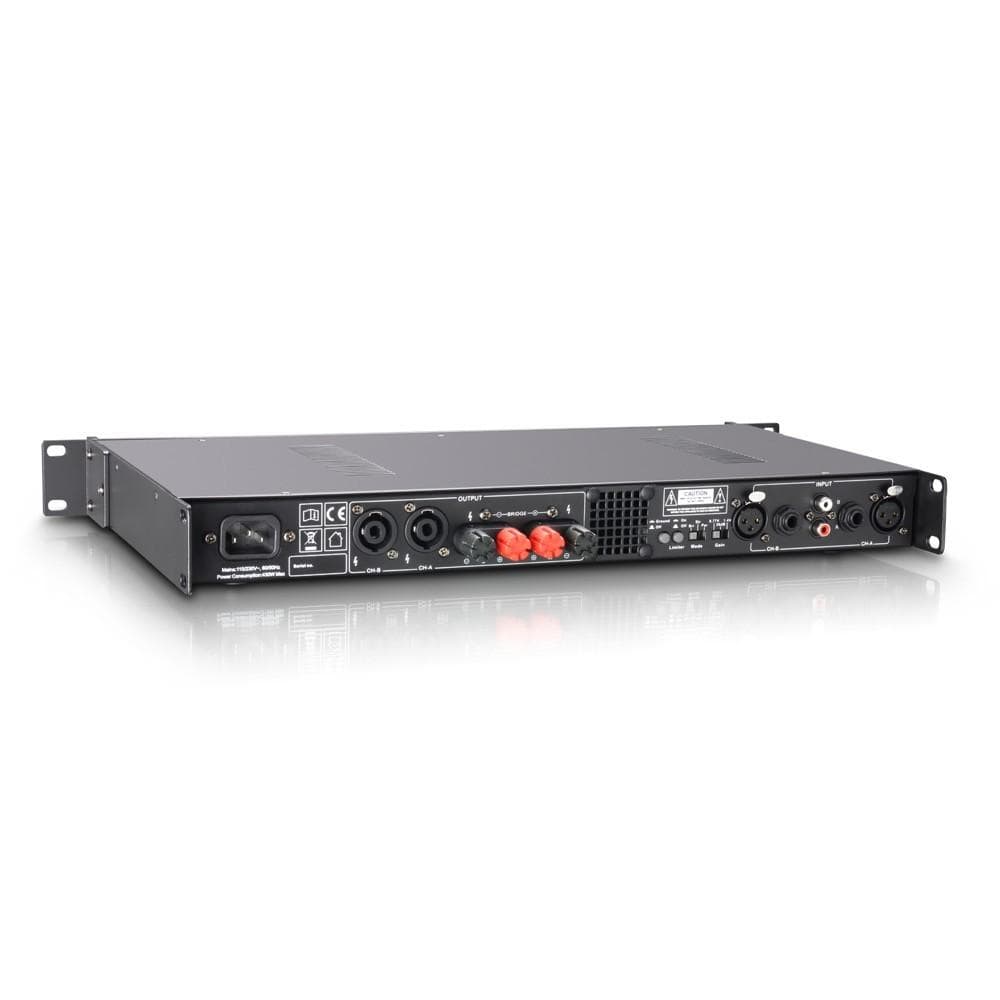

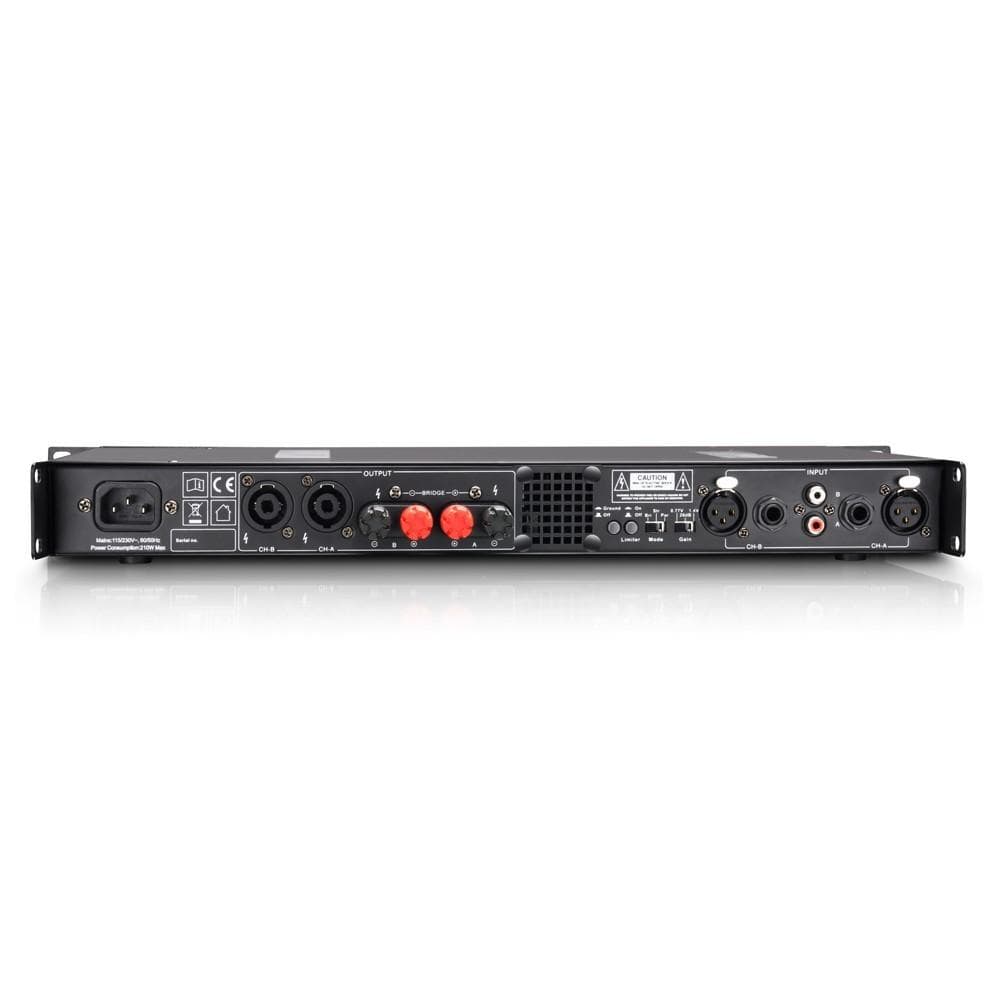

The XS200 is protected against short-circuiting, DC, overheating, and overloading and has a soft-start delay The amplifier features XLR, RCA and jack input connectors, with Speakon-compatible sockets and screw terminals as outputs.

Slide switches on the rear panel let you select the mode of operation and gain and activate the limiter and the ground-lift function for eliminating ground loop hum LEDs indicate power, signal, clipping, triggering of the protection circuit, and the mode of operation.

The XS200 impresses with its high dynamics, impulse fidelity, and transparent sound Specifications: Product type: Power Amplifiers Type: PA Power Amplifiers Rated ouput power (1kHz @ 4 Ohms): 2 x 100 W Rated ouput power (1kHz @ 8 Ohms): 2 x 50 W Rated ouput power (1kHz @ 8 Ohms, bridged): 200 W Output circuitry: Class D Frequency response: 20 - 20000 Hz Total Harmonic Distortion (THD): < 0.1 % Gain: 30 dB / 26 dB / 24 dB dB Input sensitivity: 0.77 V / 1.1 V / 1.4 V (passed) V Protection circuits: DC , over-current , short circuit , soft start , thermal overload Controls: Gain , ground lift , limiter , Mode , On / Off , volume Indicators: clip , Mode , Power , Protect (protection circuit engaged) , Signal Line inputs: 2 Line input connectors: 6.3 mm jack , RCA Loudspeaker outputs: 2 Speaker output connections: Speakon compatible , Terminal posts Operating voltage: Switching power supply Power consumption @ full load: 240 W Operating voltage: 115 V AC / 230 V AC (switchable) Width: 482 mm Height: 44 mm Depth: 244 mm Weight: 3 kg Made in China.
