Ld System Portable Column PA System with Mixer Bluetooth

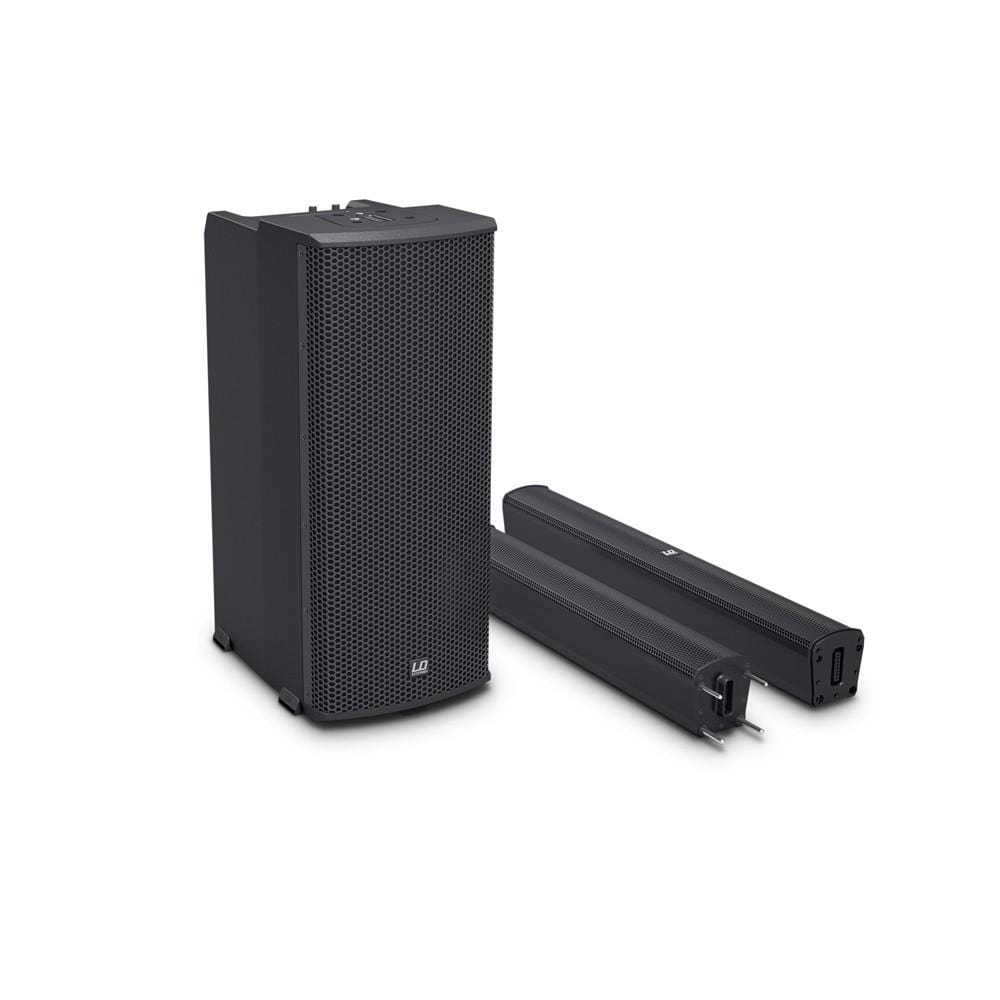

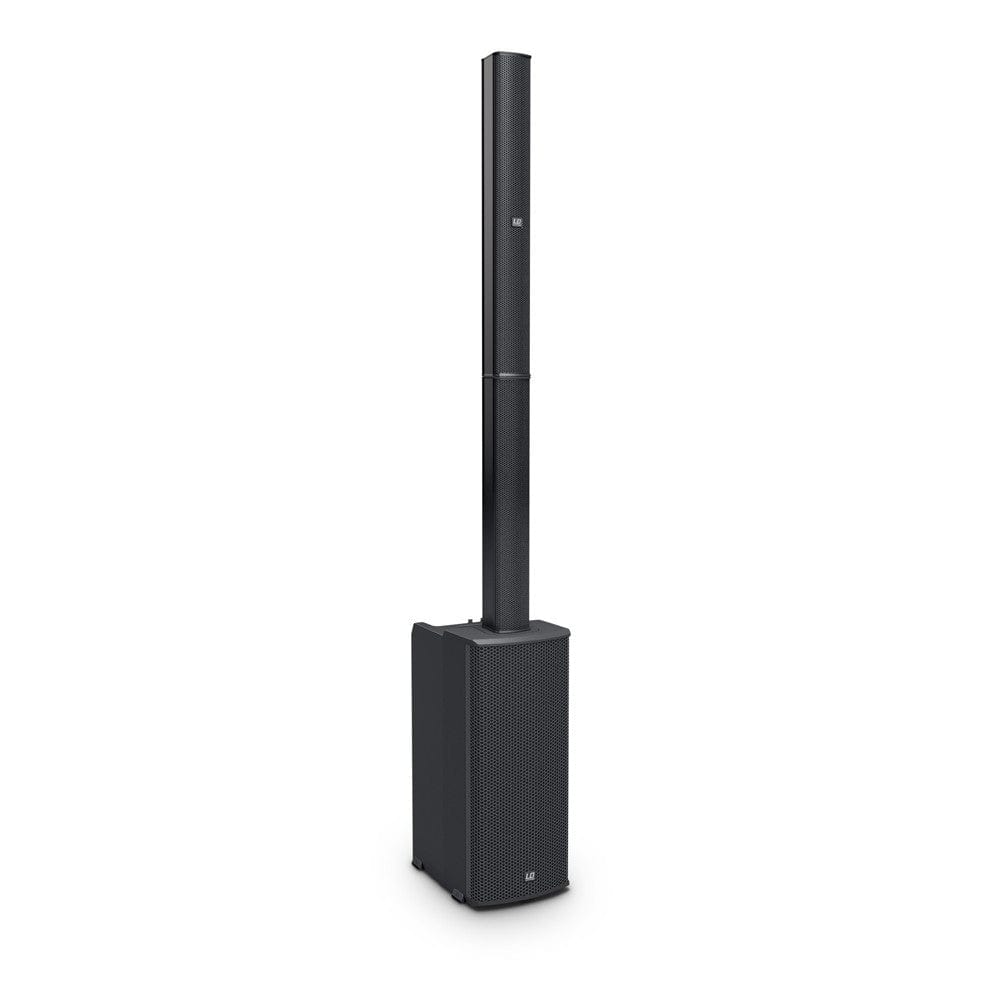

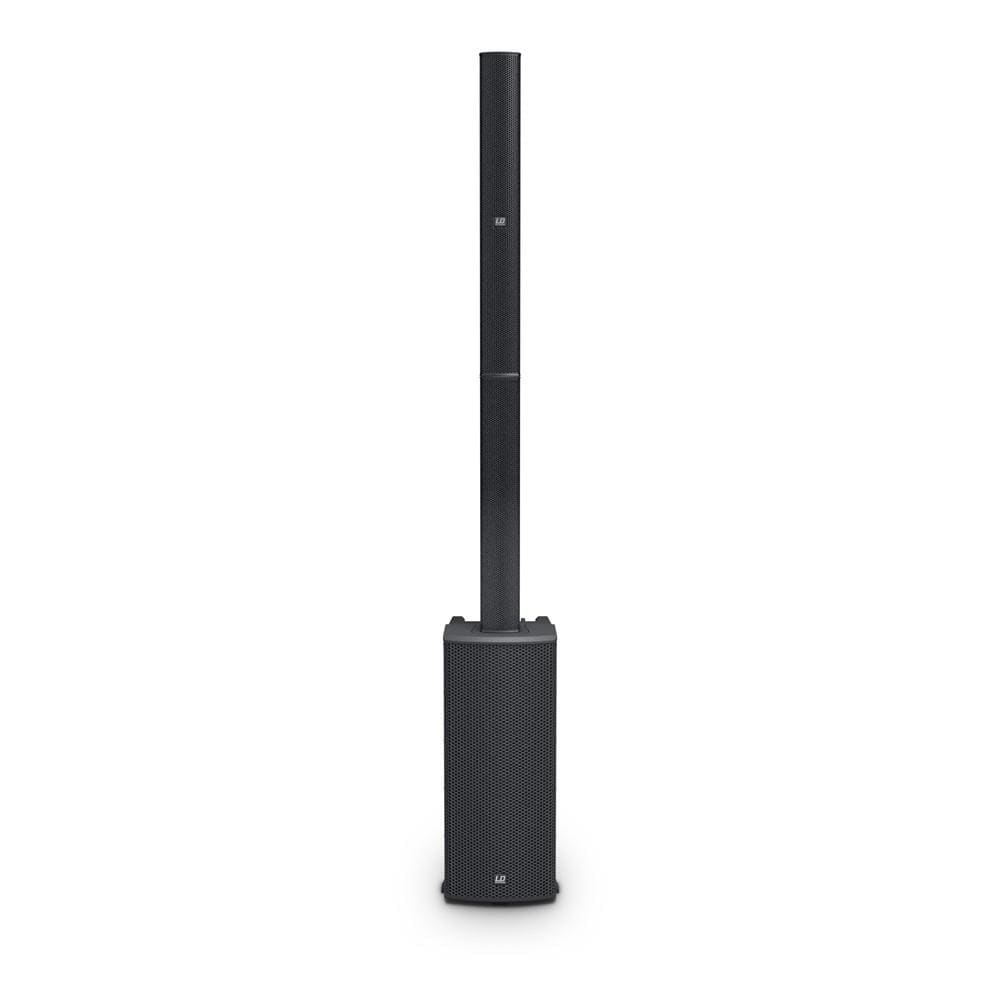

Ld System Portable Column PA System with Mixer Bluetooth Overview: A complete sound system that you can carry together with your instrument: introducing the MAUI 11 G2 The two column elements in the padded shoulder bag, the subwoofer in one hand and the guitar or keyboard in the other - and off you go! Setting up the complete system, which doubles as a PA and monitor system is just as easy thanks to the special multi-pin cable plugs.

The compact and elegant MAUI 11 G2 offers an unbeatable sound quality and wide-ranging sound distribution It was developed after years of experience in the design of the column systems as a user-friendly solution for small to medium-sized gigs and fixed installations.

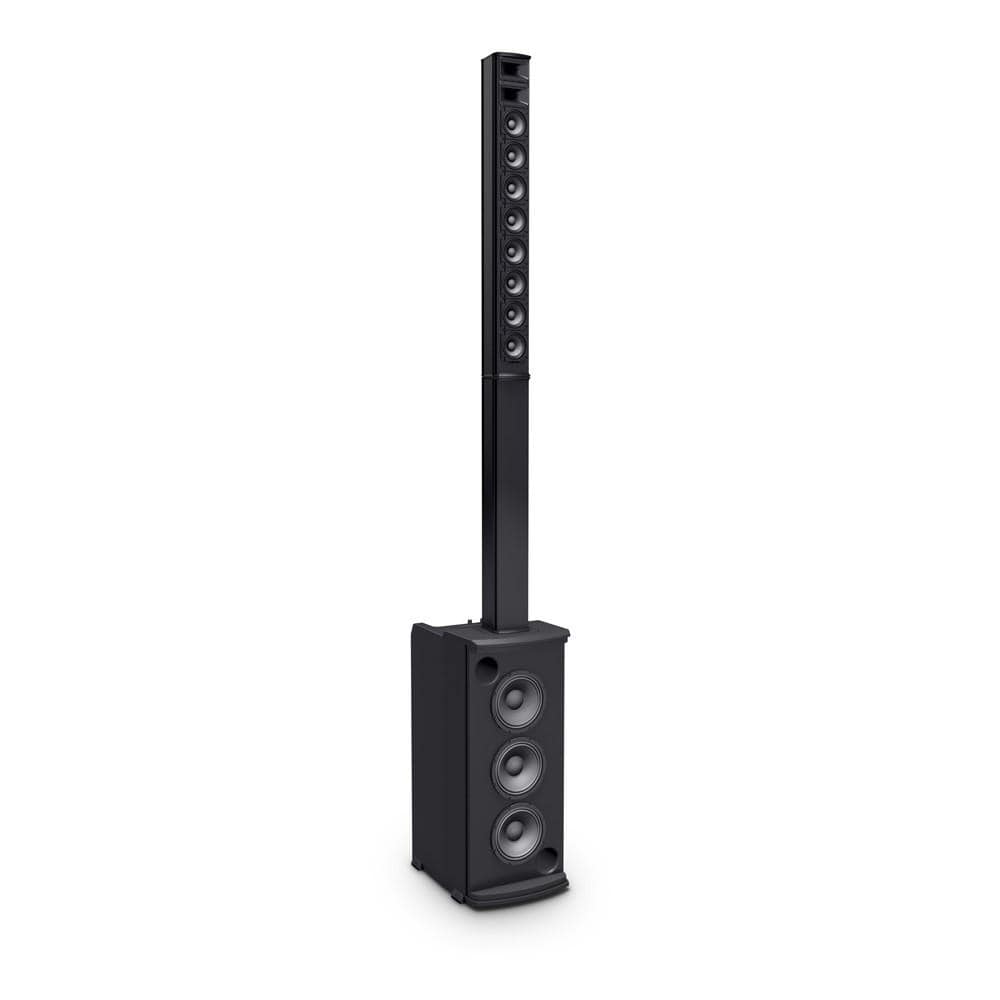

The MAUI 11 G2 is equipped with three 6.5" woofers, eight 3" full-range speakers and two 1" neodymium HF drivers They are driven by a light Class-D power amplifier boasting 1,000 watts of peak power and producing a grunty bass, balanced mids and precise and silky highs.

The DynX® DSP technology from LD Systems provides top-class performance each time and the highest level of freedom from distortion It includes a multiband limiter which protects against overloading, an EQ, a compressor and a 3-way-crossover with run time correction.

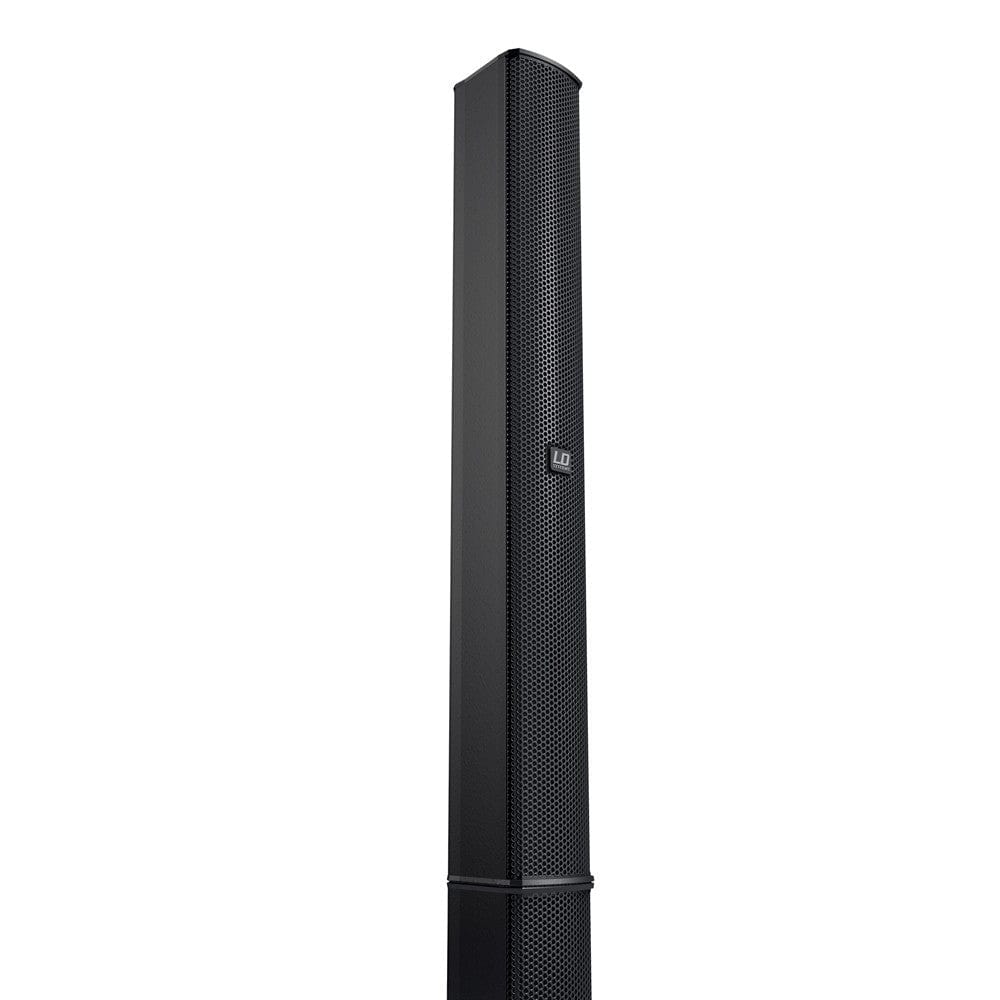

The design of the MAUI 11 G2 line array achieves a longer range, increased resistance to feedback and a wider space coverage, which makes separate monitor speakers superfluous The wave guide of the tweeters has been developed using the Boundary Element Method (BEM), a numerical simulation of the sound radiation and dispersion.

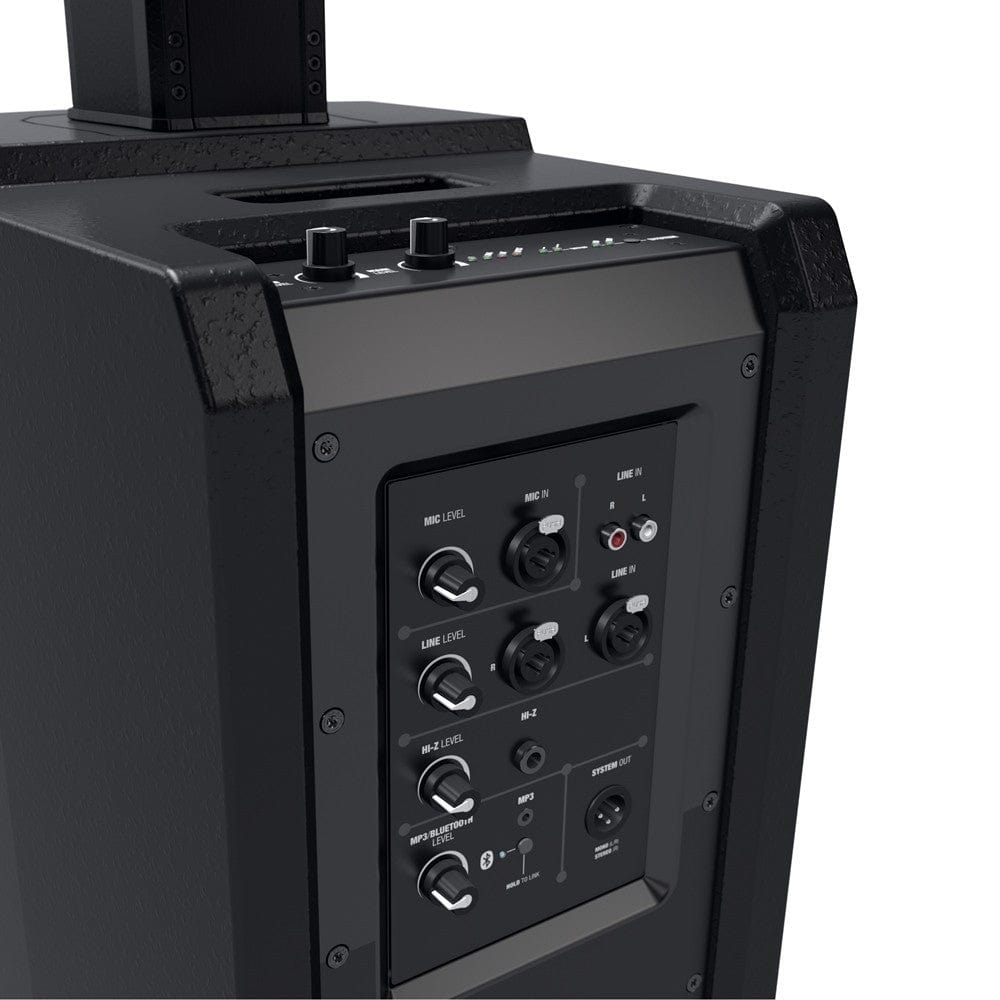

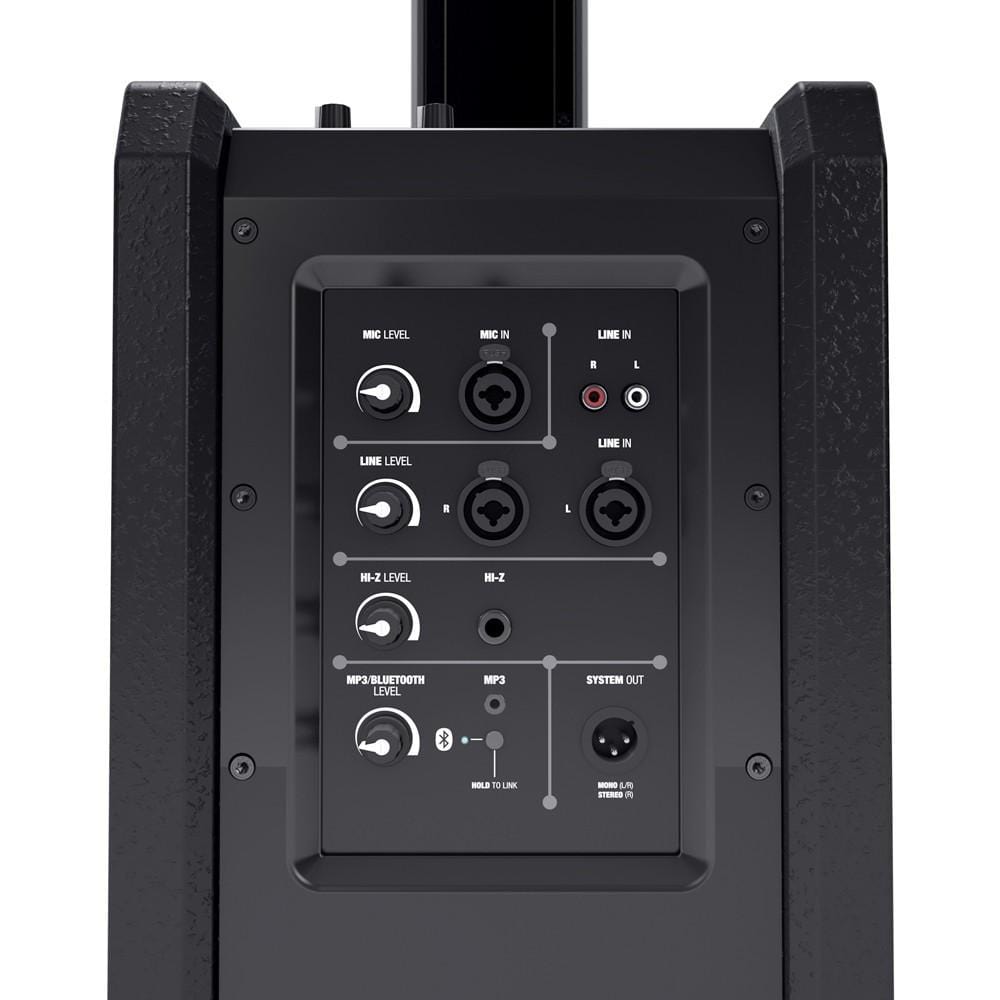

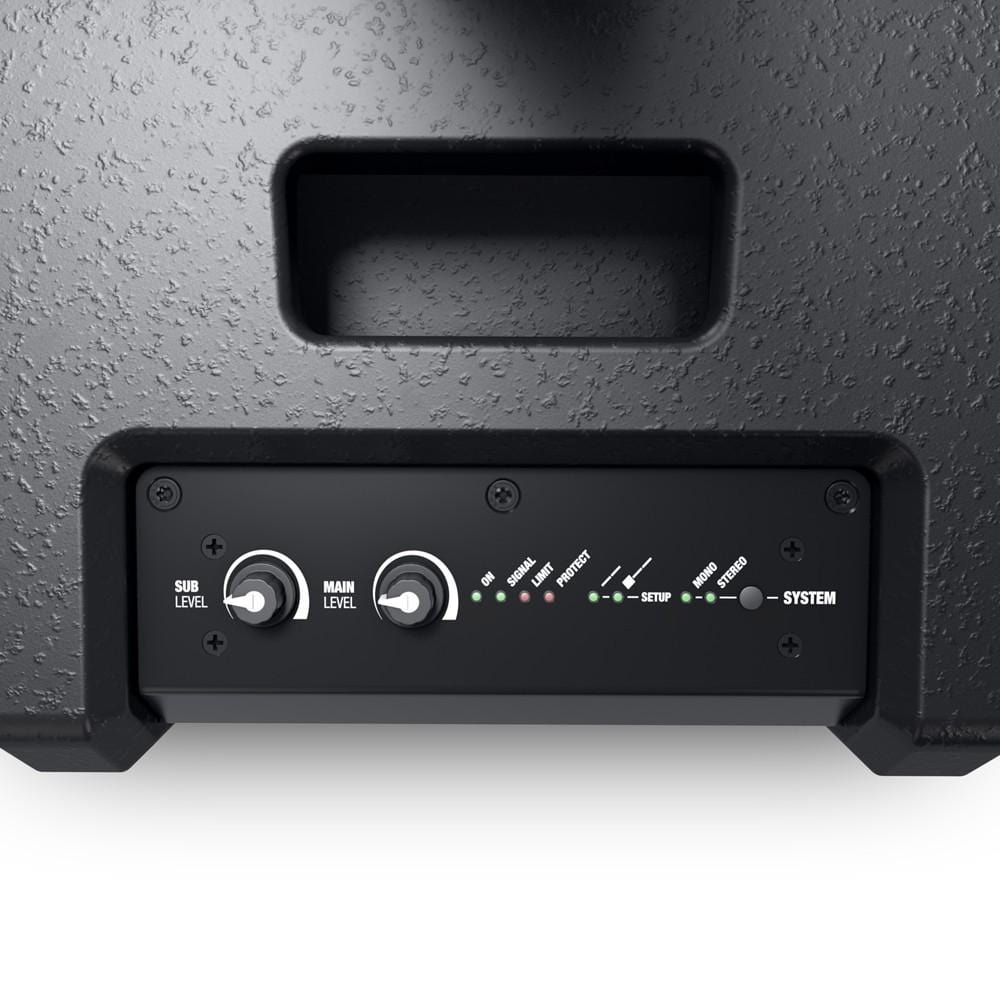

It reduces reflections from the floor and ceiling and prevents sidelobe levels and thus achieves an homogeneous dispersion - Your audience hears you in the back row just as clearly as in the front With the integrated 4-channel mixer, system presets for mono or stereo configuration and Bluetooth® Audio Streaming, you have full control over the system.

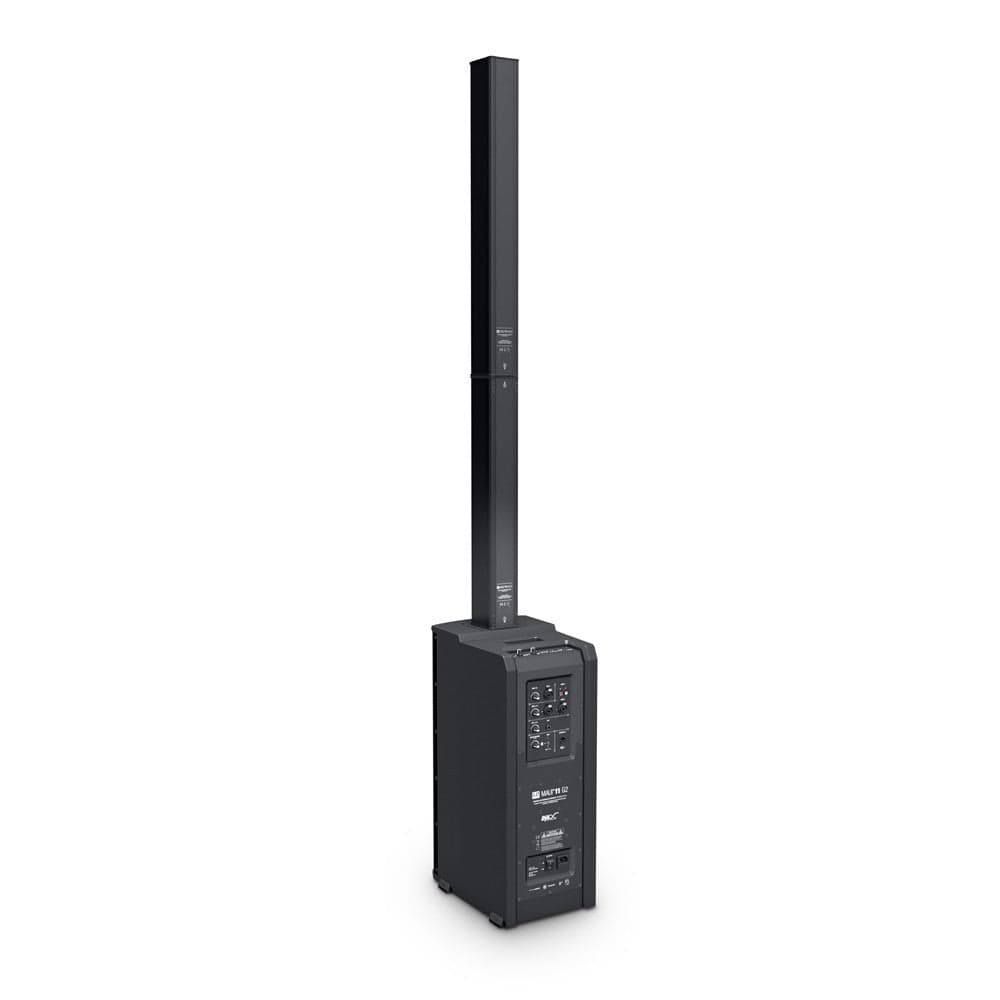

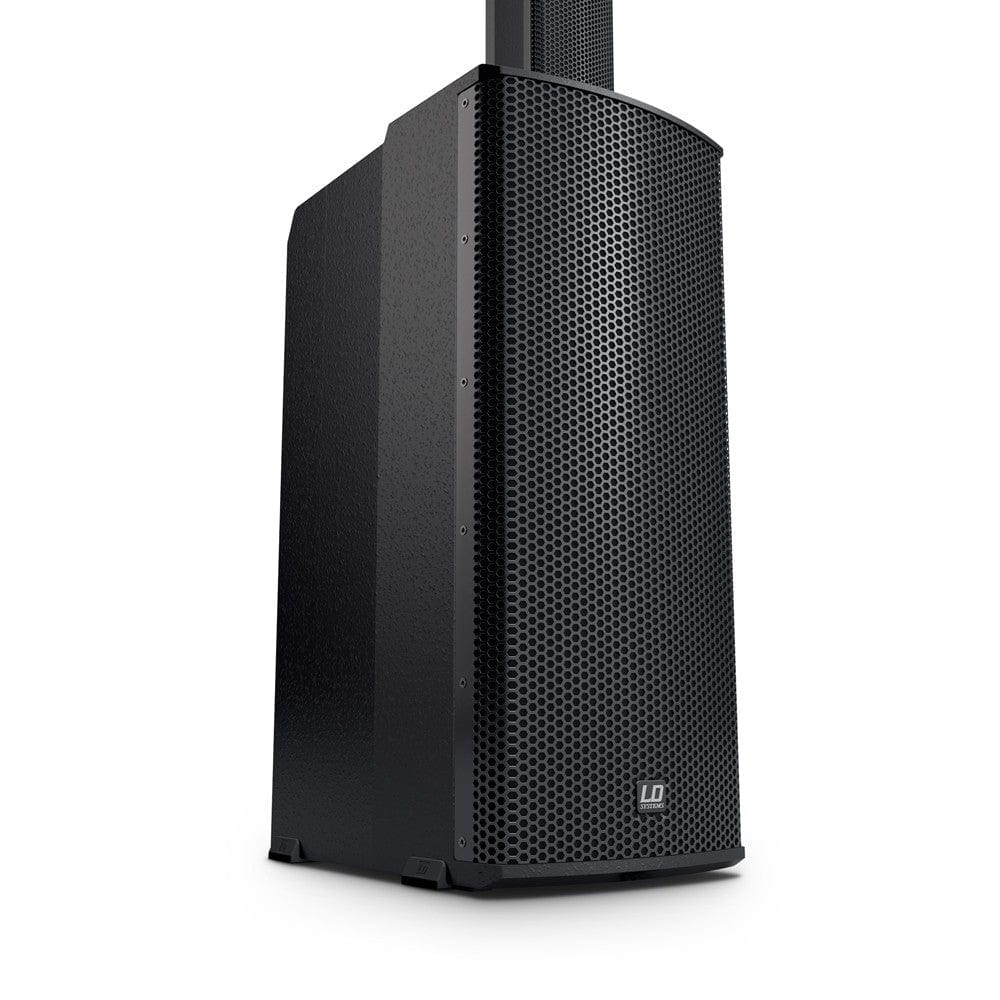

Whether you are a singer-songwriter, solo entertainer or DJ, you will be thrilled with the extraordinary sound and portability of the MAUI 11 G2 The column and the subwoofer can be set up separately: thus, the system is extremely flexible and is also an excellent choice for fixed installations.

With a selection of clever transport accessories and special mounting hardware, the MAUI 11 G2 is a well thought out overall solution, down to the last details Features: All-in-one column speaker for PA and monitor applications 1,000 watts peak Class-D system power offer high performance with a low weight Powerful bass reproduction with 3 x 6.5" woofers Balanced mids thanks to the 8 x 3" full-range speakers Precise and silky highs with 2 x 1" high frequency drivers Increased range and wider coverage through the array arrangement Homogeneous dispersion pattern through a BEM-optimised tweeter wave guide Distortion-free sound even at the highest volume thanks to LD Systems DynX® DSP technology Full control through a 4-channel mixer including Bluetooth® Stereo Audio Streaming Two-piece column for compact transport Specifications: Weight: 24,9 kg Product type: PA Complete Systems Type: active Color: Black Max.

SPL (peak): 124 dB Frequency response: 50 - 20000 Hz Dispersion (H x V): 120° x 20 Overall height: 2030 mm Woofer characteristics Low/mid driver dimensions: 3 x 6.5 " Woofer size: 3 x 165.1 mm Woofer magnet: Ferrite Woofer brand: Custom-made Woofer voice coil: 1.5 " Woofer voice coil (mm): 38.1 mm Cabinet construction: Bass Reflex Cabinet material: 15 mm Plywood Cabinet surface: texture paint Subwoofer width: 285 mm Subwoofer height: 650 mm Subwoofer depth: 373 mm Subwoofer weight:16.9 kg Mid/Hi System Midrange size: 8 x 3 " Midrange size: 8 x 76.2 mm Midrange magnet: Ferrite Midrange brand: Custom-made Midrange voice coil: 1 " Midrange voice coil: 25.4 mm Horn: Waveguide Tweeter dimensions: 2 x1 " Tweeter dimensions (mm): 25.4 mm Tweeter magnet: Neodymium Tweeter brand: Custom-made Tweeter voice coil: 1 ": Tweeter voice coil (mm): 25.4 mm Loudspeaker inputs: 1 Speaker input connections: Custom-made multipin Cabinet construction mid/high: Closed Mid/Hi system cabinet material: Aluminum Mid/Hi system cabinet surface: HD coating Mid/Hi system width: 96 mm Mid/Hi system height: 620 / 730 mm Mid/Hi system depth: 104 mm Mid/Hi system weight: 5.4 / 2.6 kg Amplifier module (integrated in subwoofer) Amplifier: Class D Amplifier output system (RMS): 500 W Amplifier output system (peak)" 1000 W Protection circuits: DC protection , Multiband limiter , short circuit , thermal overload Cooling: Convection Operating Temperature: 0 - 40 °C Humidity Range: 10% to 80%, (non-condensing) Controls: Bluetooth switch , Hi-Z Level , Line level , Main level , Mono/stereo switch , MP3/Bluetooth Level , Power , Sub level Indicators: Limit , mono , On , Protect (protection circuit engaged) , Setup , Signal , stereo Power connector: IEC power cable (included) Operating voltage: 100 - 120 V / 50 - 60 Hz or 200 - 240 V / 50 - 60 Hz (automatic switching) Power consumption Off / On / Max.: 0/11/600 W Line inputs: 2 x stereo Line input connectors: RCA , XLR/6.3 mm jack Line outputs: 1 x direct out Line output connectors: XLR Mic inputs: 1 Mic inputs: XLR/6.3 mm jack MP3 inputs: 1 MP3 input connectors: 3.5 mm jack Hi-Z inputs: 1 Hi-Z input connectors: 6.3 mm jack Loudspeaker outputs: 1 Speaker output connections: Custom-made multipin Made in China.
