LD Systems SAT42G2 4" Installation Passive Wall Mounted Speaker Pair

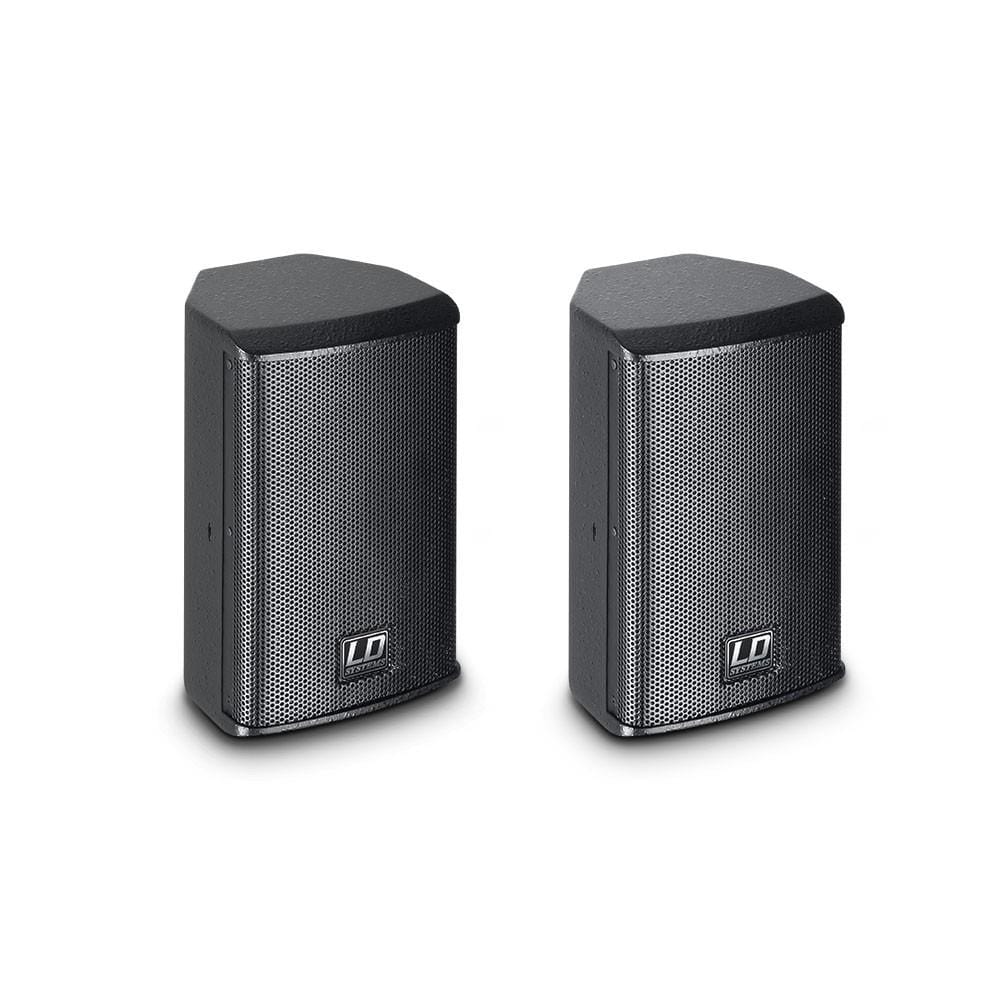

LD Systems SAT42G2 4" Installation Passive Wall Mounted Speaker Pair Overview: The LD Systems SAT42G2 is an ultracompact 2-way speaker that is suitable for smaller installations and unobtrusive integration in practically any surroundings, e.g., in bars and restaurants, retail shops or even at home A balanced sound with a 60° x 60° dispersion angle and a maximum sound-level pressure of 103dB is ensured by the 4" custom woofers and a 1“ silk dome tweeter with wave guide.

The impedance of 16 ohms permits parallel operation of eight SAT42G2 speakers on 2 ohms For a deeper bass foundation with powerful drive, the subwoofers in the LD installation series are the ideal addition.

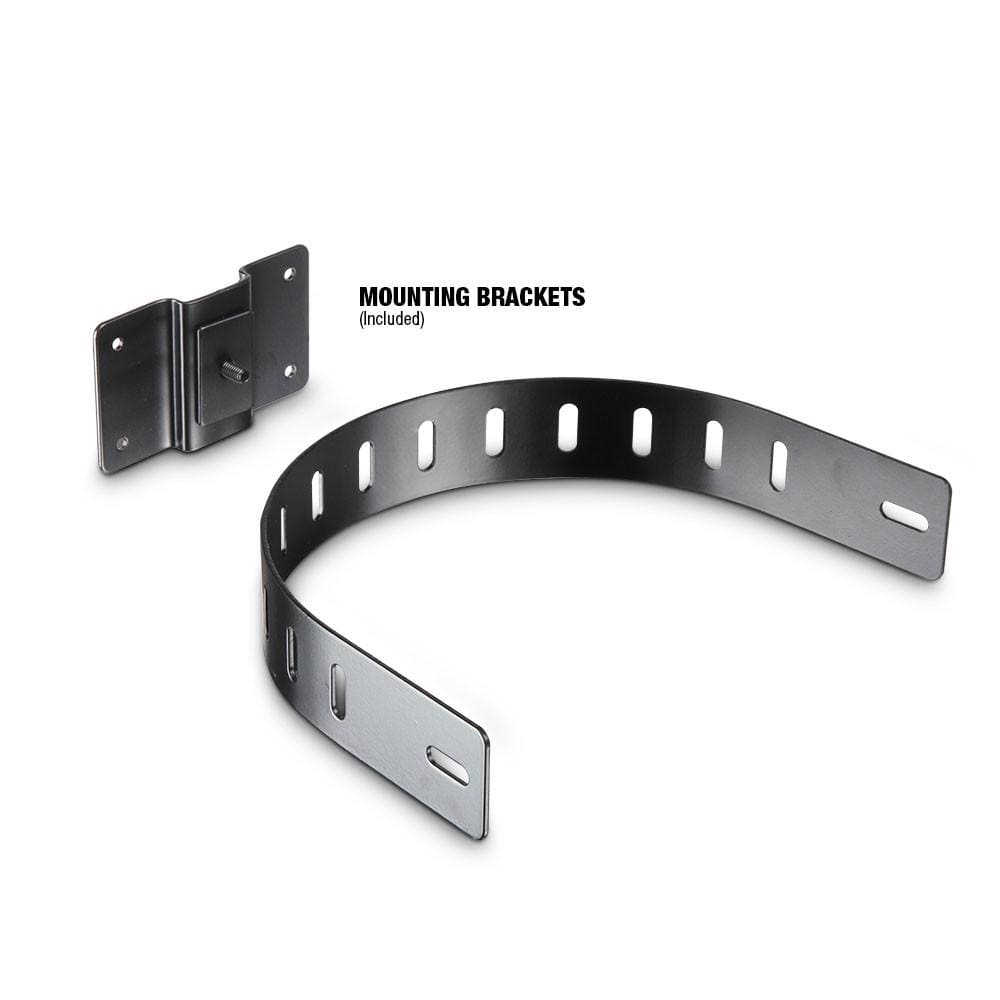

The cabinet with a rugged textured coating is made of 12 mm MDF and is available in black and white M6 inserts and an included mounting bracket provide varied possibilities for mounting; a universal joint mount is available as an accessory.

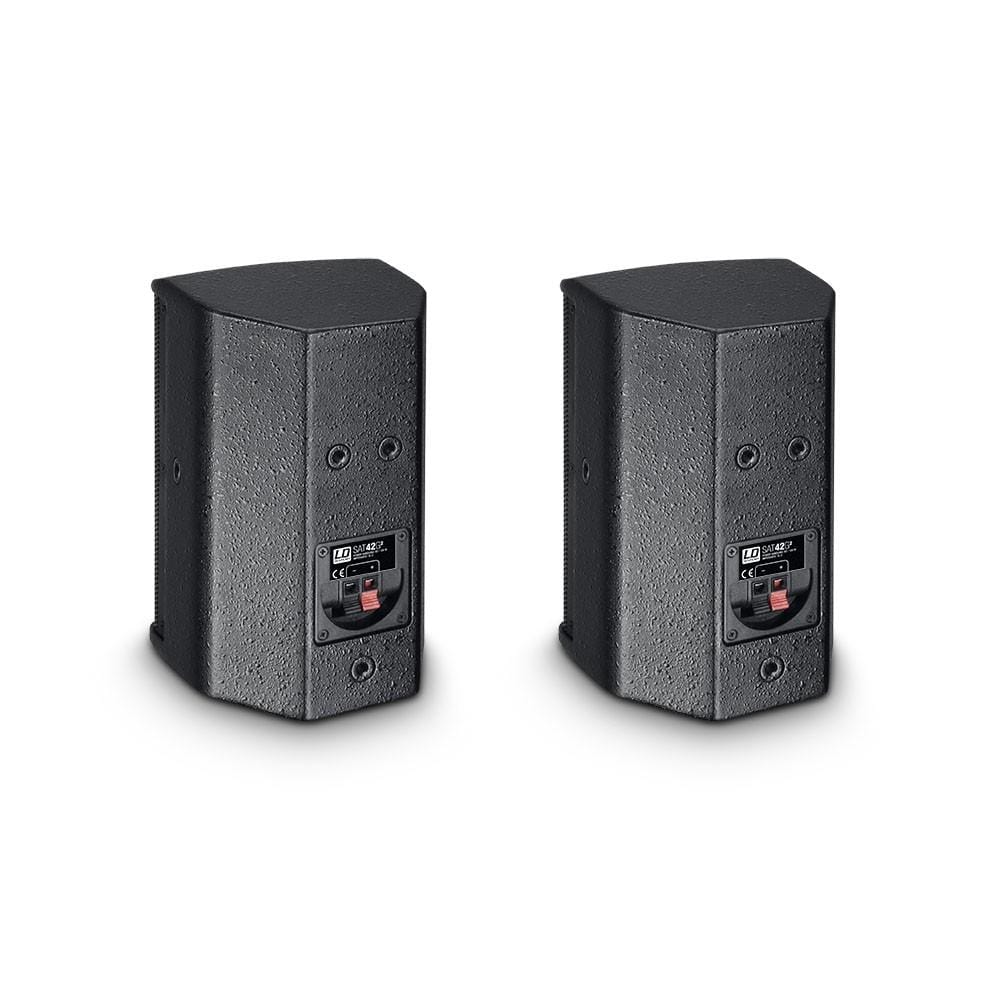

It is connected via spring terminals Specifications Product type: Installation Loudspeakers Type: Wall-mounted Loudspeaker Low/mid driver dimensions: 4" Woofer size: 101 mm Woofer magnet: Ferrite Woofer brand: Custom-made HF driver dimensions: 1" HF driver size: 25 mm HF driver magnet: Ferrite HF driver brand: Custom-made Dispersion (H x V): 60 x 60 Load rating (RMS): 60 W Frequency response: 75 - 20000 Hz SPL (1W/1m): 85 dB Max.

SPL: 103 dB Impedance: 16 Ohm(s) Protection circuits: HF Driver Loudspeaker inputs: 1 Speaker input connections: Clamp connector Speakers per amplifier channel (DSP44/45K): 8 Cabinet material: 12 mm MDF Cabinet surface: Texture paint Cabinet colour: Black Cabinet construction: Closed Width: 140 mm Height: 230 mm Depth: 125 mm Weight: 5 kg Made in China.
