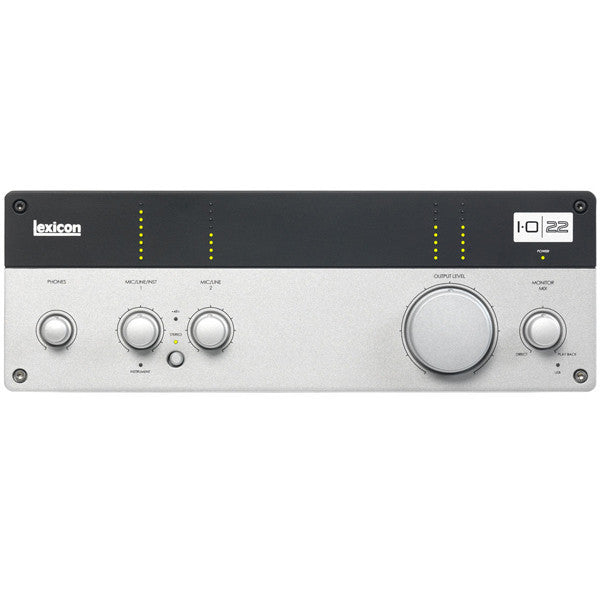

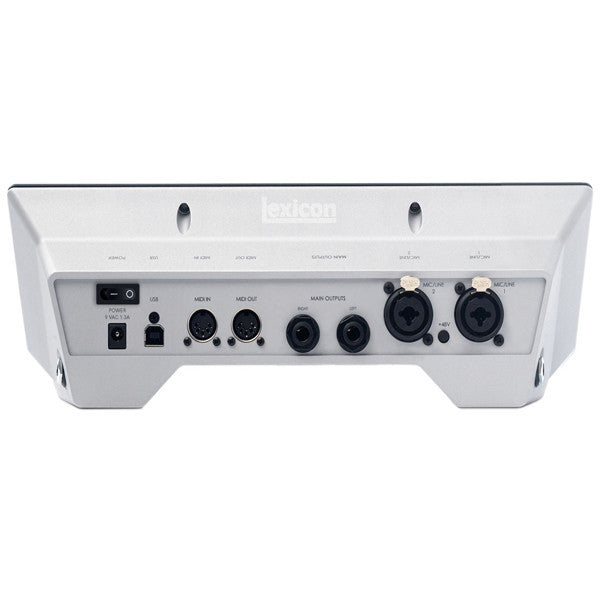

Lexicon I-O 22 2x2 USB 2.0 Desktop Recording Studio

6 Reviews
| Ask a question
SKU : LEX-I-O-22
Sold out
Rs. 16,500
Rs. 12,359

   Free Delivery available on this product.

Buy Bajaao Premium Warranty- With Accidental Damage Cover & Free Pickup and Return T&C
Seen It For Less? Learn More
Lexicon I-O 22 2x2 USB 2.0 Desktop Recording Studio Overview:

DAW Inspired.

Brilliantly designed, the I·O Desktop Recording Series is compatible with any DAW, including Pro Tools 10 through 12.

Featuring newly designed dbx® 60V high-voltage, ultra-low noise mic preamps on both channels, the I-O|22 is more than equipped to provide professional recordings that keep your music sounding its best. The preamps run on a high-voltage supply to guarantee stability and provide you with a superior recording across a wide dynamic range. Performance driven A/D – D/A converters ensure pristine 24-bit/96kHz audio to capture every subtle detail of your performance.

The I-O|22 can record two tracks at once and includes 2 combi-jack mic/line inputs with +48V phantom power, 2 TRS balanced line outputs, a hi-Z instrument input, a 1/4" high power headphone output, and MIDI I/O. Dedicated knobs and meters offer easy access to input and output levels and locking combi-jacks make sure that a connection is not lost in the middle of a performance.

The I-O|22 contains all the necessary tools to transform your computer into a professional 24-bit/96kHz digital recording studio.

Features:
  • USB 2.0 Desktop Recording Studio
  • 44.1kHz to 96kHz sample rates, 24-bit resolution
  • Pantheon II VST/AU reverb plug-in with 6 legendary Lexicon reverbs
  • dbx® 60V high-voltage, ultra-low noise microphone preamps
  • Superior sonic performance
  • 2 analog combi-jacks for mic/line inputs
  • 2 analog 1/4" TRS balanced outputs
  • Zero latency monitoring
  • Low latency ASIO drivers
  • Streamlined monitor form factor puts all recording controls at your fingertips
  • Separate level meters and gain control per channel
  • 1 side panel 1/4" instrument input
  • 1 side panel headphone output with dedicated volume adjustment
  • MIDI in and out

Specifications:

  • Microphone Inputs: Female XLR Pin 2 Hot
  • Input Impedance: 3kΩ balanced
  • Phantom Power: +48 Volts
  • Maximum gain: +58 dB
  • E.I.N. (at max gain): −125 dBu @ 58dB gain typical (150Ω source), −129 dBu @ 58dB gain typical A-weighted (150Ω source)
  • Maximum Input Level: +21 dBu at minimum gain
  • Frequency Response: +0/−1 dB, 20Hz - 20kHz
  • THD+N: <0.006%, 20Hz - 20kHz (mic input to main output) 0 dBu input level, <0.003%, 1kHz, +5 dBu input level
  • Line Inputs: 1/4” TRS balanced or unbalanced
  • Input Impedance: 20kΩ balanced, 13kΩ unbalanced
  • Maximum Input Level: +32 dBu
  • Frequency Response: +0/−1.5 dB, 20Hz - 20kHz (reference 1kHz)
  • THD+N: <0.004%, 20Hz - 20kHz (line input to main output) 0 dBu input level
  • Instrument Input: 1/4” TS unbalanced
  • Input Impedance: 1MΩ
  • Maximum Input Level: +13 dBu
  • Frequency Response: +0/−2 dB, 20Hz - 20kHz (instrument input to main output)
  • THD+N: <0.004%, 20Hz - 20kHz, 0 dBu input level
  • Line Outputs: 1/4” TRS balanced or unbalanced
  • Level: >+18 dBu maximum
  • Impedance: 32Ω Balanced, 16Ω Unbalanced
  • Headphone Output: 1/4” stereo jack 350mW per channel at 50Ω
  • MIDI Interface: 5 pin DIN connectors for MIDI in and MIDI out (5 volt signal)
  • Sample Rate: 44.1, 48, 88.2, or 96 kHz (determined by computer application)
  • Dynamic Range: A/D (24 Bit) 105 dB typical, A-weighted, 20Hz - 20kHz (44.1 kHz sample rate) , D/A (24 Bit) 107 dB typical, A-weighted, 20Hz - 20kHz, A/D/A (24 Bit) 102 dB typical, A-weighted, 20Hz - 20kHz
  • Dimensions: 12" W x 4" H x 3.75" D
  • Weight: 2.35 lbs
