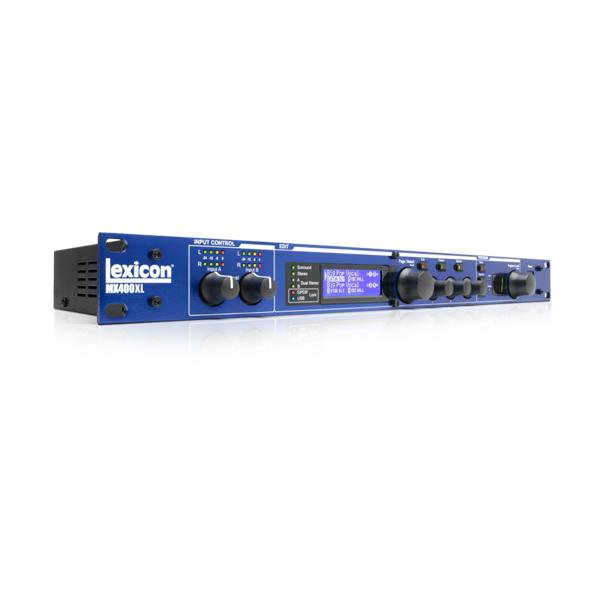

Lexicon MX400XL Dual Stereo Reverb Effects Processor

Overview: Plug-in programming and recall with the power of Lexicon hardware You want the rich, luscious sound that’s defined studio reverb for three decades: a genuine Lexicon hardware processor.

But you also want the flexibility of programming high-quality effects right inside your DAW program…without bogging down your CPU or resorting to expensive processing cards Have it all with the MX400.

All parameters of every reverb, delay and dynamic effect in this powerhouse quad processor are available inside any AU compatible DAW program Just link your computer to the MX400 with a USB cable and control all automation and recall parameters exactly as you would with any software plug-in while enjoying the sonic benefits only Lexicon hardware can provide.

Along with our unique “hardware plug-ins” for PC and Mac (32-bit only), we’ve also included MX-Edit Librarian software so you can store and recall custom programs or pull up your choice of 223 genuine Lexicon settings including 25 dedicated Surround Programs At its heart, the MX400 is everything you would expect from the company that invented digital reverberation.

Seventeen Lexicon reverbs, delays and modulation effects plus dbx compression and de-essing A generous LCD display and big comfy knobs you can get your hands around.

Features: 17 legendary Lexicon reverbs Lexicon delays & modulation effects dbx compression and de-essing Quad-processor design 7 effect routing options 99 Factory/99 user programs for Stereo mode 99 Factory/99 user programs for Dual-Stereo mode 25 Factory/25 user surround programs USB “Hardware Plug-In” feature with VST and Audio Units plug-in software MX-Edit Editor/Librarian software Dual S/PDIF Digital Input/Output 24 bit, 48kHz/44.1kHz sample rates Large front panel LCD display MIDI IN and THRU Balanced/unbalanced XLR I/O Specifications: Analog Audio Inputs Connectors : four XLR balanced or unbalanced Impedance : 50k Ohms bal., 25k Ohms unbal Input Level : +4dBu nominal, +24 dBu maximum 48kHz or44.1kHz A/D Conversion : 24-bit,48kHz 128 x oversampling Analog Audio Outputs Connectors : four XLR balanced or unbalanced Impedance : 2k Ohms bal., 1k Ohms unbal.

Output Level : +4dBu or–10 dBV nominal (software adjustable), 24 dBu maximum 48kHz or 44.1kHz D/A Conversion : 24-bit,48kHz 128 x oversampling Analog Audio Performance Frequency Response : 10 Hz– 20kHz +0 dB/–0.5dB THD+N : <0.0019% 10Hz – 20kHz Dynamic Range : >109 dB(A-weighted) A/A Crosstalk : typical <–80 dB 20Hz – 20kHz Digital Input and Output Connectors : Dual RCA phono (S/PDIF) Format : S/PDIF 24-bit Sample Rate : 44.1 or 48kHz Processing Delay : 3.7 ms @ 48 kHz Frequency Response : 10Hz to 22kHz ±0.5dB @ 48kHz Control Interface USB : USB1.0 for MX-EDIT Editor/Librarian and VST/Audio Units plug-ins MIDI : In/Out5-pin DIN Foot Pedal : ¼" phone jack General Power : 117 VAC or 230 VAC, 18 Watts Size (W/H/D) : 19" x 1.75" x 7.25"*/6.375" (483 x44x /185mm*/162 mm) Weight : 5.8 lbs (2.6kg).
