Marshall RG-01 Regenarator Guitar Effect Pedal

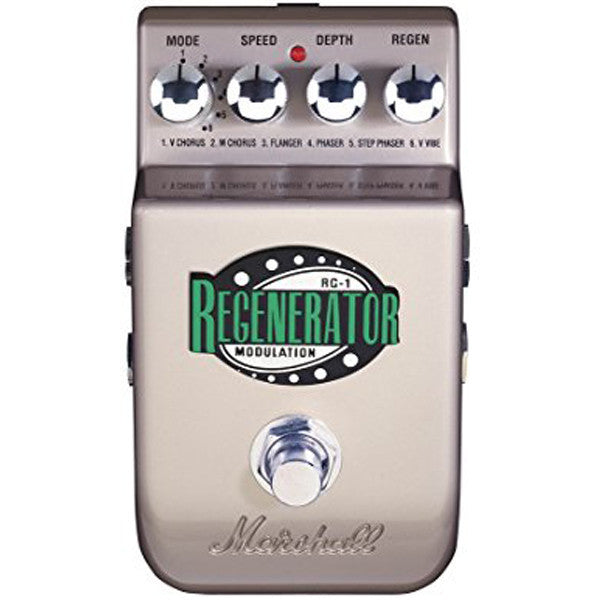

Marshall RG-01 Regenarator Guitar Effect Pedal Overview: The Regenerator is a chorus, a flanger and a phaser all in one sturdy metal stomp box A stereo modulation pedal, the Regenerator features a diverse range of six different modes for you to explore, sure in the knowledge that the tone-preserving passive bypass is just a footswitch away.

From the sweeping detuned tones of the vintage chorus to a phaser that swells with energy, listen as the Regenerator entwines itself around your sound With full control over the speed, depth and regeneration, it’s every modulation pedal you’ll ever need.

Features: 'In' Jack Socket: This is the input jack for connection to your guitar or to the output of another effects pedal when linking pedals together 'Expression' Socket An expression pedal can be connected to this socket to control the modulation speed.

Moving the pedal overrides the speed control on the pedal allowing you to increase/decrease the control as you perform 'Out 1 / Left' Jack Socket - Passive Bypass Out 1 is connected to a passive bypass circuit.

The passive bypass ensures complete tonal integrity by disconnecting the output of the effects circuit when not in operation When a jack is connected to Out 1 the pedal operates in mono mode.

'Out 2 /Right' Jack Socket - Spill-Over Out 2 is connected to a spill-over circuit When the pedal is switched off and the regen it has produced is allowed to 'spill' and rapidly decay over your playing while the input feeding the effects circuit is switched off.

When a jack is connected to Out 2 the pedal operates in mono mode When jacks are connected to Out 1 & Out 2 the pedal operates in Stereo mode, the 2nd output's phase is inversed creating an even more spacious modulation.

Mode The Regenerator offers six different modulation modes Selected by switching the mode knob in to one of the six positions.

Vintage Chorus: A classic chorus, adding mellow sweeps to high speed vibrato and everything in between to your sound Multi Chorus: Based upon Marshall 's classic Supervibe pedal, its unique sweeping pattern allows you to create simple sweeps through to complex ensemble sounds.

Vintage Flanger: The versatile vintage flanger let's you go deep and detune your sound to extremes, turn up the regen for it to soar across your sound, or hold back to create natural flange effects Phaser: A rich phasing effect making your sound swell with energy, creating fluid waves which wash around your tone.

Step Phaser: Adding a crystal staircase effect to the phaser mode allows you to trip around its sweeping textures Vintage Vibe: Get those good vibrations with this swirling vintage vibe mode.

Speed Controls the speed of the modulation tail from fully anticlockwise, providing slowly sweeping sounds, to fully clockwise, generating fast vibrato Depth Controls the amount of modulation applied to the signal.

For the vintage chorus, multi chorus and vintage flanger this controls the amount of delay between the direct sound and processed, greater depths causing a greater amount of detuning For the phaser, step phaser and vintage vibe this controls the range of frequencies that are swept by the filters.

Regen Controls the level of the regeneration, the amount of effect sent back to the input Fully anti-clockwise means no signal is sent back, while fully clockwise sends gives the most signal back accentuating the sound of the modulation sweeps.

Foot Switch For switching the Regenerator on and off LED Indicates when the Regenerator is in operation.

DC Input For input of a 9V DC centre negative regulated adaptor should you not wish to use batteries Specifications: Controls: Multi-Mode Selecotr Switch, Speed Control, Depth Control, Regeneration Control Features: Solid Metal Casing, Passive Bypass, Expression Pedal Input Power: 9v Minimum Current Draw: 80mA Switches: On/Off Switch Indicators: On/Off LED Jack Sockets: Input Jack 1: Guitar Input, Input Jack 2: Expression Pedal Input, Output Jack 1: Left/Bypass, Output Jack 2: Right/Spill Input Impedance 1m0hms Output Load Impedance: < 1 K0hms Dimensions In Mm (W X H X D): 120 X 65 X 55 Weight: 510g Made in Vietnam.
