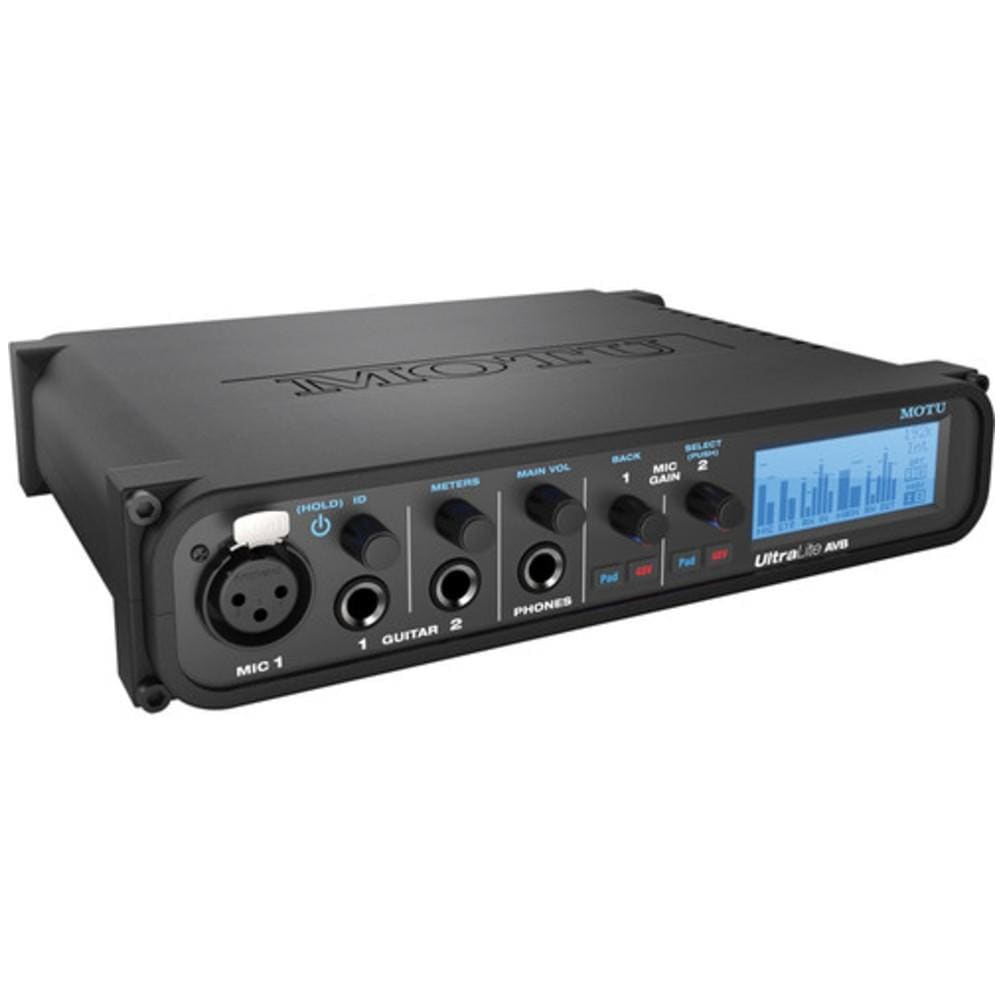

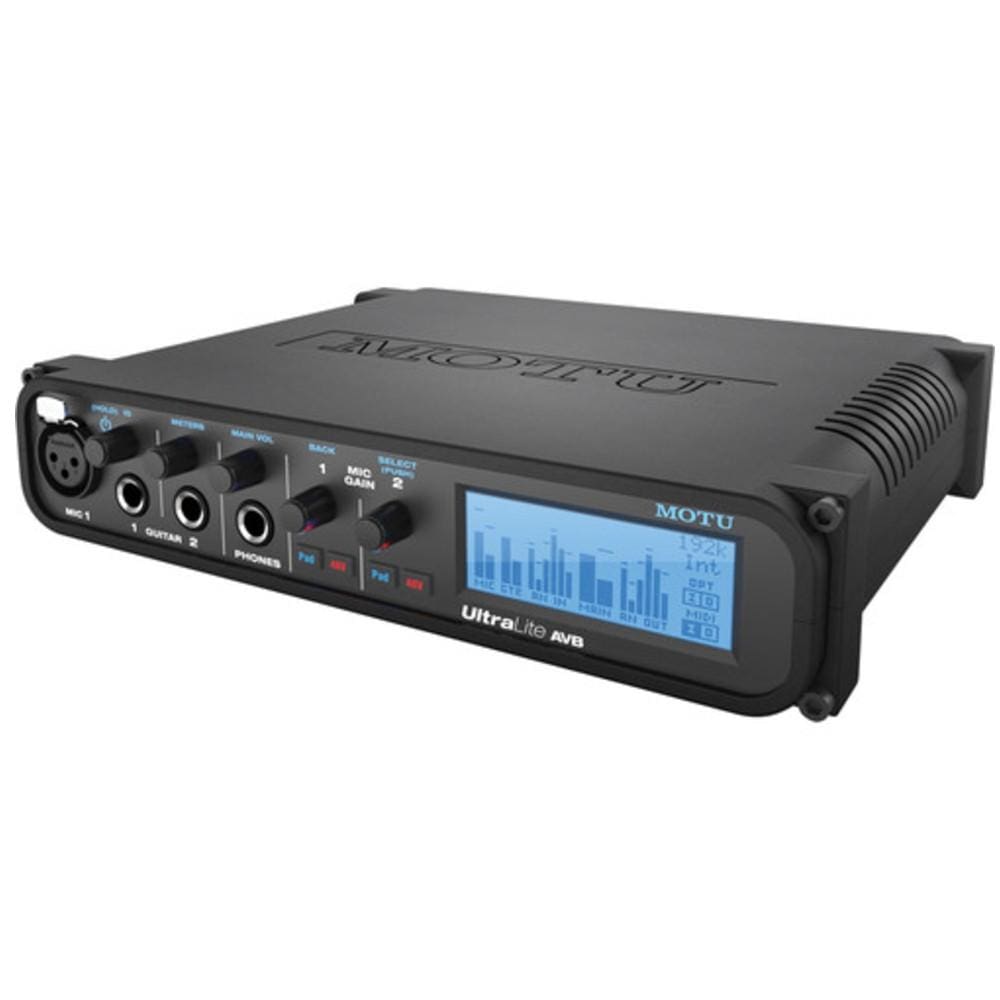

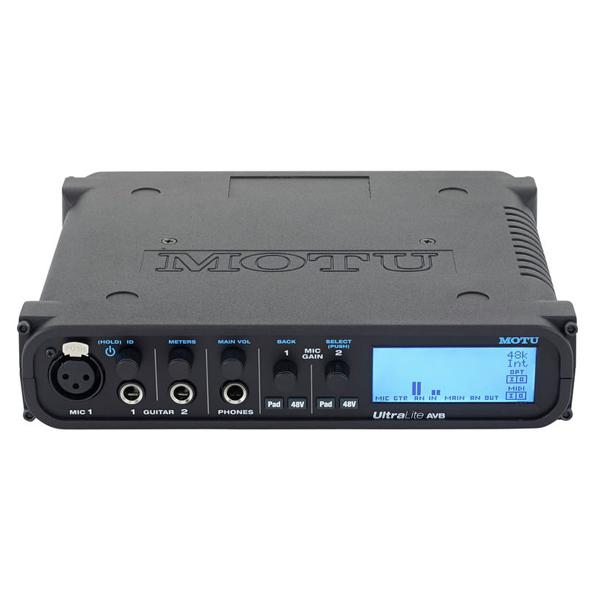

MOTU UltraLite AVB 18 x 18 USB-AVB Audio Interface

MOTU UltraLite AVB 18 x 18 USB-AVB Audio Interface Overview: The latest in MOTU's popular, award-winning UltraLite interface series, the UltraLite AVB is an 18-input, 18-output audio interface with DSP mixing, wi-fi control, AVB audio networking and best-in-class analog audio quality for on-the-go mobile audio recording 36 simultaneous audio channels The most I/O ever offered in the UltraLite series You get 2 mic inputs, 2 guitar inputs, 6 line inputs, 8 line outputs, headphone out and 8-channel optical I/O for a total of 18 inputs and 18 outputs, simultaneously.

The optical ports also support stereo TOSLink (optical S/PDIF) Best-in-class analog audio quality Performance suitable for the most demanding situations The UltraLite AVB sets a new standard for analog audio performance in a mobile audio interface.

The eight balanced analog outputs deliver a stunning 117 dB dynamic range This level of measured performance had previously only been available in audio interfaces that cost thousands of dollars.

Universal connectivity Class compliant USB 2.0 plus audio over Ethernet The UltraLite AVB connects to your computer with audio class compliant hi-speed USB 2.0 (compatible with USB 3.0 and iOS) for across-the-board compatibility now and in the future Alternately, if you have a Mac running OS X Yosemite (10.10) or later, you can use a standard Ethernet cable for operation as an audio interface.

Either way, the UltraLite AVB is compatible with all audio software DSP-powered mixing Console-style mixing with 48 channels and 12 busses The mixer in the UltraLite AVB is a complete departure from earlier models.

In fact, it's identical to the mixer found in MOTU 's flagship 1248 and 16A interfaces If you know your way around a large-format mixing console, you'll feel right at home.

If you've ever wished to mix on a large console, the driver's seat is now yours Modeled analog EQ and compression Vintage processing with 32-bit float precision British analog mixing consoles are renowned for their musical EQ profiles.

The UltraLite AVB meticulously models these classic EQs to give you the very same, magical EQ response found on these coveted desks Each input channel also provides a classic compressor with peak/RMS operation.

Groups and the Main Mix bus are equipped with MOTU's Leveler, an accurate model of the legendary Teletronix LA-2A optical leveling amplifier, known for its highly sought-after Automatic Gain Control (AGC) characteristics Web app control Control everything from your laptop, tablet and smartphone The software that you use to control the UltraLite doesn't reside on your hard drive.

It's a web app served from the hardware itself This means you can control the UltraLite's on-board DSP, mixing, device settings, and network audio routing from the web app software running in your favorite web browser on a laptop, tablet or smartphone connected by wire or Wi-Fi to your local area network.

Use any web client on any platform — Mac, Windows, Linux, iOS, Android — as long as it shares the same network Stand-alone mixing with wireless control Control everything from your iPad or iPhone Connect an Apple Airport or other Wi-Fi router directly to the UltraLite with a standard Ethernet cable and control the UltraLite AVB's powerful mixing and DSP effects from your smartphone or tablet, without a computer.

Great for live sound mixing! Features: 18 x 18 USB/AVB audio interface with 36 simultaneous audio channels 2 mic inputs, 2 guitar inputs, 6 line inputs, 8 line outputs, headphone out and 8-channel optical I/O for 18 inputs and 18 outputs Best-in-class audio quality 117 dB dynamic range on analog outputs represents best-in-class analog audio performance for mobile recording.

DSP mixing and effects processing Flexible 48-input digital mixer with 7 stereo aux busses, 3 group sends, access to eight network inputs, and DSP effects, including reverb, 4-band EQ, gate, and compression Modeled vintage effects processing Classic reverb.

Compression modeled after the legendary LA-2A compressor EQ modeled after British analog console EQs.

Flexible matrix routing and splitting Send any input to any output, or multiple outputs Includes routing to and from the computer, plus any devices on the AVB network.

Stand-alone operation with wireless control Connect an Apple® Airport™ or other Wi-Fi router with a standard Ethernet cable for wireless control of device settings, powerful 48-channel mixing and DSP effects Universal connectivity Connects to your computer with standard AVB Ethernet or audio class compliant hi-speed USB 2.0 (compatible with USB 3.0 and iOS).

Compatible with all audio software Web app control from any device Control everything from your favorite web browser on a laptop, tablet and smartphone connected to your local Wi-Fi network.

System expansion Add a 2nd MOTU AVB interface (1248, 8M, 16A, 24Ai, 24Ao, etc.) with a simple CAT-5e ethernet cable Connect up to five MOTU interfaces using a MOTU AVB Switch (sold separately).

AVB audio networking Build a network with multiple interfaces and computers using standard AVB switches and network cabling, with ultra-low network latency, even over long cable runs (100 meters point to point) Stream hundreds of audio channels among devices and computers on the network.

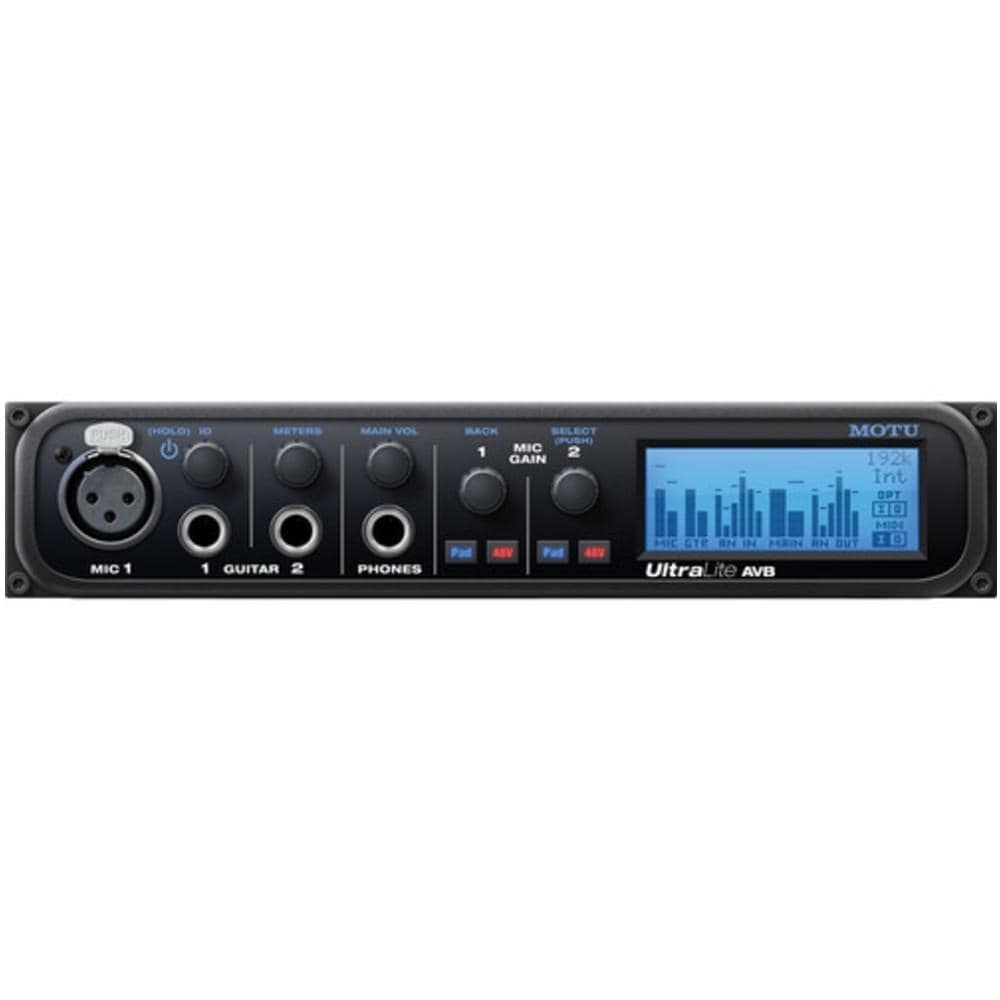

Comprehensive metering The large backlit LCD lets you view all signal activity at a glance with detailed metering for all analog and digital I/O Access hardware settings from a simple and convenient menu.

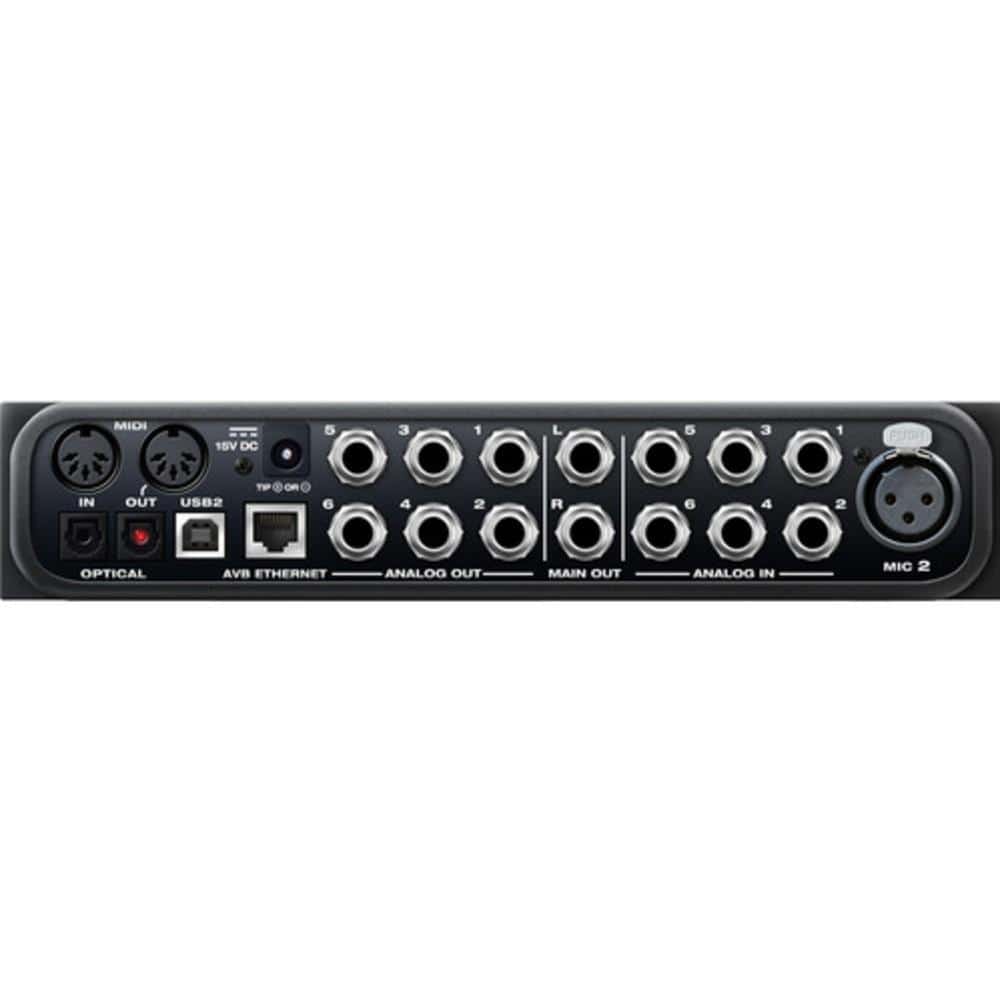

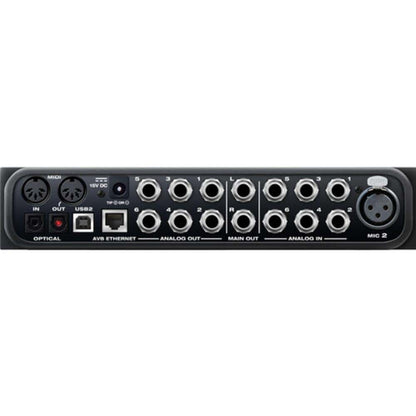

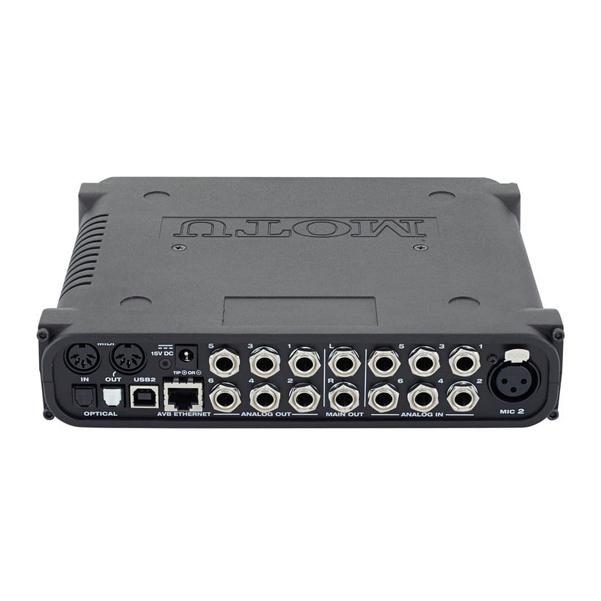

AudioDesk Includes AudioDesk workstation software for Mac and Windows with 24-bit recording, sample-accurate editing and 32-bit mixing and mastering Specifications: Sample rates: 44.1, 48, 88.2, 96, 176.4, 192 kHz Mic inputs: 2 x XLR mic inputs Preamp gain: 0 to +56 dB (digitally controlled) Analog inputs: 2 x 1/4" hi-Z guitar inputs (front panel) 6 x \n 6 x n \n 6 x 1/4" TRS line inputs (balanced/unbalanced) Max level: +24 dBu (digitally adjustable -96 to +22) Analog outputs: 8 x 1/4" TRS line out (balanced, DC coupled) n Max level: +20 dBu (digitally adjustable -4 to +20) n 1 x 1/4" TRS stereo headphone Digital I/O: 1 bank (8 ch) of ADAT optical at 1x sample rates 1 bank (4 ch) of SMUX optical at 2x sample rates Switchable to stereo TOSLink (optical S/PDIF) Total I/O: 18 inputs and 18 outputs (36 total) at 1x sample rates 14 inputs and 14 outputs (28 total) at 2x sample rates 10 inputs and 10 outputs (20 total) at 4x sample rates Computer I/O: 1 x USB 2.0 audio class compliant USB 3.0 and iOS compatible 1 x AVB Ethernet (requires OS X Yosemite) Computer I/O channels: USB 2.0 (44.1 to 48 kHz): 64 in/out USB 2.0 (88.2 to 96 kHz): 32 in/out USB 2.0 (176.4 to 192 kHz): 24 in/out AVB Ethernet: 16 to 128 in/out, depending on host computer speed MIDI I/O: 1 x MIDI IN 1 x MIDI OUT 16 MIDI channels to/from computer host Headphone: 1 x 1/4" TRS stereo phone (assignable) n Phantom power: 2 x individual +48V n Front panel: n 1 x 1/4" TRS headphone output 2 x TRS hi-Z guitar input 1 x digital rotary encoders • main/phone volume 2 x digital rotary encoders • guitar input gain/power 2 x digital rotary encoders • mic preamp gain 4 x switches • (2) Pad and (2) 48V Phantom switch 128 x 48 pixel LCD for level meters / menu nav Power: External 12-18V DC power supply 1.0A max • tip pos or neg Dimensions and weight (width x depth x height, enclosure only): 8.6 x 7 x 1.75 inches 22 x 17.75 x 4.5 cm 2.5 lbs / 1.13 kg Mac System Requirements 1 GHz Intel-based Mac or faster 2 GB RAM; 4 GB or more recommended Mac OS X version 10.8 or later Available high-speed USB 2.0 or AVB Ethernet port* A large hard drive (at least 500 GB for recording) *AVB Ethernet audio interface operation requires OS X Yosemite Windows System Requirements 1 GHz Pentium-based PC compatible or faster 2 GB RAM; 4 GB or more recommended Windows 7, 8 or 10 Available USB 2.0 or 3.0 port Available Ethernet port for firmware updates A large hard drive (at least 500 GB for recording) Web App Support Any web client platform: Mac, Windows, Linux, iOS, Android Any web browser: Safari, Firefox, Chrome, Opera, Explorer, etc.

Web client must be connected to the same network as the MOTU AVB interface by wire or Wi-Fi Included Software MOTU Discovery App for Mac & PC (finds connected MOTU interfaces) MOTU Discovery App for iOS (available from Apple App Store) MOTU Pro Audio Control web app (served from the hardware itself) MOTU Audio Tools (FFT, oscilloscope, X-Y plot, phase analyzer) AudioDesk 4.0 for Mac & PC (separate download) Operating Systems For computer audio I/O: Mac OS X 10.8 or later; Windows 7 or later For web app control: Mac, Windows, Linux, iOS, Android Compatible Mac Software The UltraLite AVB ships with standard Core Audio drivers for Mac OS X for compatibility with virtually all Core Audio-compatible apps, including: MOTU Digital Performer Avid Pro Tools (version 9 or later) Apple Logic Pro Apple Logic Express Apple Garage Band Apple SoundTrack Pro Ableton Live Propellerhead Record & Reason Steinberg Cubase Cockos Reaper Native Instruments Kontakt Waves stand-alone apps (and plug-ins, via compatible host) Compatible Windows Software The UltraLite AVB ships with standard ASIO and Wave drivers for Windows 7, 8 and 10 for compatibility with virtually all ASIO- and Wave-compatible audio apps, including: MOTU Digital Performer Avid Pro Tools (version 9 or later) Ableton Live Cakewalk Sonar Steinberg Cubase Propellerhead Record & Reason Image Line FL Studio Sony Vegas Pro Sony Sound Forge Sony Acid Cockos Reaper Native Instruments Kontakt Waves stand-alone apps (and plug-ins, via compatible host).
