Neumann AK 50 Hypercardioid Miniature Capsule

Neumann AK 50 Hypercardioid Miniature Capsule

This item is out of stock


Buy Neumann AK 50 - Hypercardioid Miniature Capsule online in India at the best price with free shipping from BAJAAO - India's music equipment superstore.

Neumann AK 50 - Hypercardioid Miniature Capsule

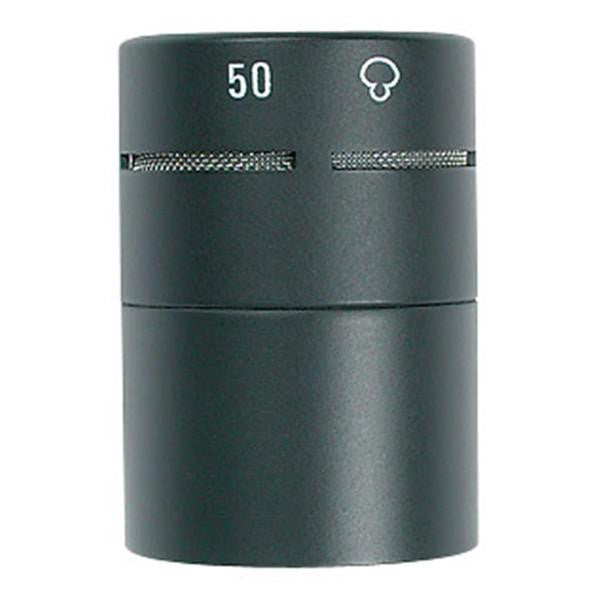

The Neumann AK 50 microphone capsule is part of the KM 100 miniature series microphone systems. The AK 50 microphone element features a pressure gradient, single diaphragm transducer with a hyper-cardioid polar pattern.

The hyper-cardioid polar pattern is highly effective in reducing off-axis ambiance and noise. Attenuation of sound from the side or rear is about 10dB with the least sensitivity at an angle of 120 degrees. This allows the element to be used in recording and sound reinforcement applications, in front of stage.

Neumann AK 50 Features:

Modular Design: The capsule is developed for use with the KM100 and KM100F modular power supplies.

Hyper-Cardioid Polar Pattern: The AK 50 element features a hyper-cardioid pick up pattern which is effective in minimizing room ambiance, monitor noise and other off-axis signal.

Neumann AK 50 Specifications:

  • Transducer: Pressure Gradient Condenser
  • Polar Pattern: Hypercardioid
  • Frequency Response: 20 Hz - 20 kHz
  • Dynamic Range (Typical): 121 dB
  • Signal-to-Noise Ratio: 68 dB, Related at 1 Pa at 1 kHz (CCIR dB)
    77 dB, Related at 1 Pa at 1 kHz (A-Weighted dB)
  • Maximum Input Sound Level: 138 dB Less than 0.5% THD (without Preattenuation)
    148 dB Less than 0.5% THD (with Preattenuation)
  • Power Requirements: Phantom +48v (KSM 100 Power Supply)
  • Output Impedance: 50 Ohms
  • Output Connectors: XLR-3 Type (KSM 100 Power Supply)
  • Pad: Yes, -10 dB Preattenuation
  • Low Frequency Roll-Off: Use KSM 100F Power Supply
  • Dimensions (LxDiameter): 3.68 x 0.88" (92 x 22mm)
  • Weight: 2.82 oz. (80 g).
