Neumann KH 120 A G EU Active Bi Amplified Studio Monitor - Single

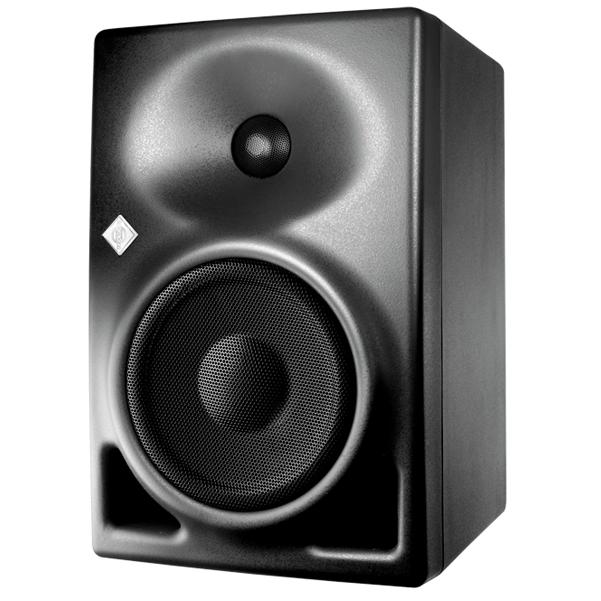

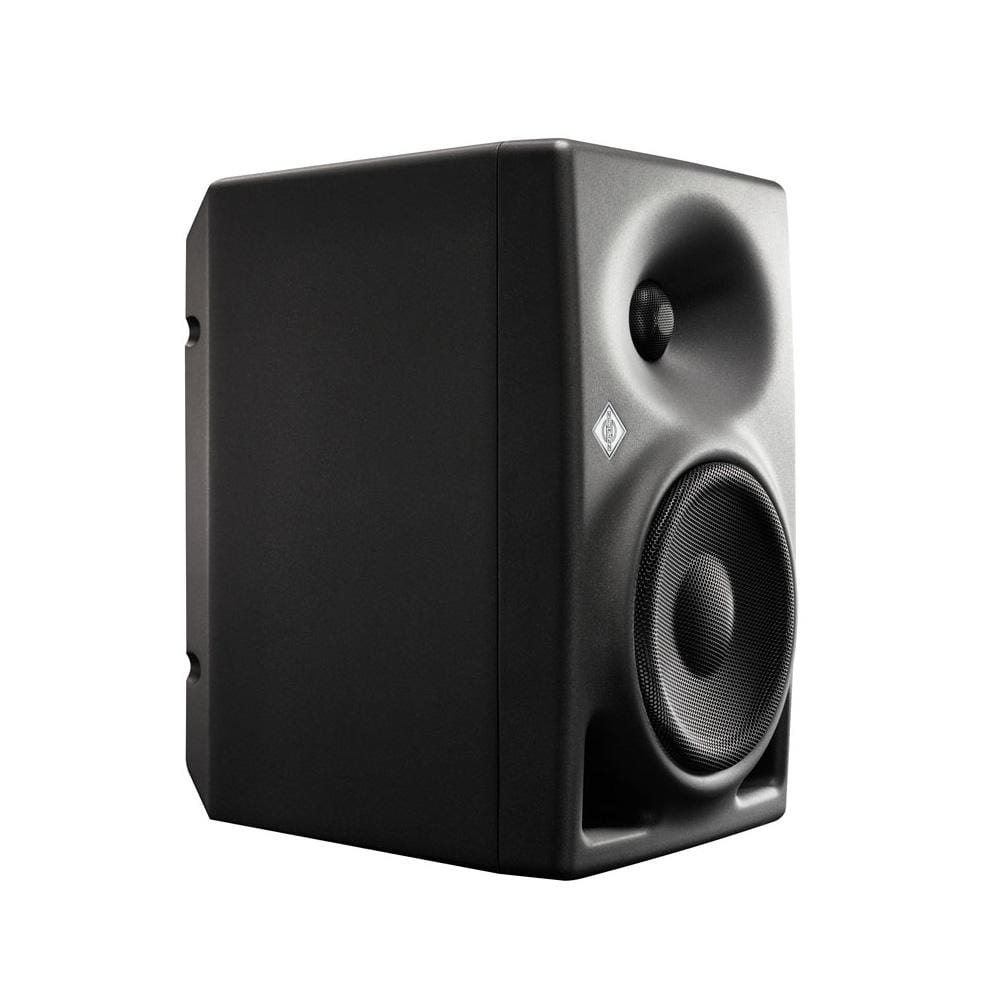

Neumann KH 120 A G EU Active Bi Amplified Studio Monitor - Single Overview: The KH 120 A studio monitor is designed for use as a near-field loudspeaker or as a rear loudspeaker in larger multi-channel systems The KH 120 A represents the latest in acoustic and electronic simulation and measurement technologies to ensure the most accurate sound reproduction possible.

It has a Mathematically Modeled Dispersion waveguide (MMD (TM), flexible acoustical controls, analog class-AB amplifiers, a large headroom analog input and an extensive mounting hardware range All of this provides the user with the maximum versatility over a wide variety of acoustic conditions, source equipment, and physical locations.

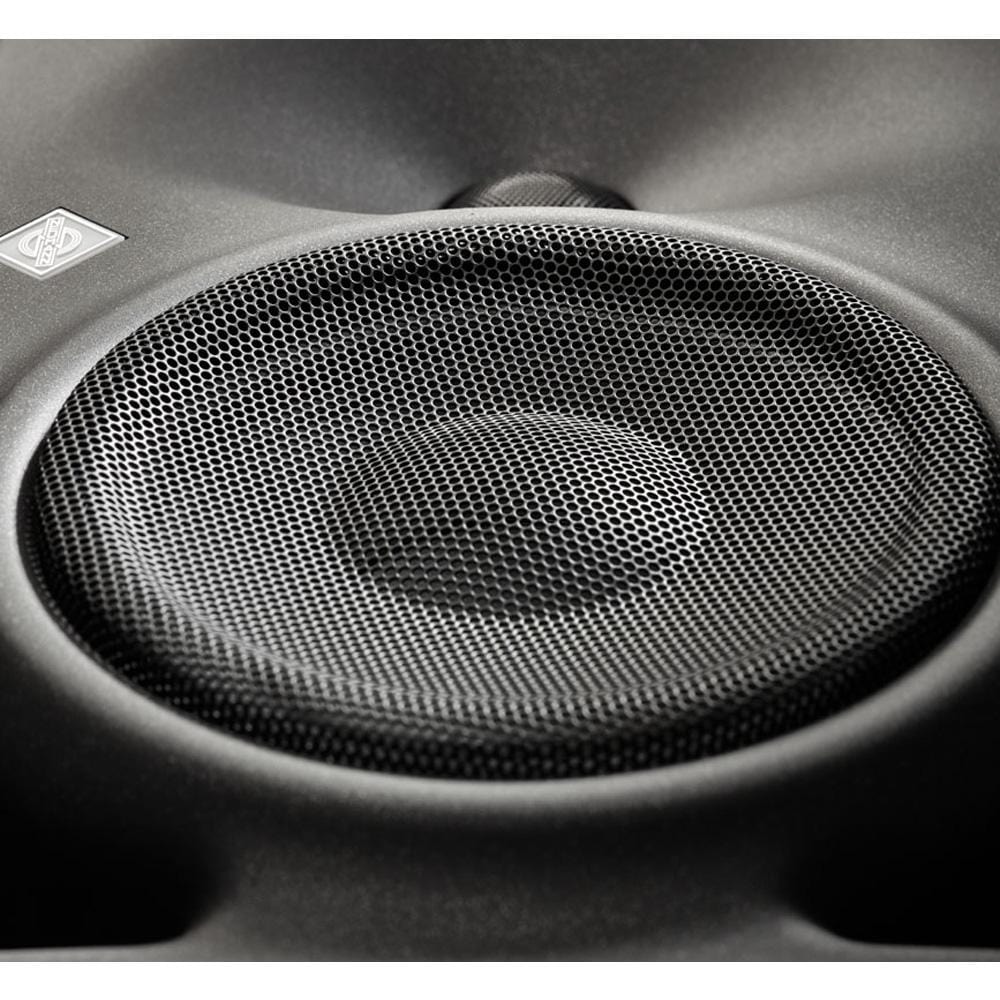

Features : Compact bi-amplified studio monitor with a high efficiency Exceptional bass depth and transient response from 52 to 21k Hz Precise dispersion, optimized for near-field applications As a stereo system with KH 750 DSP and optional tools, controllable and alignable to the room The KH 120 is perfect for tracking, mixing and mastering in music, broadcast, project and post-production studios Features: Powerful titanium fabric dome Low-distortion high-frequency reproduction Elliptical Mathematically Modelled Dispersion (MMD) waveguide Smoother off-axis response, More forgiving of diverse acoustical environments Composite sandwich cone Damping of break-up modes Long throw bass driver Low distortions at high sound levels Two-color + dimmable Neumann logo Displays operation status and activation of the extensive protection system Robust metal grille Protects against mechanical damage Large front panel ports Reduced bass compression and easier to mount in tight spaces such as OB vans Compact aluminum cabinet (magnetically shielded) Minimizes resonances, better heat dissipation, long life Wide horizontal dispersion Freedom of movement across the mixing console Narrow vertical dispersion Reduces reflections off the mixing console One-piece front panel with no discontinuities Reduced diffraction and smoother frequency response Powerful analog amplifiers with large headroom Improved transient response Production consistency Any KH 120 is “pair-matched” to any other KH 120 4-position bass, low-mid and treble acoustical controls More control in diverse acoustical environments Wide range input gain and output level controls Easier interfacing with signal sources New mounting hardware options More flexibility in mounting cabinets in more diverse locations Display dimmer For low lighting level conditions or behind the screen applications Ground lift Reduced noise in electrically noisy environments and over-comes ground loops Universal switched-mode power supply (100 … 240 V) One version works in any country and robust to poor quality mains supply Separate woofer and tweeter electronic peak limiters and thermal-protection circuitry High reliability Specifications: Acoustics Free field frequency response: 52 Hz … 21 kHz, ± 3 dB Pass band free field frequency response: 54 Hz … 20 kHz, ± 2 dB Self-generated noise (with input gain set to 100 dB for 0 dBu): < 20 dB(A) at 10 cm Total harmonic distortion < 0.5 % at 95 dB SPL at 1 m: > 100 Hz Max.

SPL in full space / calc in half spaceat 3% THD at 1m: 105.1 / 111.1 dB SPL (averaged between 100 Hz and 6 kHz) Bass capability: Max.

SPL in half space at 3% THD at 1m: 104.8 dB SPL (averaged between 50 Hz and 100 Hz) Max short term SPL with IEC-weighted noise (IEC 60268-5) at 1 m, in typical listening conditions: 107 dB(C) SPL Max.

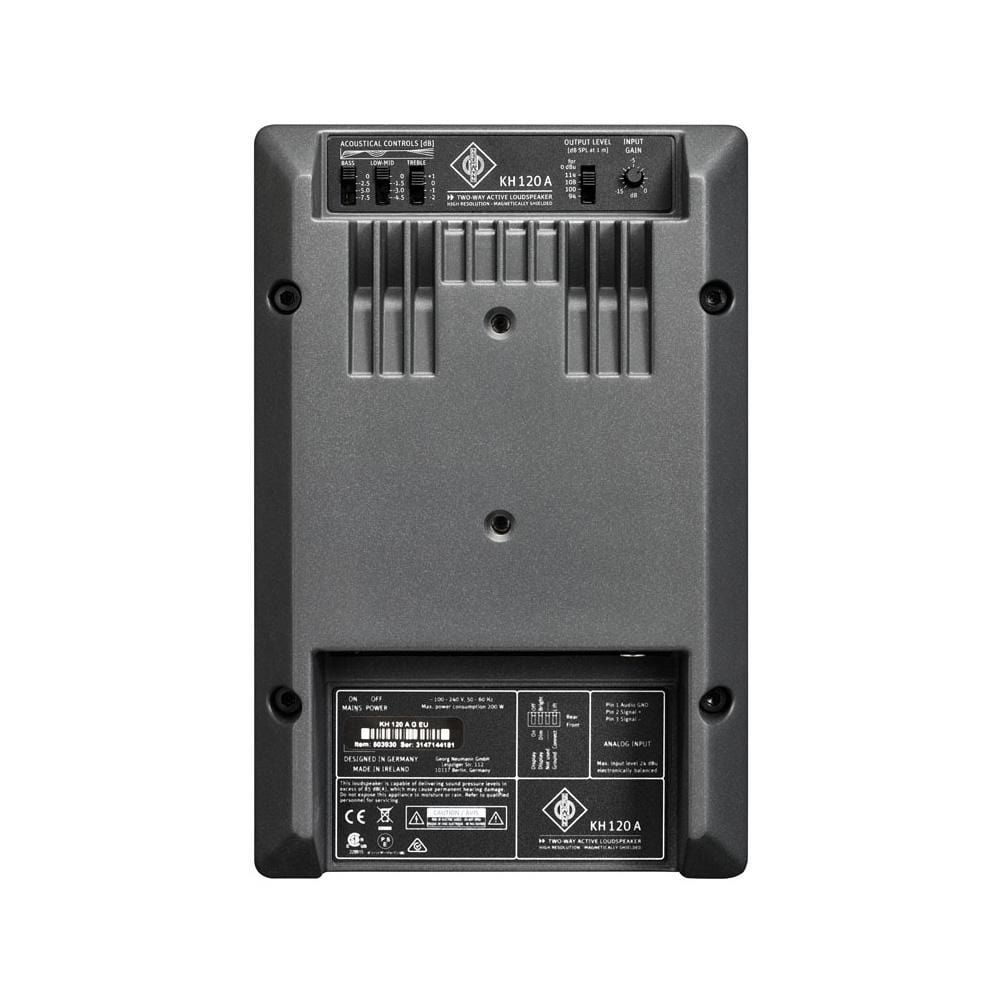

short term SPL with music material at 2.3 m, in typical listening conditions (pair): 97 dB(C) SPL (full range), 104 dB(C) SPL (with subwoofer) Max long term SPL with pink noise at 2.3 m, in typical listening conditions (single/pair): 88 / 93 dB(C) SPL (full range), 89 / 94 dB(C) SPL (with subwoofer) Electronics Woofer amplifier, cont.(peak) output power*: 50 W (80 W) Tweeter amplifier, cont.(peak) output power*: 50 W (80 W) Controller design: Analog, active Crossover Frequency: 2.0 kHz Crossover Slope (dB/oct.): 24, 4th order Equalization - Bass: 0, −2.5, −5, −7.5 dB Equalization - Mid: 0, −1.5, −3, −4.5 dB Equalization - High: +1, 0, −1, −2 dB Protection circuitry: Limiter: low, high Infrasonic filter frequency; slope: 30 Hz; 6 dB/oct.

Analog Input Impedance, electrically balanced: 10k Ohms in position 94/108 dB SPL at 1 m 20k Ohms in position 100/114 dB SPL at 1 m Input gain control (sensitivity): 0 dB to −15 dB Output level control: 94, 100, 108, 114 dB SPL CMRR: >56 dB @ 15 kHz Maximum input level: 24 dBu Displays and indicators - power on: Neumann logo “White” Displays and indicators - limit/clip: Neumann logo “Red” Mains Power Supply, voltage; frequency: 100-240 V~; 50/60 Hz Power consumption – Idle: 20 W Power consumption – Full output AC: 200 W Mechanics Cabinet surface finish, color: custom: Painted aluminium, metallic anthracite (RAL 7021), Powder-coated aluminium, White (RAL 9016) Operating conditions: +10° C to +40° C (+50° F to +104° F), <90% RH, non-condensing Transport/storage conditions: −25° C to +70° C (−13° F to 158° F), <90% RH, non-condensing Drivers: Magnetically shielded Woofer: 130 mm (5.25”) Tweeter: 25 mm (1”) Mounting points: 2 x M8 on rear panel Product dimensions (height x width x depth), mm (inches): 277 x 182 x 220 mm (10 7/8” x 7 1/8” x 8 5/8”) Packed dimensions (height x width x depth), mm (inches): 415 x 365 x 280 mm (16 3/8” x 14 3/8” x 11”) Internal net volume / external volume: 6.5 liters / 9.7 liters Weight: 6.4 kg (14.1 lbs) Delivery includes: 1x KH 120 A G 1x EU mains cable or 1x US mains cable or 1x UK mains cable or 1x CCC certified power cable 4x Self-adhesive feet 1x Operating manual 1x Supplement "Getting Started Quickly" Made in Germany.
