Novation Circuit Mono Station Sequenced Paraphonic Analogue Synthesizer

Novation Circuit Mono Station Sequenced Paraphonic Analogue Synthesizer Overview: A very naughty synth Circuit Mono Station is a scheming, manipulative little beast of a machine, with a deafening roar to be tamed It’s infectious to use, quick to engage with and capable of some unpredictable and rather dangerous results.

Just try and muzzle it Featuring three types of analogue distortion effects, a really nasty ring modulator, a chunky sub-oscillator and step automation for all 53 parameters, Circuit Mono Station sounds bloody disgusting It’s an instrument that can be used as an experimental, polyrhythmic sound design tool – set apart with Bass Station II’s synth engine, reworked into a paraphonic form.

Sequences can benefit from longer LFOs staying in sync across several notes, perfect for making widely evolving musical phrases Impressive CV with lots of sequencing experience Having the same workflow as the Circuit sequencer and synth, Circuit Mono Station really is the potty-mouthed child of Novation.

The Mod Seq, Swing Sync and a Mutate function are useful for happy accidents, and the AUX CV output can send complex modulation signals to the outside world You can programme notes into the Mod Seq page to independently control your modular and CV gear with pitch and gate control via the CV/GATE output.

Hungry for more The recent Circuit Mono Station v1.2 upgrade comes biting at the heels of the v1.1 update, and it establishes an all-new sequencing structure optimised for unique sonic creativity and modular gear Circuit Mono Station continually evolves, never leaving you hungry for more.

Helping you find your new sound Music-making is all about the journey, and we’re always looking for new ways to inspire you along the way That’s why we’ve created the Sound Collective.

Receive free versions of the most innovative software instruments and creative FX from developers we admire, as well as discounts to help you make the most of third-party software, exclusive to Novation customers All you have to do is register your Novation gear, and one offer will be featured in your Novation account every couple of months.

Features: Individually control oscillators Two oscillators with individual control of sync and tuning parameters Get the frequency band you want High-pass, low-pass and band-pass filters with slopes of 12dB and 24dB.

Three distortion modes Classic Bass Station, new fuzz or a mixture of both Monophonic and paraphonic Monophonic and paraphonic modes with individual glide control.

Adaptable modulation system Four-by-eight modulation matrix that enables complex alteration and routing The Circuit Mono Station LFOs allow you to decouple synced LFOs from key sync, perfect for making widely evolving musical phrases.

Patches at your fingertips Load and save up to 64 patches on the device Three sequencer tracks Two oscillator sequencers and one modulation sequencer.

Hit Shift + Sessions to send either Osc 1, Osc 2 or the Mod Seq to the CV/GATE output Connect to hardware and software CV, Gate and modulation outputs for controlling separate hardware.

Connect and sync to your music software and MIDI-compatible hardware Modulate, evolve and process your source through the audio input.

Store unlimited sounds Backup patches and sessions with Components Learn more about Components here.

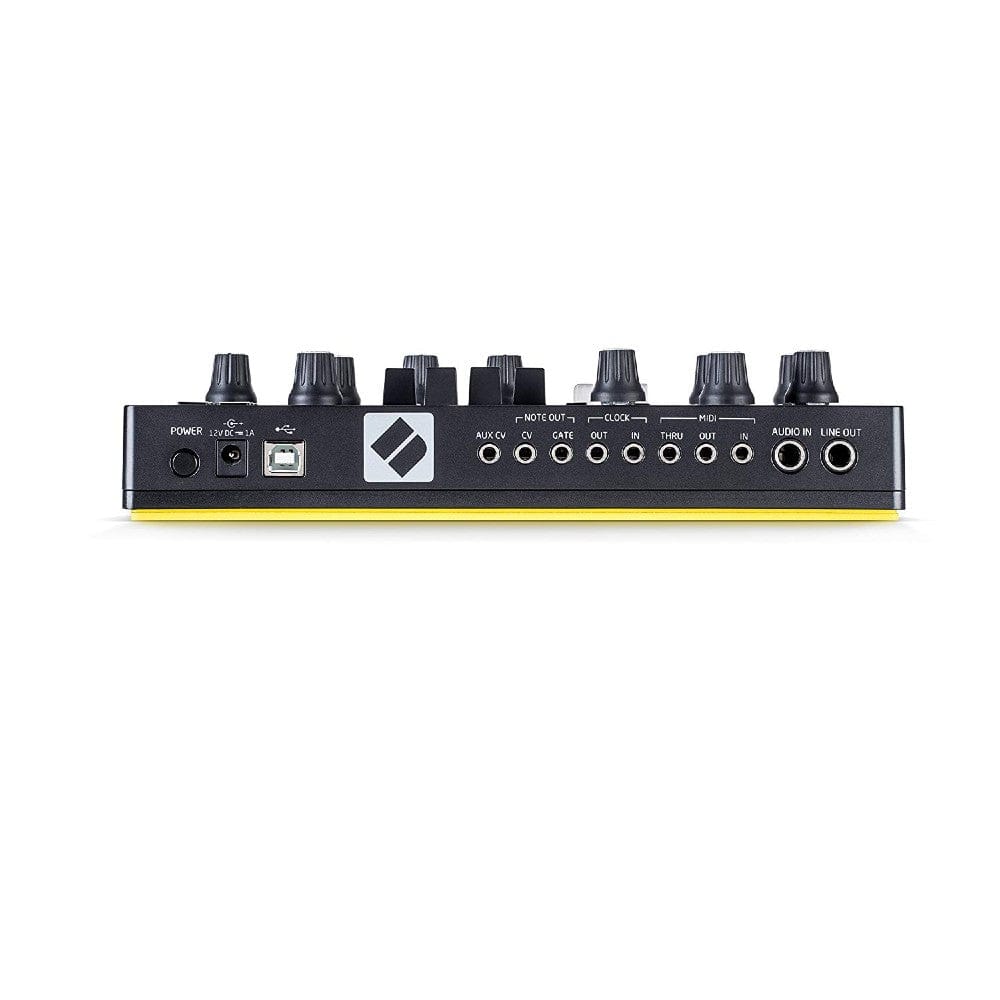

Specifications: Product Hardware Specifications 32 RGB backlit velocity-sensitive button grid 18 RGB backlit function buttons 8 Pots including dedicated filter and volume pots 2 Encoders for tempo and modulation path depth 6 RGB backlit mini pots for the mixer section 4 35mm sliders for envelope ADSR control 16 Tact switches 27 Orange LEDs for functional selection 19 RGB indicator LEDs 2 1/4” jack sockets for line out and audio input 3 3.5mm jack sockets for MIDI in, out and thru (MIDI din break-out cables included) 2 3.5mm jack sockets for the analogue clock in and out 3 3.5mm jack sockets for CV, gate and aux CV output USB B 2.0 / MIDI comms only (no bus-power) Configurable MIDI channels Front-mounted 3.5mm jack socket for headphones Rubberised knob caps Rotary controls secured to the chassis with metal nuts Power supply connector Power switch Kensington Security Slot Synth Engine Paraphonic - dual osc, single amp with separate control of each oscillator's pitch 64 Synth patches 2 Oscillators + sub osc (follows the pitch of osc 1) Noise generator Coarse and fine tune per osc Waveform octave depth 16’, 8’, 4’ or 2’ Ring mod between osc 1 and 2 Oscillator waveforms include: Sine, triangle, sawtooth, square / variable pulse width Envelope 1 ADSR Envelope (Attack/Decay/Sustain/Release) Routable via the modulation matrix LFO Single LFO with rate Sequencer 32 Sessions 2 Tracks per session + 1 track modulation sequence 16 Patterns for osc 1, 8 patterns for osc 2 and mod sequence 16 Demo sessions Real time record (notes, with velocity and automation) Auto-quantise notes to steps and automation to 6 events per step Sequencer resolution 24 PPQN 51 Automation parameters All knob and slider movements can be recorded (excluding volume) All modulation route depths can be automated Tempo range 40 - 240 BPM Swing 20 - 80% Glide amount configurable per step 8 Pattern sync rates (incl triplet rates) Pattern direction setting including ping-pong and random Pattern mutate 8 Global swing sync rates (incl.

triplet rates) Real-Time Performance Full range velocity scanning and record Editable to 16 levels 16 Scale types and chromatic transposition Synth expand view doubles playable area Dual view for playing osc 1 and osc 2 simultaneously and independently Paraphonic mode option switch to select how the amp envelope triggers Configurable pattern start and end points Configurable pattern chain Instant and queued Session switching Instant and queued Pattern switching Editing Velocity and gate per step Fractional gate lengths (each step divisible by 6) Automation edit per step Clear step, automation parameter per pattern, pattern, session Duplicate step, pattern Software Compatibility Ableton Live Lite 9 is included Circuit Mono Station is a USB-MIDI class compliant device Power Requirements Maximum power consumption 12V DC 1A Product Dimensions 240mm width x 250mm depth x 54mm height  Made in China.This product is non-returnable under all circumstances. However, it is fully covered under the manufacturer's standard warranty plan for a period of one (1) year from the date of purchase.

All product-related issues — including transit damage, manufacturing defects, or product malfunction will be handled through BAJAAO and will be resolved under the manufacturer's standard warranty policy.
