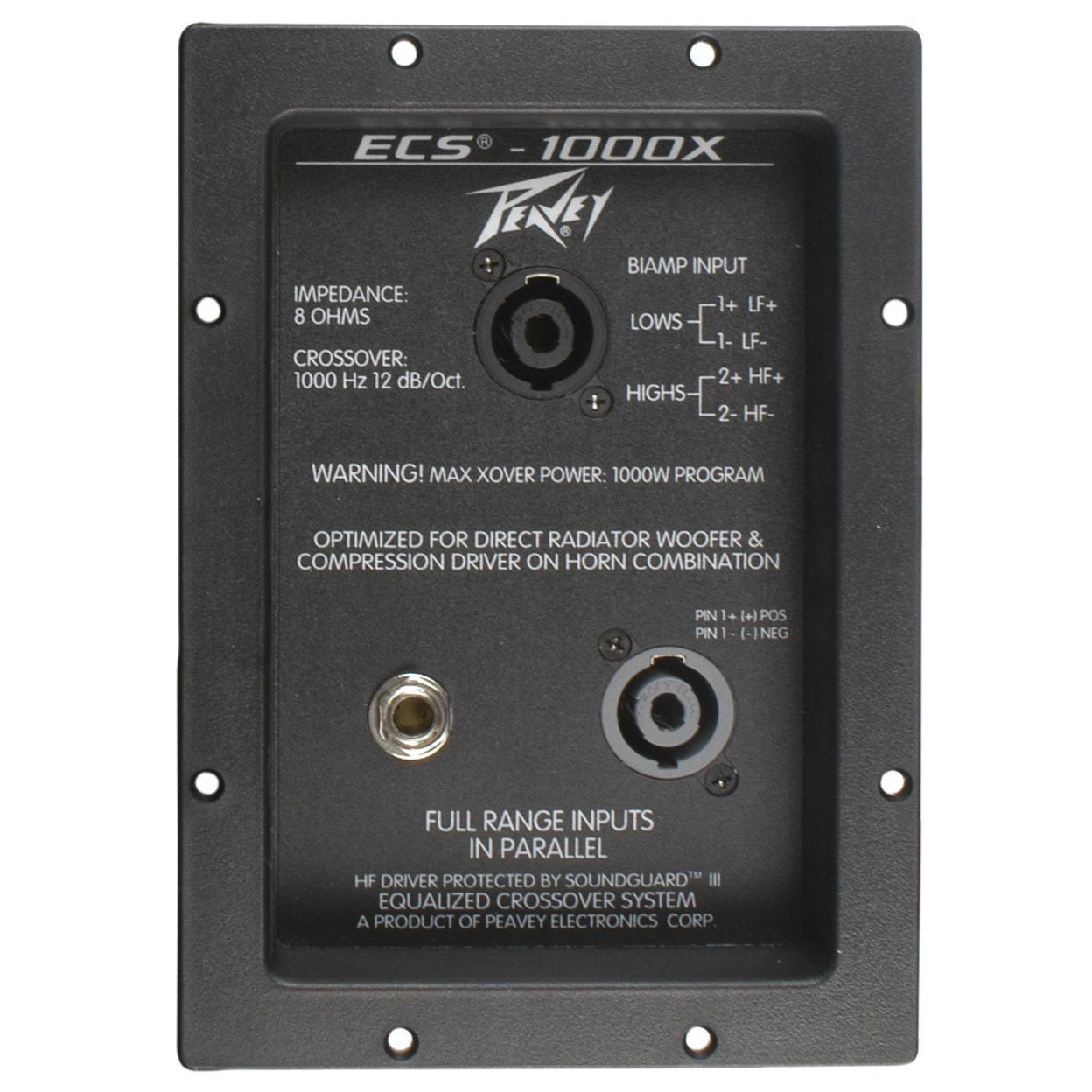

Peavey 03490190 ECS1000X ROHS Crossover

Peavey 03490190 ECS1000X ROHS Crossover _x005F These cabinet-ready passive 2-way crossover networks are pre-engineered to provide all the frequency division and driver protection that you could need for your speaker system The networks are designed to be used with 8 ohm speaker components, provide CD horn compensation, and feature SoundGuard™ overload protection on mid or high frequency drivers.

The 12 dB/octave crossover frequency of the ECS-1000X is 1000 Hz The optimum low frequency driver type would be a professional 15" model, although heavy-duty 12" speakers can also be used.

The recommended HF driver would have a 1.4" to 4" diaphragm and be mounted on a constant directivity horn Full range inputs are by 1/4" and Neutrik Speakon® connectors, and biamp inputs are through a unique Speakon switching connector.

A 1/4" jack is used for the high- pass output which connects to the mid/high speakers _x005F Features: _x005F _x005F Ready to mount in your enclosure _x005F CD horn compensation _x005F SoundGuard™ overload protection on high frequency drivers _x005F 1000 Hz 12 dB/octave crossover frequency _x005F 1/4" and Neutrik Speakon® input connectors _x005F .
