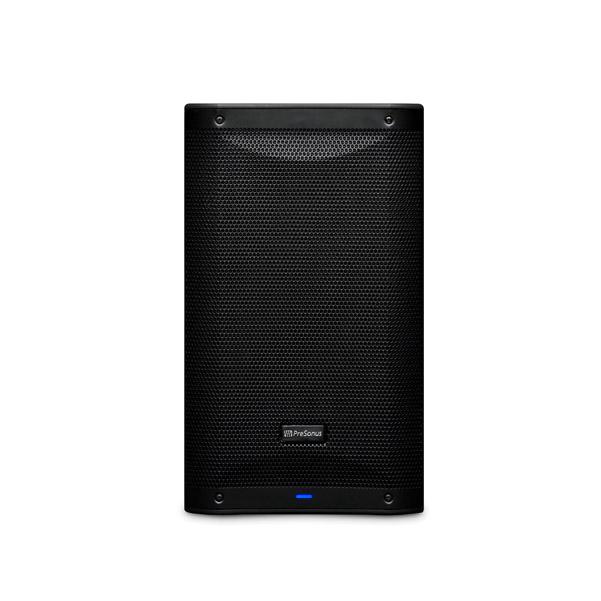

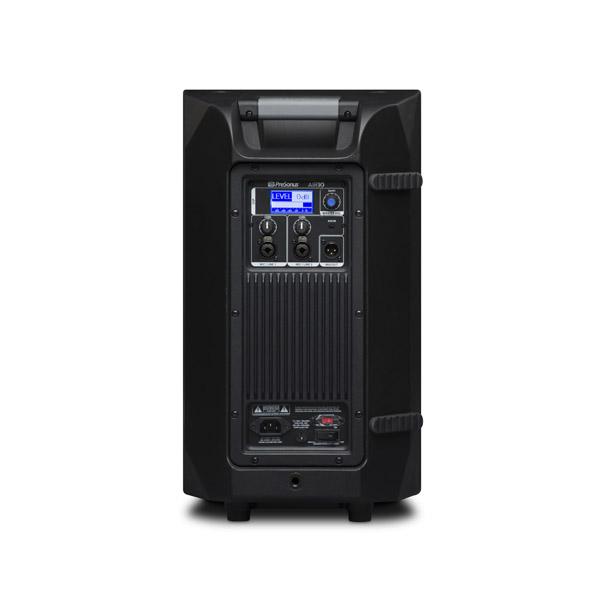

Presonus AIR 10 2-Way Active Loudspeakers

Overview: AIR10 active loudspeakers provide a rich, extended low-end and natural high-frequency extension in an enclosure that will easily fit in the backseat of a small car Backed by 1,200W (dynamic) of Class D/Class AB power and enhanced with easy-to-use digital tuning functions, Compact and lightweight, AIR10 gives you all the power and tools you need for both mobile and installed sound.

Each type of power amplifier has advantages and disadvantages By employing different amplifier types for each driver, AIR10 loudspeakers use the respective strengths of Class D and Class A/B amplifiers to provide optimal response throughout the speaker’s frequency range.

A 500W (continuous), Class D amplifier powers the 10-inch low-frequency driver, providing efficient, clean low end when you need it A 200W (continuous), Class AB amplifier powers the 1-inch high-frequency driver, delivering a natural sounding, "AIR-y" high end.

The combination can deliver up to 121 dB SPL of sweet, clear sound between 66 Hz and 20 kHz The AIR10 loudspeaker is equipped with an easy-to-use signal processor that makes it simple to customize your loudspeakers with the push of a button.

Presets customize the AIR10’s response for use as front-of-house mains; as monitor wedges; for music playback (e.g., for DJs); for enhanced low end and a warmer sound; and for improved speech intelligibility Treble and bass controls let you boost or cut by 10 dB to compensate for room anomalies.

Location presets let you optimize performance for stand and bracket mounting as well as flown installations The AIR10’s molded plastic cabinet can be mounted in several ways, providing tremendous versatility.

The multi-angle enclosure sports nonskid rubber feet on the bottom for upright front-of-house use and nonskid rubber feet on one side for stage monitor applications Rig the speaker using M10 fly points or ground-stack it for portable applications.

Mount it on a tripod or atop an AIR-series subwoofer using an optional sub pole The integrated dual-position pole mount lets you aim the speaker level or at a 7.5˚ downward tilt.

And the AIR10 is easy to transport, thanks to its top-mounted handle Features: Main Components Hybrid “best of both worlds” 1,200W (peak) power amp configuration: Low-frequency driver: 900W, Class D amplifier High-frequency driver: 300W, Class A/B amplifier Maximum SPL 121 dB peak 1-inch, high-frequency compression driver 10-inch woofer with a 2-inch voice coil 66 Hz to 20 kHz frequency response 121 dB SPL (max) 90° x 60° (horizontal x vertical) dispersion pattern Onboard mixer with two combo XLR and ¼” inputs and one summed balanced output Controls Easy-to-use DSP performance presets: DJ—music playback FOH—normal front-of-house o Enhance – enhanced low end for a warmer sound Monitor – optimized for floor wedge placement Speech—applications where speech intelligibility is critical Additional presets and controls: Stand—for mounting on a pole or tripod Bracket - for wall-mount applications Suspend – for suspended applications Convenience Features Multi-angle enclosure for mains or monitor-wedge applications Comfortable ergonomic handle 35 mm pole socket with 7.5˚ downward tilt M10 rigging points for suspended installation Defeatable front-panel LED Rugged plastic enclosure Tour-grade, 1.2 mm steel grille Specifications: Acoustic Performance Configuration : Active 2-way Frequency Range (-3 dB) : 66 Hz to 20 kHz Frequency Range (-10 dB) : 55 Hz to 20 kHz Crossover Frequency : 2.2 kHz Maximum Output : 121 dB SPL Nominal Dispersion (HxV) : 90˚x 60˚ Transducer LF Driver : 10” (2” voice coil) HF Driver : 1” compression Amplifier Amplifier Type : Class D (LF), Class AB (HF) Total System Power : 1,200W (Peak) LF Power : 900W HF Power : 300W Connections and Controls Inputs : 2 x XLR/TRS mic/line combo; 1 x 1/8” TRS stereo Outputs : 1 x XLR Mix Out DSP DSP Features : LCD screen with EQ and multiple presets Enclosure Cabinet : H-PP molded Grille : 1.2 mm steel Handles : 1 top Flypoints : 2 top, 1 back Pole Mounting : Dual position (0˚, 7.5˚)* Dimensions (H x W x D) : 20.3" x 11.8" x 11.5" (516 mm x300 mm x 291 mm) Weight : 28.7 lbs (13 kg) Power Power Input : 115V / 230V ~50/60 switchable Maximum Current : 2.3A (230V-50 Hz), 4.6A (120V) Made in China.
