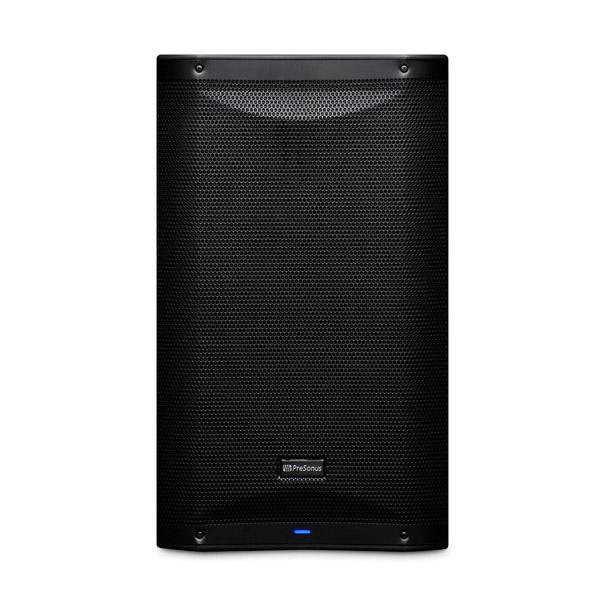

Presonus AIR 12 2-Way Active Loudspeakers

Write a review
| Ask a question
SKU : PRE-AIR12
Sold out
Rs. 62,200
Rs. 57,680

   Free Delivery available on this product.
Seen It For Less? Learn More

Overview:

AIR12 active loudspeakers provide a rich, extended low-end and natural high-frequency extension in an enclosure that will easily fit in the backseat of a small car. Backed by 1,200W (dynamic) of Class D/Class AB power and enhanced with easy-to-use digital tuning functions, Compact and lightweight, the AIR12 gives you all the power and tools you need for both mobile and installed sound.

Each type of power amplifier has advantages and disadvantages. By employing different amplifier types for each driver, AIR12 loudspeakers use the respective strengths of Class D and Class A/B amplifiers to provide optimal response throughout the speaker’s frequency range. A 500W (continuous), Class D amplifier powers the 12-inch low-frequency driver, providing efficient, clean power for gut-shaking low end when you need it. A 200W (continuous), Class AB amplifier powers the 1.35-inch high-frequency driver, delivering a natural sounding, "AIR-y" high end. The combination can deliver up to 123 dB SPL of sweet, clear sound between 51 Hz and 20 kHz.

The AIR12 loudspeaker is equipped with an easy-to-use signal processor that makes it simple to customize your loudspeakers with the push of a button. Presets customize the AIR12’s response for use as front-of-house mains; as monitor wedges; for music playback (e.g., for DJs); for enhanced low end and a warmer sound; and for improved speech intelligibility. Treble and bass controls let you boost or cut by 10 dB to compensate for room anomalies. Location presets let you optimize performance for stand and bracket mounting as well as flown installations.

The AIR12’s molded plastic cabinet can be mounted in several ways, providing tremendous versatility. The multi-angle enclosure sports nonskid rubber feet on the bottom for upright front-of-house use and nonskid rubber feet on one side for stage monitor applications. Rig the speaker using M10 fly points or ground-stack it for portable applications. Mount it on a tripod or atop an AIR-series subwoofer using an optional sub pole. The integrated dual-position pole mount lets you aim the speaker level or at a 7.5˚ downward tilt. And the AIR12 is easy to transport, thanks to its top-mounted handle.

Features:

Main Components

  • Hybrid “best of both worlds” 1,200W (dynamic) power amp configuration:
  • Low-frequency driver: 900W, Class D amplifier
  • High-frequency driver: 300W, Class A/B amplifier
  • Maximum SPL 123 dB peak
  • 1.35-inch, high-frequency compression driver
  • 12-inch woofer with a 2.5-inch voice coil
  • 51 Hz to 20 kHz frequency response
  • 123 dB SPL (max)
  • 90° x 60° (horizontal x vertical) dispersion pattern
  • Onboard mixer with two combo XLR and ¼” inputs and one summed balanced output


Controls

  • Easy-to-use DSP performance presets:
  • DJ—music playback
  • FOH—normal front-of-house o Enhance – enhanced low end for a warmer sound
  • Monitor – optimized for floor wedge placement
  • Speech—applications where speech intelligibility is critical

EQ

  • HF response ±10 dB
  • LF response ±10 dB

Additional presets and controls:
Stand—for mounting on a pole or tripod
Bracket - for wall-mount applications
Suspend – for suspended applications

Convenience Features

  • Multi-angle enclosure for mains or monitor-wedge applications
  • Comfortable ergonomic handle
  • 35 mm pole socket with 7.5˚ downward tilt
  • M10 rigging points for suspended installation
  • Defeatable front-panel LED
  • Rugged plastic enclosure
  • Tour-grade, 1.2 mm steel grille



Specifications:

Acoustic Performance

  • Configuration : Active 2-way
  • Frequency Range (-3 dB) : 51 Hz to 20 kHz
  • Frequency Range (-10 dB) : 48 Hz to 20 kHz
  • Crossover Frequency : 1.6 kHz
  • Maximum Output : 123 dB SPL
  • Nominal Dispersion (HxV) : 90˚x 60˚


Transducer

  • LF Driver : 12” (2.5” voice coil)
  • HF Driver : 1.35” compression


Amplifier

  • Amplifier Type : Class D (LF), Class AB (HF)
  • Total System Power : 1,200W dynamic
  • LF Power : 900W
  • HF Power : 300W

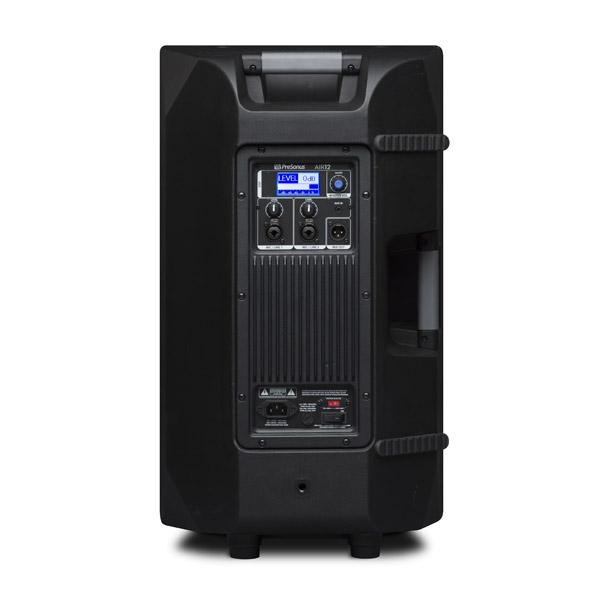

Connections and Controls

  • Inputs : 2 x XLR/TRS mic/line combo; 1 x 1/8” TRS stereo
  • Outputs : 1 x XLR Mix Out


DSP

  • DSP Features : LCD screen with EQ and multiple presets


Enclosure

  • Cabinet : H-PP molded
  • Grille : 1.2 mm steel
  • Handles : 1 top, 1 side
  • Flypoints : 2 top, 1 back
  • Pole Mounting : Dual position (0˚, 7.5˚)*
  • Dimensions (H x W x D) : 24.4" x 14.2" x 13.8" (619 mm x 360 mm x 351 mm)
  • Weight : 37.5 lbs (17 kg)


Power

Power Input : 115V / 230V ~50/60 switchable
Maximum Current : 3.5A (230V-50 Hz), 7A (120V)
