Don’t kill that mouse—give it a companion.
Although a keyboard and mouse are tried-and-true DAW-control devices, they’re far more effective when used in tandem with the FaderPort 16’s precise tactile control over mix and automation functions. A superior solution for anyone who mixes in the box, only the FaderPort 16 provides 16 100 mm touch-sensitive, motorized faders and 89 buttons covering 104 different functions, all in a compact chassis that easily sits on any desk. Quickly zoom in on audio files for editing, modify plug-in parameters, manage aux mixes—and, of course, control track levels with the touch of a finger. With the FaderPort 16, you’ll enjoy the fastest, most efficient workflow you’ve ever experienced.
Work faster and smarter.
Rather than forcing you to revise your mixing method, the FaderPort 16 augments the way you currently mix. You still use your faithful keyboard and mouse for things they do well, and the FaderPort 16 handles what you really want to get your fingers on: your mix. Having the ability to control the levels of 16 channels at once makes creating the perfect mix easier than ever before. And the FaderPort 16 allows you to view just the information you need to access. Sixteen digital scribble strips provide visual feedback. Quickly navigate between tracks and buses. Need to automate your virtual instruments? The FaderPort 16 lets you view just those tracks, making switching automation tasks a breeze. This is DAW control the way you always hoped it could be!
Universal compatibility and tight Studio One integration.
FaderPort 16’s streamlined workflow and support for the Mackie Control and HUI protocols make it fast and easy to control virtually any DAW. No driver installation is necessary; just plug the control surface into a USB port and take command of your mix and plug-ins.
An amazingly fast, efficient studio workflow awaits you!
With the compact, easy-to-use FaderPort 16, you’ll enjoy the fastest, most efficient workflow and the most session control you’ve ever experienced. But don’t just take our word for it; visit your favorite PreSonus dealer and try the FaderPort 16 for yourself!

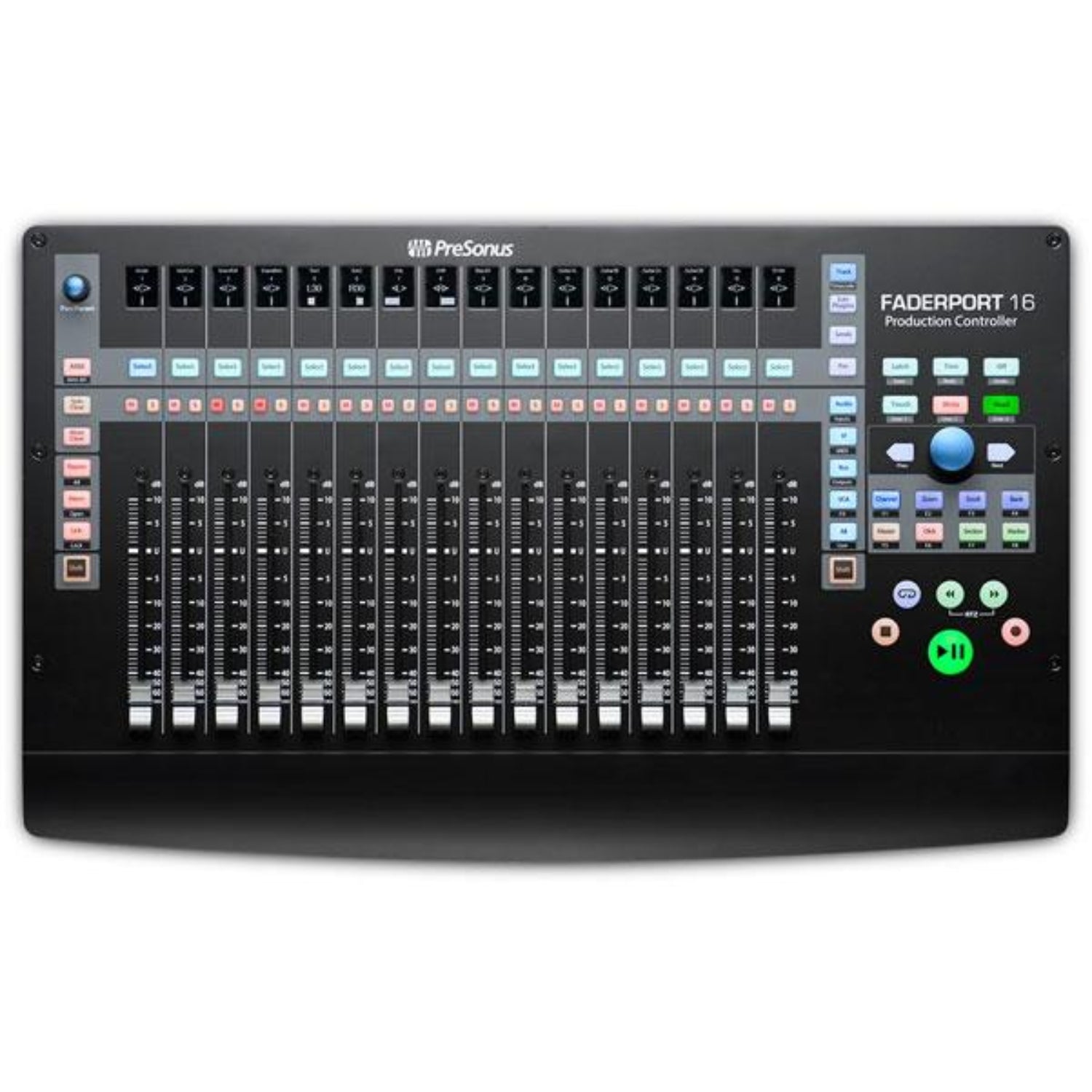

- 16 touch-sensitive, 100 mm long-throw, motorized faders
- 16 Scribble Strip displays
- Complete recording-transport controls: Play, Stop, Fast Forward, Rewind, Record, Loop
- Drop Marker, Next/Prev Marker, Next / Prev Event
- General session controls: Undo/Redo, Arm All, Solo/Mute Clear, Track Management, Click On/Off
- Session Navigator provides quick control over Track Scrolling, Channel Banking, Timeline Scrolling, and much more
- Channel Controls: Level, Pan, Solo, Mute, Rec Arm
- Automation Controls: Touch, Latch, Trim, Write, Read, Off
- Optional Fader functionality: Plug-in edit, bus sends, pan
- Mac / Windows compatible with native Studio One support and HUI and Mackie Control Universal emulation
- Footswitch input for hands-free start/stop
- USB 2.0 connectivity
Computer system requirements:
- Mac OS X 10.8.5 64-bit or later
- Intel Core 2 Duo processor (Intel Core i3 or faster recommended)
- 4 GB RAM (8 GB or more recommended)
- Windows 7 x64/x86 SP1 + platform update, Windows 8.1 x64/x86, Windows 10 x64/x86
- Intel Core 2 Duo (Intel Core i3 or faster recommended)
- 4 GB RAM (8 GB or more recommended)
- USB 2.0 port
- Internet connection required for driver and bundled software installation
- 30 GB hard disk space
- Monitor with 1366 x 768 resolution (high-dpi monitor recommended)

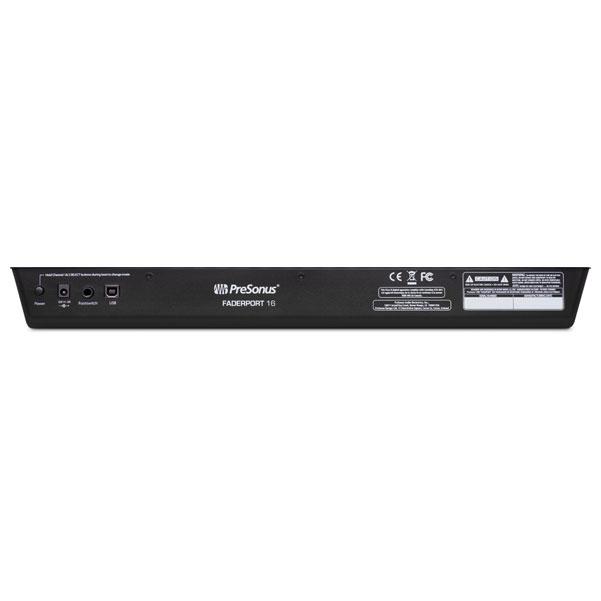

Input / Output
- 1 USB 2.0 port
- 1 Footswitch jack for hands-free stop/start
- 16 100 mm long-throw, touch-sensitive, motorized faders
- Dual-servo motorized drive belt system for fast and quiet operation
- Ultra-smooth feel and lightning fast
- Heavy-duty construction
- Resolution: 10-bit, 1,024 steps
Buttons and Knobs
- General Control : Undo/Redo, Arm All, Solo/Mute Clear, Timecode, Track Management, Click On/Off, 4 programmable User buttons, 8 Function buttons, Macro, Parameter Link, Bypass Plug-ins
- Channel Controls : Level, Pan, Solo, Mute, Select, Rec Arm
- Automation Controls : Touch, Latch, Trim, Write, Read, Off
- Optional Fader Functionality : Plug-in Edit, Bus Sends, Pan
- Window View : Mix, Project, Transport, Undo
- Transport : Play, Stop, Fast Forward, Rewind, Record, Loop, Return to Zero (Functionality varies slightly, depending on the DAW.)
- Navigation : Track Scroll, Channel Banking, Timeline Scroll, Horizontal Zoom, Vertical Zoom, Drop Marker, Next/Prev Marker, Next/Prev Event, Scrub, Nudge
- Console Management : Show/Hide: Audio Tracks, Inputs, MIDI Tracks, Buses, Outputs, VCAs, FX; Show All
- Displays :16 digital scribble strip displays, time code display, channel meters.
