Presonus StudioLive 16R 16-Channel Rackmount Digital Mixer

SKU : PRE-SL16R
Save 10%
Rs. 94,900
Rs. 85,500

Or Just Rs. 14,250 Rs. for 6 months

Call +91-22-42035384 for "ZERO" Cost Interest EMI on all major credit cards , Bajaj Finserv Cards and Cardless EMI options.

Limited Period Offer : Don't forget to use Coupon Code: " DHAMAKA " at checkout for additional 7% discount.

Buy Bajaao Premium Warranty at Affordable Prices. Offering door to door warranty service. T&C

Seen It For Less? Learn More
Overview:

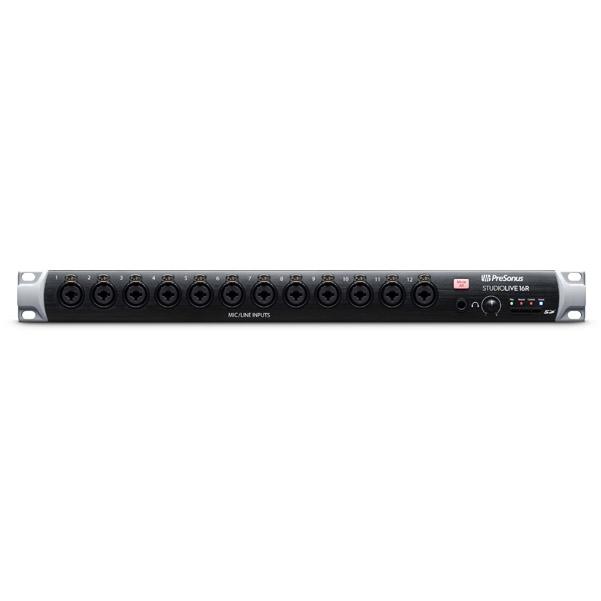

The StudioLive 16R Series III rack mixer is a perfect partner for your StudioLive Series III console/recorder, serving as either a simple stage box or a combination stage box and monitor mixer. Since Series III rack mixers and consoles can network using AVB, you can connect your StudioLive 16R to a Series III front-of-house console with one lightweight CAT5e or CAT6 Ethernet cable, eliminating the need for a heavy, expensive copper snake—and the signal degradation that goes with long analog cable runs. You can even remote control the StudioLive 16R’s preamps and phantom power from your networked Series III console. In stage box + monitor mixer mode, the StudioLive 16R not only serves as an excellent networked stage box, it is a full blown monitor mixer with far more processing and mixing power than any mixer in its class—all packed into just one rackspace. (1U).

StudioLive Series III rack mixers boast the same third-generation Fat Channel processing found in StudioLive Series III consoles. Delivering digital precision with the heart and soul of analog, the Series III Fat Channel implements a plug-in-style workflow that features vintage-style EQ and compression options on every channel, from classic tube limiters to passive EQs. In addition to channel processing, all StudioLive Series III mixers offer 6-band, fully parametric EQ on all mix outputs. Enjoy extensive, studio-style processing when recording, mixing monitors, or even running the front-of-house system.

PreSonus StudioLive Series III mixers are tightly integrated with an entire suite of state-of-the-art software. Mix wirelessly or over a wired network from anywhere using UC Surface touch-control software for Mac, Windows, Android, and iPad. Remote control the mixer’s recallable XMAX preamps and Fat Channel processing with Studio One Artist for low-latency recording with effects. (Reverb-drowned singers: rejoice!) Completely automate virtual soundchecks and record shows with Capture. Save mixer scenes with your live recordings in Capture and edit both in Studio One Artist. StudioLive Series III mixers and software work together to form a cohesive ecosystem that helps you achieve your creative vision.

In addition to the AVB recording connection, StudioLive Series III rack mixers sport a 1 Gb Ethernet port that can connect to a wireless router or directly to a computer, providing remote control of virtually all features. Mix wirelessly or over a wired network from anywhere using UC Surface for Mac, Windows, iPad, and Android tablet. Even add a second—or third, or even fourth!—screen for fast workflow. Musicians can control their monitor mixes onstage with QMix-UC for iPhone, iPod touch, or Android device without the need for large monitor networks. Go wireless, wired, or both.

Connect a StudioLive Series III rack mixer, and you’ll instantly hear details and an open high end you’d expect to find only in an expensive studio console.​ We built our reputation designing great-sounding analog circuits, including our famous XMAX solid-state, Class A preamps, and we put all of that experience into designing StudioLive Series III consoles and rack mixers. We didn’t cut corners on components, and we just say “No!” to noisy, crosstalk-y ribbon cables. As a result, StudioLive Series III mixers deliver the high-end audio quality you need to preserve your hard-earned reputation for producing great-sounding mixes and recordings.

Features:

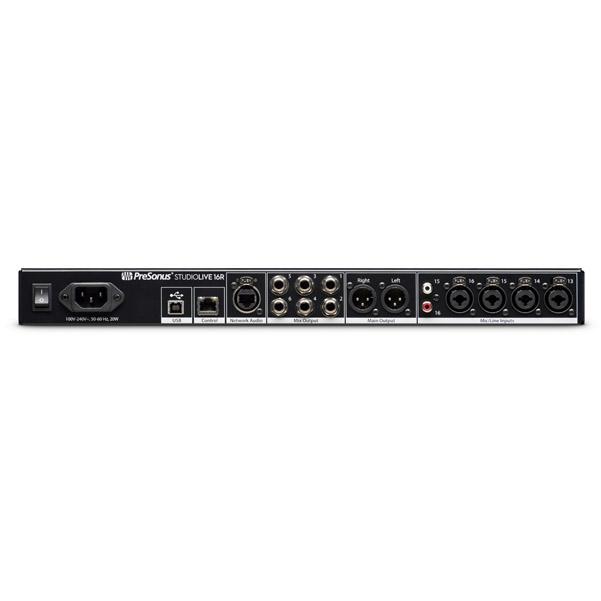

Local Inputs and Outputs
  • 18 total inputs
  • 16 mic/line channel inputs + 2 RCA inputs
  • 6 ¼-inch TRS FlexMix outputs
  • 2 XLR (L/R) Main outputs
  • Stereo headphone output

Channels and Buses
  • 16 input channels
  • 1 stereo digital return (SD Card, AVB, or USB)
  • 10 buses:
  • 6 FlexMixes (can be designated as aux, subgroup, or matrix mixes)
  • 2 internal effects sends
  • Stereo main bus
  • 6 Filter DCAs for easily and flexibly controlling groups of channels

Networking Connections
  • 1 Ethernet control network port
  • Dynamic, Self Assigned, and Manual IP address modes
  • 1 Locking XLR Ethernet AVB audio network port

Recording
  • Onboard stereo SD recorder
  • 18x18 USB recording interface
  • 32x32 AVB recording interface

Signal Processing
  • Intuitive Fat Channel signal processing on every channel with:
  • A/B settings comparison
  • Highpass filter and polarity reverse
  • Gate/expander with sidechain
  • Compressor with sidechain
  • 4-band parametric EQ on inputs
  • 6-band parametric EQ on outputs
  • Limiter
  • Delay on every input
  • Delay on every output
  • Professionally programmed library of presets
  • Vintage EQ and compressor models available on every input
  • Passive EQ
  • Vintage EQ
  • Tube compressor
  • FET compressor
  • 8 31-band graphic EQs
  • 2 internal effects buses: combination of reverbs and delays with modern and vintage options
  • Built-in real-time analyzer

Scenes and Presets
  • Create, save, and edit up to 100 scenes
  • Scene management with:
  • Scene Safe—prevents a scene change from affecting designated “safe” channels
  • Create, save, and edit channel settings and copy/paste between channels
  • Advanced channel preset options can save and recall:
  • Channel type and name
  • Input settings (preamp, +48V phantom power, polarity, pan)
  • Fat Channel A & B settings
  • Bus assignments
  • Aux and effects send levels and pan
  • Select button color
  • 8 Quick Scenes
  • 8 Mute groups

Digital
  • Studio-quality converters with 115 dB dynamic range
  • 48 kHz operation with 24-bit resolution (44.1 kHz option coming soon)

Actively Integrated Software
  • UC Surface touch control software for Mac, Windows, iPad, and Android
  • Studio One Artist digital audio workstation software for Mac and Windows
  • Capture multitrack recording software for Mac and Windows
  • QMix-UC aux-control software for iOS and Android available free from Apple App Store and Google Play


Specifications:

Mi​crophone Preamplifier

  • Input Type : Combo locking XLR mic-¼” TRS line
  • Frequency Response to Main Output (at unity gain) : 20-20 kHz, ±0.5 dBu
  • Input Impedance : 1 kΩ
  • THD to Main Output : <0.005%, +4 dBu, 20-20 kHz, unity gain, unwtd
  • S/N Ratio to Main Output (Ref = +4 dB, 20 kHz BW, unity gain, A-wtd) : 94 dB
  • Common Mode Rejection Ratio (1 kHz at unity gain) : 65 dB
  • Gain Control Range (±1 dB) : 0 dB to +60 dB
  • Maximum Input Level (unity gain) : +12 dBu
  • Phantom Power (±2 VDC) : 48 VDC, switchable per channel


Unbalanced Inputs (Ch. 15-16)

  • Type : RCA Female, unbalanced (stereo pair)
  • Maximum Input Level : +12 dBu, ±0.5 dBu


Main Outputs

  • Type : XLR Male, balanced
  • Maximum Output Level : +24 dBu, ±0.5 dBu
  • Output Impedance : 100Ω


Mix Outputs

  • Type : ¼” TRS Female, balanced
  • Maximum Output Level : +18 dBu, ±0.5 dBu
  • Output Impedance : 100Ω


Headphone Output

  • Type : ¼” TRS Female, active stereo
  • Maximum Output : 100 mW/ch. @ 60Ω load
  • Frequency Response : 20 Hz – 20 kHz (± 0.5 dB)
  • THD+N : 0.01%, 1 kHz, max gain, 20 Hz BW, unwtd
  • S/N Ratio : 96 dB, 1 kHz, max gain, 20 Hz BW, unwtd


System Crosstalk

  • Input to Output : -90 dB (Ref = +4 dBu, 20 Hz-20 kHz, unwtd)
  • Adjacent Channels : -87 dB (Ref = +4 dBu, 20 Hz-20 kHz, unwtd)


Digital Audio and Control

  • ADC Dynamic Range : 115 dB (A-wtd, 48 kHz)
  • DAC Dynamic Range : 115 dB (A-wtd, 48 kHz)
  • USB Recording Port : USB 2.0, Type-B
  • Network Control Port : RJ-45
  • AVB Audio Network Port : Locking XLR Ethernet
  • Internal Processing : 32-bit, floating point
  • Sampling Rate : 48 kHz (44.1 kHz coming soon)
  • A/D/A Bit Depth : 24
  • Reference Level for 0 dBFS : +18 dBu
  • Total System Latency : 1.9 ms (local routing, analog in-analog out, all processing active)


Clock

  • Jitter : <20 ps RMS (20 Hz - 20 kHz)
  • Jitter Attenuation : >60 dB (1 ns in, 1 ps out)


Power / Environmental

  • Connector : IEC
  • Input-Voltage Range : 90 to 230 VAC (±10%)
  • Power Requirements (continuous) : 85W
  • Recommended Ambient Operating Temperature : 0˚ to 40˚ Celsius / 32˚ to 104˚ Fahrenheit


Physical

  • Height : 1.75” (45mm)
  • Width : 19” (483mm)
  • Depth : 12” (305mm)
  • Weight : 8.6 lbs. (3.9 kg)
