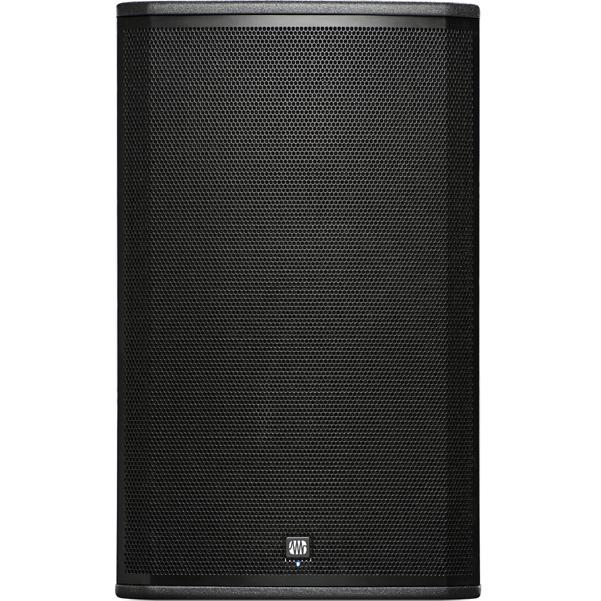

Presonus ULT15 1300W 15-inch 2-way Active PA Speaker

Presonus ULT15 1300W 15-inch 2-way Active PA Speaker Overview: ULT: Ultra Long Throw PreSonus ULT15 active loudspeakers combine the widest horizontal dispersion of any loudspeaker in their class with a focused vertical dispersion for an ultra-long throw.

The result is even coverage throughout the space, enabling the audience to hear clearly wherever they are Featuring PreSonus’ proprietary Pivot X110 horn, a custom 15-inch low-frequency driver, and plenty of biamped Class D power in a lightweight design with the performance characteristics that only wood can offer, ULT15 loudspeakers deliver first-rate speech intelligibility and natural music reproduction.

This makes them a great choice for both mobile use and permanent installations Wide horizontal coverage, narrow vertical dispersion, and superior throw.

The ULT15’s custom-designed Pivot X110 rotatable horn combines ultra-wide horizontal coverage (110°) for broad coverage with focused vertical dispersion (50°) for superior throw The result is a loudspeaker that can fill the room without introducing early reflections that muddy the sound.

In addition, the Pivot X110 horn’s large size enables it to control the dispersion pattern lower in the frequency range than smaller conventional horns, so it maintains more consistent gain on- and off-axis, ensuring that the audience at the sides has the same listening experience as those in front The result is sound reproduction that fills the entire room, evenly providing optimal audio.

Mounts horizontally or vertically for a variety of applications The Pivot X110 horn can be rotated 90˚, so the ULT15 can be mounted in a horizontal configuration while still maintaining its 110˚ x 50˚ coverage pattern.

Along with its compact size, this makes the ULT15 an ideal center-channel speaker for an LCR system or an under-balcony fill Rotating the Pivot X110 horn can also help fix FOH issues in tall, narrow venues by minimizing early reflections and providing more directed coverage.

Add the ULT15’s multi-angle enclosure and presets for live performance, floor monitor use, and music playback, and you have an extremely versatile loudspeaker that is equally at home at front-of-house and as a stage monitor Plenty of power and I/O.

The ULT15 is supplied with more than enough power and I/O to handle a wide variety of applications and environments Its 15-inch woofer is driven by a 500W (continuous), Class D power amp, while the 1.75-inch Pivot X110 horn receives 150W.

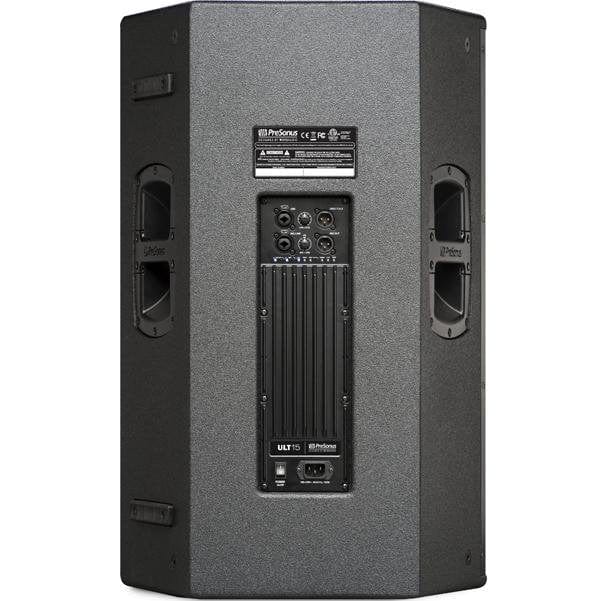

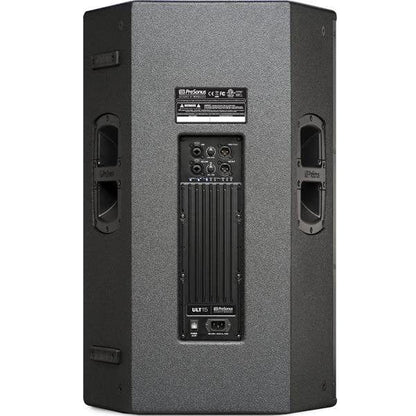

(Peak power is rated at 1,000W and 300W, respectively.) You get two combo XLR and ¼” TRS inputs: a mic/line input with PreSonus’ acclaimed XMAX mic preamp and a line-level-only input The inputs have independent level control, allowing up to two audio sources to be mixed internally and summed to a balanced XLR output for "daisy-chaining" multiple units.

A separate direct output for the line input channel provides additional flexibility Designed by WorxAudio.

ULT15 loudspeakers were designed by WorxAudio®, the commercial loudspeaker division of PreSonus Headquartered in Greensboro, North Carolina, WorxAudio has been at the forefront of loudspeaker development for the pro touring and contractor markets for over 30 years.

WorxAudio continues to embrace the latest technology, delivering innovative products and installation designs for professional clients, and their products can be found in prestigious facilities worldwide So you can rely on ULT loudspeakers to deliver the top-quality professional performance and features that touring engineers and systems integrators need.

Now hear this With extra-wide horizontal and focused vertical dispersion, a rotatable horn, ultra-long throw, a wood enclosure, and ample Class D power, the ULT15 is an excellent solution for permanent installations.

Yet it’s also portable, making it a top choice for tours and other mobile use Best of all, it sounds great, delivering outstanding speech intelligibility and natural music reproduction, with even coverage throughout the space.

Features: Main Components 15-inch custom woofer with 2.5-inch voice coil WorxAudio-designed waveguide Pivot X110 horn for precise coverage Ultra-wide 110˚ horizontal dispersion Tight 50˚ vertical dispersion for longer throw 1,300W Class D power (150x500W continuous) XMAX preamp Onboard mixer with two combo XLR and ¼” inputs Direct line-input channel output Single summed balanced output Controls Mic/Line Level Line/Level 3 operation mode presets FOH – normal live front of house DJ – Music playback Mon – stage wedge floor monitor HPF On/Off Front LED On/Off Convenience Features Multi-angle enclosure for mains or monitor wedge application Defeatable front-panel LED Rugged, texture-painted eucalyptus plywood enclosures Tour-grade 16 gauge steel grille Comfortable ergonomic handles 35 mm pole sockets with 6˚ downward tilt Integrated M10 rigging points for suspended horizontal and vertical installation Locking IEC connection Specifications: Acoustic Performance Configuration: 2-way biamped Frequency Response (-3 dB): 52 Hz – 18 kHz Frequency Response (-10 dB): 47 Hz – 20 kHz Nominal Coverage (-6 dB): 110° x 50° Maximum Peak SPL: 136 dB Crossover Frequency: 1.6 kHz Transducer LF Transducer: 1x15" Ferrite Voice Coil Diameter: 2.5” Voice Coil Diameter: 2.5” \n HF Transducer: 1.75" compression driver Amplifier Type: Class D Total Power Output: 1,300W Peak (650 RMS) LF Power: 1,000W Peak (500W RMS) HF Power: 300W Peak (150W RMS) Cooling: Free air convection Rated THD: <0.05% (20 Hz - 20 kHz) Dynamic Range: 119 dB (A-weighted) Bandwidth: 20 Hz - 20 kHz Connections and Controls Input Channels: 1 mic/line, 1 line Input Connector Types: 2 combo Mic Input Impedance: 1 kΩ Line Input Impedance: 10 kΩ Maximum Input: +22 dBu Output Connector: 2 XLR (M): Mix out, Direct out Controls: Mic/Line Level Line/Level Preset Select HPF On/Off Front LED On/Off Indicators: DSP Preset, HPF On/Off, Front LED On/Off, Signal, Clip, Thermal DSP Presets: FOH, MON, DJ Polarity: — HPF: 100 Hz, 4th-order Linkwitz-Riley Bit Depth: 24-bit Sample Rate: 96 kHz Enclosure Material: Eucalyptus Plywood Finish: Chemline polyurethane Grille: Powder-coated steel Dimensions (HxDxW): 28.5” x 17.25” x 16” (234 mm x 438 mm x 406 mm) Unit Weight: 59 lbs (26.8 kg) Handles: 3 (Top and Side) Monitor Angle: 30° Safety Amplifier Protection: Over-current, DC, over/under-voltage, over-temperature, high frequency Transducer Protection: limiter Power AC Power Input: 100-230V~, 50-60 Hz AC Power Consumption (1/8 Power): 150W Suspension Mounting Rigging Points: 12 M10 Mounting: 35 mm, 2-position Made in China.
