Proel HPC640BK Speaker Cable


Shop Brand : Proel
Shop All: Speaker Cables
SKU : PROELHPC640BK

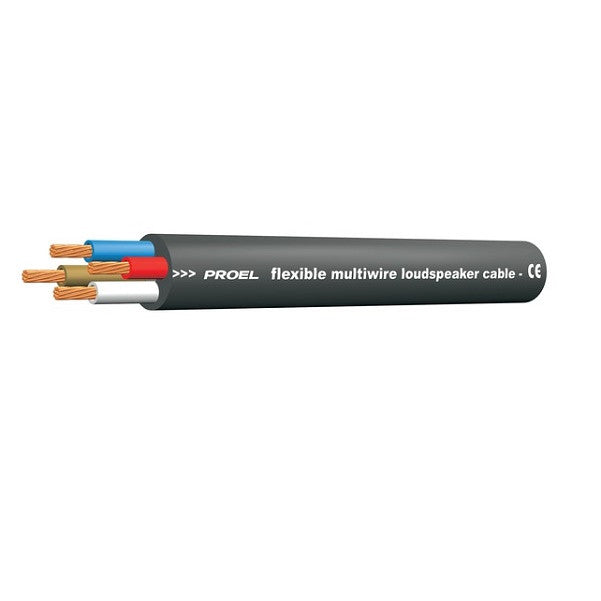

  • The Proel HPC640BK is an ultra-flexible 4 twisted conductors speaker cable for passive loudspeakers with 4 x 2,5 mm2 section.

    Features and Specifications:

    • Application fields: Passive speaker connections / sound reinforcement / studio installation / live
    • Conductors: Bare copper 14 AWG = 48x0,25 mm
    • Lay up: four conductors twisted in short concentric layers
    • Insulation: flexible PVC 3,45 mm
    • Jacket: Ultra - Flexible PVC – 60 Shore
    • Overall diameter: 11,00 mm
    • Cable section: 2,5 mm2/AWG14
    • Electrical Resistance @ 20°C: 7,4 Ohm/Km (conductor)
    • Electrical Capacitance @ 1 KHz: 85 pF/mt (conductor/conductor)
    • Operating temperature: -20°C / +70°C
    • Minumum bendig radius: 10 x overall diameter
    • Weight: 204 Kg/Km
    • Color: Black
    • Packaging: 100 m wooden reel
