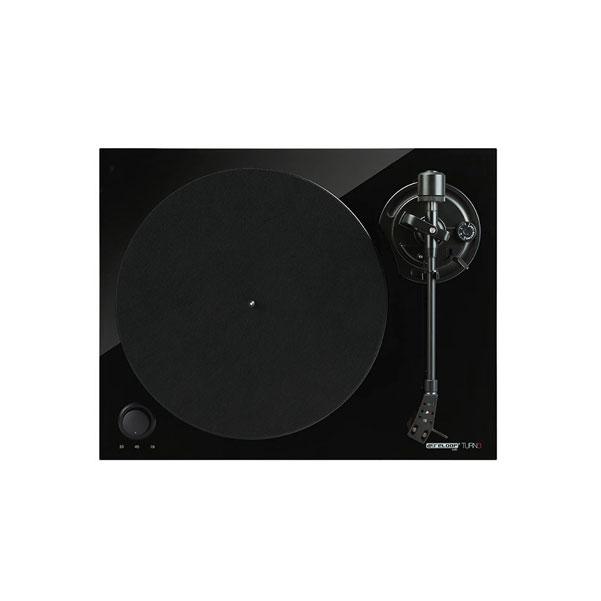

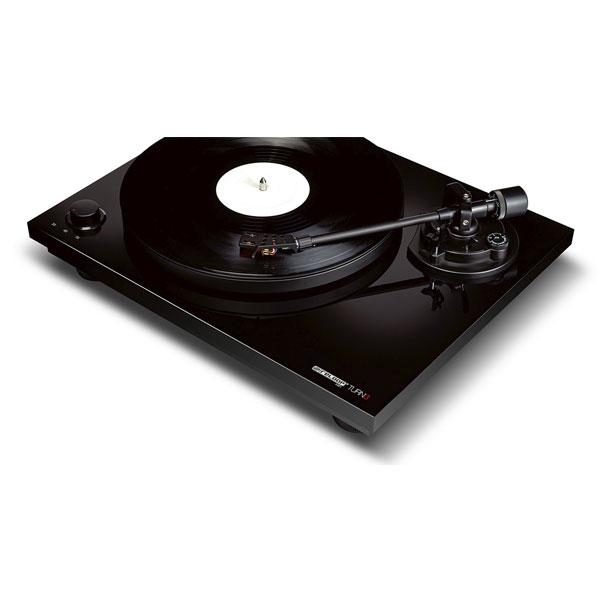

Reloop Turn3 Hi-Fi Turntable

Turn3 Outstanding performance, precision design and fidelity sound With over 20 years experience in the DJ & Pro-Audio industry, Reloop is one of the market leaders for DJ turntables and accessories.

Now, for the first time, Reloop is proud to present a hifi turntable that has been especially designed for music enthusiasts and sound purists: TURN3 Low-Noise DC Motor The TURN3's belt drive operation is powered by a low-vibration DC motor, keeping unwanted noise to a minimum.

Electronic Speed Control for 33, 45 & 78 RPM Pure convenience: No troublesome belt adjustments required with TURN3 Depending on your choice of vinyl, it is possible to comfortably adjust the desired speed to 33, 45 or 78 RPM, thanks to the large speed selection knob.

Even Shellac records can be played back, when using a suitable pick-up system Precision Tone Arm The straight tone arm, which was especially designed for TURN3, offers optimal tracking performance for a superior sound experience.

Anti-Skating System Wheel The tonearm anti-skating setting can be adjusted comfortably with a dedicated wheel for optimal tracking adjustment Flexible Headshell Connection The headshell connection makes TURN3 a really flexible performer.

The GM/SME locking mechanism allows for easy switching between pick-up cartridges mounted on different headshells USB Recording Function Thanks to the integrated USB interface you can digitize your favorite records directly to PC/MAC in CD quality.

Great for listening on the go, or archiving your treasured vinyl collection Semi-Automatic for Auto Stop Practical and comfortable: With the integrated semi-automatic control, TURN3 stops automatically at the end of a record.

Purists can deactivate the semi-automatic system for fully manual playback pleasure Anti-Vibration Feet TURN3 is equipped with de-coupled, shock-absorbing feet which help remove unwanted vibration and guarantee a clean audio signal.

Aluminum Diecast Platter with Deadening Rubber Coating The turntable’s platter is a heavy aluminum die-cast construction, facilitating a solid & smooth rotation performance The additional rubber damping beneath the platter adds further mass and helps eliminating unwanted resonance for optimal acoustic results.

Gold-Plated Connections & Flexible Cables Besides gold-plated connections for the purest sound signal transfer, TURN3 allows for maximum individuality and flexibility, as all cables are detachable Integrated Phono Stage The Reloop TURN3 is equipped with a built-in pre-amp, meaning you can connect directly to an amplifier without phono input.

This way a separate pre-amp is not mandatory for a line level input Solid housing construction with Piano Finish A sturdy MDF plinth, coated in a classy piano finish, ensures detailed and warm sound characteristics.

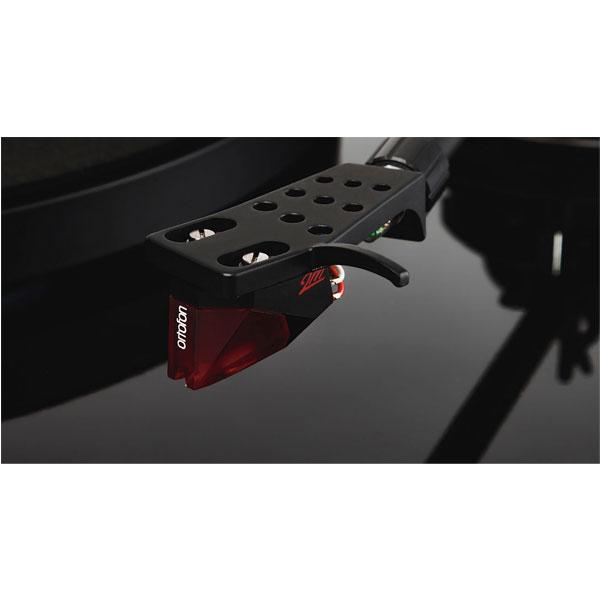

Comes Plug 'n' Play with Ortofon 2M Red System Immediate aural pleasure: TURN3 comes equipped with a pre-mounted, high-quality Ortofon 2M Red pick-up system Features Belt-drive Hi-Fi Turntable Pre-installed Ortofon 2M Red cartridge Specially designed tonearm for optimal tracking performance Headshell connection provides added flexibility High-quality built-in Phono Stage can be switched on or off (Phono/Line output) USB output for recording your vinyl to a PC or Mac Semi-Automatic Motor Stop can be switched on or off Low-vibration DC motor Integrated motor control with large speed selector for conveniently selecting three different speeds (33, 45 and 78 RPM) External DC power supply ensures a silent running motor (100-240 V / 12V / 500mA) Aluminium platter with rubber damping for optimized resonance control Adjustable anti-skating dial for improved cartridge tracking Gold-plated, corrosion resistant audio outputs (all cables detachable) Purpose-chosen turntable feet for effective decoupling Gloss black piano finish Master power switch on rear panel Supplied with pre-installed Ortofon 2M Red Cartridge, Counter Weight, Dust Cover (incl.

hinges), Felt-Mat, Rubberised Aluminium Platter, Aluminium 7” Adapter, RCA & USB cables and international power supply (UK/EU/US) Technical Specifications Type of turntable: Belt drive Motor: DC Motor Rotation speeds: 33 1/3, 45 & 78 Wow and Flutter: 0.2% WRMS Analogue Output: Phono / Line switchable Connections: RCA Audio output (gold-plated), USB type B Phono Output Level: 4.0 mV (with Ortofon 2M Red) Line Output Level: 224 mV (with Ortofon 2M Red) Tone Arm type: Straight Effective Arm Length: 233 mm Effective tonearm mass: 24.84 g Overhang: 233 mm Tracking force Range: 18 nM Platter diameter: 300 mm Anti-Skating adjustment: Yes USB Audio Output with 48 kHz / 16-Bit: Yes OS Supported: Windows & Mac Type of cartridge: MM (Ortofon 2M Red) Needle pressure range: 1.8 +/- 0.2 g Headshell weight: 20 g Power consumption: 6 W S/N: >60 dB or higher Dimensions: 450 (W) x 352 (D) x 138.7 (H) mm (incl Dust cover) Net weight: 7.02 kg Cartridge Weight Range: 6g - 8g Counterweight Weight Range: 2g - 5g Ortofon 2M Red Output voltage at 1000 Hz, 5 cm/sec.: 5,5 mV Channel balance at 1 kHz: 1,5 dB Channel separation at 1 kHz: 22 dB Channel separation at 15 kHz: 15 dB Frequency range at – 3 dB: 20-22.000 Hz Frequency response: 20-20.000 Hz + 3 / - 1 dB Tracking ability at 315 Hz at recommended tracking force: 70 μMm Compliance, dynamic, lateral: 20 μMm Stylus type: Elliptical Stylus tip radius: r/R 8/18 μMm Tracking force range: 1,6-2,0 g (16-20 mN) Tracking force, recommended: 1,8 g (18 mN) Tracking angle: 20° Internal impedance, DC resistance: 1,3 kOhm Internal inductance: 700 mH Recommended load resistance: 47 kOhm Recommended load capacitance: 150-300 pF Cartridge colour, body/stylus: Black/Red Cartridge weight: 7.2 g.
