Rode Link Filmmaker Kit Digital Wireless System for Filmmakers

For warranty registration of your product Kindly Visit: https://warranty.rode.com/ Rode Link Filmmaker Kit Digital Wireless System for Filmmakers Series II, 2.4GHz digital transmission 128-bit encryption Up to 100 metres range* OLED display (on receiver) One button pairing Three level gain control AA battery or USB powered Includes broadcast lavalier microphone Rode Link represents the next generation of digital wireless systems Using a Series II 2.4GHz digital transmission with 128-bit encryption, it is able to constantly monitor and hop between frequencies to maintain the strongest possible signal level at a range of up to 100 metres* (over 100 yards).

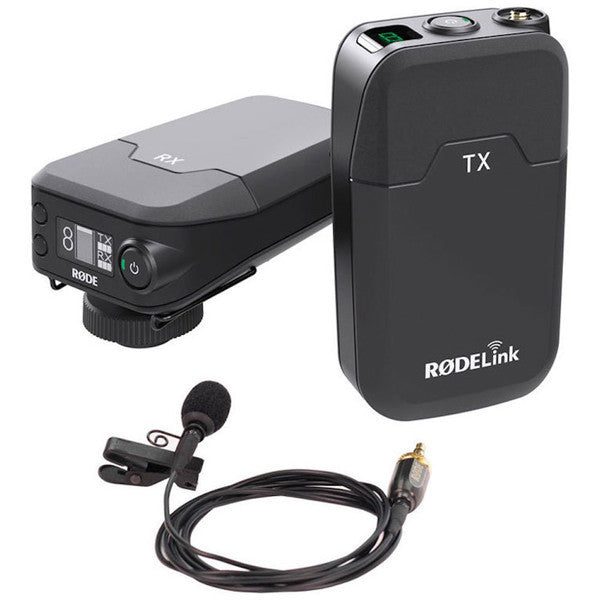

The Rode Link Filmmaker Kit provides everything you need to start shooting video wirelessly, including a receiver, transmitter and broadcast-grade lavalier microphone The receiver (RX-CAM) features an OLED display with information on level, battery status (receiver and transmitter), mute and channel selection.

The unit can be mounted on a standard camera shoe mount, 3/8" thread or belt-clip, and for added versatility the shoe mount can be located in one of two positions The lightweight transmitter (TX-BELT) can be fitted to a belt or clothing and features a locking thread to ensure the microphone connection is as secure as possible.

Rode  has included an omnidirectional lavalier microphone in the kit to provide the highest possible audio reproduction quality * range estimations based on optimal environment Rode Link Filmmaker Kit Specifications \n Transmission type :2.4GHz Fixed Frequency Agile System \n System dynamic range :112dB \n Range (distance) :Up To 100m \n Frequency range :35Hz - 22kHz \n Maximum output level :1v Rms (2.8v P-p) \n Max input signal level :1v Rms (2.8v P-p) \n Max latency :4ms \n Receiver (RX-CAM) \n Power source :2 X AA Battery Or MicroUSB \n Antenna :Internal \n Output connection :3.5mm TRS Locking Jack Socket - Dual Mono \n Output impedance :300Ω \n Dimensions :111mm X 65mm X 52mm \n Weight :190gm \n \n Transmitter (TX-BELT) \n \n Power source :2 X AA Battery Or MicroUSB \n Antenna :Internal \n Input connection :3.5mm TRS Locking Jack Socket \n Input impedance :10kΩ \n Dimensions :111mm X 65mm X 40mm \n Weight :190gm \n \n Lavalier \n \n Acoustic Principle :Permanently Polarized \n Active Electronics :JFET impedance converter \n Capsule :0.10" Address Type :End Frequency Range :60Hz - 18kHz Output Impedance :3000Ω Maximum SPL :110dB SPL (@ 1kHz, 1% THD into 1KΩ load) Maximum Output Level :189.0mV Sensitivity :-33.5dB re 1 Volt/Pascal (21.00mV @ 94 dB SPL) +/- 2 dB @ 1kHz Equivalent Noise Level (A-weighted) :25dB-A Weight  :1.00gm Dimensions :12.00mmH x 4.50mmW x 4.50mmD.
