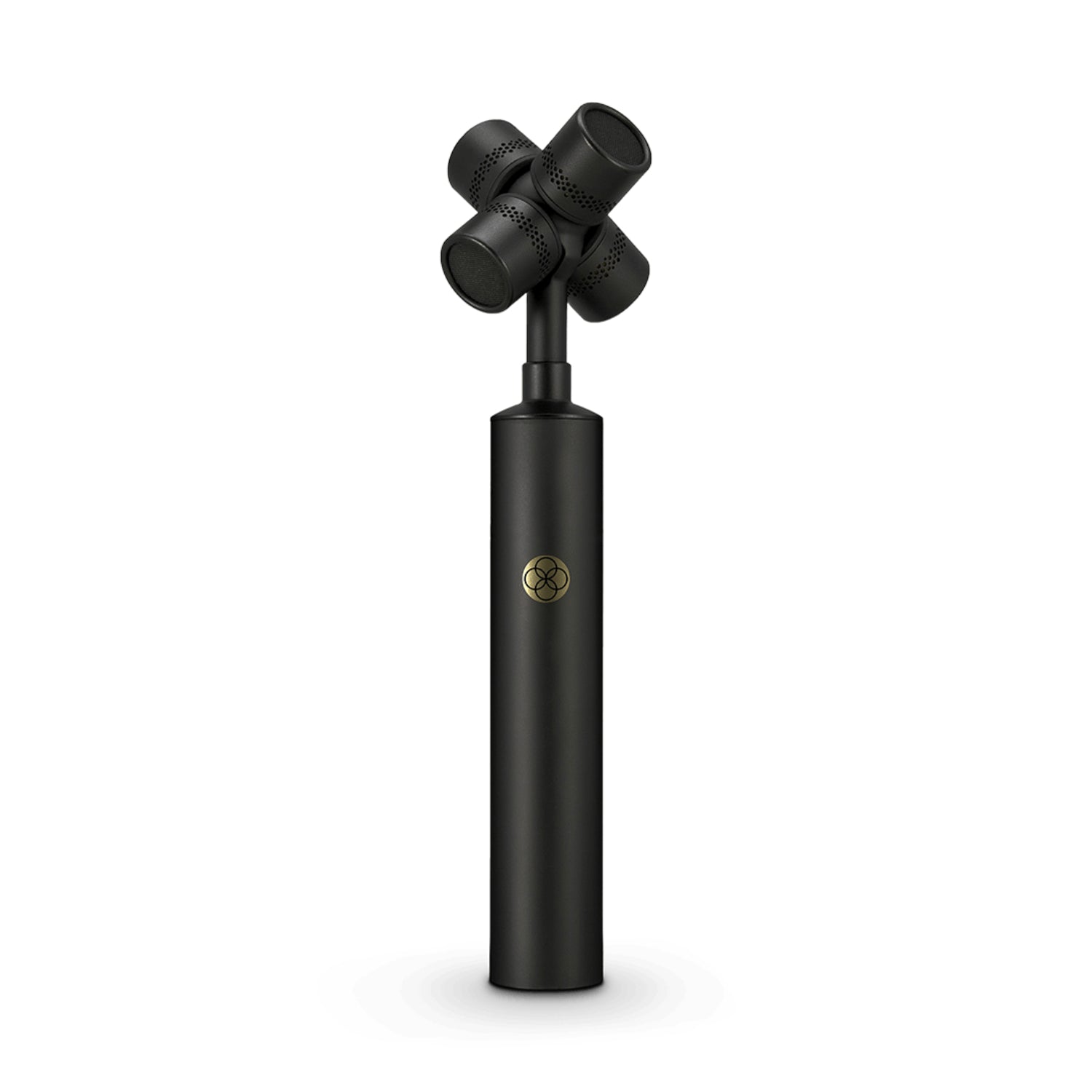

Rode SoundField NT-SF1 Peerless Ambisonic Cardioid Microphone - Black

For warranty registration of your product Kindly Visit: https://warranty.rode.com/ Rode SoundField NT-SF1 Peerless Ambisonic Cardioid Microphone - Black Overview: SoundField invented the ambisonic microphone, A-Format and B-Format audio, revolutionising 3D audio production RØDE revolutionised the microphone industry, using advanced manufacturing techniques to deliver broadcast-quality precision microphones at accessible prices.

Now, for the first time, the magic of these two iconic brands has come together Record.

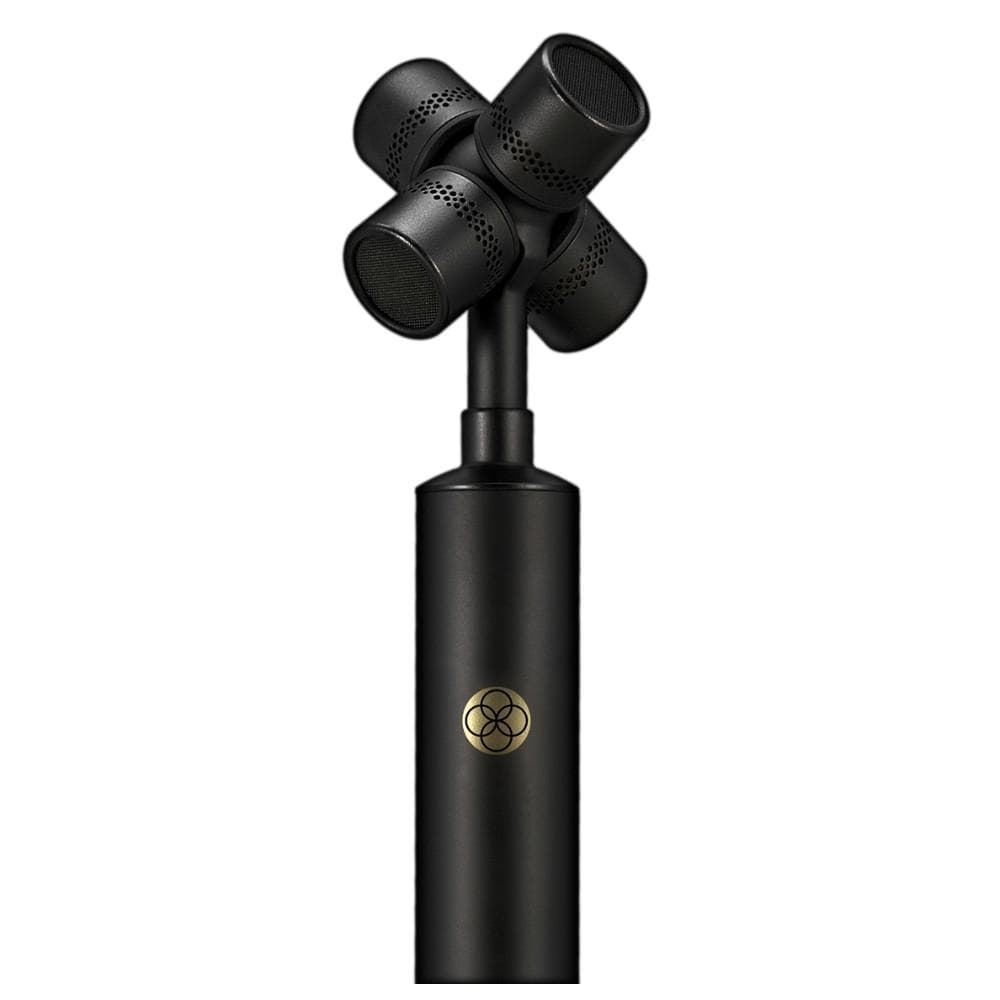

Everything The NT-SF1 records the entire spherical sound field.

Every sound, every direction, perfectly This means that later, in post-production, you can manipulate the sound.

Alter the mic directivity, position and rotation Create a full 7.1.4 surround mix.

Create a fully head-tracked 360-degree soundscape for immersive video Whether recording opera, a swamp or a feature film, the NT-SF1 offers unparalleled quality and flexibility.

The TF-45C capsule At the heart of the NT-SF1 is the brand-new TF-45C true condenser capsule This completely new design breaks new ground in precision manufacturing.

Created in-house at RØDE’s Sydney HQ, it is machined to tolerances of less than 1 micron in our state of the art fabrication facilities The result is a capsule with breathtaking clarity, sonic purity and exceptionally low noise.

The SoundField by RØDE Plugin processor The new NT-SF1 is perfectly matched to the new SoundField by RØDE plugin ambisonic processor The plugin has been designed to offer the most accurate spatialisation and sound reproduction when used with the NT-SF1.

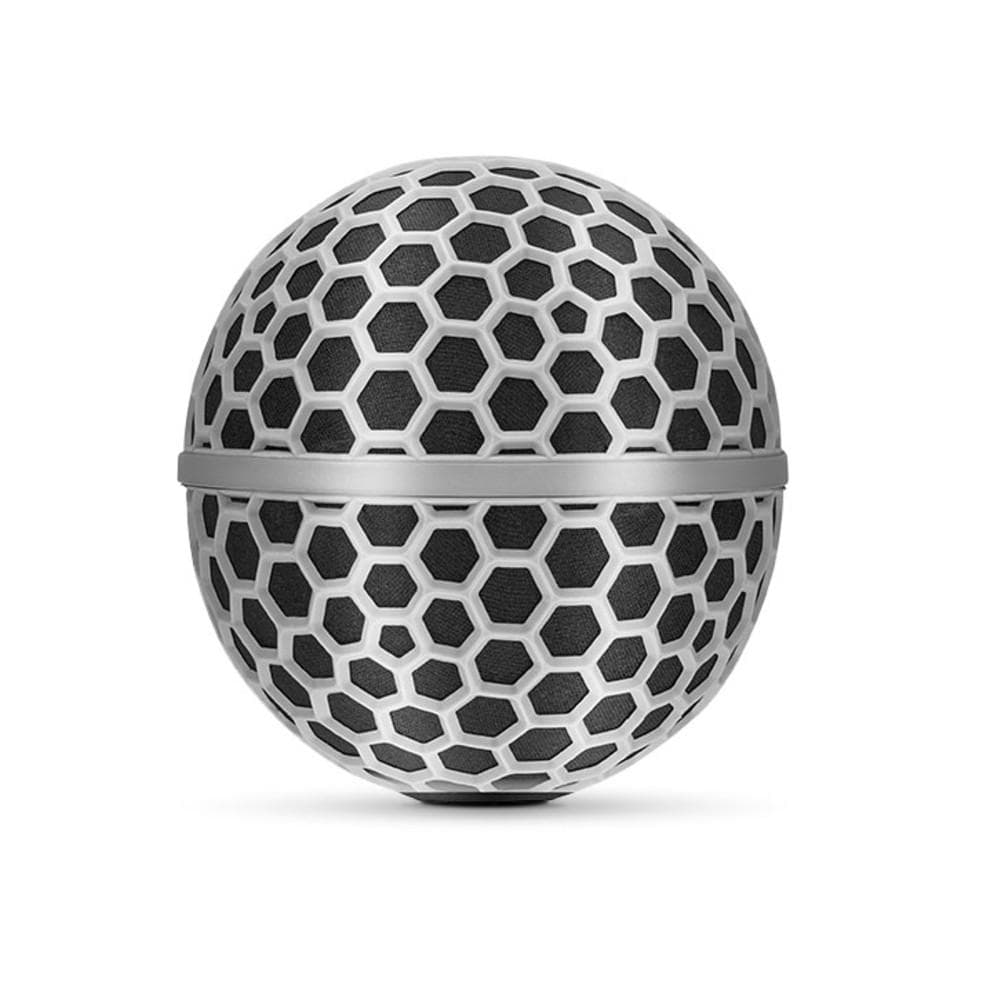

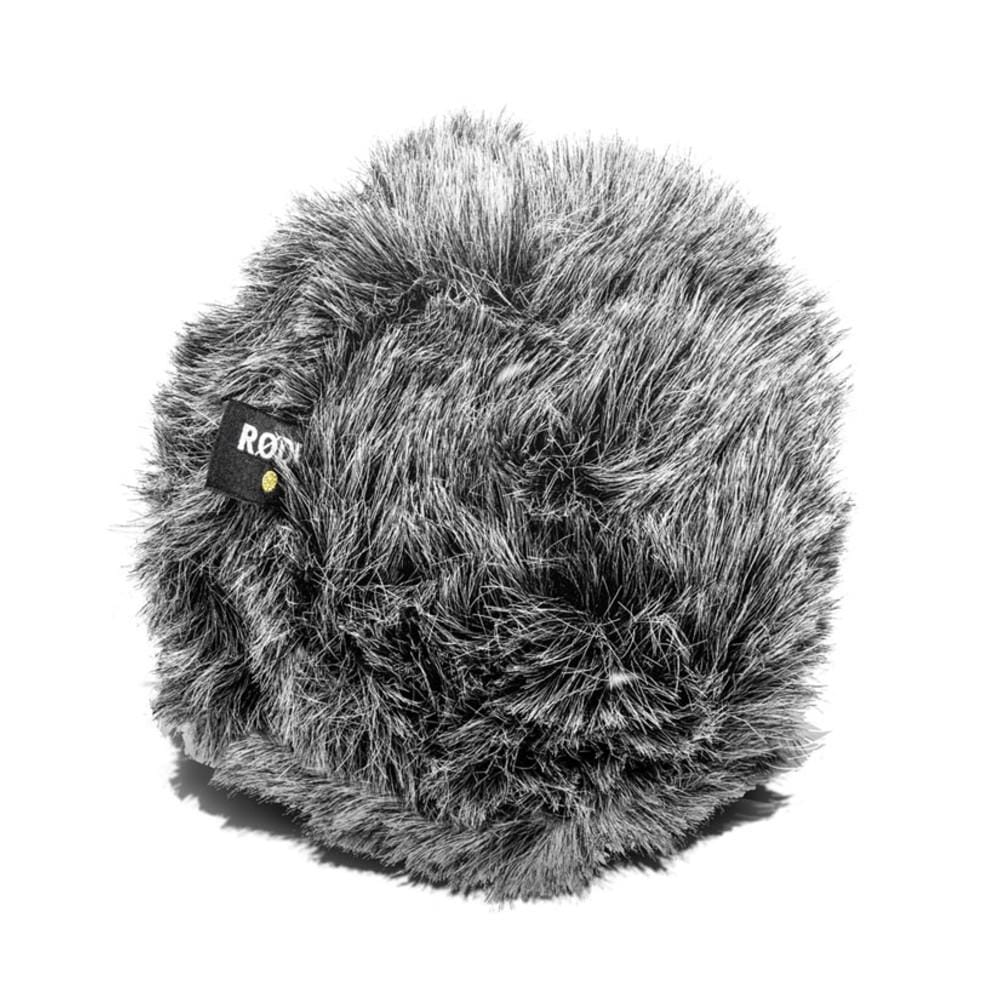

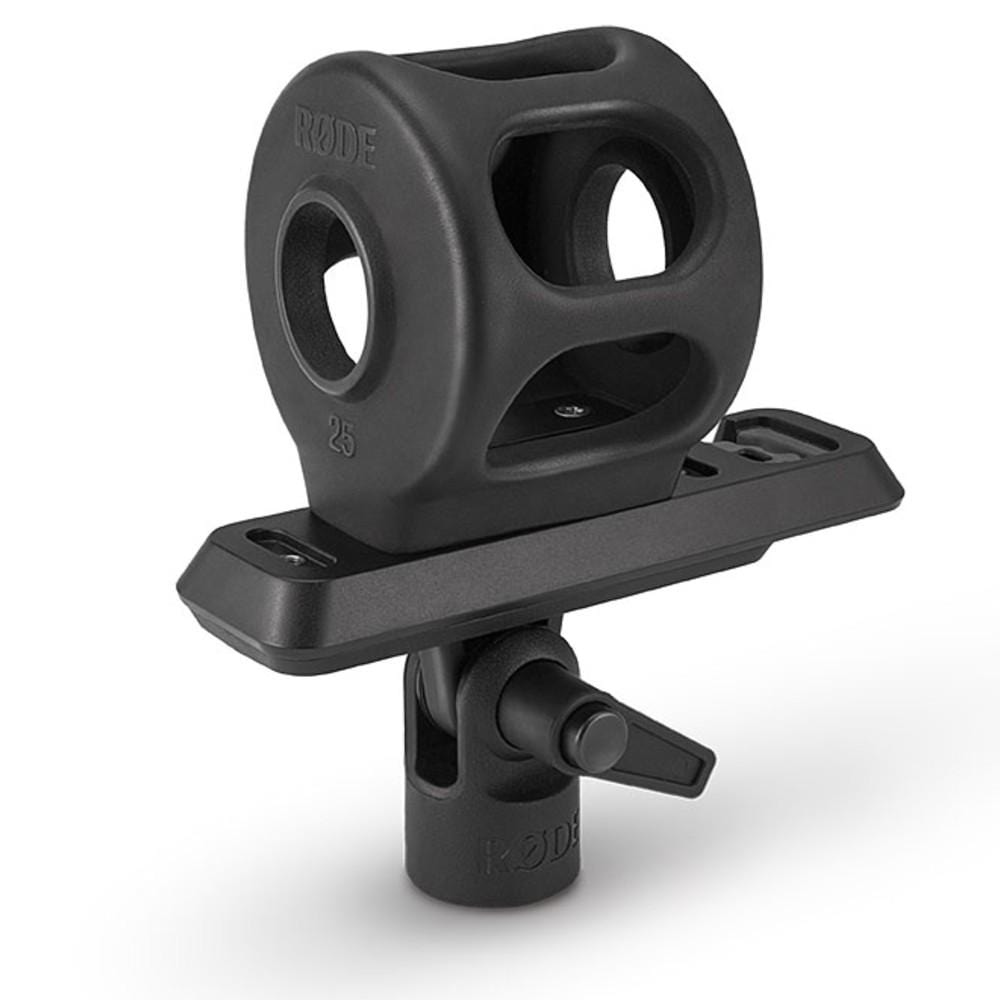

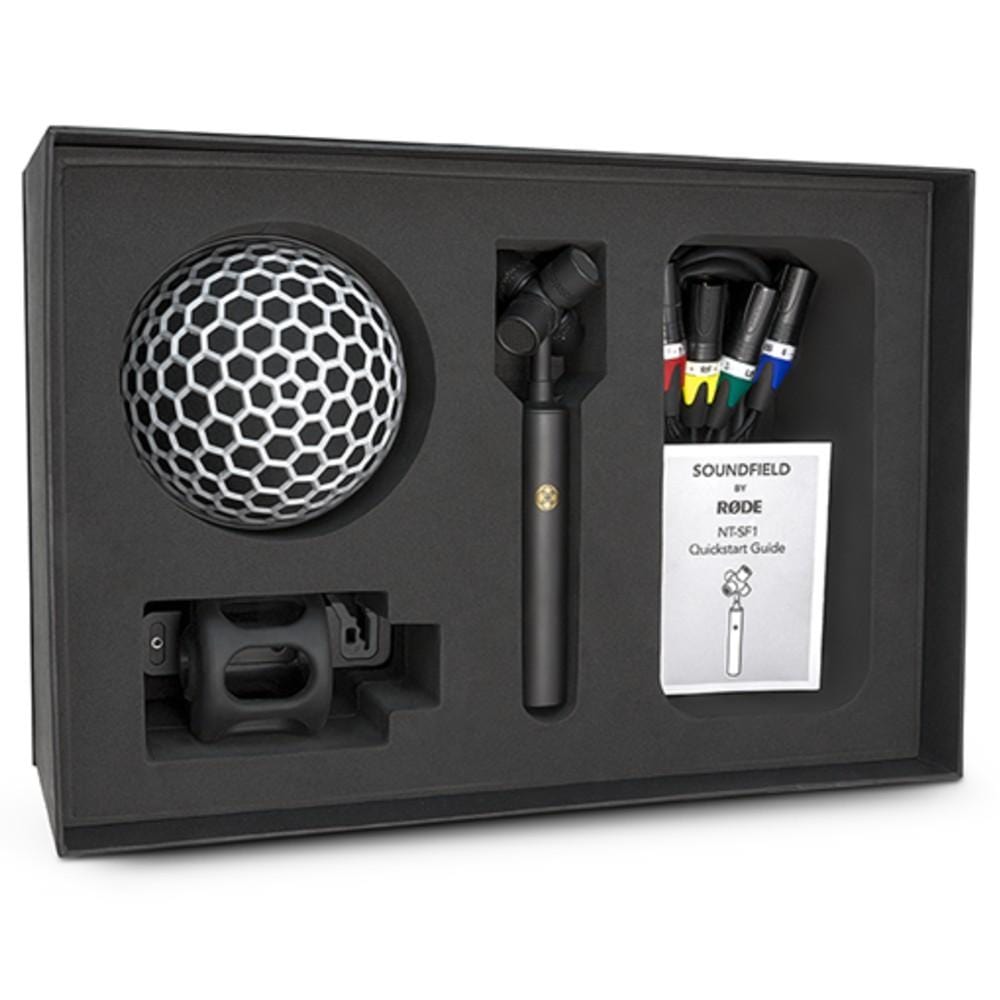

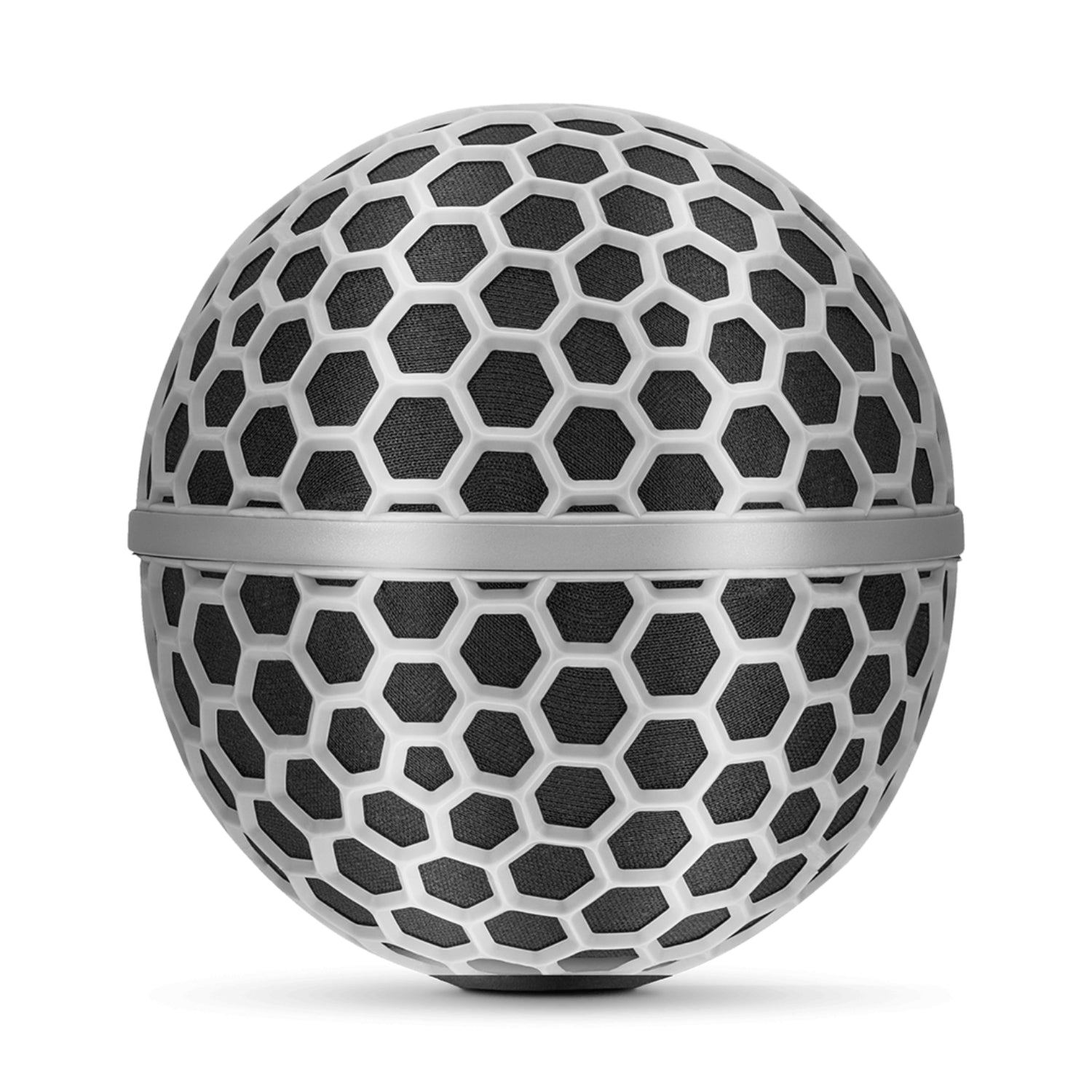

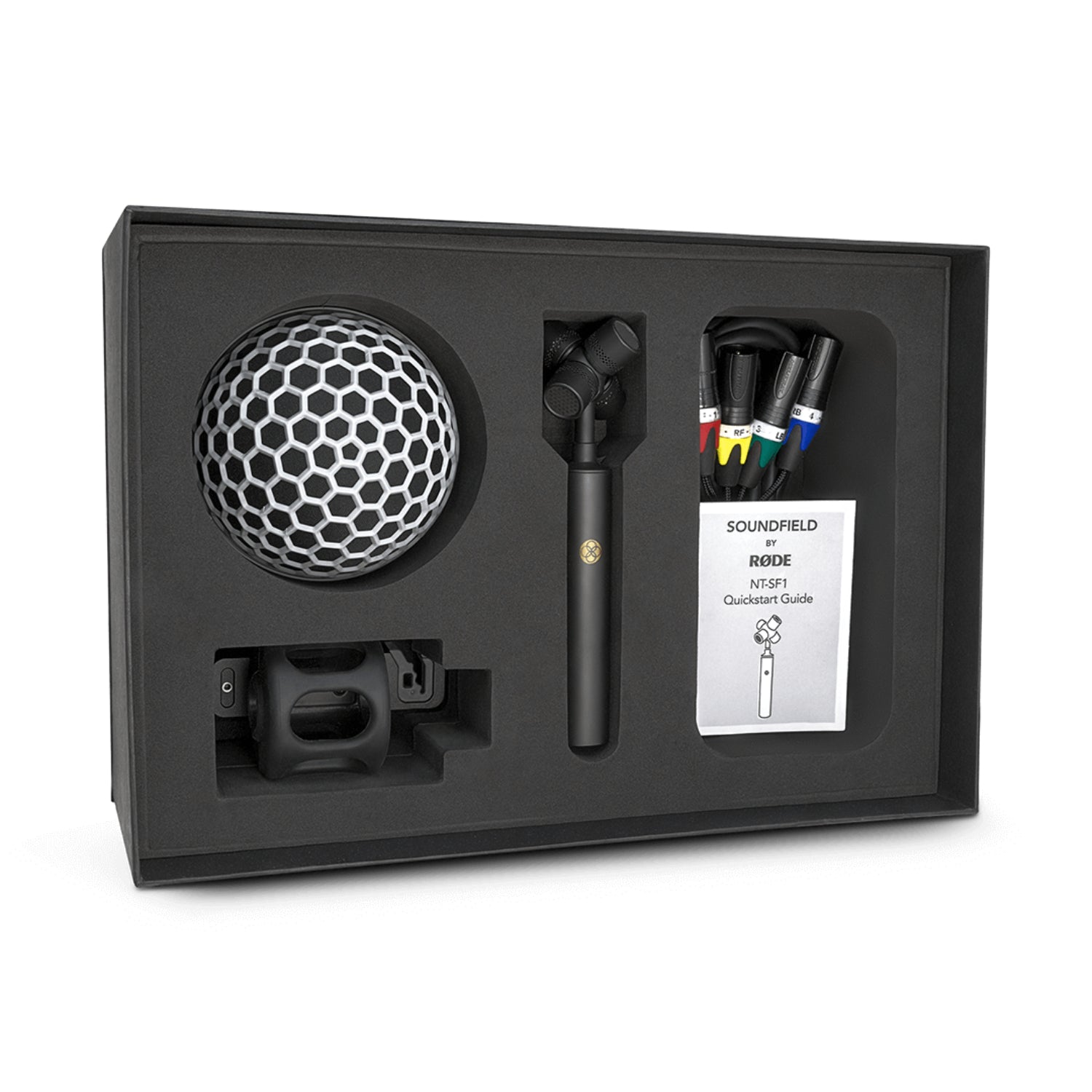

Accessories The NT-SF1 comes in a full kit, including custom suspension shockmount, blimp-style windshield and furry wind cover It is all shipped in a beautiful presentation box.

Applications The NT-SF1 is the perfect mic for a range of applications, from music recording through to capturing 3D soundscapes for VR applications As productions increasingly require the use of surround or multi-channel spatial reproduction, the NT-SF1 should be part of every sound recordist’s arsenal.

Specifications: Acoustic Principle: Externally Biased Condenser Active Electronics: JFET impedance converter with bipolar output buffer Polar Pattern: Cardioid Frequency Range: 20Hz - 20kHz Output Impedance: 63Ω Equivalent Noise (A-weighted)17 dB SPL (as per IEC651) Maximum SPL129 dB SPL Sensitivity-30.4 dB re 1 Volt/Pascal (30mV @ 94dB SPL, 1kHz) Power Requirements: 6.2mA @ 48V (Per Channel) Phantom Power Frequency Response: 30 Hz - 20 kHz ±3dB // 20 Hz - 20 kHz ±4dB (Plot In folder) Signal to noise Ratio: 77 dB Input SPL @ 1% THD: 129 dB SPL (1kHz @ 1% THD, 600Ω load) base MECHANICAL SPECIFICATION Material: Brass Colour: Black Weight (g): 286 Dimensions (L x W x H, mm): 45.7 w 192.3 x 45.7, diameter of body: 25.1 Packed Weight (g): 2960 Package Dimensions (L x W x H, mm): 161 x 270 x 386.
