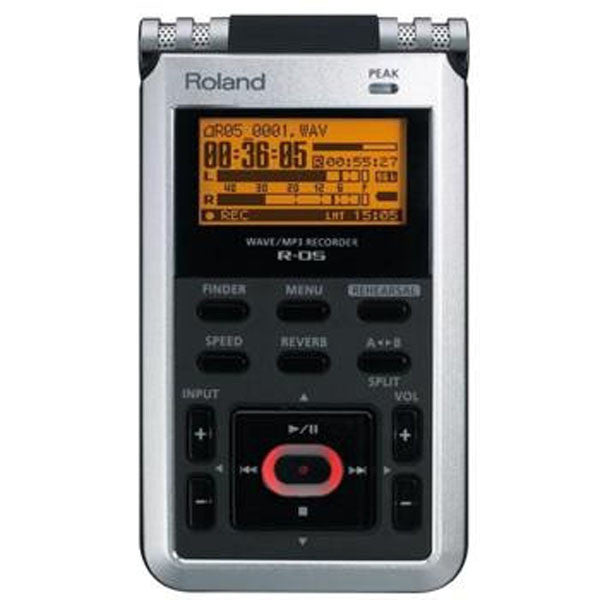

BAJAAO India presents the Roland Edirol R-05 Handheld Stereo Recorder.
The compact Edirol R-05 is easy to use, affordable, and packed with big-ticket features that raise the bar in its price class. Experience crystal-clear 24/96 capture, enhanced recording and editing features, and extended battery life (over 16 hours per charge). On stage, in rehearsal, at school, on the street, in the boardroom — whenever inspiration strikes, let the R-05 capture the moment with convenience and quality.
High-quality stereo recording (24-bit / 96kHz) with the built-in stereo mic or external input
Records directly to SD card with extended battery life (over 30 hours continuous playback, over 16 hours continuous recording)
Strong, attractive metallic exterior
Onboard editing functions; built-in reverb
Music-practice features (change tempo without changing pitch, loop playback, etc.)
Auto record start, auto song split, auto level adjust
Pre Record function (captures 2 seconds of audio that precedes pressing REC)
Use as a high-quality portable audio player (plays WAV and MP3 files)
Windscreen and tripod mount included
The R-05 provides pristine, uncompressed stereo recording directly to SD card — up to 24-bit/96kHz resolution. Whether recording directly with the built-in stereo mic or capturing sounds from an externally connected microphone or stereo line input, you’ll be impressed with the R-05’s detail and clarity. And for worry-free recording, the convenient Rehearsal mode ensures that you won’t overload the input.
Tracks 2 (stereo one pair)
Signal Processing AD/DA conversion: 24 bits, 44.1/48/88.2/96 kHz
Data Type (Recording)
Even though the R-05 integrates fluidly with computers via USB 2.0, this new-generation recorder doesn’t require a PC for editing. For speed and convenience, you can trim, divide, and combine within the R-05. And for those who’d like to apply a high-gloss finish to their recordings, the R-05 is equipped with built-in reverb.
In a rehearsal studio, you can make clear recordings of your band, even at high volume levels. The R-05 can automatically set the optimum recording level, and can split the songs for you automatically. It’s also possible to simultaneously record a high-quality WAV file for CD production and an MP3 file for file sharing.
The R-05 can help you practice your instrument or vocals. You can repeatedly loop a specified region of audio, or change the playback speed without changing the pitch. You can play back a difficult phrase slowly or play back at high speed to grasp the overall structure of a song in a short time.
For Non-Musicians Too!
Musicians will naturally gravitate to the R-05, but this portable recorder is great for many non-musical applications as well. Record lectures, speeches, and meetings, for example. The high-sensitivity, built-in microphone will clearly capture all of the voices in a room. The included windscreen and tripod mount enhance optimal placement and cleaner recordings as well.
WAVE (Sampling Rate: 44.1/48/88.2/96 kHz, Bit Depth: 16/24 bits)
MP3 (Sampling Rate: 44.1/48 kHz, Bit Rates: 64/96/128/160/192/224/320 kbps)
WAVE + MP3 (Sampling Rate: 44.1/48 kHz, Bit Depth: 16 bits, Bit Rates: 128 kbps)
MP3 ... MPEG-1 Audio Layer 3
Data Type (Playback)
WAVE (Sampling Rate: 32/44.1/48/88.2/96 kHz, Bit Depth: 16/24 bits)
MP3 (Sampling Rate: 32/44.1/48 kHz, Bit Rates: 32 - 320 kbps or VBR)
MP3 ... MPEG-1 Audio Layer 3, VBR ... Variable Bit Rate
Memory Card SD Card, SDHC format compatible
Internal Stereo Microphone, Mic input (Stereo miniature phone type, plug-in powered mic), Line input (Stereo miniature phone type)
The Internal/External Mic and the Line input can't be used at the same time (Line input priority).
Audio Output: Phones (Stereo miniature phone type)
Nominal Input Level (Variable)
Mic input: -33 dBu (MIC GAIN is H, Default input level)
Mic input: -15 dBu (MIC GAIN is L, Default input level)
Line input: -7 dBu (Default input level)
0 dBu = 0.775 Vrms
Mic input (MIC GAIN is H): 7k ohms
Mic input (MIC GAIN is L): 5k ohms
Line input: 8 k ohms
Output Level: 20 mW + 20 mW (In case 16 ohms load)
Recommended Load Impedance: 16 ohms or greater
Frequency Response: 20 Hz to 40 kHz
USB Interface: Mini-B type connector (support USB 2.0/1.1 mass storage device class)
Reverb 4 types (Hall1, Hall2, Room, Plate)
50 - 150 % of playback speed
Playback only. Excludes playback in 88.2 kHz or 96 kHz.
Reverb and Speed Change can't be used at the same time.
Display: 128 x 64 dot graphic display
Alkaline dry battery LR6 (AA) type x 2 or Nickel Hydrogen battery (HR15/51) x 2
Current Draw: 290 mA (maximum)
Duration of continuous use with Alkaline battery operation:
Playback: over 30 hours
Recording: over 16 hours
***These figures will vary depending on the actual conditions of use.***
Accessories: Owner's manual, Quick start guide, SD card, Batteries (two AA), USB cable (mini-B type), Windscreen
Options: AC Adaptor: PSB6U series, Silicone Rubber Case: OP-R05S, Cover / Windscreen Set: OP-R05C, Carrying Pouch: OP-RP1, Microphone Stand Adaptor: OP-MSA1, Binaural Microphones / Earphones: CS-10EM, Stereo Microphone: CS-15S
Width: 60 mm 2-3/8 inches
Depth: 103 mm 4-1/16 inches
Height: 25 mm 1 inches
Weight: 140 g 0 lbs. 5 oz.
Size and Weight
