Brand:
Roland
Maximum Polyphony:
32 voices
Recordable Data:
Samples = 2560 (16 samples x 10 banks x 16 projects stored in internal storage), Patterns = 2560 (16 patterns x 10 banks x 16 projects stored in internal storage)
Internal storage Size:
16 GB *Including preload data
Maximum sampling time:
16 minutes (approximately 185 MB per sample)
Skip Back Sampling:
25 seconds (capturing the last moments of performance)
Internal Data Format:
16-bit linear
Import Format:
WAV AIFF MP3 *SP-404MKII APP supports WAV AIFF MP3 FLAC M4A.
Sampling frequency:
48kHz
Pattern Sequencer Resolution:
480 ticks quarter note
Pattern length:
1 to 64 bars
Recording method:
Realtime Loop Recording (with shuffle quantize function)
Multi-effects:
37 types
Input effects:
16 types

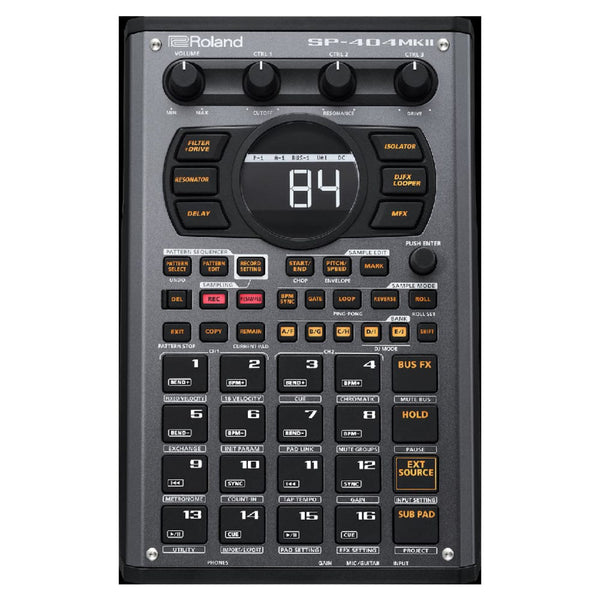

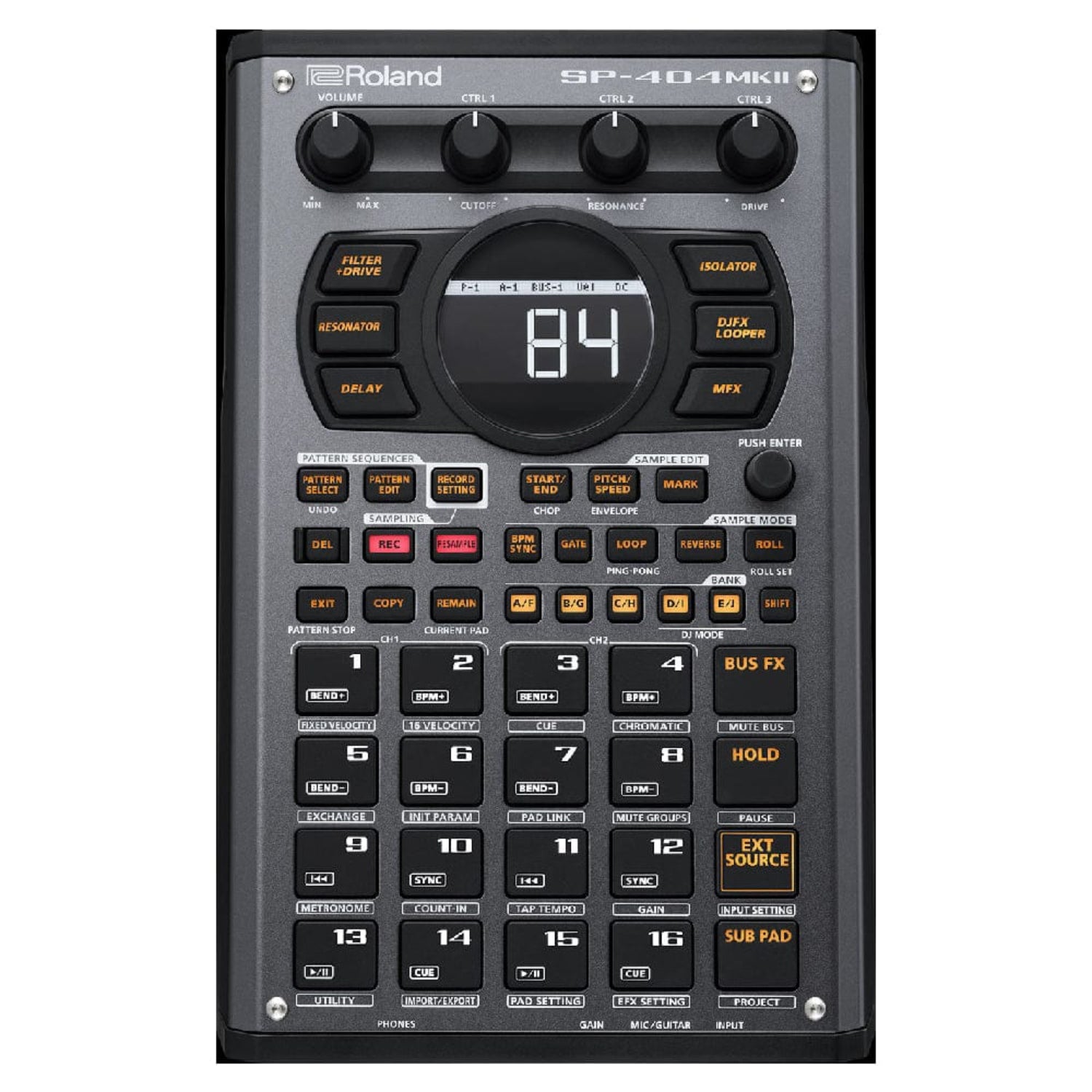

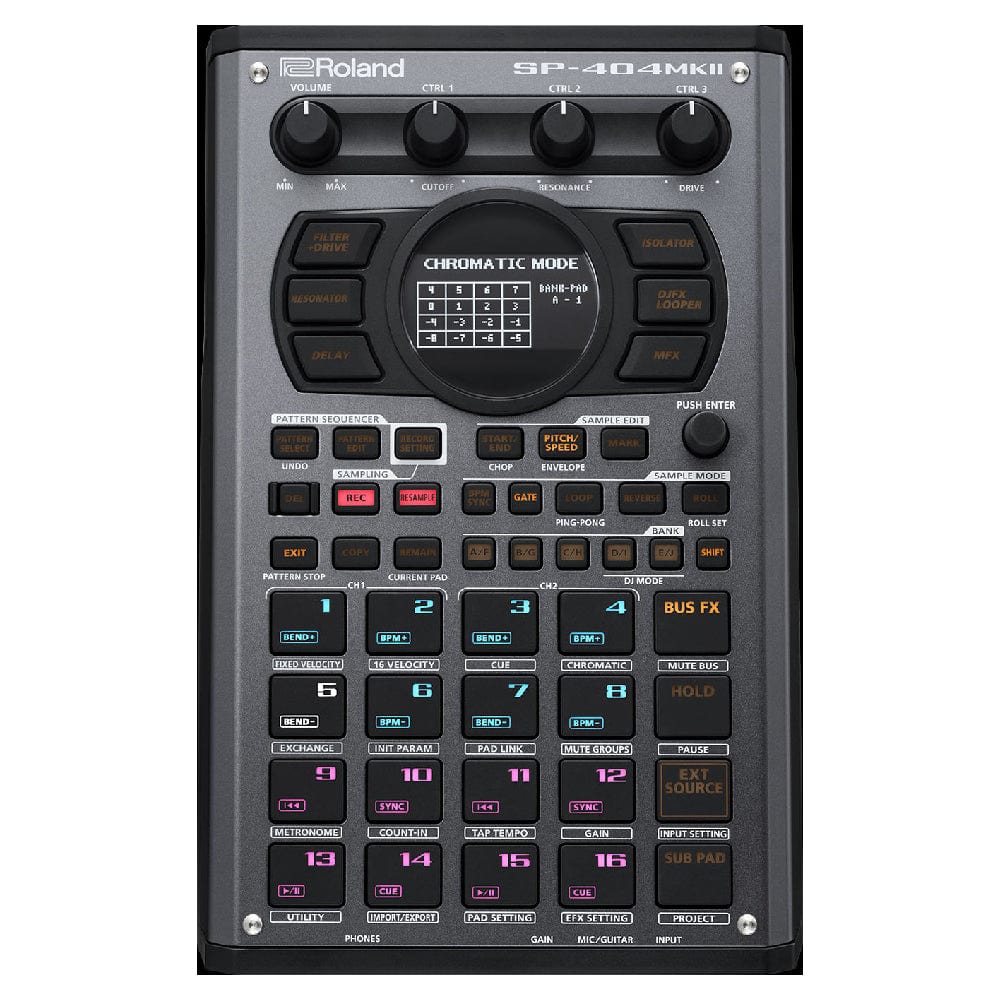

Pad:
16 pads + 1 sub pad (Velocity-sensitive pad)
Controller:
Control knobs x 3
Display:
Graphic OLED display
External Storage:
SD card (sold separately) for backup restore import and export functions (SDHC compatible)

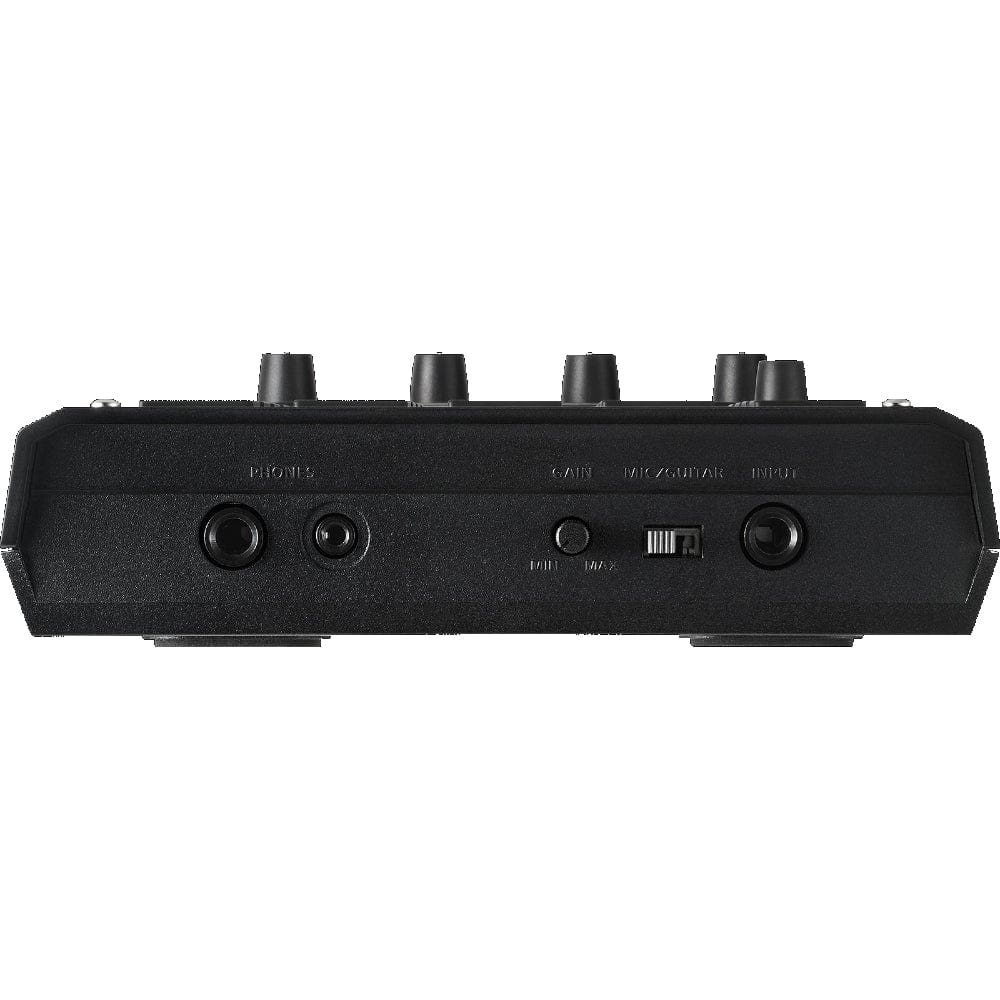

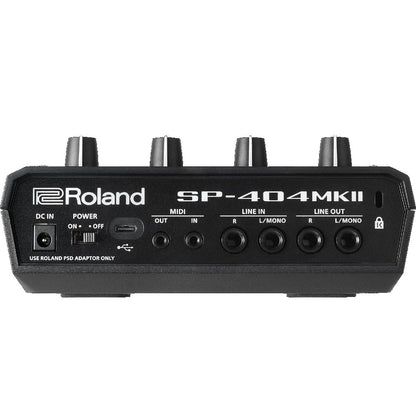

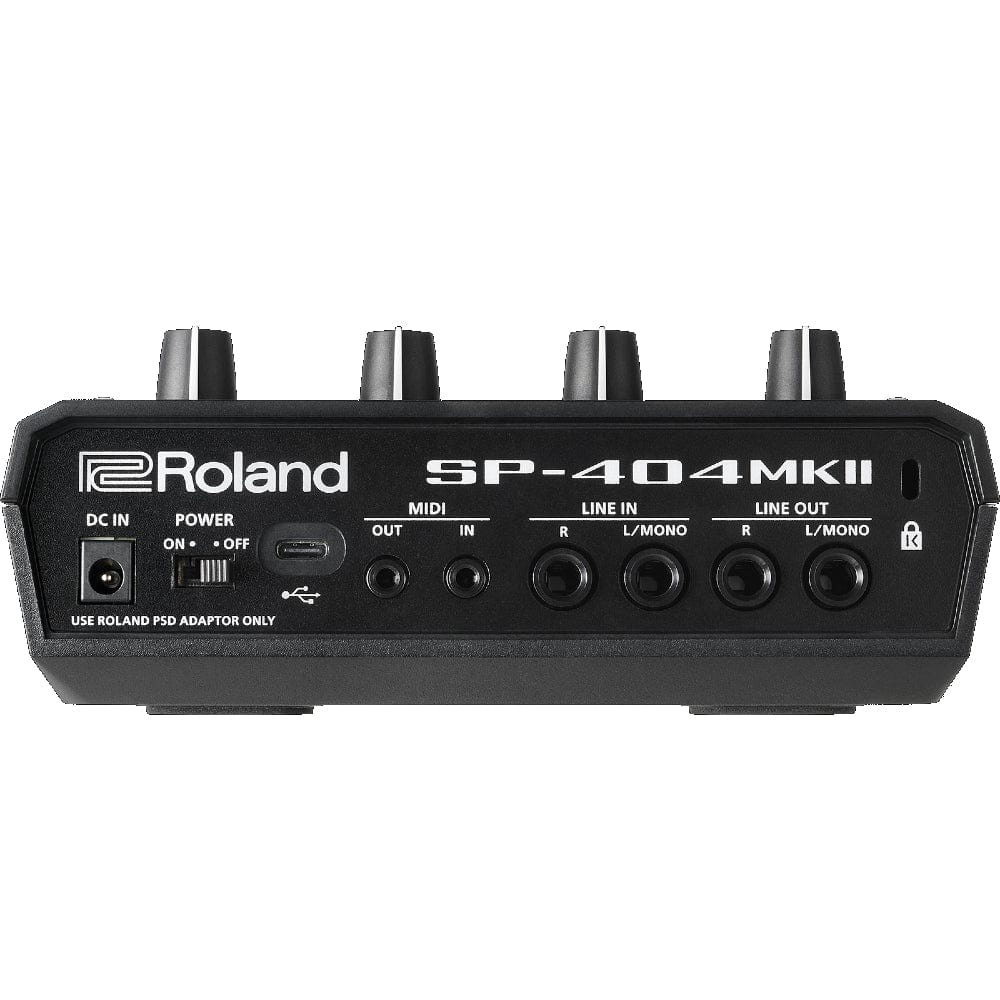

PHONES jacks:
1/4-inch phone type Stereo miniature phone type

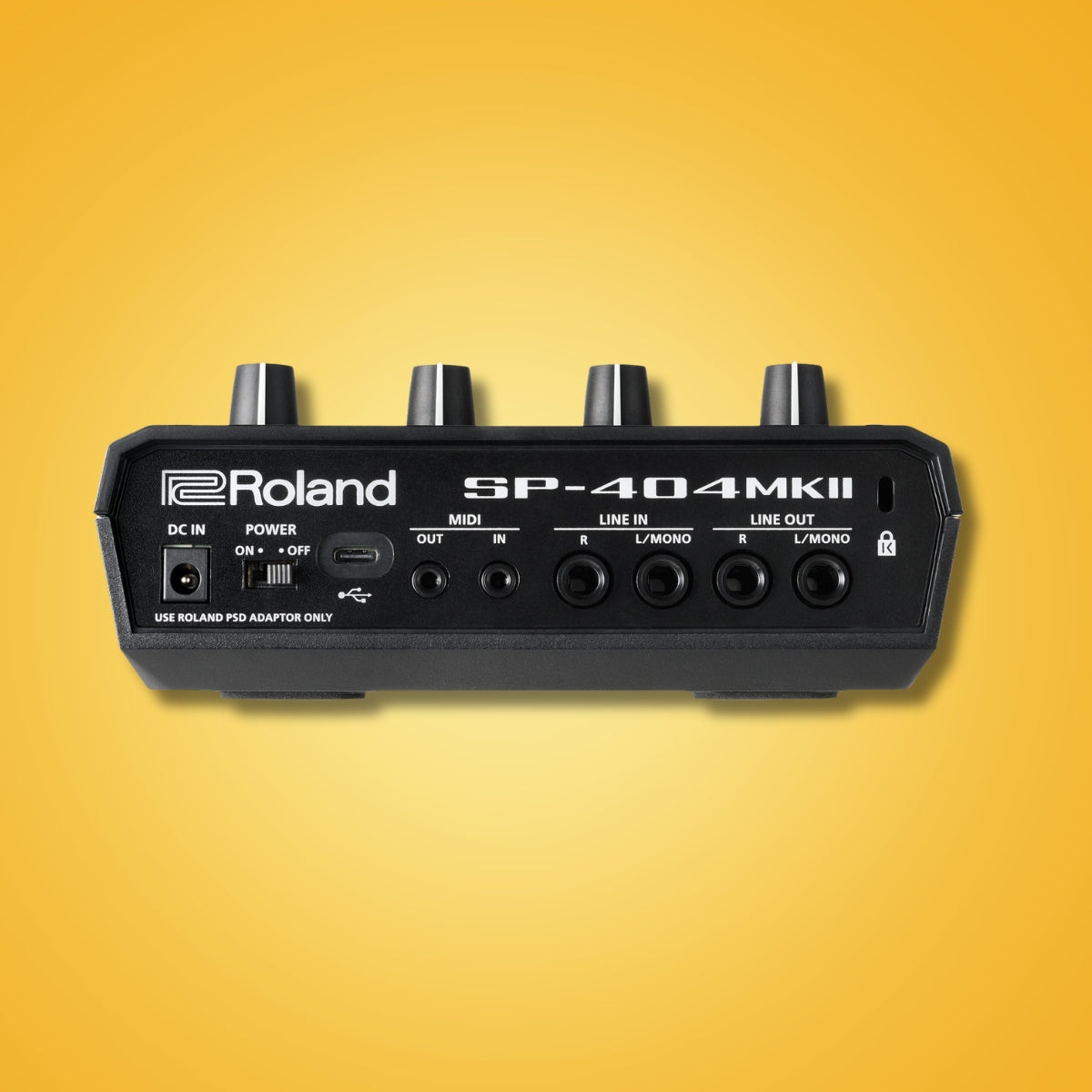

LINE OUT (L/MONO R) jacks:
1/4-inch TRS phone type (impedance balanced)
LINE IN (L/MONO R) jacks:
1/4-inch phone type
MIC/GUITAR IN jacks:
1/4-inch TRS phone type (for MIC) 1/4-inch phone type (for GUITAR)
MIDI (IN OUT) jack:
Stereo miniature phone type
USB terminal:
USB Type-C (Audio MIDI) DC IN terminal
Power Supply:
AC adaptor, USB bus power supply (USB Type-C port 1.5A or more), Ni-MH batteries (AA HR6)(sold separately) x 6, Alkaline battery (AA LR6)(sold separately) x 6
Current Draw:
1100 mA (AC adaptor), 1500 mA (USB bus power)
Expected battery life Alkaline battery:
Approx. 2.5 hours
Expected battery life Ni-MH battery:
Approx. 3.5 hours
AC adaptor:
Included
