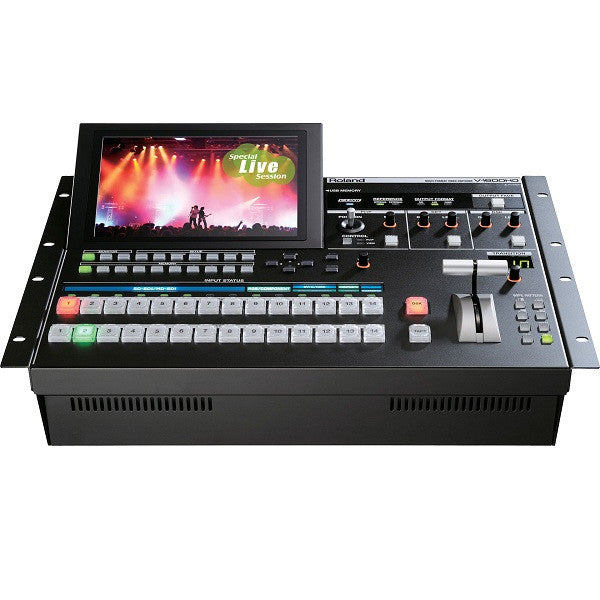

    Roland V-1600HD Multi-Format Live Video Switcher

    An all-in-one multi-channel, multi-format live video switcher.

    The V-1600HD Live Video Switcher is ideal for any live event or installation that requires a high channel count and the ability to accept a variety of video input formats out of the box.

    The V-1600HD switcher features a built-in preview monitor that provides a convenient monitoring solution when external monitors are not available or ideal.  The sixteen inputs provide connectivity to HD/SD-SDI, DVI-D/HDMI, RGB, Component, S-video, and composite formats – as well as still images assignable via USB memory.  The 14 mixing channels provide built-in scalers and frame syncs for worry-free seamless mixing regardless of the resolution or format.

    The V-1600HD supports an incredible variety of system design and creative production options for live or fixed installation applications. Dual independent multi-format outputs provide a number of innovative multi-screen output options including the ability to SPAN the mixer output to two projectors with the ability to edge-blend the center. In AUX mode, the outputs can be set to different resolutions which is ideal for sending the program out to a record feed.

    The V-1600HD Video Mixer brings high quality video production to live event, corporate, educational, and house of worship applications.

    The All-in-One Solution for Any Live Event

    Connect, seamlessly mix and output a variety of video sources such as cameras, VTR's, RGB Computer Sources, Blu-ray/DVD, and high-end SD/HD-SDI video sources. All inputs and outputs are standard so there is no need to purchase additional cards. The V-1600HD's all-in-one design combined with professional quality and features makes it the ideal choice for live video production.

    Roland V-1600HD Features:

    • All-in-one 14 channel (16 input) seamless switcher/mixer
    • Ready to connect anything: SDI, DVI, RGB, Component, S-Video, Composite
    • Built-in high-res preview monitor, frame synchronizer and scalers
    • Independent multi-format outputs including edge-blending
    • Downstream Keyer, Composite Keyer and Picture-in-Picture
    • SPAN, DUAL and SPLIT modes offer a variety of output configurations
    • Use one camera to create multiple perspectives for virtual multi-camera production.

    Roland V-1600HD Specifications:

    Video Processing

    • Processing: 4:2:2 (Y:Pb:Pr), 10 bit
    • Supported Formats:
    • SD : 480/59.94i, 576/50i, 480/59.94p, 576/50p
    • HD : 1080/59.94p, 1080/50p, 1080/59.94i, 1080/50i, 720/59.94p, 720/50p
    • RGB : 640 x 480/60Hz, 800 x 600/60Hz, 1024 x 768/60Hz, 1280 x 768/60Hz,
      1280 x 1024/60Hz, 1600 x 1200/60Hz, 1920 x 1200/60Hz .

    * Confirms to VESA DMT Ver 1.0 Revision 10.

    * Reduced blanking to be applied to 1920 x 1200.

    Still: BMP

    Input/Output Level and Impedance

    • Composite: 1.0 Vp-p, 75 ohms
    • S-Video:
    • Luminance Signal : 1.0 Vp-p, 75 ohms
    • Chrominance Signal : 0.286 Vp-p, 75 ohms (NTSC) , 0.3 Vp-p, 75 ohms (PAL)
    • Analog HD/RGB: 0.7 Vp-p, 75 ohms (H, V : 5VTTL).

    Input Connectors * Loop thru connectors are equipped for all inputs

    • Analog SD: S-Video (4 pin mini DIN type) x 1 , Composite (BNC type) x 1
      * Select one from menu
    • Analog HD (Component): Y/Pb/Pr (BNC type) x 2 , D-Sub 15 pin type x 2
      * Combined use with analog RGB
    • Analog RGB: R/G/B/H/V (BNC type) x 2 , D-Sub 15 pin type x 2
      * Combined use with analog HD (Component)
    • DVI-D: Single Link Type x 2
    • HD/SD-SDI: BNC type x 8
      * Conforms to SMPTE 259M-C, SMPTE 292M.

    Output Connectors

    • Analog SD: S-Video (4 pin mini DIN type) x 1 , Composite (BNC type) x 1
    • Analog HD (Component): Y/Pb/Pr (BNC type) x 1 , D-Sub 15 pin type x 1
      * D-Sub 15 pin type : combined use with analog RGB
    • Analog RGB: D-Sub 15 pin type x 1
      * Combined use with analog HD (Component).
    • DVI-D: Single Link Type x 2
    • HD/SD-SDI: BNC type x 2
      * Conforms to SMPTE 259M-C, SMPTE 292M.

    Other Connectors

    • Tally: D-Sub 15 pin type x 3 (200 mA, Open Collector type)
    • Remote: MIDI (IN, OUT/THRU), RS-422 (D-Sub 9 pin type) x 1 (supports TSL V1.3 for Tally)
    • Reference: BNC type (In, Thru)
      * Black Burst, Bi-Level, Tri-Level Sync
    • USB port (host): A type x 1 for USB memory.

    Effects

    • Transition: Mix, FAM, NAM, Wipe (9 patterns)
    • Composition: PinP, Chroma Key, Luminance Key, Split, DSK
    • Others: Output Fade, Edge Blending, Multi Screen (Video Wall).

    Others

    • Power Supply: AC117 V, 220 V, 230 V, 240 V (50/60Hz)
    • Power Consumption: 90 W
    • Accessories: Power Cord, Owner's Manual.
