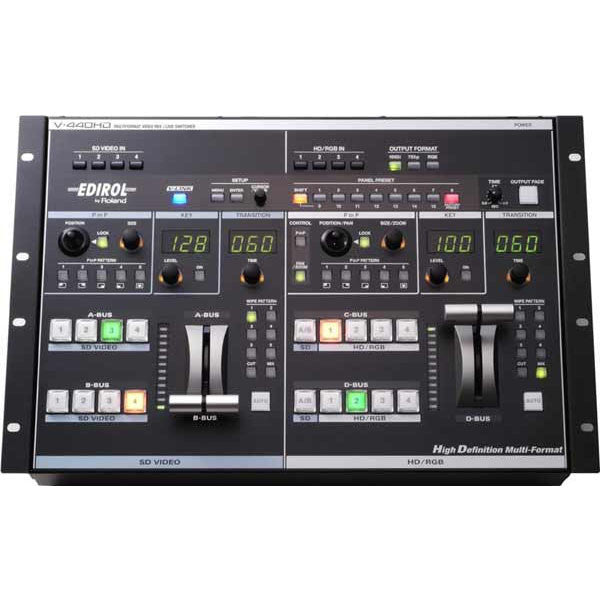

Roland V-440HD Video Mixer/ Live Switcher

A Multi Format Video Mixer with affordable price. This can mix all available video signals. HD video(1080i or 720p), SD Video(NTSC or PAL)and RGB signal (upto SXGA). Up to 8 channels can be input (4SD + 4HD or RGB) Multiple units connectable for multi screen outputs.

Version 2.0

  • Enabling the Settings for PGM-PST
  • 1366 x 768 RGB output now supported
  • Automatic RGB input settings
  • Select 4:3 or 16:9 P in P sub screen aspect rations
  • Compatible with PR Series devices
  • Settings can be transmitted via MIDI
  • Supports the use of MIDI note mode
  • RS-232C backup function
  • Preview (standby) TALLY output

Version 2.07

  • Control the audio input level of the M-400 RSS live mixing console
  • The MIDI button can now be used to turn V-LINK mode on/off.
  • The RGB input supports 1080/59.94i, 1080/50i, 720/59.94p, and 720/50p.
Mix multi format signal
  • Capable to mix SD video, HD video and RGB signal from computers. NTSC or PAL of SD video, 1080i or 720p of HD video, upto SXGA resolution of RGB signal can be input.

Output multi format signal

  • Selectable output format. 1080i or 720p for HDTV and RGB for computer display.

Seamless mixing/switching

  • Thanks to the built-in up converter and scan converter, totally seamless mixing or switching of different format signal is possible without any external device or any complicated operation.

Simple operation of Effects

  • Exremely simple and intuitive operation of effects. Turning dial to set Key level or PinP size. Joystick to adjust PinP position. Dial to set time of auto transition effects.

Multiple units connectable

  • With through output of video signal and MIDI connection, multiple units can be cascaded for wide image (32:9 etc) output to multiple screens.

Remote controlable

  • V-LINK make this remote controlable from external Roland/Edirol music instruments. Remote control from computer connected via RS-232C is also possible.

Video Processing:

  • Video Format: SD : NTSC or PAL [CVBS, S (Y/C)]
    HD : 1080/59.94i/50i SMPTE274M (Y/Pb/Pr TriLevel Sync), 720/59.94p/50p. SMPTE296M (Y/Pb/Pr TriLevel Sync)
    RGB Input : 640x480/60/75, 800x600/60/75, 1024x768/60/75, 1280x768/60/75, 1280x1024/60
    * RGB VH: positive/negative logic
    * VESA DMT Version 1.0 Revision 10 conform
    RGB Output : 640x480/75, 800x600/60/75, 1024x768/60/75, 1280x768/60/75, 1280x1024/60, 1366x768/60/75
    * VESA DMT Version 1.0 Revision 10 conform
    640x480/60 (640x480/60 pixel rate is 25.0MHz ( 0.014) It may not be displayed correctly, depending on the display/projector.)
  • Video Sampling Rate: SD : 4:2:2 (Y/Cb/Cr) 8-bit 13.5 MHz (BT.601)
    HD : 4:4:4 (Y/Pb/Pr) 8-bit 74.1758 MHz / 74.25 MHz
    RGB : 4:4:4 (R/G/B) 8-bit 25 MHz to 110 MHz
  • Effects: Video Transition: Cut, Mix, Wipe (6 Patterns, Reverse, SoftEdge)
    Composition FX : Picture in Picture, Chroma Key (Blue/Green), Luminance Key (White/Black), Picture in Picture with Zoom/Pan (HD/RGB side)
    Multi-Screen Presentation : 2 screens x 1 line, 3 screens x 1 line, 2 screens x 2 line, 3 screens x 2 lines
    Synchronization Multiple Units by MIDI
    Master Fade : 0 to 4 seconds Black or White.

Connectors:

  • SD Input: S-Video (Y/C) Preferential x 4 : 4 pin mini DIN type (Y: 1.0 Vp-p, C: 0.286 Vp-p, 75 ohms)
    Video (composite) x 4 : BNC type (1.0 Vp-p, 75 ohms)
  • HD/RGB Input * BNC Type or D-sub Type are In/ThruOut Use combinedly: BNC Type x 4 : HD: Y/Pb/Pr (1.0 Vp-p, 75 ohms, TriLevel Sync), RGB:R/G/B (0.7 Vp-p, 75 ohms), H (5VTTL), V (5VTTL)
    D-SUB 15pin Shrink Type x 4 : HD: Y/Pb/Pr (1.0 Vp-p, 75 ohms, TriLevel Sync, RGB:R/G/B (0.7 Vp-p, 75 ohms), H (5VTTL), V (5VTTL)
  • SD Output: PGM S-Video (Y/C) : 4-pin mini DIN type (Y: 1.0 Vp-p, C: 0.286 Vp-p, 75 ohms)
    PGM Video (composite) : BNC type (1.0 Vp-p, 75 ohms)
    Preview (composite) : BNC type (1.0 Vp-p, 75 ohms), OSD Menu Output
  • HD Output: PGM Component HD : BNC type x 2 (1.0 Vp-p, 75 ohms, TriLevel Sync)
    Preview Component HD : BNC type (1.0 Vp-p, 75 ohms, TriLevel Sync), OSD Menu Output (selectable Display
  • RGB Output: PGM RGB : D-sub 15 pin Shrink Type x 2 (R/G/B 0.7 Vp-p, 75 ohms, 5 VTTL Sync)
    Preview RGB D-sub 15 pin Shrink type (0.7 Vp-p, 75 ohms, 5 VTTL Sync), OSD Menu Output (selectable Display)
    * Component & RGB Outputs are selectable
  • Remote Control Interfaces: MIDI 5 pin DIN Type (In, Out/Thru)
    REMOTE terminal (RS-232C D-sub 9pin
  • TALLY Output: for SD Section D-sub 15 pin Shrink type, Input (max): 12 V, 200 mA Open collector Type
    for HD Section D-sub 15 pin Shrink type, Input (max): 12 V, 200 mA Open collector Type
  • Others: Power Supply : AC 117 V, AC 230 V, AC 240 V (50/60 Hz), AC 220 V (60 Hz)
  • Power Consumption: 50W.
