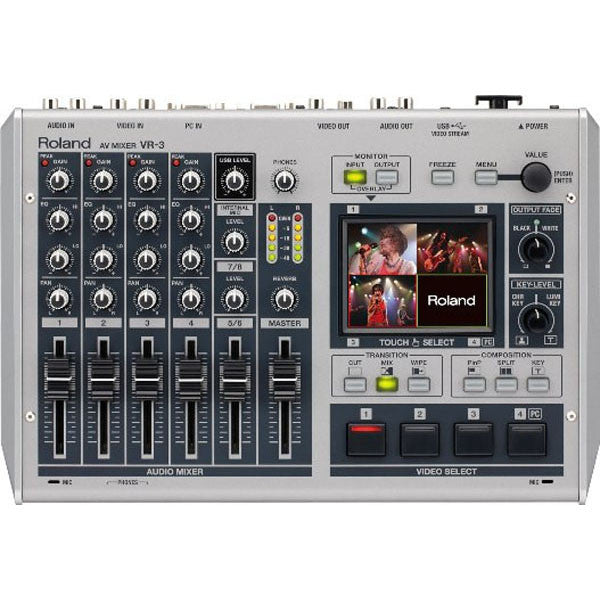

Roland VR-3 Audio Video Mixer

Roland VR-3 Audio Video Mixer

This item is out of stock


Buy Roland VR-3 Audio Video Mixer online in India at the best price with free shipping from BAJAAO - India's music equipment superstore.

Buy Roland VR-3 Audio Video Mixer online in India at the best price with free shipping from BAJAAO - India's music equipment superstore.

Roland VR-3 Audio Video Mixer

Portable Audio and Video Mixer with USB port  Ready for Live Streaming

The VR-3's innovative design incorporates a video switcher, audio mixer, preview monitors and streaming-ready USB output all in a single unit. As a USB Video/Audio class device, web streaming is effortless by simply connecting to a computer running a live streaming service. The reduction in hardware equipment, setup time and connection complexity ensures a worry-free, easy to use solution for any event.

The VR-3 is extremely portable weighing less than five pounds. Its intuitive touch screen interface provides an easy way to switch video sources as well as an efficient way to access menus. This portable live production solution is ideal for schools, churches, council meetings, corporate events, sports, memorial services, or production live to web.

Roland VR-3 Specifications:

  • 4-Channel Video Switcher (3 Composite video sources + 1 Composite/PC switchable)
  • 4 Mono (XLR or ¼") and 2 stereo mixable audio channels
  • Built-in stereo microphone for mixing in ambient sound
  • Built-in scan converter for PC input with a thru for connecting a projector or display
  • Built-in single LCD monitor with touch control for easy video source and menu selection
  • Monitor can be used to view a quad display of inputs, program out or combination quad view with program out.
  • Compositing video effects include: keying, split screen, picture-in-picture
  • Digital audio effects include: Noise Gate, EQ, Reverb, Noise Suppressor, enhancer and master Lo/Hi filters
  • USB video/audio class device for web streaming or recording with a PC/Mac.

Video:

  • Input Connectors: VIDEO IN 1--4 jacks (Composite: RCA phono type) PC IN connector (DB-15 type)
  • Output Connectors: VIDEO OUT 1, 2 jacks (Composite: RCA phono type) VIDEO OUT MULTI-PREVIEW jack (Composite: RCA phono type) PC THRU connector (DB-15 type) (THRU)
  • Video Format: Composite: NTSC or PAL PC IN: 800 x 600 (120 Hz), 832 x 624 (75 Hz), 1024 x 768 (80 Hz), 1152 x 864 (75 Hz), 1152 x 870 (75 Hz), 1280 x 720 (60 Hz), 1280 x 768 (75 Hz), 1280 x 800 (75 Hz), 1280 x 1024 (75 Hz), 1366 x 768 (75 Hz) *The refresh rate is the maximum value of each resolution.
  • Sampling Rate: 4:2:2 (Y:R-Y:B-Y), 8-bit, 13.5 MHz (ITU-R BT.601)
  • Input/Output Level and Impedance: Composite: 1.0 Vp-p, 75 ohms PC IN: 0.7 Vp-p, 75 ohms (H,V:5V TTL).

Audio:

  • Input Connectors: AUDIO IN 1--4 jacks (XLR/TRS combo type, phantom power) AUDIO IN 5--6 jacks (RCA phono type) AUDIO IN 7--8 jack (Stereo miniature type) MIC (Internal stereo microphones)
  • Phantom Power: DC 48 V (unloaded maximum), 5 mA (maximum load) * Current value per channel.
  • Output Connectors: AUDIO OUT L,R jacks (Stereo 1/4-inch phone type) AUDIO OUT L,R jacks (RCA phono type) PHONES jack (Stereo 1/4-inch phone type) (headphones) PHONES jack (Stereo miniature type) (headphones)
  • Sampling Rate: 48 kHz (24-bit)
  • Input Level and Impedance: XLR/TRS: -68--+4 dBu (Maximum: +22 dBu, 4 k ohms) RCA phono: -10 dBu (Maximum: +8 dBu, 15 k ohms) Miniature: -15 dBu (Maximum: +3 dBu, 15 k ohms)
  • Output Level and Impedance: 1/4-inch phone/RCA phono: -10 dBu (Maximum: +8 dBu, 1 k ohm) Headphones: 25 mW + 25 mW, 10 ohms.

Other Connectors:

  • USB connector: Hi-Speed USB: USB Type B, USB-VIDEO, USB-AUDIOResolution: 720 x 480 (29.97fps/Motion-JPEG), Audio: 48kHz/16bit
  • Remote: MIDI IN, OUT/THRU (5-pin DIN type)
  • Display: Graphic color LCD 320 x 240 dots (touch screen)
  • Power Supply: DC 9V
  • Current Draw: 1.5 A.

Size and Weight:

  • Width: 11-15/16 inches
  • Depth: 8 inches
  • Height: 3-3/16 inches
  • Weight: 4 lbs. 7 oz.
