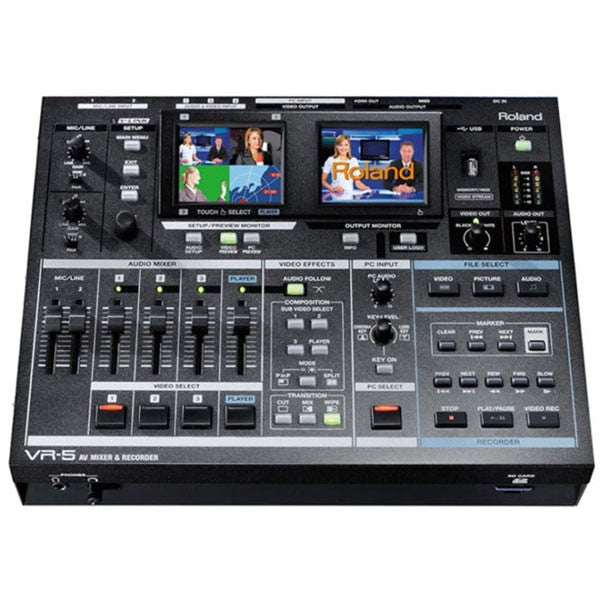

Roland VR-5 Audio Video Mixer Recorder

Everything you need in a single device

The VR-5’s “all-in-one” solution greatly simplifies production, recording and streaming of these live events. The VR-5’s innovative design incorporates a video switcher, audio mixer, video playback, recorder, preview monitors and output for web streaming all in a single unit. As a USB Video/Audio class device, web streaming is effortless by simply connecting to a computer running a live streaming service such as USTREAM® and Stickam™, as well as any video call service such as Skype™ and iChat. The reduction in hardware equipment, setup time and connection complexity ensures a worry-free, easy to use solution for any event.

The VR-5 is ideal for school meeting, churches, council meetings, corporate events, live web broadcasting - any live event.

  • 5-Channel Video Switcher (3 video sources, PC input, video playback)
  • 2 Mono and 5 Stereo Mixable Audio Channels
  • Built-in scan converter for PC input
  • Built-in dual LCD monitors with touch control for easy video source selection
  • Three video layers for 2 video sources plus DSK (downstream keyer)
  • MPEG-4 player/recorder
  • USB video/audio class device for web streaming.

Video:

  • Video Format: [Video] NTSC or PAL (ITU601), [PC-RGB] 640 x 480/120 Hz, 800 x 600/120 Hz, 832 x 624/75 Hz, 1024 x 768/80 Hz, 1152 x 864/80 Hz, 1152 x 870/75 Hz, 1280 x 1024/75 Hz, 1600 x 1200/60 Hz (RGB VH: positive/negative logic). * VESA DMT Version 1.0 Revision 10 conform. * The refresh rate is the maximum value of each resolution.
  • Video Sampling Rate: [Video] 4:2:2 (Y:B-Y:R-Y), 8 bits, 13.5 MHz
  • Frame Synchronizer: 5 systems
  • Input Level and Impedance: [Video (composite)] 1.0 Vp-p, 75 ohms, [S-video] Luminance signal: 1.0 Vp-p, 75 ohms. Chrominance signal: 0.286 Vp-p, 75 ohms (NTSC) /0.3 Vp-p, 75 ohms (PAL). [PC-RGB] 0.7 Vp-p, 75 ohms (H, V: 5 V TTL)
  • Output Level and Impedance: [Video (composite)] 1.0 Vp-p, 75 ohms, [S-video] Luminance signal: 1.0 Vp-p, 75 ohms. Chrominance signal: 0.286 Vp-p, 75 ohms (NTSC) /0.3 Vp-p, 75 ohms (PAL)Connectors: [Input] Video (composite): BNC type x 3, S-video: 4-pin mini DIN type x 3, PC-RGB: D-Sub 15-pin Shrink type x 1. * Inputs 1 to 3; When S-video is simultaneously input to 1 to 3, S-video takes priority. [Output] Video (composite): BNC type x 2, S-video: 4-pin mini DIN type x2. [Preview Output] Video (composite): BNC type x 1.

Audio:

  • Internal Processing: Sample Rate: 24-bit/48.0 kHz
  • Input Level: [AUX AUDIO INPUT] +4 dBu to –62 dBu (variable) Max: +22 dBu. [Channel 1/2/3] –10 dBu Max: +8 dBu [PC AUDIO] –15 dBu Max: +3 dBu
  • Input Impedance: [AUX AUDIO INPUT] XLR type: 4 k ohms, TRS phone type: 6 k ohms. [Channel 1/2/3 and PC AUDIO] 15 k ohms
  • Input Connectors: [AUX AUDIO INPUT] XLR-3-31 type (balanced, phantom power), 1/4 inch TRS phone type (balanced/unbalanced) * TRS type takes priority. [Channel 1/2/3] RCA phono type [PC AUDIO] Stereo miniature type
  • Output Level: [AUDIO OUTPUT] –10 Output Level dBu Max: +8 dBu [PHONES] 50 mW + 50 mWOutput Impedance [AUDIO OUTPUT] XLR type: 600 ohms, TRS phone type: 1 k ohms, [PHONES] 10 ohms
  • Output Connectors: [AUDIO OUTPUT] XLR-3-32 type (balanced), RCA phono type. [PHONES] Stereo 1/4 inch phone type.

Recorder:

  • Recording Format: [Format] MP4 (.mp4). Video Codec: MPEG-4 Visual. Audio Codec: MP3 (MPEG-1 Audio Layer-3)
  • Bit Rate:  2 Mbps, 4 Mbps, 6 Mbps
  • Media:  SD Memory Card (1 to 2 GByte), SDHC Memory Card (Max 32 GByte), Class 4 or greater
  • File System: FAT32 (Max file size of 4 GByte)
  • Movie Size: [TV Size] NTSC (720 x 480). PAL (720 x 576)
  • Max Recording Time: Recorded file is up to 4 GByte.Bit Rate at 2 Mbps: approximately 4 hours/4 GByte. Bit Rate at 4 Mbps: approximately 2 hours/4 GByte. Bit Rate at 6 Mbps: approximately 80 minutes/4 GByte
  • Supported Playback: [Video File Format] .MP4, .AVI. Video Codec: MPEG-4 Visual, Audio Codec: MP3 (MPEG-1 Audio Layer-3). [Audio File Format] .WAV, .MP3, [Picture File Format] .BMP, .JPG

Other Connectors:

  • HDMI Connector: [Resolution] Setup to NTSC: 480p, Setup to PAL: 576p. OUTPUT or PREVIEW OUTPUT
  • USB A Type Connector: For USB Storage device, For USB Video Stream output (Support UVC/UAC). USB 2.0 High-Speed
  • Remote Control Interfaces: MIDI IN: 5-pin DIN type x 1 jack. MIDI OUT/THRU: 5-pin DIN type x 1 jack.

Others:

  • Transition Effects: Switcher: Cut, Mix, Hard edge wipe, Soft edge wipe. DSK: Cut, Mix
  • Video Effects: Luminance key, Chroma key, Picture-in-picture, Split
  • Power Supply: DC 12 V (AC Adaptor: PSB-7U)
  • Current Draw: 3 A (AC Adaptor: PSB-7U).
