Rupert Neve Designs 5059 Satellite 16 x 2+2 Summing Mixer

Built around many of the topologies and custom transformers made famous with the 5088 mixer and Portico II Series, the 5059 is designed to deliver the ultimate “out of the box” sonics and ergonomics in a 2U, rack-mountable chassis The 5059 features 16 channels with individual level, pan, inserts, stereo-2 sends, and master texture controls, providing easy integration with outboard equipment, complete control for two separate stem mixes, and the ability to dial in analogue mojo in two modes.

With the same sonic heritage as mixers used to create countless hit records, the 5059 Satellite Mixer imbues tracks with the legendary warmth and presence of a Rupert Neve design The most important element of the 5059 is its legendary sound.

The keys to the sonic prowess of the 5059 are the custom transformers and true class-A topologies found within The class-A topologies in the 5059 have been fine-tuned over a number of years to provide exceptional sonic performance and completely eliminate cross-over distortion.

When combined with Mr Rupert Neve’s transformer design and implementation, the 5059 achieves a remarkable purity, while also conveying the signature warmth and larger-than-life sound reminiscent of Rupert’s classic designs.

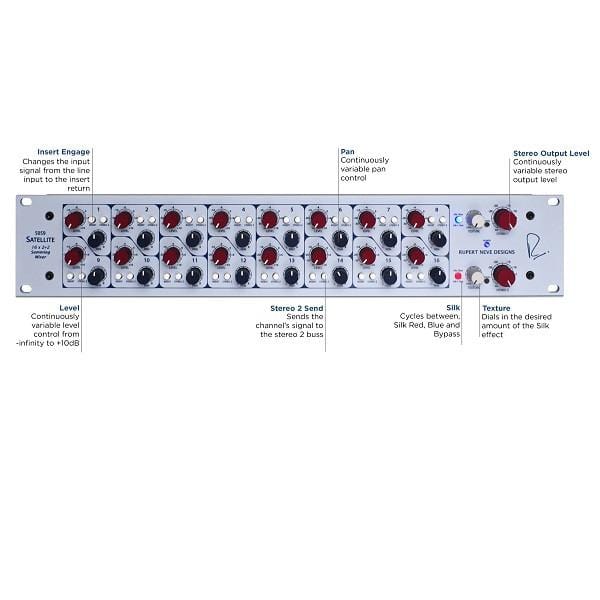

Rupert Neve Designs 5059 Features: Texture Continuously variable control for Silk and Silk+ modes allows the engineer to fine tune the harmonic ratio and tonality of both stereo outputs New Class-A Topologies With zero crossover distortion and unmatched purity, the 5059 sets the standard for rack-mountable summing mixers Custom Transformers Beyond providing galvanic isolation, the custom transformers in the 5059 are a key ingredient to its larger than life sound.

Dual Stereo Outputs Split the input channels into two stems for further processing and mixing Channel Level Individual level controls are provided for each channel from -∞ to +10dB.

Channel Pan Individual pan controls are provided on each channel of the 5059 with a 3dB pan law Master Output Level Level controls are provided for each of the stereo outputs -∞ to 0dB.

Rupert Neve Designs 5059 Specifications: Frequency Response: 100K Load, +/- 0.1dB from 20Hz to 20kHz -3dB @ 3.5Hz / 185kHz Noise: IEC-A-Weighted Buss Outputs: -106dBV Single Channel assigned @ -∞: -104dBV Single Channel assigned @ Unity: 103dBV Single Channel assigned @ +10dB -100dBV Un-weighted, 22Hz – 22kHz Buss Outputs: Single Channel assigned @ -∞: -101dBV Single Channel assigned @ Unity: -100dBV Single Channel assigned @ +10dB -97dBV Signal to Noise +20dBu output un-weighted, 22 – 22kHz: 116dB +20dBu output, IEC A weighted: 119dB +4dBu output unweighted, 22 – 22kHz: 100dB +4dBu output, IEC A weighted: 103dB Output Level: Summing Busses to XLR outputs, Maximum Output Level, 20Hz to 40kHz: +26dBu Single Channel to Buss, Maximum Output Level, 20Hz to 40kHz: +24.5dBu Total Harmonic Distortion and Noise: 1kHz @+20dBu output: better than 0.003% 20Hz @+20dBu output: better than 0.005% Total Harmonic Distortion, Silk Engaged: Blue Silk – 100Hz @+20dBu output, texture control 12 o’clock: 0.2% typical Blue Silk – 100Hz @+20dBu output, texture control fully CW: 0.65% typical Red Silk – 100Hz @+20dBu output, texture control 12 o’clock: 0.1% typical Red Silk – 100Hz @+20dBu output, texture control fully CW: 0.35% typical Slew Rate: 4V/uS Crosstalk: Buss1 to Buss2 1kHz: Better than -90dB 10kHz: Better than -70dB Power Consumption: AC Mains, 100VAC to 240VAC, 50/60Hz: 45 Watts Fuses – not user accessible, internal on power supplies Size/Weight: Size: 3.5”H (2U), 19”W, 8”D Weigh: 23lbs Shipping size: 22” x 17” x 8” Shipping Weight: 25lbs Made in USA.
