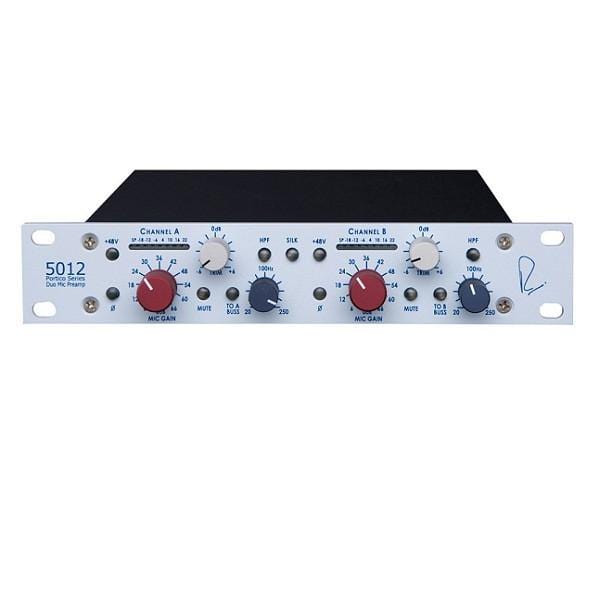

Rupert Neve Designs Portico 5012-H Duo Mic Preamplifier (Horizontal)

The Portico 5012 is a dual channel mic pre featuring Rupert Neve’s custom input and output transformer designs In addition to individually selectable phase, mute, phantom power and a fully sweepable high pass filter, the 5012 incorporates a “Silk” circuit which yields the rich warmth and presence of his renowned classics.

Rupert Neve Designs Portico 5012-H Features: Silk Much could be written about this feature, suffice to say, that it gives a subtle option to enhance sound quality in the direction of vintage modules The Silk button reduces negative feedback and adjusts the frequency spectrum to provide a very sweet and musical performance.

We suggest you try it and make your own judgment Level Meter -30 dBu to +22 dBu With reference to the output Mute Cuts of the output signal post metering and pre Buss Output.

Be sure to mute the outputs before engaging phantom power High Pass Filter The High pass filter is a valuable aid in any signal chain but particularly so in a microphone preamplifier.

Signals between 20 and 250 Hz can be attenuated, leaving the range above this unaffected This gets rid of building rumble, air handling motor hum etc.

Phantom Power Provides 48V phantom power to microphones Buss Output The To Buss output is unbalanced and has a high impedance output It is intended for use with the Portico Buss Amp/Monitoring modules.

A TRS patch cord is used to connect the 5012 Buss output to one of these bussing modules The Monitor connection is derived pre mute on the 5012 and will produce a signal at the output of the buss modules that is equal in level to that at the 5012 output.

The Monitor output cannot be used for any other purpose Polarity Flips the phase of an incoming source 180 degrees Rupert Neve Designs Portico 5012-H Specifications: Frequency Response: Main Output, no load, –3 dB @ 2.5 Hz –3 dB @ 125 kHz Noise: Measured at Main Output, unweighted, 22Hz-22kHz, Terminated 40 Ohms, With gain at unity better than –102 dBu Maximum input: from 20 Hz to 20 kHz, +25 dBu.

Maximum output: from 20 Hz to 20 kHz is +25 dBu Total Harmonic Distortion and Noise: from <10 Hz to 80 kHz, @ 1kHz, +20 dBu output: Better than 0.002% @ 20Hz, +20 dBu out Better than 0.120% 13 @ 20kHz, +20 dBu out Better than 0.010% Total Harmonic Distortion and Noise: from <10 Hz to 80 kHz @ 1kHz, +20 dBu output: Better than 0.020% @ 20Hz, +20 dBu output Better than 0.140% @ 20kHz, +20 dBu output Better than 0.070% Size/Weight: Size 1.75”H (1U), 9.5”W, 8”D Weight 8lbs Made in USA.
