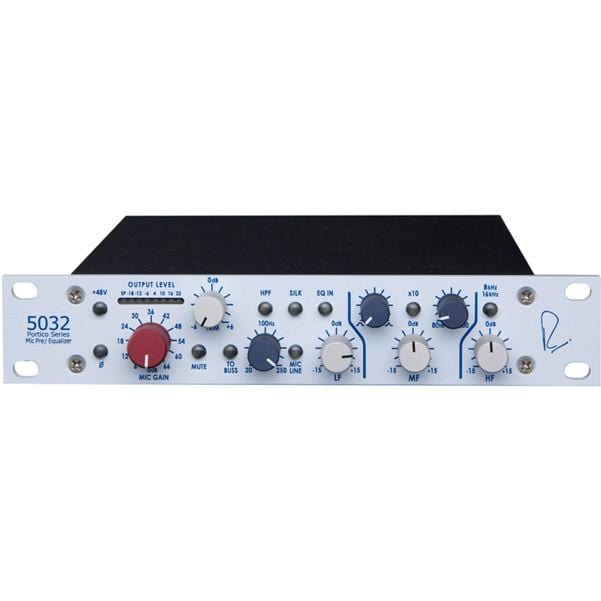

Rupert Neve Designs Portico 5032 - Horizontal

The Portico 5032 is a single channel Mic Pre/EQ having an independent transformer-coupled Line level input for the EQ section It includes a full-featured Mic Pre identical to that in the 5012, with the addition of a flexible 3-band Equalizer in the Mr.

Rupert Neve tradition The 5032 is equipped with high and low frequency shelving curves and a Parametric Mid Band covering 80Hz-8kHz in two ranges.

The Rupert Neve Designs 5032 module is a half rack width, 1U module in the Portico style The 5032 is ideal for both tracking and mixing applications with selectable mic or line inputs.

Both paths have full access to the EQ, phase, silk and mute making it the ideal choice for either standalone operation, or forming the core of a larger mixing system As with the entire Portico range, the construction uses a robust steel shell that provides total magnetic screening and exceptional mechanical stability.

The front panel is machined from a solid 1/8-inch aluminum plate with a steel sub panel behind it Alternative front panel layouts are available providing a choice of vertical or horizontal mounting.

When the horizontal front panel is chosen, a single 5032 can sit firmly on a bench or desktop on its detachable rubber feet Two 5032s can be joined with the optional Horizontal Joining Kit (Model # 5221-RM) and mounted across a standard 19” rack.

Rupert Neve Designs Portico 5032-H Features: Microphone / Line Inputs Separate microphone and line inputs may be selected With both the inputs, phase, silk, HPF, and the 3 bands of EQ are available for use Mic Pre 72dB total gain across a 6dB increment stepped switch and a +/-6dB continuously variable trim pot Low Shelf Fixed 150 Hz frequency with continuously variable gain of ±15 dB Mid Parametric Band Continuously variable frequency in 2 ranges from 80 to 800 Hz and 800 Hz to 8 kHz, selected with the 10x push button; continuously variable Q; continuously variable gain of ±15 dB High Shelf Fixed 8 kHz and 16 kHz frequencies selected with the 8k/16k push button; continuously variable gain of ±15 dB EQ In Engages all 3 bands of EQ Silk It gives a subtle option to enhance sound quality in the direction of vintage modules.

Silk button reduces negative feedback and adjusts the frequency spectrum to provide a very sweet and musical performance Level Meter -30 to +22 dBu with reference to the output Mute Cuts off the output signal post metering and pre Buss Output Be sure to mute the outputs before engaging phantom power High Pass Filter High pass filter is a valuable aid in any signal chain but particularly so in a microphone preamplifier.

Signals between 20 and 250 Hz can be attenuated, leaving the range above this unaffected (eliminates building rumble, air handling motor hum etc.) Phantom Power Provides 48V phantom power to microphones Phase Inverts Flips the phase of an incoming source 180° Rupert Neve Designs Portico 5032-H Specifications: Frequency Response: Main Output, no load, –3 dB @ 2.5 Hz –3 dB @ 125 kHz Noise: Measured at Main Output, unweighted, 22Hz-22kHz, Terminated 40 Ohms, With gain at unity better than –102 dBu Maximum input: from 20 Hz to 20 kHz, +25 dBu Maximum output: from 20 Hz to 20 kHz is +25 dBu.

Total Harmonic Distortion and Noise: from <10 Hz to 80 kHz, @ 1kHz, +20 dBu output: Better than 0.002% @ 20Hz, +20 dBu out Better than 0.120% 13 @ 20kHz, +20 dBu out Better than 0.010% Equalizer Noise: Measured at Main Output, unweighted, 22Hz-22kHz, Terminated 40 Ohms with all gains set at 0, Better than –92 dBu Maximum input: from 20 Hz to 20 kH, +24.5 dBu Maximum output: from 20 Hz to 20 kHz, +24.5 dBu Total Harmonic Distortion and Noise: from <10 Hz to 80 kHz, @ 1kHz, +20 dBu output: Better than 0.007% @ 20Hz, +20 dBu out Better than 0.120% @ 20kHz, +20 dBu out Better than 0.070% Noise: Measured at Main Output, unweighted, 22Hz-22kHz, Terminated 40 Ohms.

Better than –92 dBu Maximum input: from 20 Hz to 20 kHz, +25 dBu Maximum output: from 20 Hz to 20 kHz, +25 dBu.

Total Harmonic Distortion and Noise: from <10 Hz to 80 kHz @ 1kHz, +20 dBu output: Better than 0.020% @ 20Hz, +20 dBu output Better than 0.140% @ 20kHz, +20 dBu output Better than 0.070% Made in USA.
