Rupert Neve Designs Portico 5033-H (Horizontal)

Rupert Neve Designs Portico 5033-H (Horizontal)

This item is out of stock



The Portico 5033 Five Band EQ and high performance line driver is an equalizer for the Portico Series with the performance, features and musicality expected from Mr. Rupert Neve.
The 5033 features Rupert’s custom input and output transformer designs, five bands of EQ based on his traditional curves, +/-12dB input level adjustment, and five filter bypasses. It comes available in either horizontal or vertical formats, for rack-mounting or inclusion in a 5088 console.
On the input and output of the 5033 lie custom-designed Rupert Neve transformers, a hallmark of his classic designs. The EQ section can be completely bypassed and the unit can be used as a very high quality line driver utilizing these transformers, which can help to add sonic “sweetness” to a source.

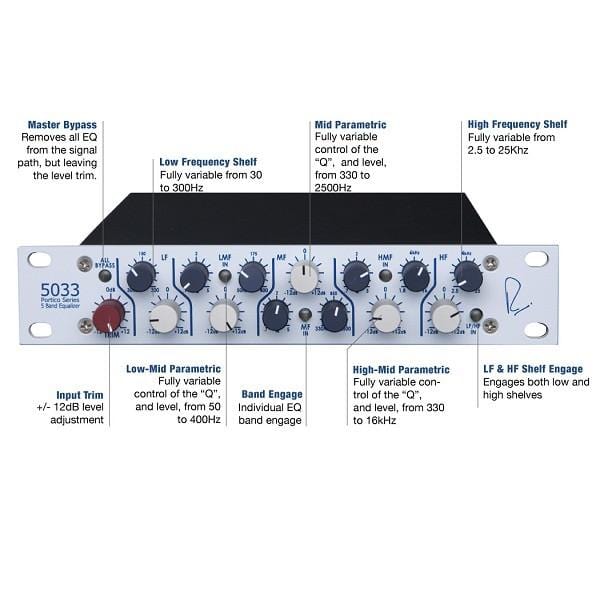

Rupert Neve Designs Portico 5033-H Features:

  • TRIM
    Provides fine gain adjustment continuously over a range of +/- 12 dB.
  • ALL BYPASS
    Push button inserts or bypasses the entire EQ circuit
  • LF SECTION
    Continuously variable shelving filter with a frequency range of 30 Hz to 300 Hz; continuously variable gain of +/- 12
  • LMF SECTION
    Continuously variable frequency range of 50 Hz to 400 Hz;
    continuously variable Q; continuously variable gain of +/- 12; IN pushbutton inserts or bypasses LMF Section
  • LMF IN
    Inserts the LMF Section into the circuit
  • MF SECTION
    Continuously variable frequency range of 330 Hz to 2500 Hz;
    continuously variable Q; continuously variable gain of +/- 12; IN pushbutton inserts or bypasses LMF Section
  • MF IN
    Inserts the MF Section into the circuit
  • HMF SECTION
    Continuously variable frequency range of 1.8 kHz to 16 kHz;
    continuously variable Q; continuously variable gain of +/- 12; IN pushbutton inserts or bypasses LMF Section

Rupert Neve Designs Portico 5033-H Specifications:

  • EQ POINTS
    LMF
    1st notch not numbered – 65.1 Hz
    2nd notch – 120.8 Hz
    4th notch – 248.9 Hz
    5th notch – 354.5 Hz
    MF
    1st notch not numbered – 443.6 Hz
    2nd notch – 693.9 Hz
    4th notch – 1.481 kHz
    5th notch – 2.225 kHz
    HMF
    1st notch not numbered – 2.475 kHz
    2nd – 4.748 kHz
    4th – 9.612 kHz
    5th – 13.545 kHz
    The LF and HF shelf frequencies are the 3 dB down points from the
    highest point of the shelf:
    LF
    1st notch not numbered – 68.4 Hz
    2nd – 111.3 Hz
    4th – 155.6 Hz
    5th – 198 Hz
    HF
    1st notch not numbered – 2.760 kHz
    2nd – 3.240 kHz
    4th – 5.6 kHz
    5th – 10.9 kHz
  • TRIM
    Provides fine gain adjustment continuously over a range of +/- 12 dB.
  • ALL BYPASS
    Push button inserts or bypasses the entire EQ circuit
  • LF SECTION
    Continuously variable shelving filter with a frequency range of 30 Hz to 300 Hz; continuously variable gain of +/- 12
  • LMF SECTION
    Continuously variable frequency range of 50 Hz to 400 Hz;
    continuously variable Q; continuously variable gain of +/- 12; IN pushbutton inserts or bypasses LMF Section
  • LMF IN
    Inserts the LMF Section into the circuit
  • MF SECTION
    Continuously variable frequency range of 330 Hz to 2500 Hz;
    continuously variable Q; continuously variable gain of +/- 12; IN pushbutton inserts or bypasses LMF Section
  • MF IN
    Inserts the MF Section into the circuit
  • HMF SECTION
    Continuously variable frequency range of 5 kHz to 16 kHz;
    continuously variable Q; continuously variable gain of +/- 12; IN pushbutton inserts or bypasses LMF Section
  • HMF IN
    Inserts the HMF Section into the circuit
  • HF SECTION
    Continuously variable shelving with a frequency range of 2.5 kHz to 25 kHz; continuously variable gain of +/- 12
  • HF & LF IN
    Inserts the HF and LF Sections into the circuit
