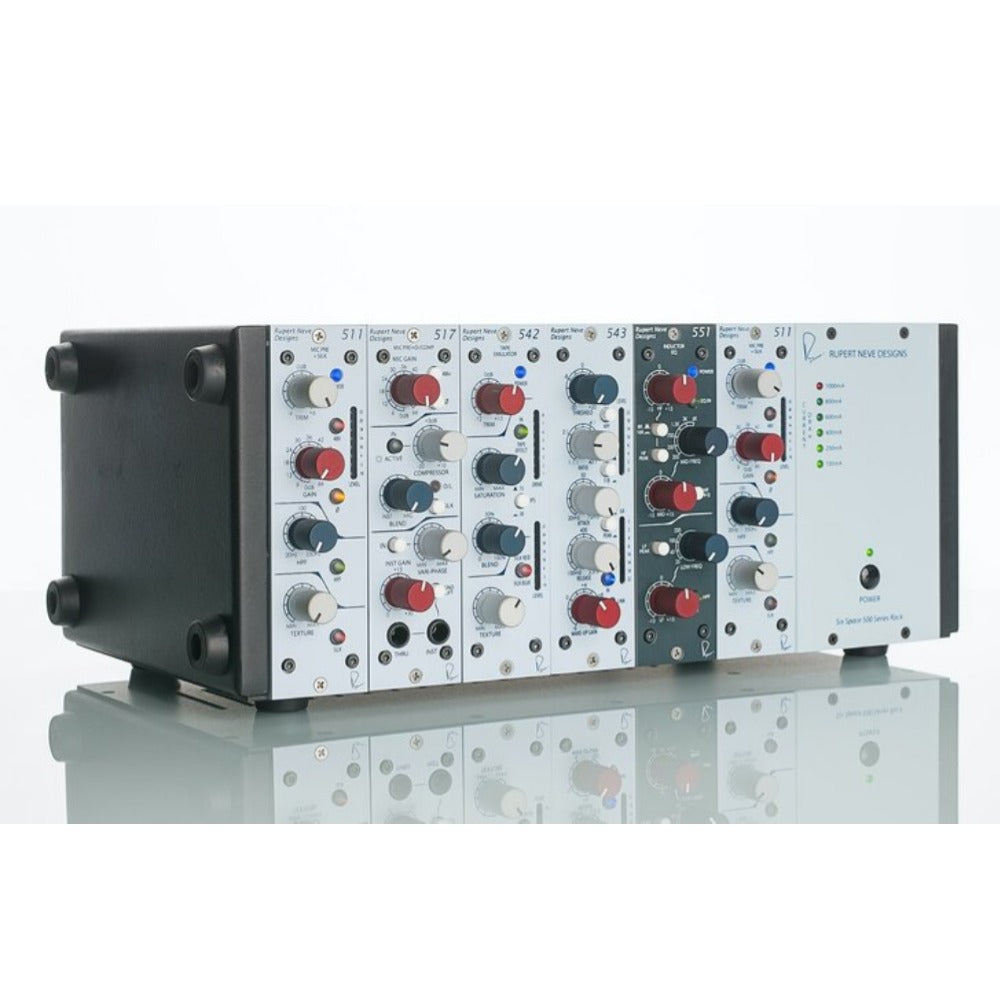

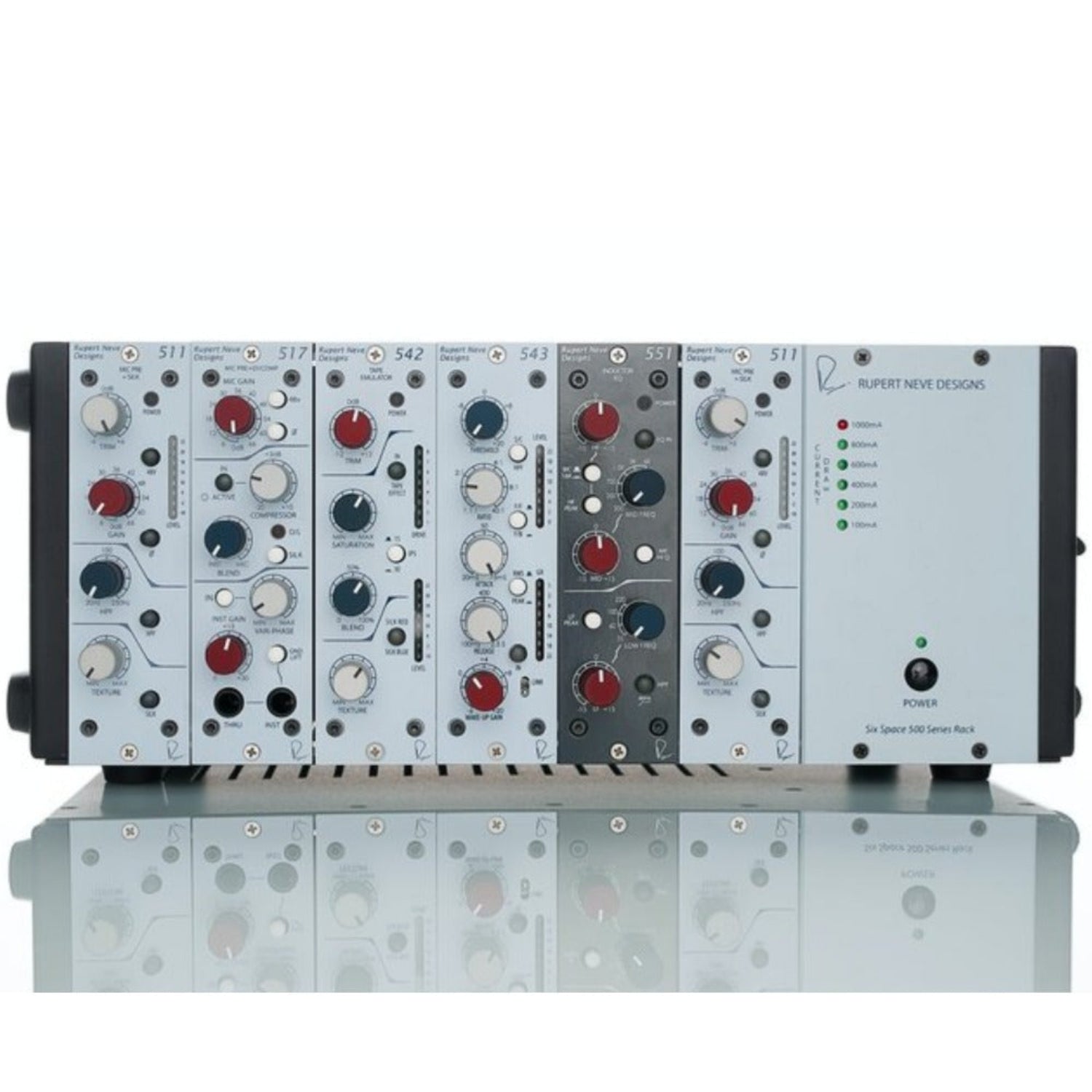

With abundant power and versatile connections, the R6 delivers peace of mind for engineers who demand a higher degree of confidence in their 500 series racks.
The chassis is comprised of solid steel with bumpers to support the unit in both horizontal and vertical configurations, and features a collapsable handle for portability. All connectors and fittings are of the highest quality to ensure that the R6 will hold up to many years of use.
To mount the R6 into a standard 19” rack frame, there is a rack kit available for R6 racks with serial numbers higher than 250 (shipped after June 2015). When the bottom feet are removed, the R6 takes up 3U of rack space.
Rupert Neve Designs R6 Six Space Features:

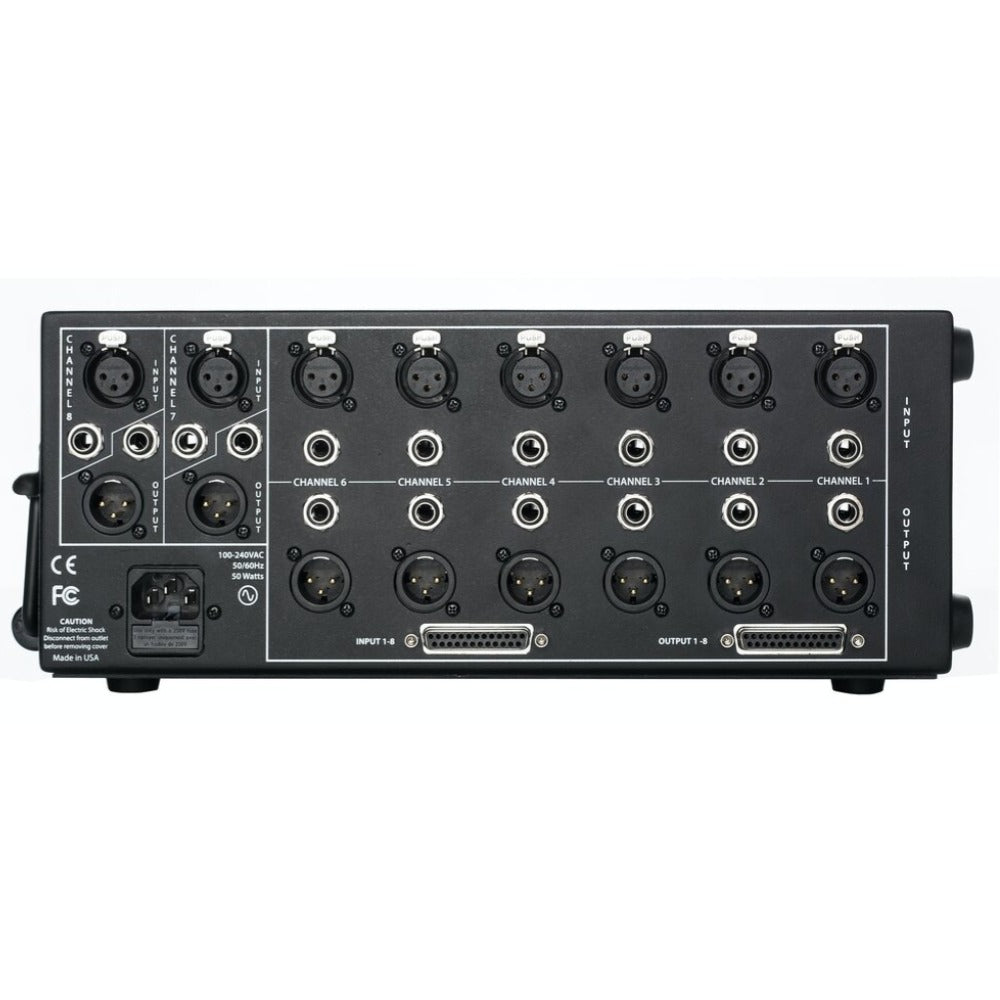

- Massive Connectivity
Interchangeable XLR, TRS, and DB-25 I/O connections are provided to ensure that you can connect wherever you go with the backpanel patchbay
- Serious Power
Even with modules that overdraw the 500 series specification, the R6 has the reserve power to maintain the voltage
- Power Monitoring
An LED Meter monitors the R6 current usage to ensure that you never run short on power. This meter can also be useful for troubleshooting a module that is severely overdrawing its allotment
- Channel 7-8 Thru Conversion
The channel 7-8 thru connections can be used as a way to quickly and easily convert your signal from/to DB-25, XLR, and TRS connectors
- 48V Phantom Supply
Provide rock-solid phantom power to your microphones with the R6’s robust 48V buss

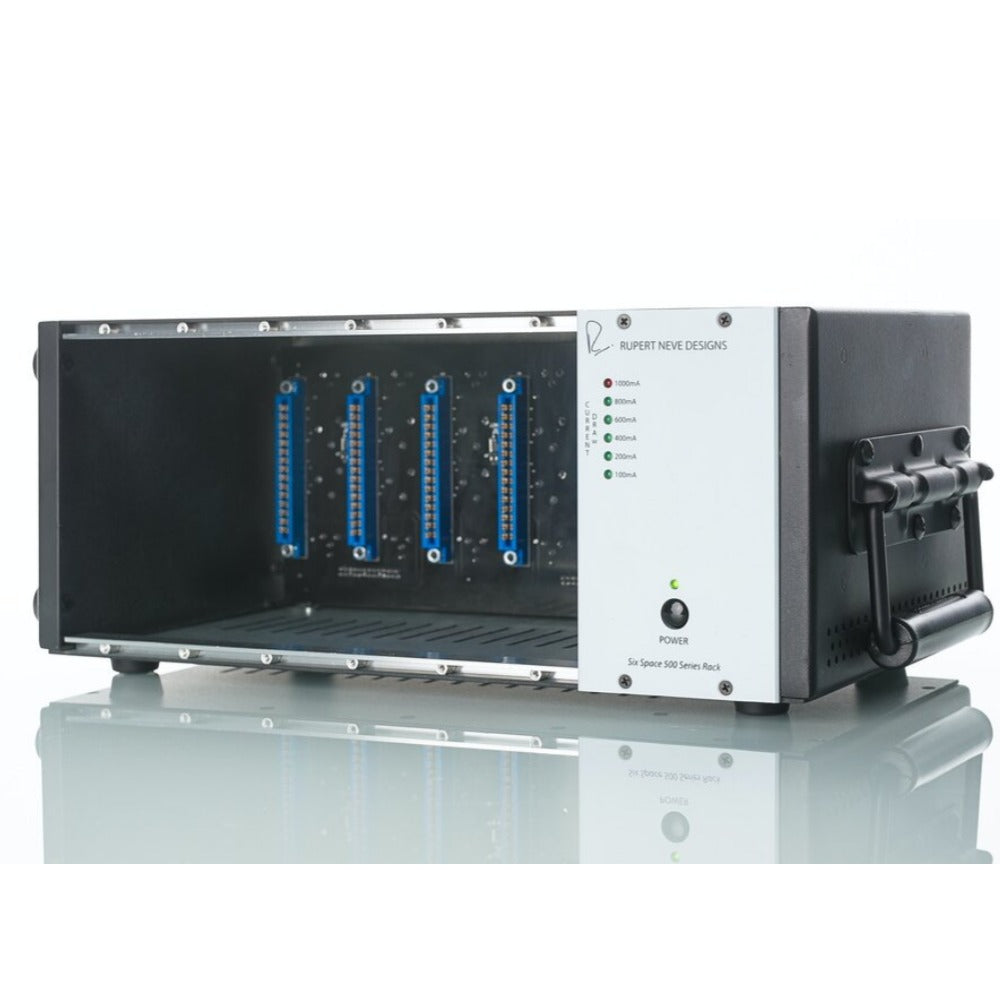

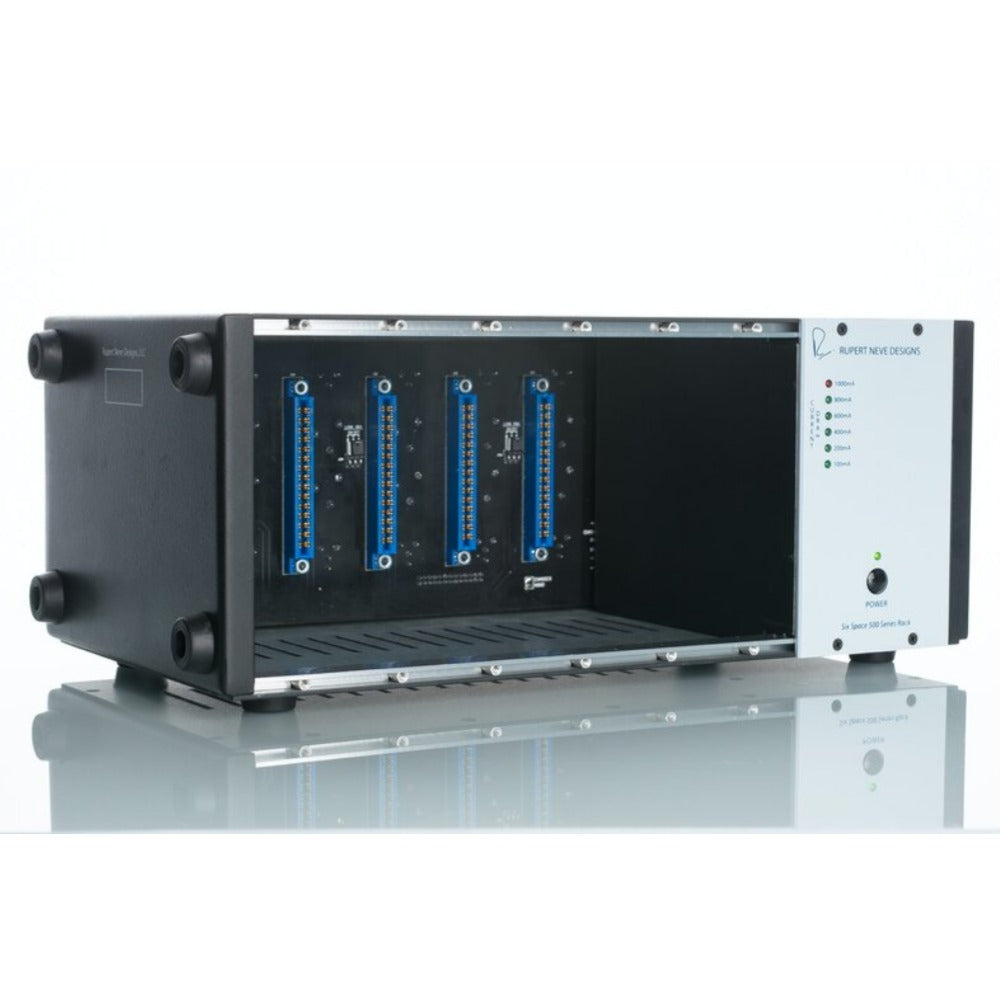

- “Built For The Road” Frame
A solid steel enclosure, two sets of rugged rubber feet for horizontal and vertical mounting and a collapsible handle make the R6 completely portable and ready for the road
Rupert Neve Designs R6 Six Space Specifications:
- DC Voltage to Units
+/-16VDC and +48VDC for phantom power
- Max Current
1000mA for modules, 150mA for 48V phantom power
- Power Requirements
100-240VAC, 50/60Hz, 50 Watts
13” long x 7.5”wide x 5.5” high
