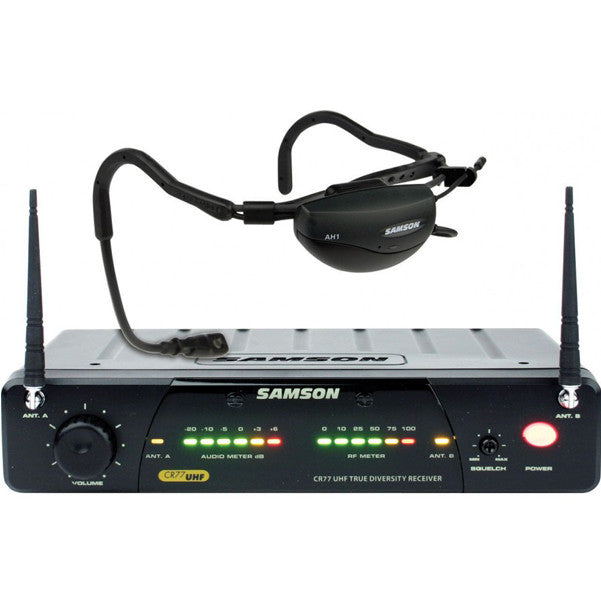

The CR77 is a true diversity UHF receiver that can beused freestanding or mounted in any standard 19-inch rack, making it easy to integrate into any traveling or fixed installation audio system. It includes a pair of tuned antennas and the synthesized PLL frequency control circuitry keeps the signal locked and true while LEDs monitor the true diversity operation.

The CR77 features a front panel display with large six-segment audio level and RF level LED meters along with a large rotary volume knob that allows easy adjustment of audio output. The unit also houses a line/mic output level switch and continuously adjustable volume and squelch controls. The rear panel features balanced XLR and unbalanced 1/4-inch outputs allowing flexible connection options. Two CR77 receivers can even be rackmounted together in a single-space rack adapter available as an added accessory.


The AH1 Headset Transmitter mounts conveniently on to Samson’s comfortable and lightweight headset, providing total freedom of mobility with no beltpack necessary. The AH1 is paired with the QV10e headset condenser mic, an excellent vocal microphone that produces full-range sound with enough definition to ensure that every word is heard clearly, even at higher volume levels.Incredibly small, the AH1 features a power on/off switch, mute switch, input sensitivity control to adjust the mic level and a multi-function LED that indicates power and low battery. The breakthrough micro circuitry allows the AH1 to operate on one AAA battery with 14 hours of life. This exceptional transmitter gives you great sound and reliable wireless reception over long ranges wherever you use it. And since it’s a UHF transmitter, that means the wireless system is operating on a much clearer frequency band with less interference. Additionally, the elegant, lightweight low profile design of the QV10e produces a wide 60 Hz to 18 kHz frequency response for accurate vocal reproduction, and its
unidirectional cardioid pickup pattern provides maximum gain before feedback. The Qv10E also has a water resistant
design that’s perfect for high humidity environments, so it’s ideal for fitness instructors and other high-energy live
vocal applications

CR77 Specifications:

  • Frequency Response: 50 Hz - 15 kHz (±3 dB overall)
  • Receiving Frequency Range: 801 – 805 MHz or 863 –
  • 865 MHz
  • Sensitivity: 18 dBm (@ THD 2%)
  • T.H.D. (Overall): 1% Max (@AF 1 kHz,
  • RF 46 dBu)
  • S/N Ratio (Overall): 90 dB (with IHF-A Filter)
  • Dimensions (W × D × H): 8.5˝ × 4.55˝ × 1.69˝
  • 216mm × 115.75mm × 43mm

AH1 QV10e Specifications:

  • Generating Element: Back Electret condenser
  • Polar Pattern: Bidirectional noise cancelling
  • Mounting system: Adjustable headband
  • and gooseneck
  • Sensitivity: 80 mV@114 dB SPL
  • Max.SPL: 145 dB
  • Weight: 1.92 oz • 54.4 g
